Datalogic PowerScan PM9501 Handheld Barcode Scanner

Part No. PM9501-DHP433RBK10

by Datalogic S.p.A

Datalogic PowerScan PM9501 Handheld Barcode Scanner

Wireless Connectivity - 1D, 2D - Imager - Yellow, Black

Part No. PM9501-DHP433RBK10

by Datalogic S.p.A

$1112.99
General Information
ManufacturerDatalogic S.p.A
Manufacturer Part NumberPM9501-DHP433RBK10
Brand NameDatalogic
Product LinePowerScan
Product Series9501
Product ModelPM9501
Product NamePowerScan PM9501 Handheld Barcode Scanner
Marketing Information

AIM, TRIGGER, DECODE: IT'S THAT SIMPLE!

An intuitive and effortless scanning experience is the target of the PowerScan™ 9501 series. They combine omnidirectional reading capabilities with outstanding optical characteristics. The result is a scanner that is able to read any kind of bar code, regardless of the orientation, from contact to over 1.0 m / 3.3 ft, depending on the bar code resolution. In addition, Datalogic's latest decoding software guarantees snappy reading in any type of environment.

MOBILITY ENHANCES PRODUCTIVITY

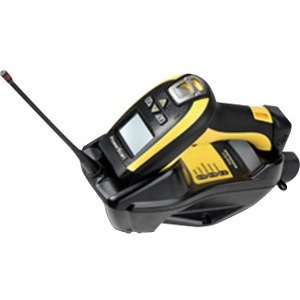

The Datalogic STAR Cordless System™ for narrow-band radio communications was developed specifically to maximize efficiency and reliability for handheld scanner data collection applications. The PowerScan PM9501 models are equipped with a new generation of the STAR-System that further improves the already outstanding features of versatility, ease of use and radio range.

The PM9501 series offers two display options: 4 configurable keys and a full 16-key keyboard. This increases interaction between the host and the user allowing a two-way exchange of information for more reliable and effective communications.

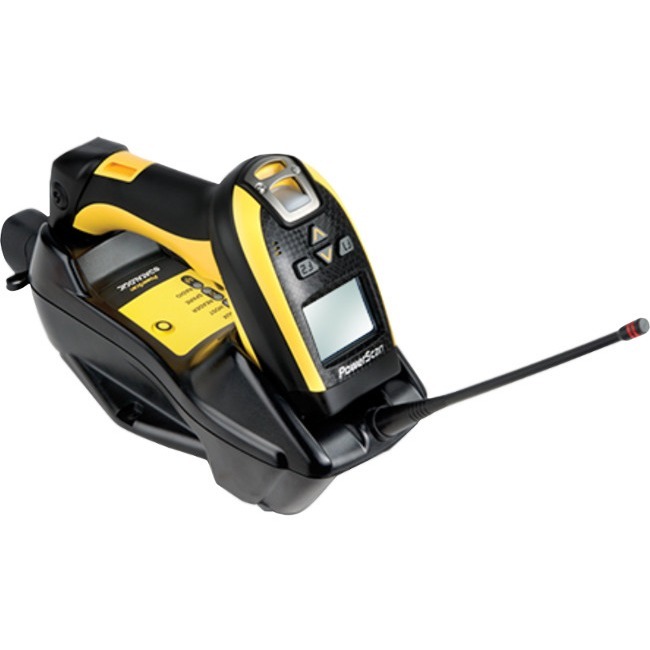

The BC9180 base/charger also includes in one model two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus.

DEVELOPED WITH THE USER IN MIND

Handle shape, well-balanced weight and an intuitive aiming system allows high first-pass reading rates while reducing unnatural wrist movements for improved ergonomics and user comfort.

The PowerScan 9501 area imagers use a soft-pulsed white illumination light that is very gentle on the eyes and less troublesome to the operator during scan-intensive applications.

Product TypeBarcode Scanner Kit
Technical Information
Connectivity TechnologyWireless
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported1D / Linear Codes: Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.

2D Codes:
  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
Postal Codes:
  • Australian Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Portuguese Post
  • Postnet
  • Royal Mail Code (RM4SCC)
  • Swedish Post
Stacked Codes:
  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Image Sensor TypeImager
Number of Keys4
Interfaces/Ports
Host Interface
  • Serial
  • USB
  • Keyboard Wedge
Physical Characteristics
Form FactorHandheld
Product Color
  • Yellow
  • Black
Weight (Approximate)15.52 oz (440 g)
barcode scanners (3)
carrying cases (1)
chargers (3)

Part No. CHR-P090

Datalogic Battery Charger

connector cables (17)

Part No. CAB-471

Datalogic DCE Coiled Cable - Female

Part No. CAB-438

Datalogic Straight Cable - Type A USB

cradles (5)
holders (1)

Part No. STD-P090

Datalogic STD-P090 Handheld Scanner Holder

mounting kits (1)

Part No. VMK-P090

Datalogic Vehicle Mount for Bar Code Reader

power adapters (3)

Part No. 90ACC0350

Datalogic Power Adapter - 12 V DC Output - 5 A

power cords (6)

Part No. 6003-0923

Datalogic Standard Power Cord - United Kingdom

Part No. 90ACC1887

Datalogic 2-pin Power Cord - 220 V AC

Part No. ZSN5PM95C1

POWERSCAN PM/BT95XXSR, 5 DAYS, RENEWAL

Part No. ZSN5PM95BR1

PM/BT95BASE, 5 DAYS, RENEWAL
