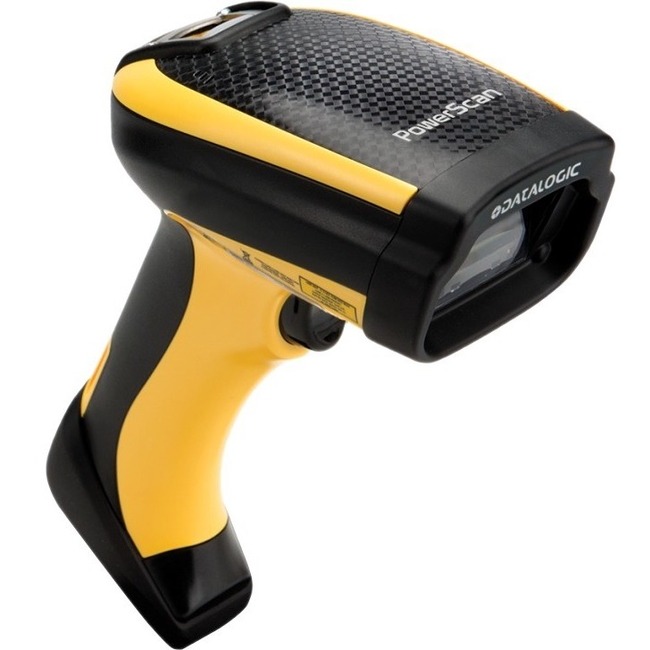

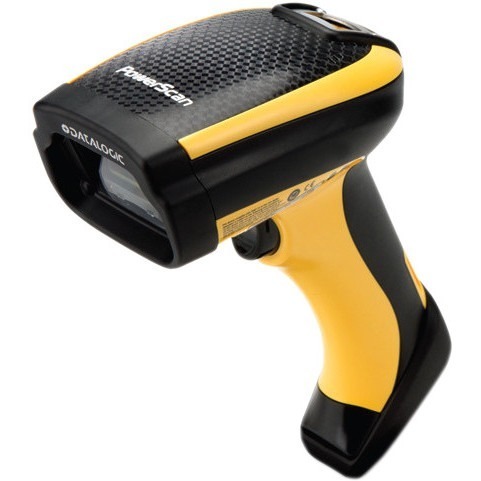

Datalogic PowerScan PD9531 Handheld Barcode Scanner

Part No. PD9531-HP

by Datalogic S.p.A

Datalogic PowerScan PD9531 Handheld Barcode Scanner

Cable Connectivity - 1D, 2D - Imager - USB - Black, Yellow

Part No. PD9531-HP

by Datalogic S.p.A

$533.99
General Information
ManufacturerDatalogic S.p.A
Manufacturer Part NumberPD9531-HP
Brand NameDatalogic
Product LinePowerScan
Product SeriesPD9500
Product ModelPD9531
Product NamePowerScan PD9531 Handheld Barcode Scanner
Marketing InformationAIM, TRIGGER, DECODE: IT'S THAT SIMPLE!

An intuitive and effortless scanning experience is the target of the PowerScan™ 9500 family. It combines omnidirectional reading capabilities, which is typical in all area imaging scanners, with outstanding optical characteristics. The result is a scanner that is able to read any kind of bar code, regardless of the orientation, from contact to over 1.0 m / 3.3 ft, depending on the bar code resolution. In addition, the PowerScan PD9500 area imager includes Datalogic's latest decoding software that guarantees snappy reading in any type of environment. Aim, trigger, decode: it is that simple!

DEVELOPED WITH THE USER IN MIND

User comfort is guaranteed because of the scanner ergonomics, consisting of the handle shape, a well-balanced weight and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement or rotation which can tire any user during long shifts. Additionally, the PowerScan 9500 area imager uses a soft-pulsed white illumination light resulting in reduced flashes, which is very gentle on the eyes and less troublesome to the operator during scan-intensive applications.

BUILT TO LAST

The rugged mechanics of the PowerScan family guarantee reliable operation in the long term. Repeated shocks and indoor / outdoor usage in the toughest environmental conditions do not modify the scanners performance or reliability

Product TypeBarcode Scanner
Technical Information
Connectivity TechnologyCable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported1D:
  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D:
  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
Postal Codes:
  • Australian Post
  • China Post
  • IMB; Japanese Post
  • KIX Post
  • Planet Code
  • Portuguese Post
  • Postnet
  • Royal Mail Code (RM4SCC)
  • Swedish Post
Stacked Codes:
  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Image Sensor TypeImager
Interfaces/Ports
Host Interface
  • USB
  • Serial
  • Keyboard Wedge
Physical Characteristics
Form FactorHandheld
Product Color
  • Black
  • Yellow
Height8.35" (212 mm)
Width2.91" (74 mm)
Depth4.33" (110 mm)
Weight (Approximate)11.64 oz (330 g)
carrying cases (1)
chargers (1)
connector cables (15)

Part No. CAB-471

Datalogic DCE Coiled Cable - Female

Part No. CAB-438

Datalogic Straight Cable - Type A USB

holders (4)

Part No. 7-0404

Datalogic Industrial Take-Up Reel

Part No. HLS-P080

Datalogic Universal Holster for Scanner

Part No. STD-P090

Datalogic STD-P090 Handheld Scanner Holder

Part No. HLD-P080

Datalogic Desktop/Wall Holder for Scanner

power adapters (1)
power cords (1)

Part No. 90ACC1887

Datalogic 2-pin Power Cord - 220 V AC

power supplies (1)

Part No. 90ACC0287

Datalogic Power Supply - 5 V DC Output
