APC by Schneider Electric Smart-UPS SRT 3000VA RM 208/230V IEC

Part No. SRT3000RMXLW-IEC

by Schneider Electric SA

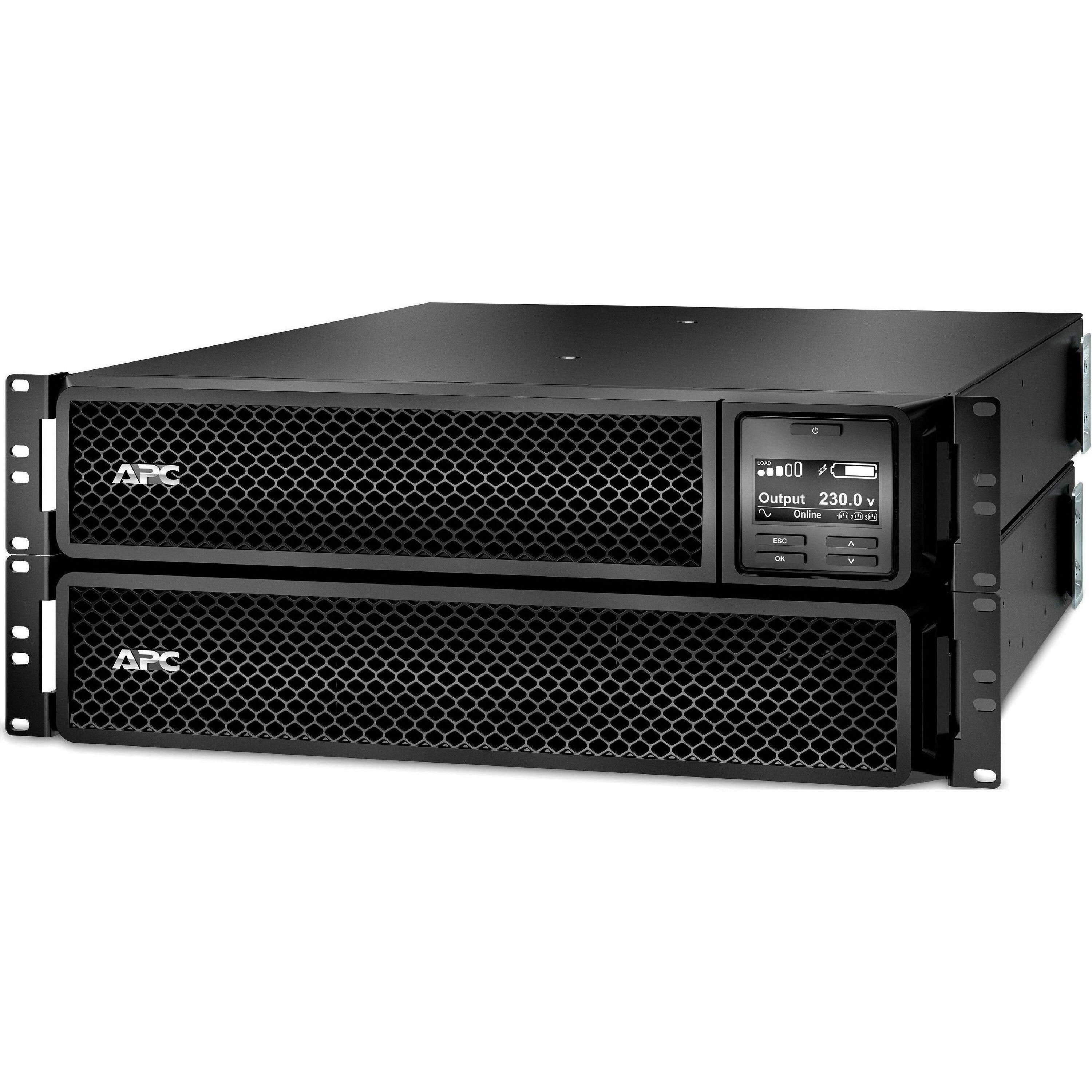

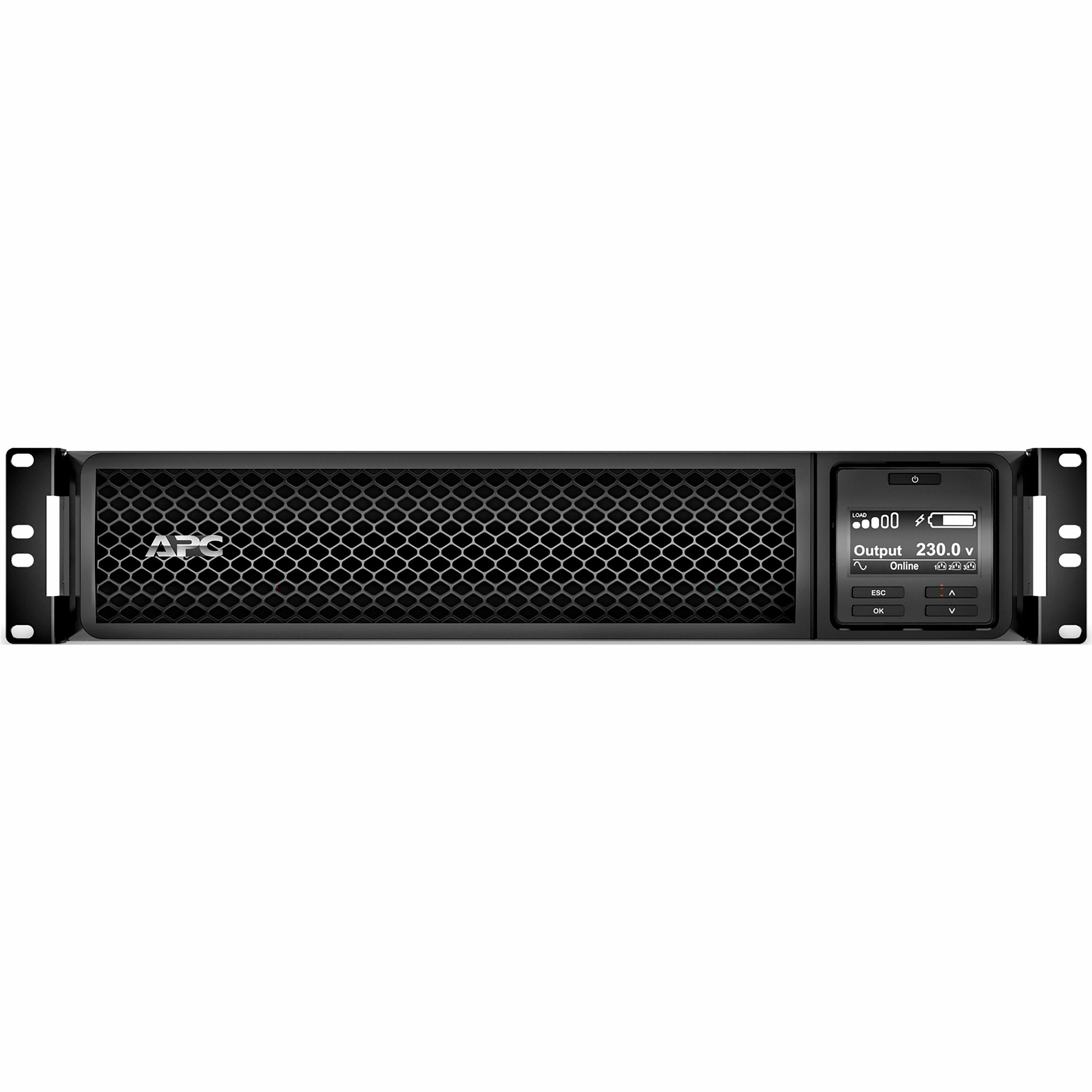

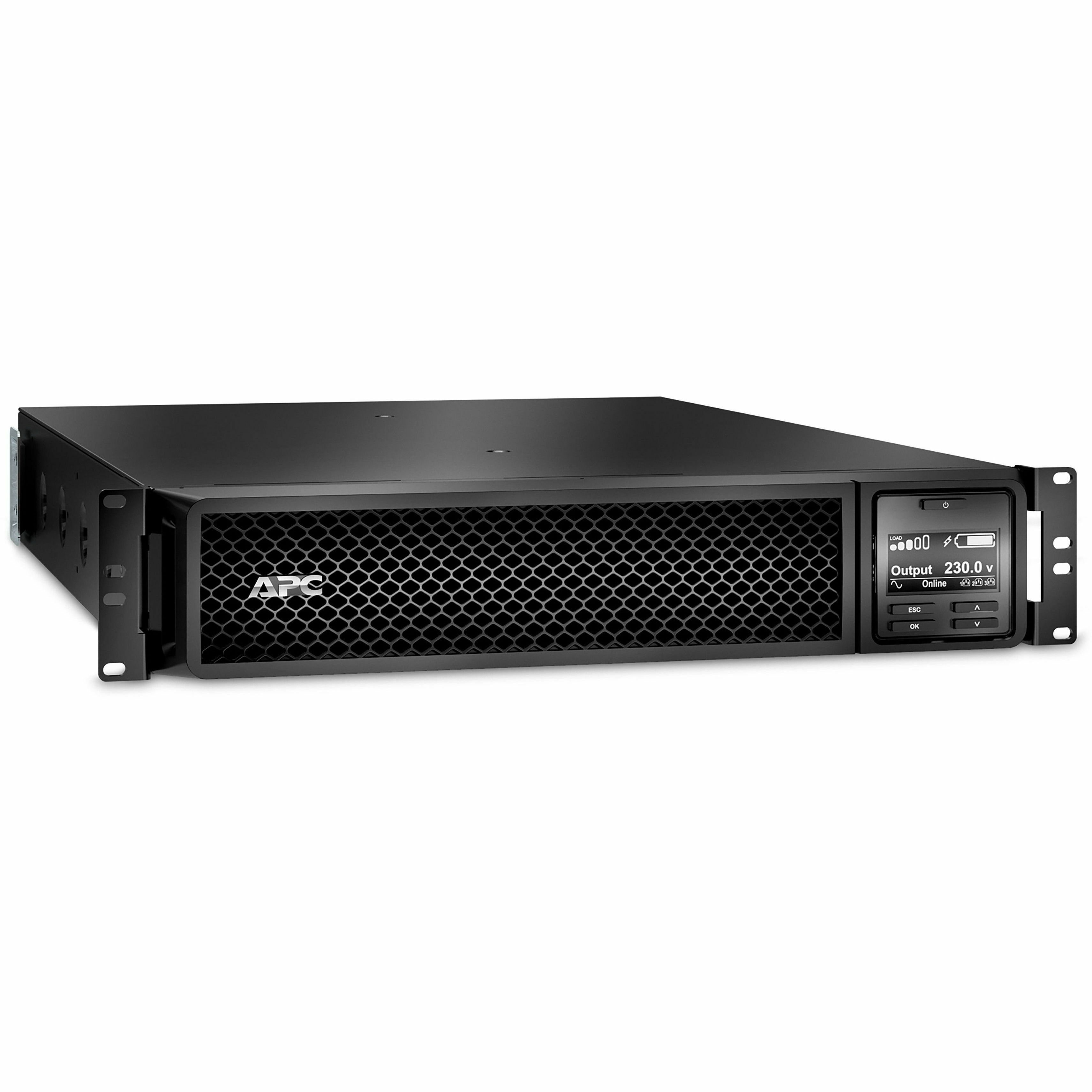

APC by Schneider Electric Smart-UPS SRT 3000VA RM 208/230V IEC

2U Rack-mountable - 3 Hour Recharge - 4 Minute Stand-by - 208 V, 230 V Input - 208 V AC, 230 V AC Output - Sine Wave - 2 x IEC 60320 C19, 2 x IEC Jumper, 6 x IEC 60320 C13 Receptacle(s) - 10 x Battery/Surge Outlet

Part No. SRT3000RMXLW-IEC

by Schneider Electric SA

$4822.99
General Information
ManufacturerSchneider Electric SA
Manufacturer Part NumberSRT3000RMXLW-IEC
Brand NameAPC by Schneider Electric
Product LineSmart-UPS On-Line
Product NameSmart-UPS SRT 3000VA RM 208/230V IEC
Marketing InformationThis APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 6x IEC 60320 C13, 2x IEC 60320 C19 outlets, and 2x IEC jumpers. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Product TypeDouble Conversion Online UPS
Technical Information
Plug/Connector TypeBritish BS1363A
Receptacle Type
  • IEC 60320 C20
  • Schuko CEE 7/EU1-16P

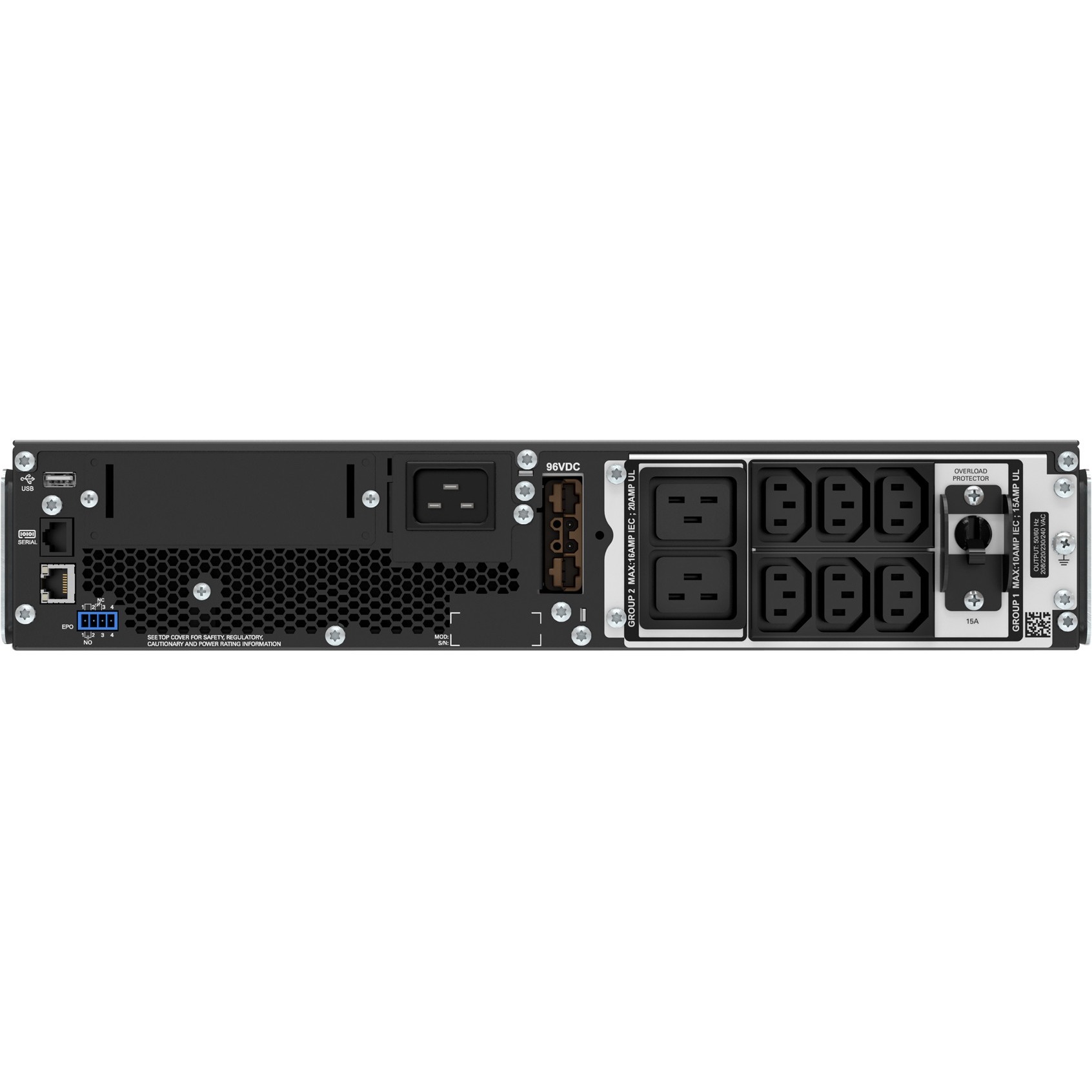

Receptacle Detail
  • 2 x IEC 60320 C19
  • 2 x IEC Jumper
  • 6 x IEC 60320 C13
Number of Battery & Surge Outlets10
Cord Length8 ft (2.44 m)
Power Description
Load Capacity (VA)3 kVA
Load Capacity (Watt)2.70 kW
Input Voltage
  • 208 V
  • 230 V
Output Voltage
  • 208 V AC
  • 230 V AC
Waveform TypeSine Wave
Surge Energy Rating340 J
Battery Information
Battery ChemistryLead Acid
Backup/Run Time (Full Load)4 Minute
Typical Battery Recharge Time3 Hour
Physical Characteristics
Color FamilyBlack
Product ColorBlack
Height3.35" (85 mm)
Width17.01" (432 mm)
Depth25" (635 mm)
Rack Height2U
Form FactorRack-mountable
Mounting PreferenceLower
Mounting LocationFront
Weight (Approximate)69 lb (31297.87 g)
Miscellaneous
For Country/RegionUnited States
Package Contents
  • Smart-UPS SRT 3000VA RM 208/230V IEC
  • CD with software
  • Documentation CD
  • Installation guide
  • Rack mounting brackets
  • Rack mounting support rails
  • USB cable
  • Warranty card
  • Certifications & StandardsCE|EAC|ENERGY STAR V2.0 (USA)|RCM|VDE|UK PSTI
    Software IncludedPowerchute Serial Edition
    Optimized Energy EfficiencyYes
    Product Take Back ProgramYes
    Mercury FreeYes
    RoHS Exemption Informationhttps://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT3000RMXLW-IEC_ROHS_DECLARATION&p_FileName=SRT3000RMXLW-IECKIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433135473&lang=en-us
    EU RoHS Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433135473&lang=en-us
    Environmental Profile Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN
    End of Life Manual Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN
    California Proposition 65 WarningWARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Energy Star URLhttps://www.energystar.gov/products/uninterruptible_power_supplies
    REACH free of SVHCNo
    WEEE StatementThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Environmentally FriendlyYes
    Environmental ComplianceRestriction of Hazardous Substances (RoHS)
    ConditionNo
    UPC0731304320074
    Warranty
    Limited Warranty3 Year
    Additional Warranty Information3 years repair or replace (excluding battery) and 2 years for battery
