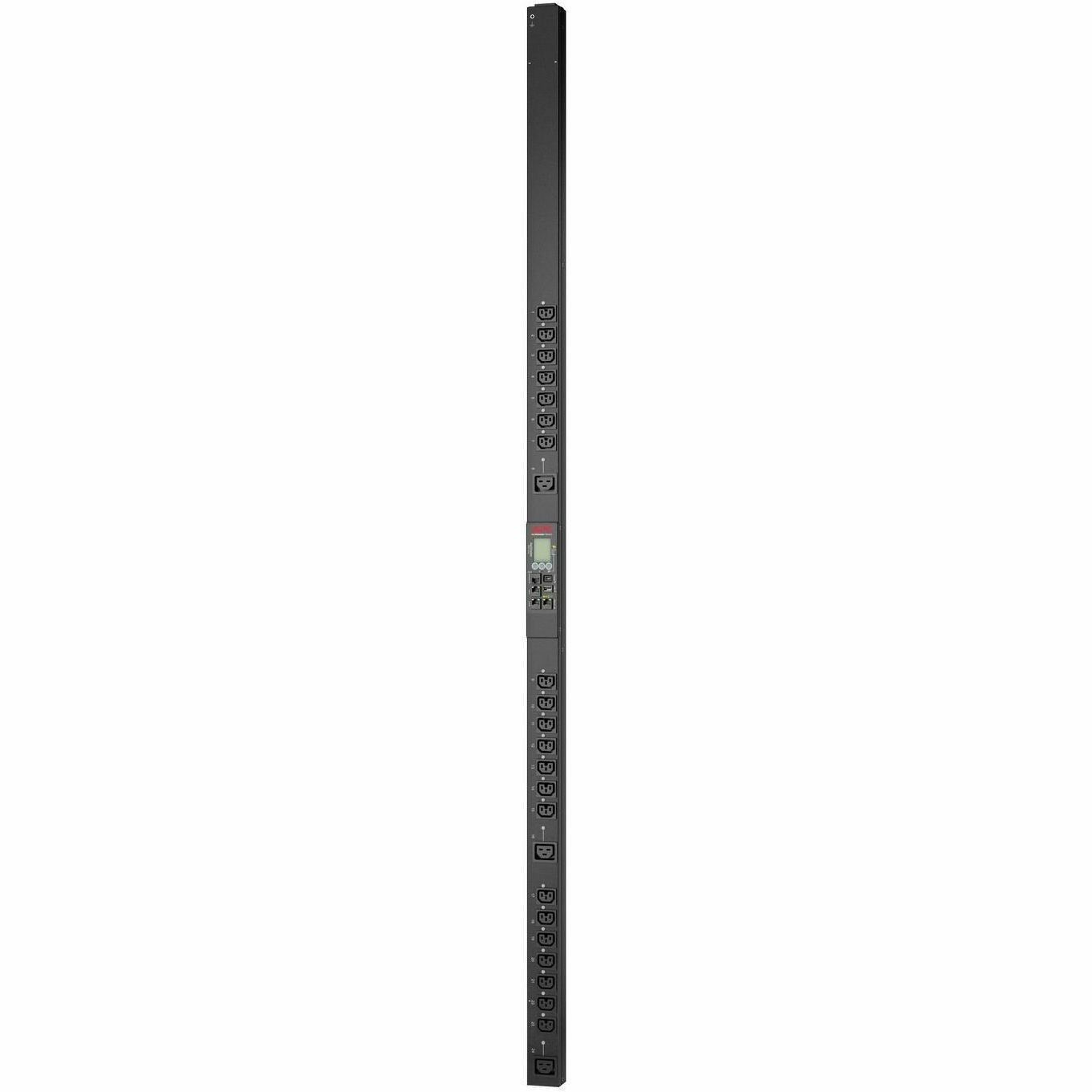

APC by Schneider Electric Rack PDU 9000 Switched, ZeroU, 16A, 100-240V, (21) C13/C15 & (3) C19/C21, Japan

Switched - IEC 60320 L6-20P - 21 x IEC 60320 C13/C15, 3 x IEC 60320 C19/C21 - 200 V - Circuit Protection, Accidental Power Shutdown - Network (RJ-45) - 0U - Vertical - Rack-mountable - Tower

Part No. APDU9959J

by Schneider Electric SA

$1723.99

User Manual

Specifications

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	APDU9959J
Brand Name	APC by Schneider Electric
Product Line	NetShelter
Product Series	9000
Product Name	Rack PDU 9000 Switched, ZeroU, 16A, 100-240V, (21) C13/C15 & (3) C19/C21, Japan
Marketing Information	It is a switched rack PDU with a maximum current capacity of 16A and an input voltage of 200V. It features 21 C13 and C15 outlets and 3 C19 and C21 outlets, designed specifically for the Japanese market. The PDU is designed for ZeroU mounting. User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager
Product Type	PDU

Technical Information

PDU Type	Switched
Plug/Connector Type	IEC 60320 L6-20P
Receptacle Type	IEC 60320 C13/C15 IEC 60320 C19/C21
Receptacle Detail	21 x IEC 60320 C13/C15 3 x IEC 60320 C19/C21
Protection Type	Circuit Protection Accidental Power Shutdown

Power Description

Input Voltage	200 V
Output Voltage	200 V AC
Power Rating (VA)	3.30 kVA
Power Rating (Watt)	17.30 kW
Input Current	20 A

Management

Management	Web SNMP Telnet

Interfaces/Ports

Network (RJ-45)	Yes

Physical Characteristics

Mounting Orientation	Vertical
Mounting Preference	No Preference
Mount Type	Rack-mountable
Placement	Side
Form Factor	Tower
Rack Height	0U
Height	70.75" (1797 mm)
Width	2.17" (55 mm)
Depth	1.81" (46 mm)
Weight (Approximate)	12.24 lb (5551.97 g)

Miscellaneous

For Country/Region	United States
Package Contents	Rack PDU 9000 Switched, ZeroU, 16A, 100-240V, (21) C13/C15 & (3) C19/C21, Japan Installation guide Rack mounting brackets Safety guide
Certifications & Standards	FCC part 15 class A\|PSE
Product Take Back Program	No
REACH free of SVHC	No
Mercury Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APDU9959J_ROHS_DECLARATION&p_FileName=APDU9959JKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=557330968&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557330968&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Condition	No
UPC	731304412922

Warranty

Limited Warranty	3 Year
Additional Warranty Information	3 years repair or replace
