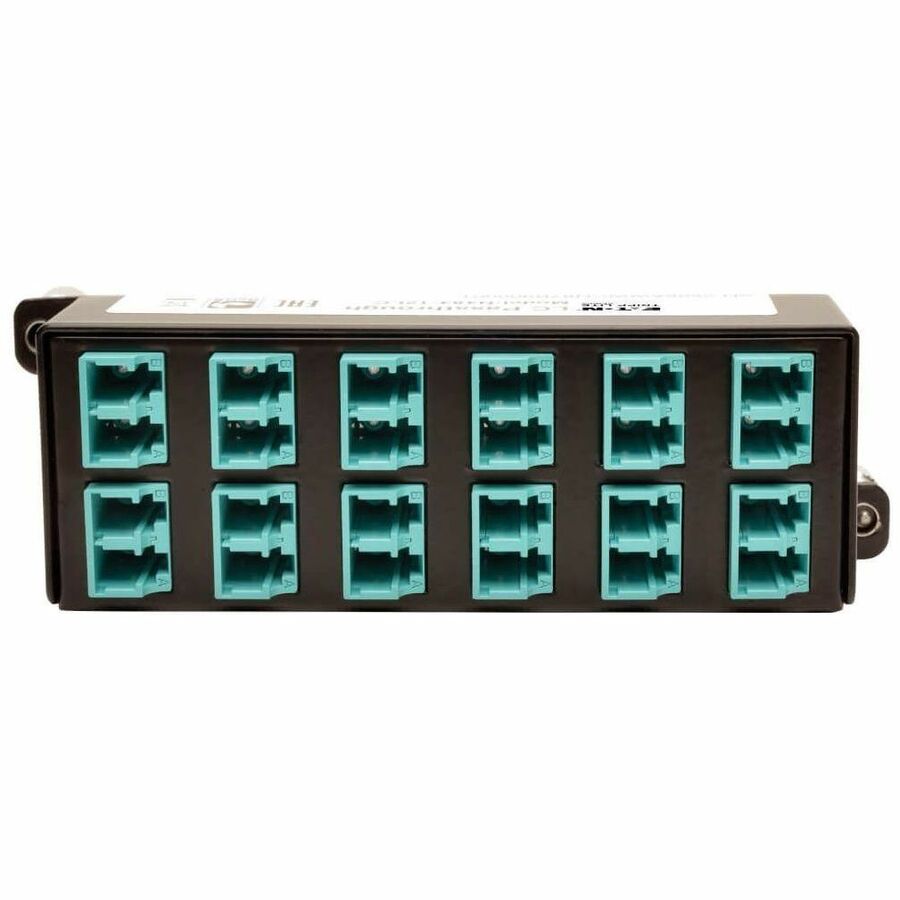

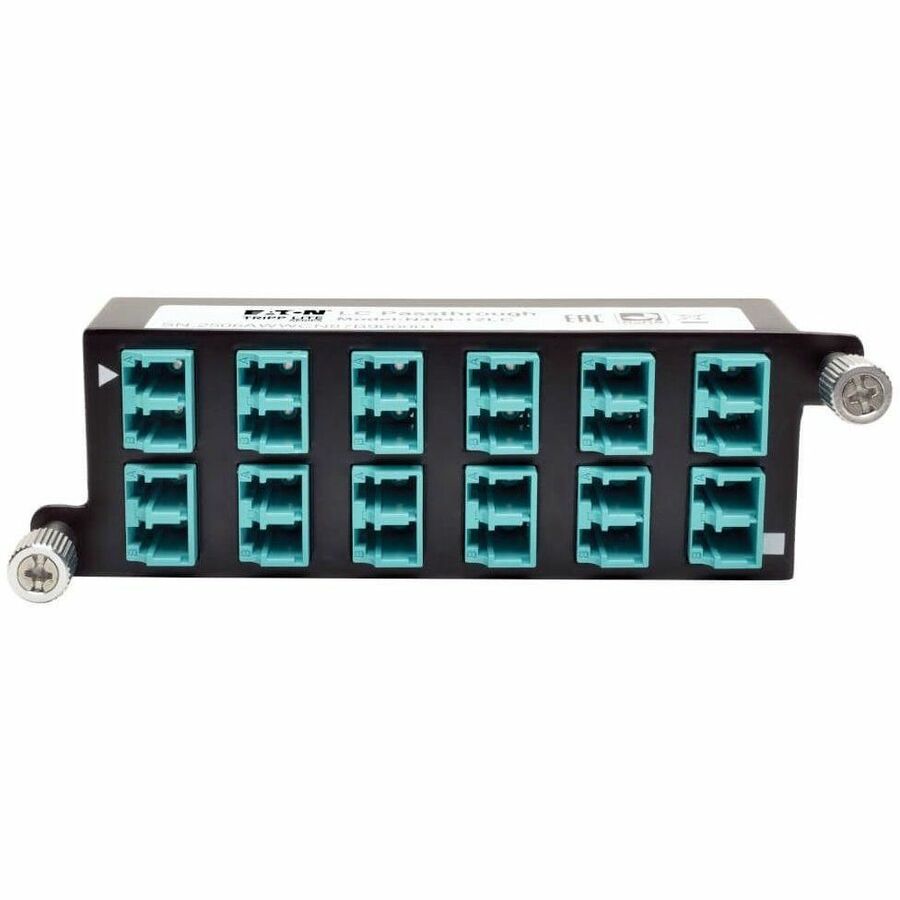

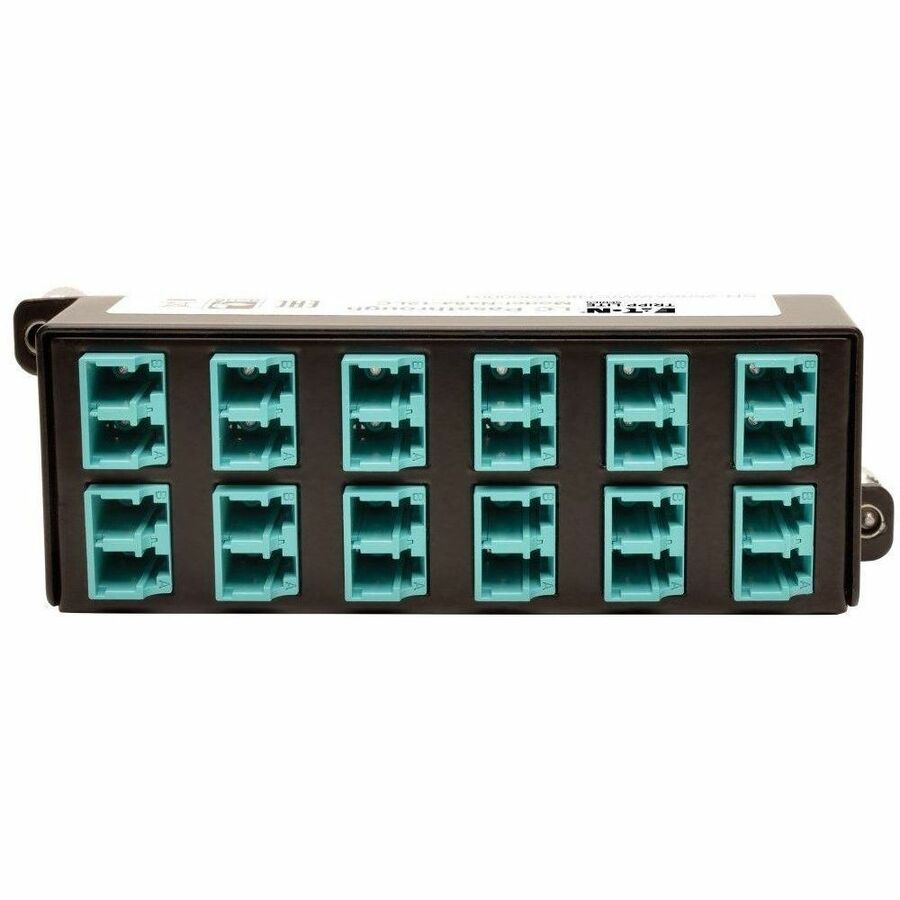

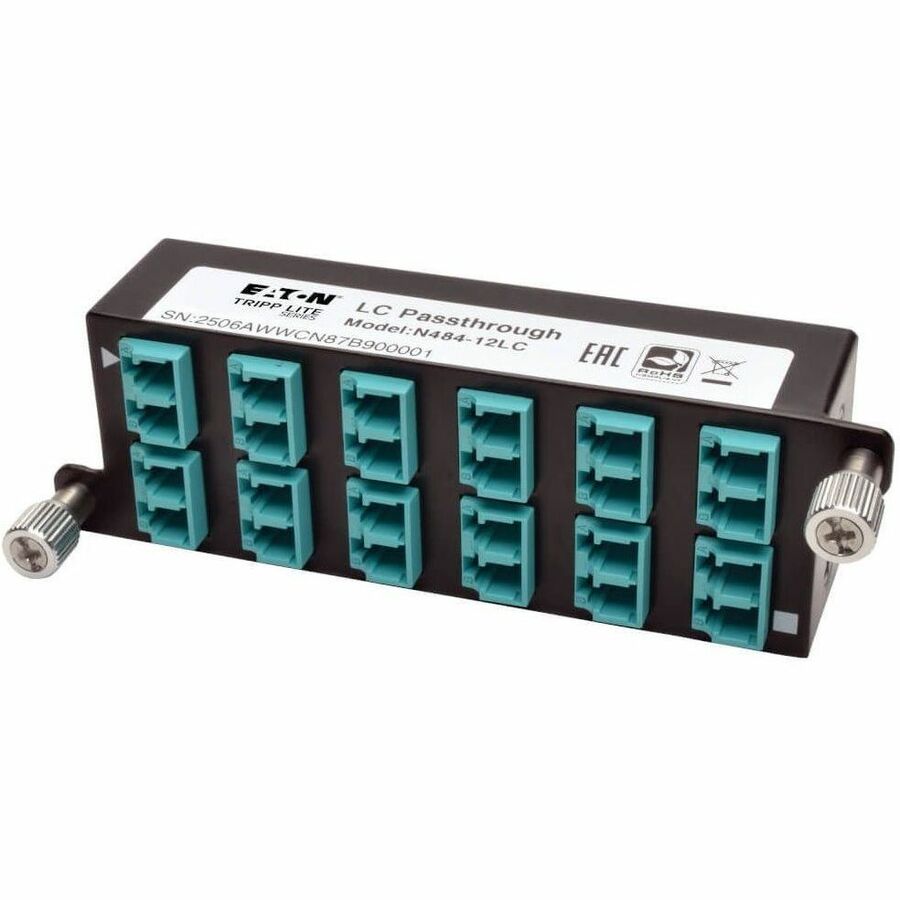

Tripp Lite 10GbE High Density Pass-Through Cassette 12 LC Duplex Connection
In Stock Availability
- All Locations: (5+)
- Mississauga, ON (5+)
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N48412LC |
| Brand Name | Tripp Lite series |
| Product Model | N484-12LC |
| Product Name | 10GbE Pass-Through Cassette - (x12) LC Duplex |

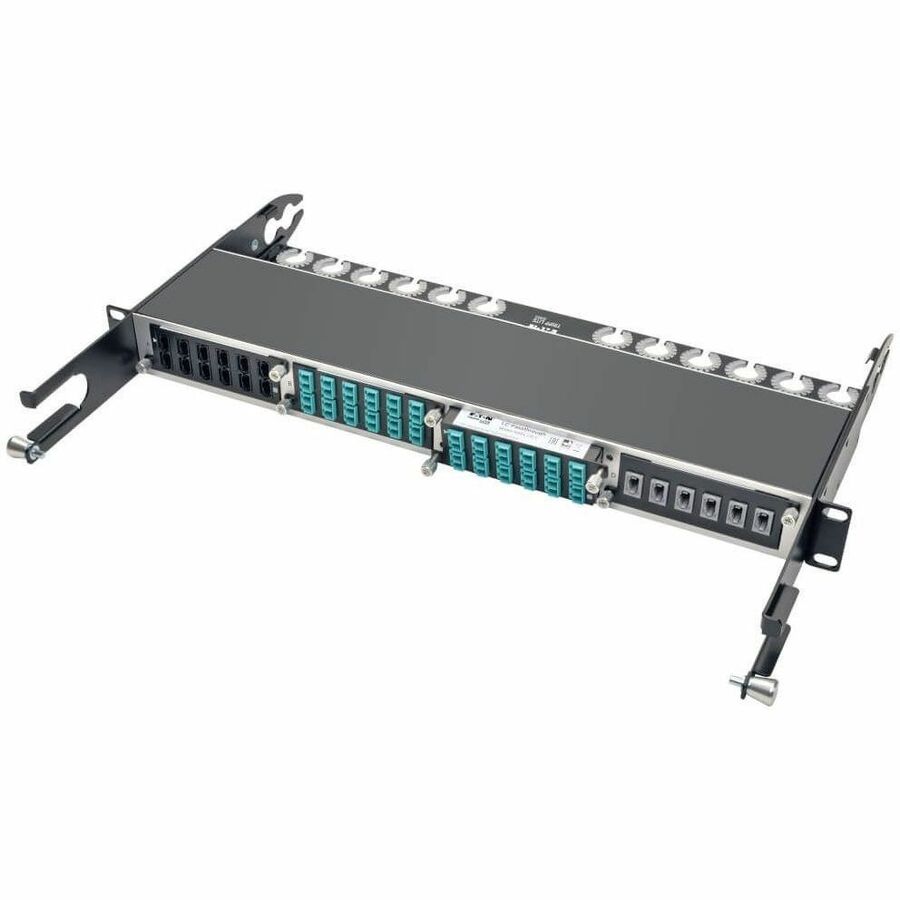

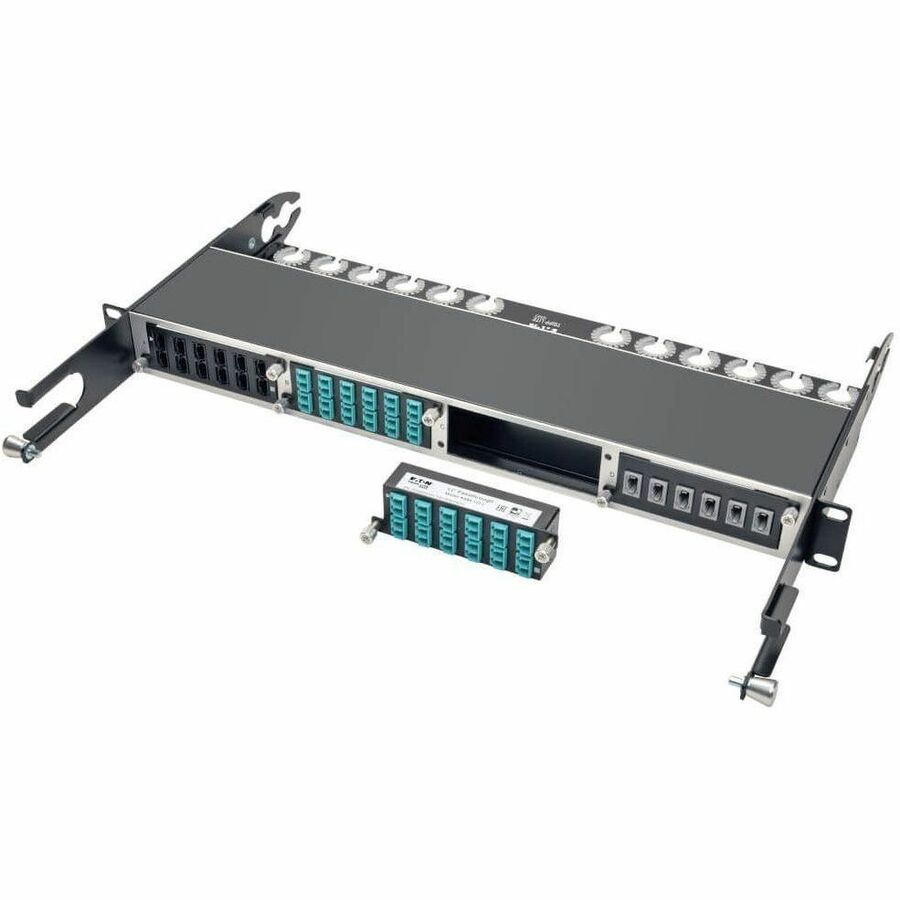

| Marketing Information | Tripp Lite's N484-12LC is a High Density 10Gb Pass-through Cassette with (x12) LC Duplex connections. Designed specifically for use with Tripp Lite's N484-00U and N484-01U chassis'; up to 4 cassettes per N484-01U, or 1 per N484-00U. Each duplex LC connection is rated for 10GbE, with an extremely low max insertion loss of 0.35db, well under the IEEE 802.3ae maximum channel loss spec of <25db. Guaranteed compatibility when used with recommended Tripp Lite cabling. Designed specifically for use with Tripp Lite cables, such as the N820- and N821-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing is manufactured with heavy duty, 1.0mm Cold Rolled Steel. |
| Product Type | Network Patch Panel |
| Total Number of Ports | 24 |
| Number of RJ-11 Ports | 24 |
| Number of LC Ports | 24 |
| LC Port Type | Duplex |
| Color Family | Black |
| Product Color | Black |
| Height | 1.40" (35.56 mm) |
| Width | 4.40" (111.76 mm) |
| Depth | 0.90" (22.86 mm) |
| Weight (Approximate) | 4.80 oz (136.08 g) |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Country of Origin | China |
| Condition | No |
| UPC | 0037332187260 |
| Limited Warranty | Lifetime |
