Tripp Lite by Eaton N820-05M-T Fiber Optic Duplex Patch Network Cable
16.4 ft (5 m) Fiber Optic Network Cable for Network Device - First End: 2 x LC Network - Male - Second End: 2 x LC Network - Male - Patch Cable - LSZH - 50/125 µm - Aqua
$54.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N82005MT |
| Brand Name | Tripp Lite by Eaton |
| Product Model | N820-05M-T |
| Product Name | N820-05M-T Fiber Optic Duplex Patch Network Cable |

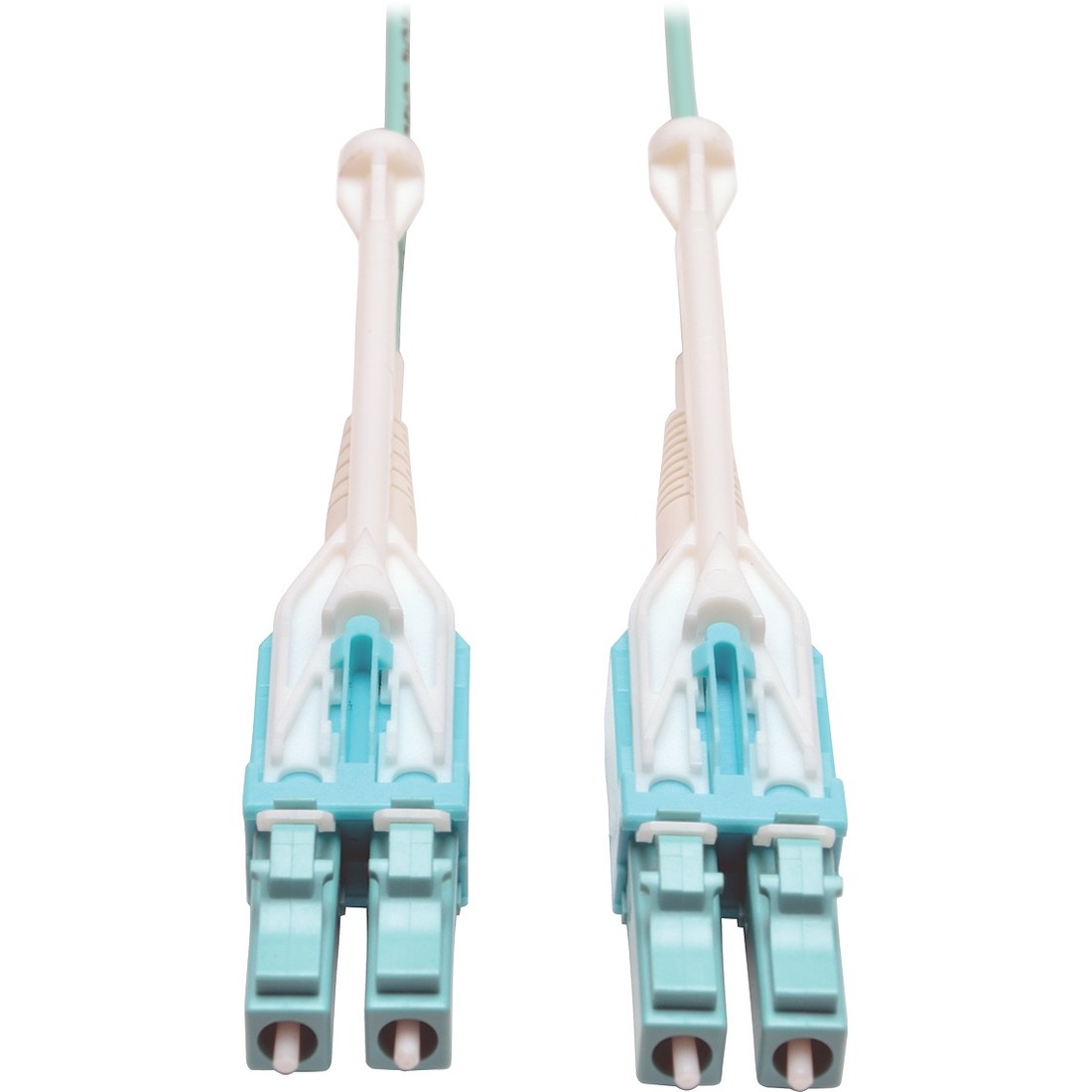

| Marketing Information | Tripp Lite's N820-05M-T is a Premium OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cable, for use with 10GbE applications. This 50/125um, LC/LC Fiber Optic cable provides nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost. Each LC/LC connector features a push/pull tab, providing maximum accessibility in high density installations; install or remove the cable with one hand without needing additional tools. LOMMF cable allows 10GbE serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers. A slim, uniboot design provides space savings, while premium-grade ceramic ferrules are designed for 10GbE and faster applications. Backward compatible with existing 50/125 fiber. Sturdy plastic housing for long lasting durability |
| Product Type | Network Cable |
Technical Information
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Cable Length | 16.4 ft (5 m) |
| Connector Type on First End | LC Network - Male |
| Connector on First End Details | 2 x LC Network - Male |
| Connector Type on Second End | LC Network - Male |
| Connector on Second End Details | 2 x LC Network - Male |
| Jacket Type | LSZH |
| Device Supported | Network Device |
Physical Characteristics
| Color Family | Green |
| Product Color | Aqua |
| Shipping Height | 9" (228.60 mm) |
| Shipping Width | 7" (177.80 mm) |
| Shipping Weight (Approximate) | 1.12 oz (31.75 g) |
Miscellaneous
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Condition | No |
| UPC | 0037332184504 |
Warranty
| Limited Warranty | Lifetime |
