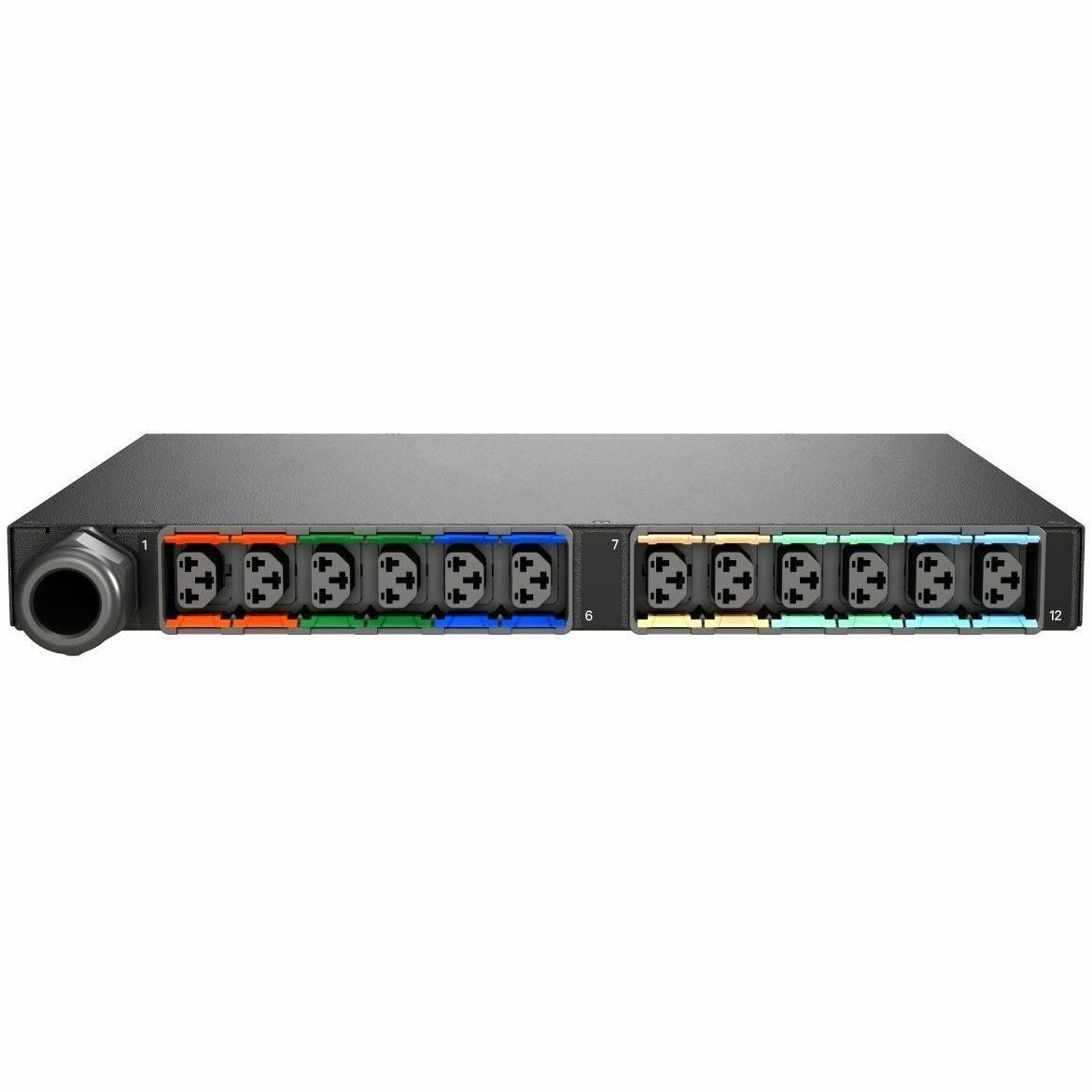

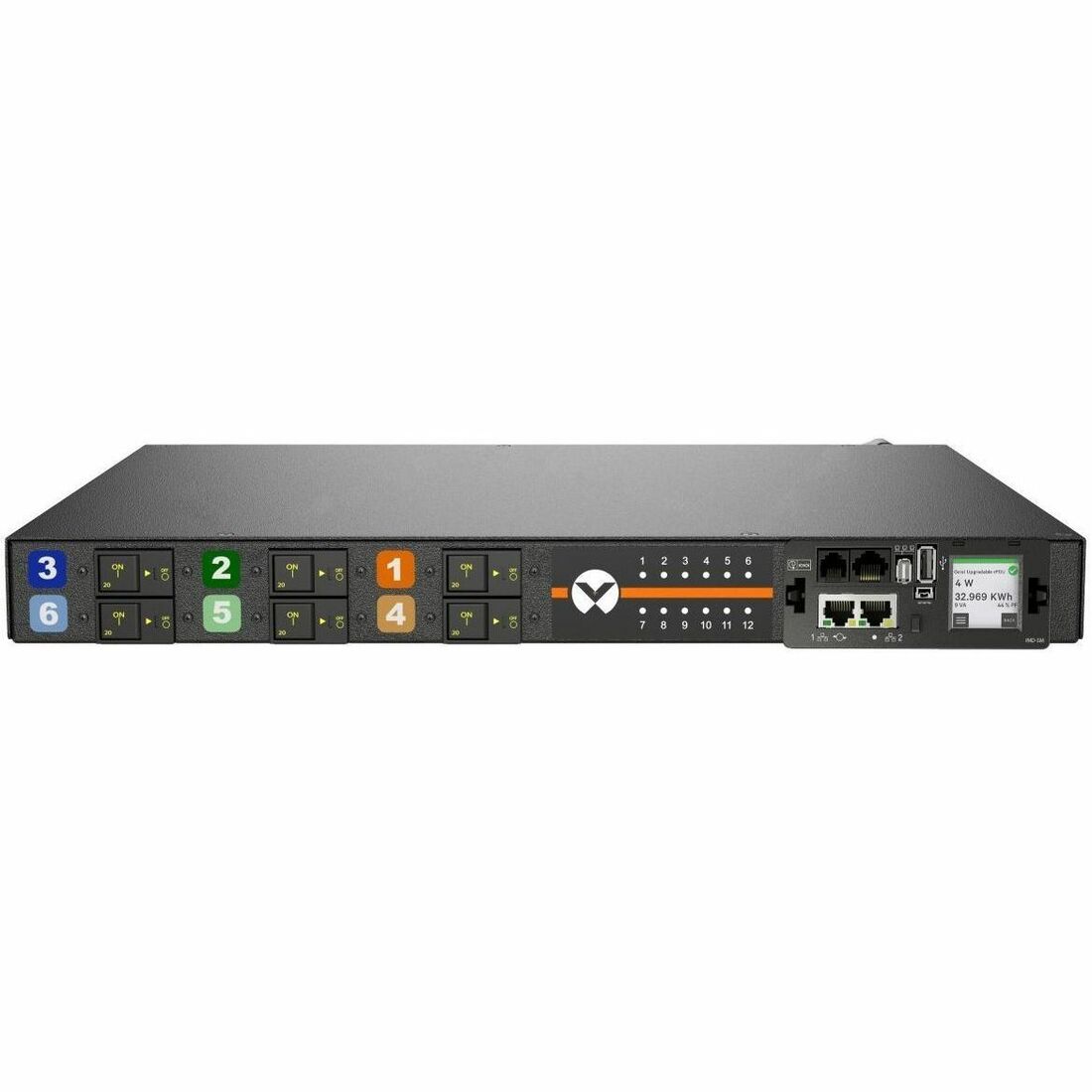

Vertiv Geist rPDU MNR5M1R6-12CF13-3PS56B0H10-S 12-Outlets PDU

Monitored - IEC 60309 3P + N + E (IP44) - 12 x Combination C13/C19 - 230 V AC - Overcurrent Protection, Single Pole - Network (RJ-45) - 10 ft (3.05 m) Cord Length - Horizontal - Rack-mountable

Part No. VP6N31A5

by Vertiv

$2669.99

Specifications

General Information

Manufacturer	Vertiv
Manufacturer Part Number	VP6N31A5
Brand Name	Vertiv Geist
Product Series	rPDU
Product Model	MNR5M1R6-12CF13-3PS56B0H10-S
Product Name	rPDU MNR5M1R6-12CF13-3PS56B0H10-S 12-Outlets PDU
Marketing Information	Upgradeable Outlet Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs. Benefits Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime. Fault-Tolerant Every unit is 100% tested for reliability and functionality. Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs. Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.
Product Type	PDU

Technical Information

PDU Type	Monitored
Phase	Three Phase
Plug/Connector Type	IEC 60309 3P + N + E (IP44)
Plug/Connector Detail	1 x IEC 60309 3P + N + E (IP44)
Receptacle Type	Combination C13/C19
Receptacle Detail	12 x Combination C13/C19
Protection Type	Overcurrent Protection Single Pole
Features	LED Display Touch Screen Display
Load Capacity (Watt)	17.20 kW

Power Description

Input Voltage	230 V AC
Input Voltage Range	200 V AC - 240 V AC 346 V AC - 415 V AC
Output Voltage	240 V AC
Power Rating (Watt)	17.20 kW
Input Current	30 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Management

Management	DHCP HTTP HTTPS IPv4 IPv6 LDAP NTP RADIUS RSTP SSH SMTP SNMP (v1/v2c/v3) Syslog TACACS+ Modbus TCP CSV datalog JSON API JSON datalog

Interfaces/Ports

Network (RJ-45)	Yes

Physical Characteristics

Color Family	Black
Product Color	Black Powder Coat
Mounting Orientation	Horizontal
Mount Type	Rack-mountable
Cord Length	10 ft (3.05 m)
Height	1.72" (43.69 mm)
Width	17" (431.80 mm)
Depth	12" (304.80 mm)

Environmental Conditions

Maximum Operating Temperature	140°F (60°C)

Miscellaneous

Application/Usage	IT Equipment
Certifications & Standards	UL c-UL Listed 62368-1 FCC Part 15 Class A
Country of Origin	United States
TAA Compliant	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Condition	No

Warranty

Limited Warranty	5 Year
Additional Warranty Information	5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
