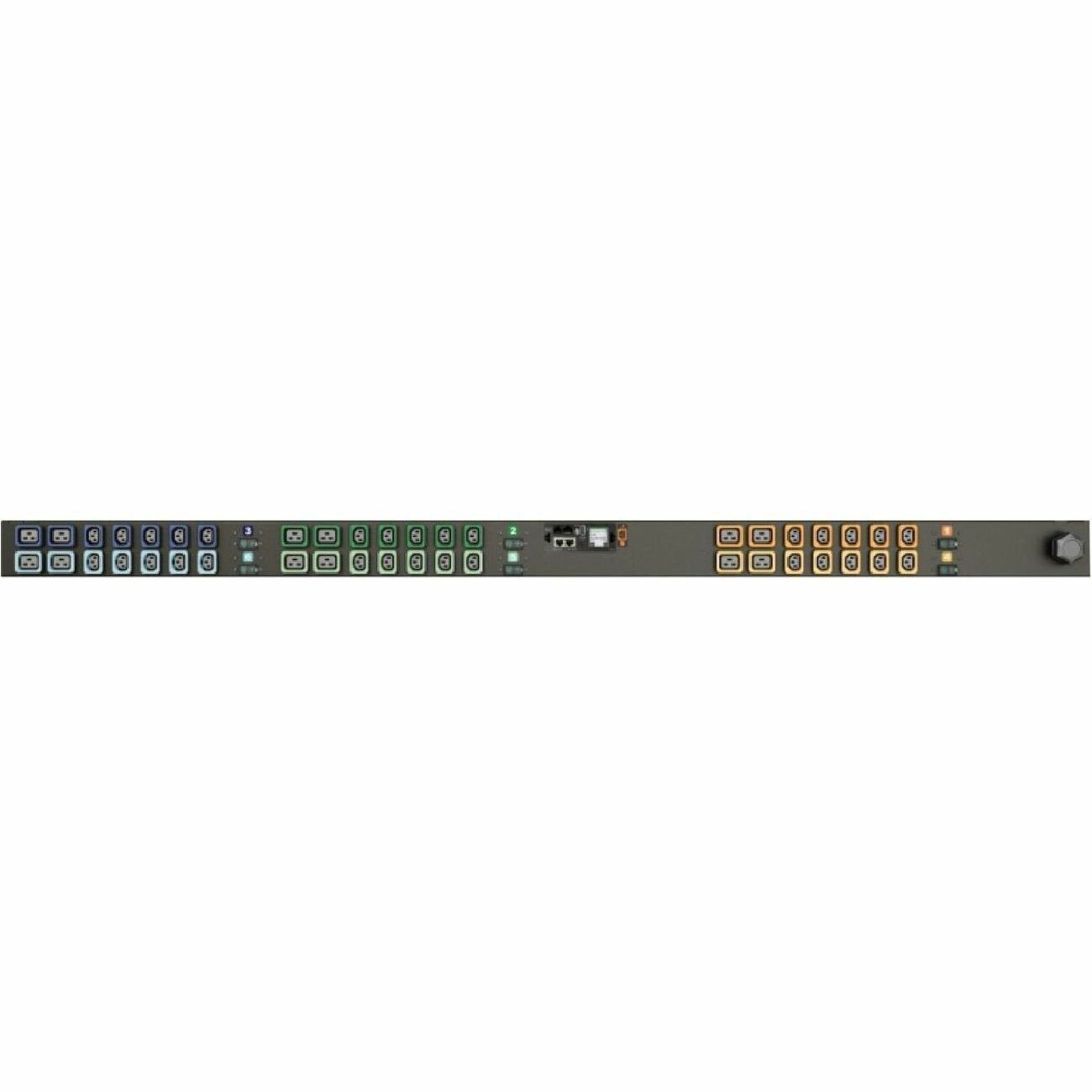

Vertiv Geist rPDU MN05M9W1-42PTB3-5PS56B0A10-S 42-Outlets PDU

Monitored - IEC 60309 3P+N+E (IP44) - 30 x U-Lock IEC 60320 C13, 12 x U-Lock IEC 60320 C19 - 230 V AC - Overcurrent Protection, Single Pole - Network (RJ-45) - 10 ft (3.05 m) Cord Length - Vertical - Rack-mountable

Part No. VP4N50A0

by Vertiv

$3583.99

Manufacturer Brochure

Specifications

General Information

Manufacturer	Vertiv
Manufacturer Part Number	VP4N50A0
Brand Name	Vertiv Geist
Product Series	rPDU
Product Model	MN05M9W1-42PTB3-5PS56B0A10-S
Product Name	rPDU MN05M9W1-42PTB3-5PS56B0A10-S 42-Outlets PDU
Marketing Information	Upgradeable Unit Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of input level power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs. Upgradeable Outlet Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs. Benefits Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime. Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a breakin the network chain occurs. Supports up to 40 rPDUs. Every unit is 100% tested for reliability and functionality. Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.
Product Type	PDU

Technical Information

PDU Type	Monitored
Phase	Three Phase
Plug/Connector Type	IEC 60309 3P+N+E (IP44)
Plug/Connector Detail	1 x IEC 60309 3P + N + E (IP44)
Receptacle Type	U-Lock IEC 60320 C13 U-Lock IEC 60320 C19
Receptacle Detail	30 x U-Lock IEC 60320 C13 12 x U-Lock IEC 60320 C19
Protection Type	Overcurrent Protection Single Pole
Features	LED Display
Load Capacity (Watt)	28.80 kW

Power Description

Input Voltage	230 V AC
Input Voltage Range	200 V AC - 240 V AC 346 V AC - 415 V AC
Output Voltage	208 V AC
Power Rating (Watt)	28.80 kW
Input Current	40 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Management

Management	DHCP HTTP HTTPS IPv4 IPv6 LDAP NTP RADIUS RSTP SSH SMTP SNMP (v1/v2c/v3) Syslog TACACS+ Modbus TCP CSV datalog JSON API JSON datalog

Interfaces/Ports

Network (RJ-45)	Yes

Physical Characteristics

Color Family	Black
Product Color	Black Powder Coat
Mounting Orientation	Vertical
Mount Type	Rack-mountable
Cord Length	10 ft (3.05 m)
Width	2" (50.80 mm)
Depth	2" (50.80 mm)
Length	72" (1828.80 mm)

Environmental Conditions

Maximum Operating Temperature	140°F (60°C)

Miscellaneous

Package Contents	rPDU MN05M9W1-42PTB3-5PS56B0A10-S 42-Outlets PDU Vertical Mounting Bracket Kit
Application/Usage	IT Equipment
Certifications & Standards	UL c-UL Listed 62368-1 FCC Part 15 Class A
Country of Origin	United States
TAA Compliant	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Condition	No

Warranty

Limited Warranty	5 Year
Additional Warranty Information	5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
