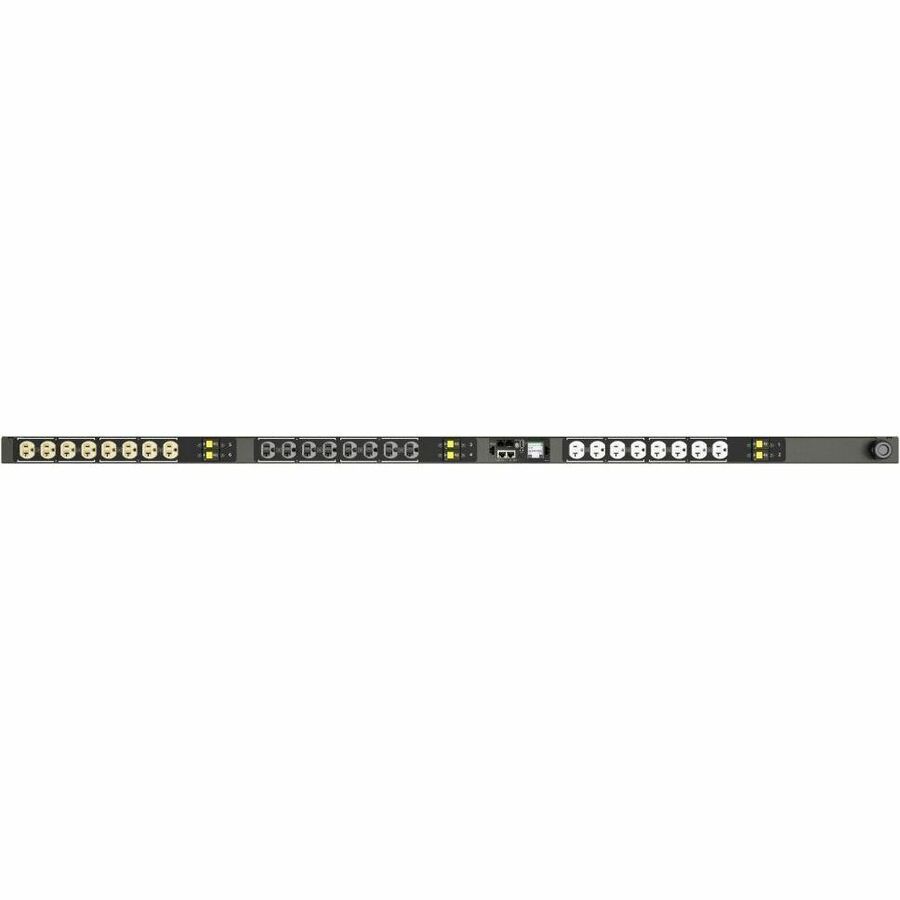

Vertiv Geist rPDU MN05M4B1-24D203-3TL21A0A10-S 24-Outlets PDU

Monitored - NEMA L21-30P - 24 x NEMA 5-20R - 120 V AC, 230 V AC - Overcurrent Protection, Single Pole - Network (RJ-45) - 10 ft (3.05 m) Cord Length - Vertical - Rack-mountable

Part No. VP4N30A8

by Vertiv

$1757.99

Manufacturer Brochure

Specifications

General Information

Manufacturer	Vertiv
Manufacturer Part Number	VP4N30A8
Brand Name	Vertiv Geist
Product Series	rPDU
Product Model	MN05M4B1-24D203-3TL21A0A10-S
Product Name	rPDU MN05M4B1-24D203-3TL21A0A10-S 24-Outlets PDU
Marketing Information	Upgradeable Unit Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of input level power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs. Benefits Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime. Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a breakin the network chain occurs. Supports up to 40 rPDUs. Every unit is 100% tested for reliability and functionality. Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.
Product Type	PDU

Technical Information

PDU Type	Monitored
Phase	Three Phase
Plug/Connector Type	NEMA L21-30P
Plug/Connector Detail	1 x NEMA L21-30P
Receptacle Type	NEMA 5-20R
Receptacle Detail	24 x NEMA 5-20R
Protection Type	Overcurrent Protection Single Pole
Features	LED Display Touch Screen Display
Load Capacity (Watt)	8.60 kW

Power Description

Input Voltage	120 V AC 230 V AC
Input Voltage Range	100 V AC - 120 V AC 200 V AC - 240 V AC
Output Voltage	120 V AC
Power Rating (Watt)	8.60 kW
Input Current	30 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Management

Management	DHCP HTTP HTTPS IPv4 IPv6 LDAP NTP RADIUS RSTP SSH SMTP SNMP (v1/v2c/v3) Syslog TACACS+ Modbus TCP CSV datalog JSON API JSON datalog

Interfaces/Ports

Network (RJ-45)	Yes

Physical Characteristics

Color Family	Black
Product Color	Black Powder Coat
Mounting Orientation	Vertical
Mount Type	Rack-mountable
Cord Length	10 ft (3.05 m)
Width	2" (50.80 mm)
Depth	2.25" (57.15 mm)
Length	66.25" (1682.75 mm)

Environmental Conditions

Maximum Operating Temperature	140°F (60°C)

Miscellaneous

Package Contents	rPDU MN05M4B1-24D203-3TL21A0A10-S 24-Outlets PDU Vertical Mounting Bracket Kit
Application/Usage	IT Equipment
Certifications & Standards	UL c-UL Listed 62368-1 FCC Part 15 Class A
Country of Origin	United States
TAA Compliant	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Condition	No

Warranty

Limited Warranty	5 Year
Additional Warranty Information	5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
