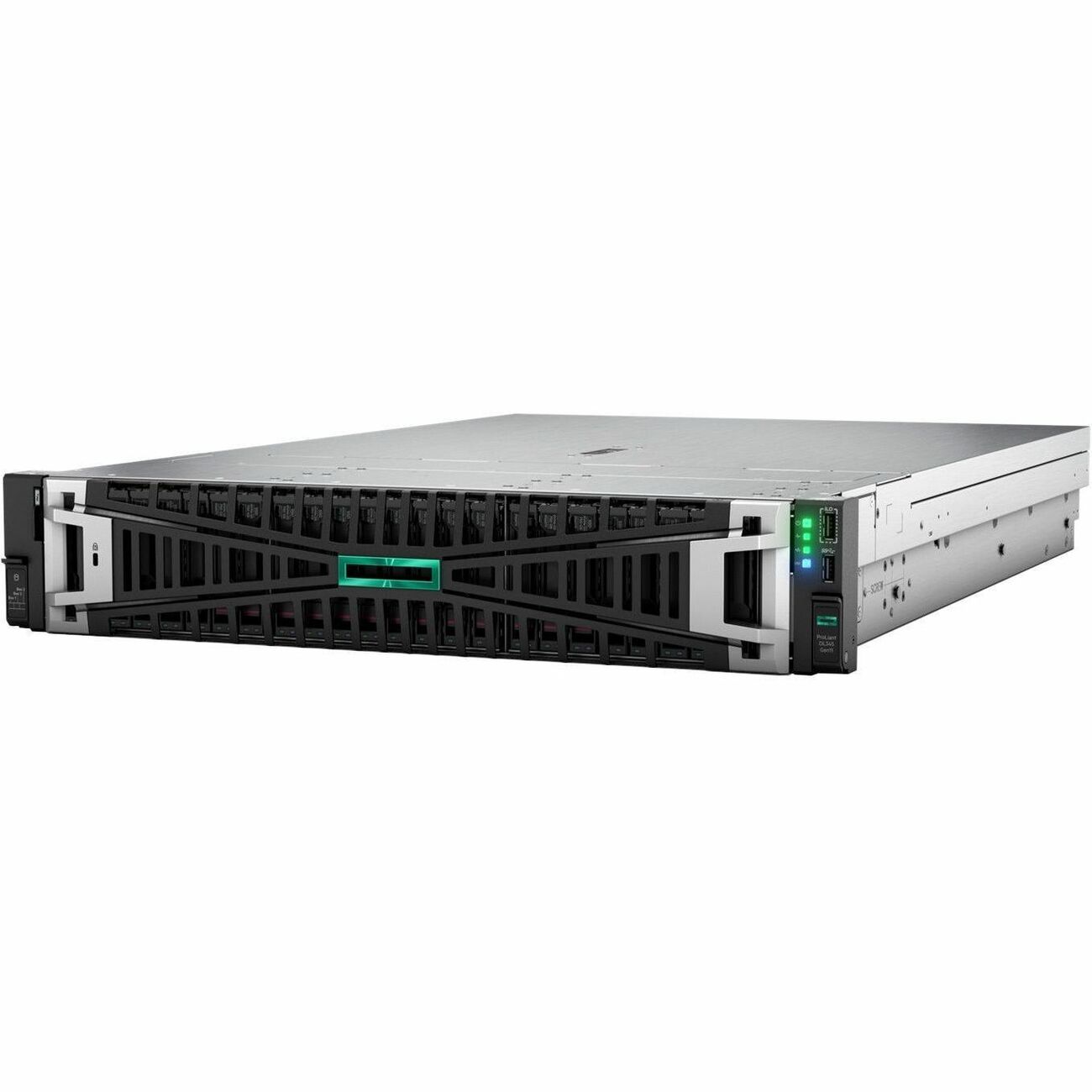

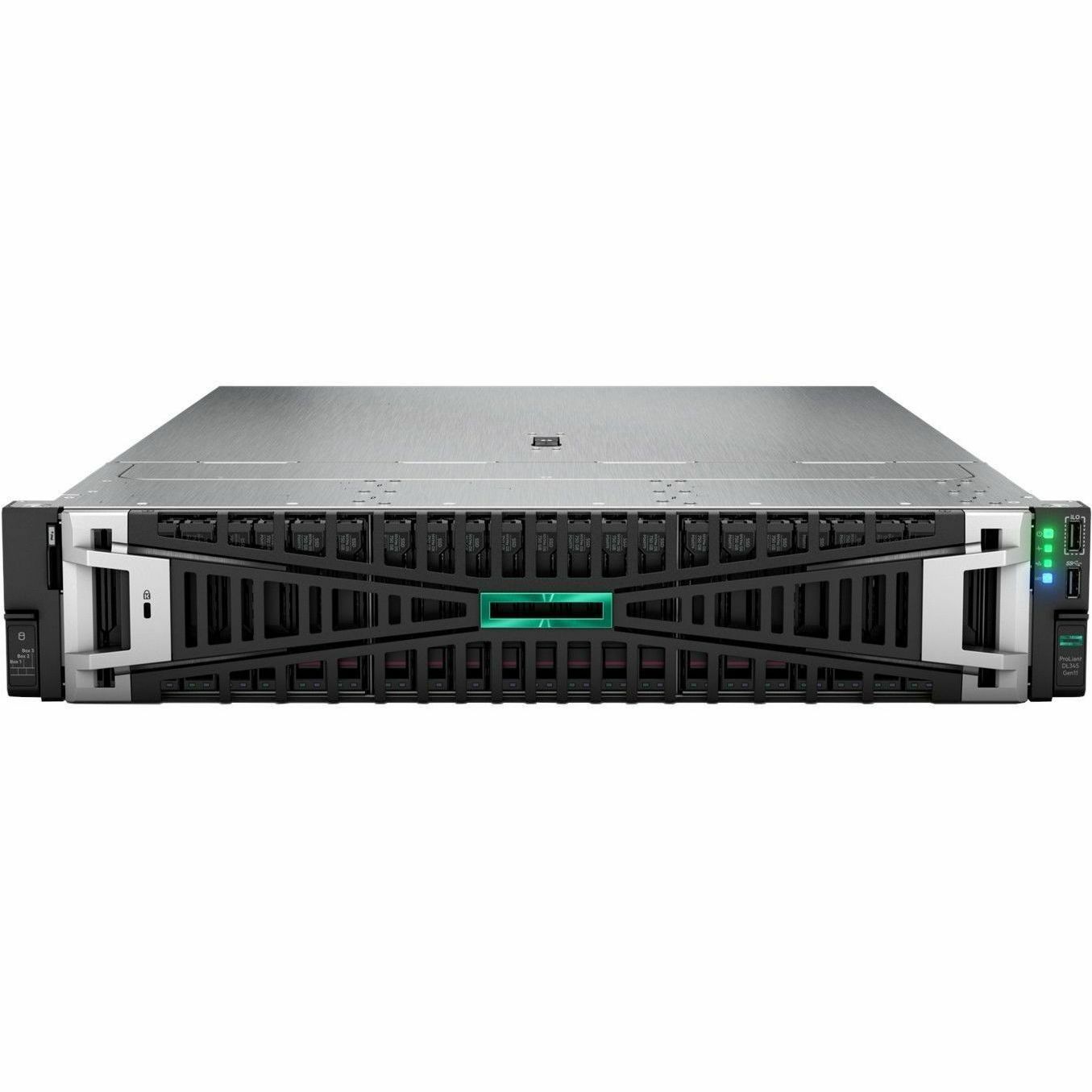

HPE ProLiant DL345 G11 2U Rack Server - 1 EPYC 9124 3 GHz - 32 GB RAM - 12Gb/s SAS Controller
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | P58792421 |
| Brand Name | HPE |
| Product Line | ProLiant |
| Product Series | DL345 G11 |
| Product Name | ProLiant DL345 G11 Server |
| Marketing Information | HPE ProLiant DL345 Gen11 Are you looking for a single-socket scalable server solution to power your virtualized data-intense, large-capacity storage workloads? The HPE ProLiant DL345 Gen11 server is a scalable 2U 1P solution that delivers exceptional compute performance and large capacity storage options at 1P economics. Powered by 4th Generation AMD EPYC™ Processors with up to 96 cores, increased memory bandwidth (up to 3 TB), high-speed PCIe Gen5 I/O and EDSFF storage, up to 20LFF/ 34SFF, and up to 4 GPUs at the front, this server is a superb single-socket 2U solution for your data-intensive workloads. Enhanced security features with the HPE silicon root of trust are built into the firmware, creating a digital fingerprint for the AMD Secure Processor to validate safe operation prior to boot. The HPE DL345 Gen11 server provides impressive storage performance and options for data-intensive workloads like software-defined storage, video transcoding, and virtualized apps. |
| Product Type | Server |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | EPYC |
| Processor Generation | 4th Gen |
| Processor Model | 9124 |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Speed | 3 GHz |
| Cache | 64 MB |
| Chipset Manufacturer | AMD |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR5 SDRAM |
| Error Checking | ECC |
| Total Number of Memory Slots | 12 |
| Number of Occupied Memory Slots | 1 |
| Signal Processing | Registered (Buffered) |
| Controller Type | 12Gb/s SAS |
| Controller Model | MR408i-o |
| RAID Supported | Yes |
| Number of Total Expansion Bays | 8 |
| Number of Internal 2.5" Bays | 8 |
| Number of SFF Bays | 8 |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 2 |
| PCI Express Details | 2 PCIe 5.0 x16 Full-height,Half-length slots |
| Riser Card | 2 PCIe x16 Riser (Primary slot 3 and Secondary slot 6) |
| Graphics Memory Capacity | 16 MB |
| Ethernet Technology | Gigabit Ethernet |
| Total Number of USB Ports | 5 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| VGA | Yes |
| Number of VGA Ports | 1 |
| Remote Management | Yes |
| Remote Management Controller | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (requires download) |
| Operating System Supported |
|
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C13/C14 |
| Maximum Power Supply Wattage | 1 kW |
| Hot Swappable Power Supply | Yes |
| Power Source | Power Supply |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 3.45" (87.63 mm) |
| Width | 17.64" (448.06 mm) |
| Depth | 26.11" (663.19 mm) |
| Weight (Approximate) | 52.80 lb (23950 g) |
| Security Features |
|
| Energy Star | Yes |
| Condition | No |
