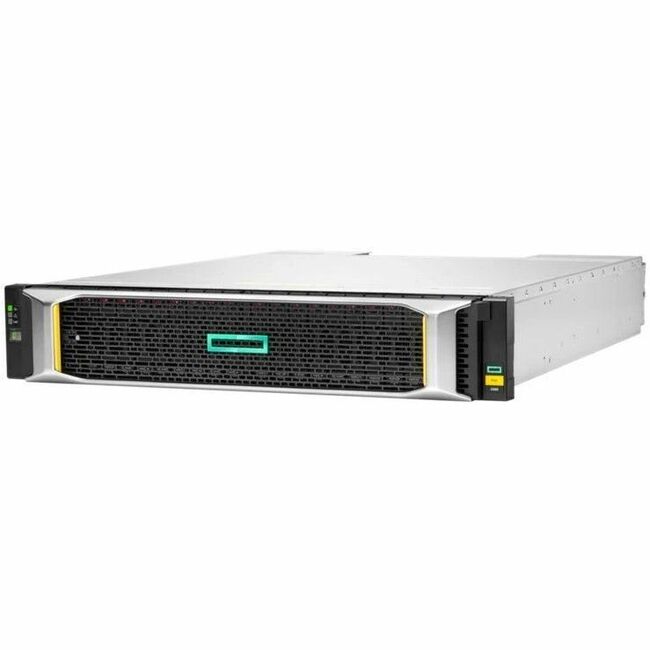

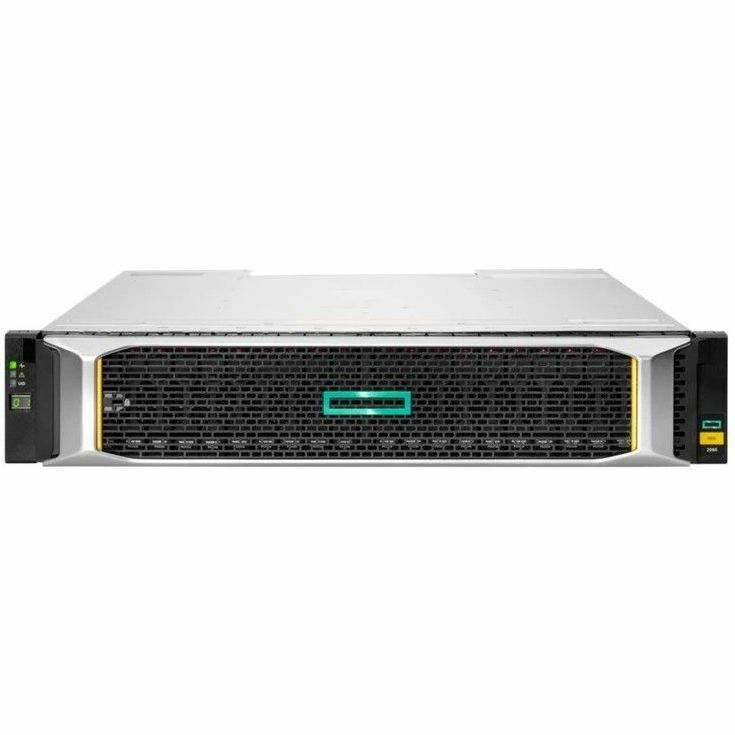

HPE MSA 2060 16Gb Fibre Channel SFF 23TB Flash Bundle

Part No. S2E39B

by Hewlett Packard Enterprise

$34076.99

HPE MSA 2060 16Gb Fibre Channel SFF 23TB Flash Bundle

24 x HDD Supported - 1843.20 TB Supported HDD Capacity - 12Gb/s SAS - 12 x SSD Supported - 1843.20 TB Supported SSD Capacity - 12 x SSD Installed - 23 TB Total Installed SSD Capacity - 2 x Fibre Channel Controller - RAID Supported - 12 x Total Bays - 12 x 3.5" Bay - SNMP, SMI-S, SSH, SMTP, FTP, SFTP, HTTP, HTTPS, Telnet - 2U - Rack-mountable

Part No. S2E39B

by Hewlett Packard Enterprise

$34076.99
General Information
ManufacturerHewlett Packard Enterprise
Manufacturer Part NumberS2E39B
Brand NameHPE
Product Model2060
Product NameMSA 2060 16Gb Fibre Channel SFF 23TB Flash Bundle
Marketing Information

What's New

  • Maximize the performance and value of entry-level, flash-based SAN storage solutions with new HPE MSA Gen6 Flash Bundle storage arrays.
  • Add cost-effective flash storage capacity expansion to MSA Gen6 Flash Bundle storage arrays with new HPE MSA Gen6 SSD 6-Pack drive options.

Key Features | Accelerate Applications Affordably

The HPE MSA 2060 is capable of delivering up to 395,000 IOPS for affordable application acceleration for small to medium-sized businesses.

The HPE MSA 2060 allows users to define and deploy hybrid or flash storage configurations day one and grow as their needs change.

HPE MSA's 'Set It And Forget IT' Data Services Does Not Require a Dedicated Storage Administrator

The HPE MSA 2060 Storage is easy to install, easy to use, easy to maintain, even for an IT generalist. Administrators will find the HPE MSA 2060's new Storage Management Utility intuitive and easy to navigate.

HPE MSA's automated tiering engine dynamically responds to workload changes so you don't have to, ensuring the hottest data will be moved to the fastest media automatically and in real-time.

Leverage Data Protection Features to Keep Your Business Running in the Event of a Disaster

The HPE MSA 2060 Storage delivers virtualized snapshot technology making data protection and instant recovery a snap.

Remote replication via Fibre Channel (FC) or iSCSI facilitates a affordable disaster recovery solution.

Encrypted SSDs and HDDs with local key management can be deployed to deliver a secure, encrypted hybrid flash array.

Flexible, Modular Architecture That Facilitates Growth Into the Future

The HPE MSA 2060 Storage solution supports a mixture of 3.5 inch LFF and 2.5 inch SFF expansion enclosures for a maximum of 9 enclosures (10 total including the array).

Start small and scale as needed with any combination of SSDs, Enterprise SAS or MidLine SAS HDDs.

Product TypeSAN/NAS Storage System
Storage
Number of Hard Drives Supported24
Total Hard Drive Capacity Supported1843.20 TB
Hard Drive Interface12Gb/s SAS
Number of Solid State Drive Supported12
Number of Solid State Drive Installed12
Total Solid State Drive Capacity Supported1843.20 TB
Total Solid State Drive Capacity Installed23 TB
Solid State Drive Configuration12 x 1.92TB
Maximum Data Transfer Rate16 Gbit/s
I/O Expansions
Number of Total Expansion Bays12
Number of 3.5" Bays12
Controllers
Number of Controllers2
Controller TypeFibre Channel
RAID SupportedYes
Interfaces/Ports
Drive Interface12Gb/s SAS
Host Interface12Gb/s SAS
Fibre ChannelYes
Management & Protocols
Protocols
  • SNMP
  • SMI-S
  • SSH
  • SMTP
  • FTP
  • SFTP
  • HTTP
  • HTTPS
  • Telnet
Physical Characteristics
Height3.50" (88.90 mm)
Width19" (482.60 mm)
Depth26.40" (670.56 mm)
Form FactorRack-mountable
Rack Height2U
Miscellaneous
Energy StarYes
TAA CompliantYes
ConditionNo
