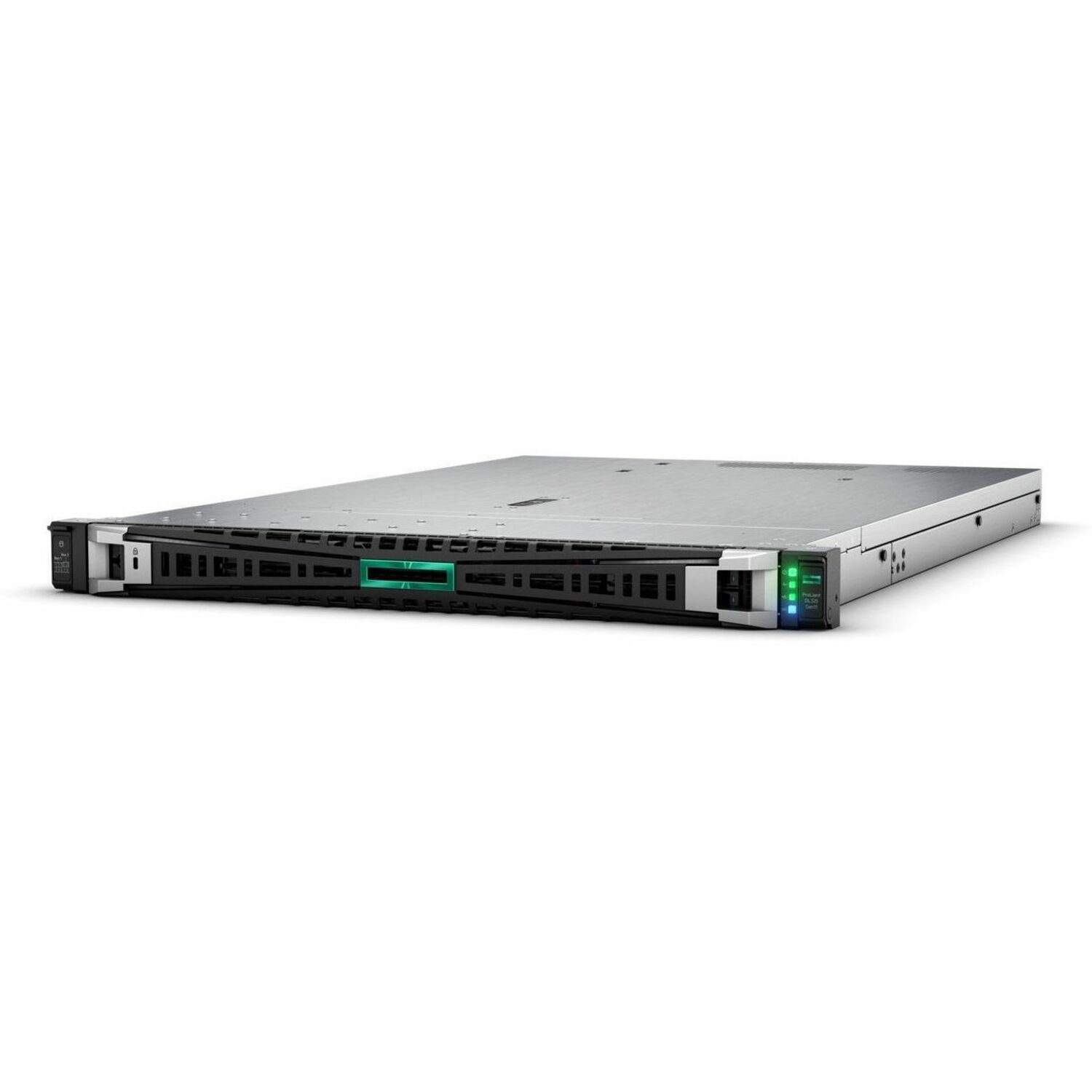

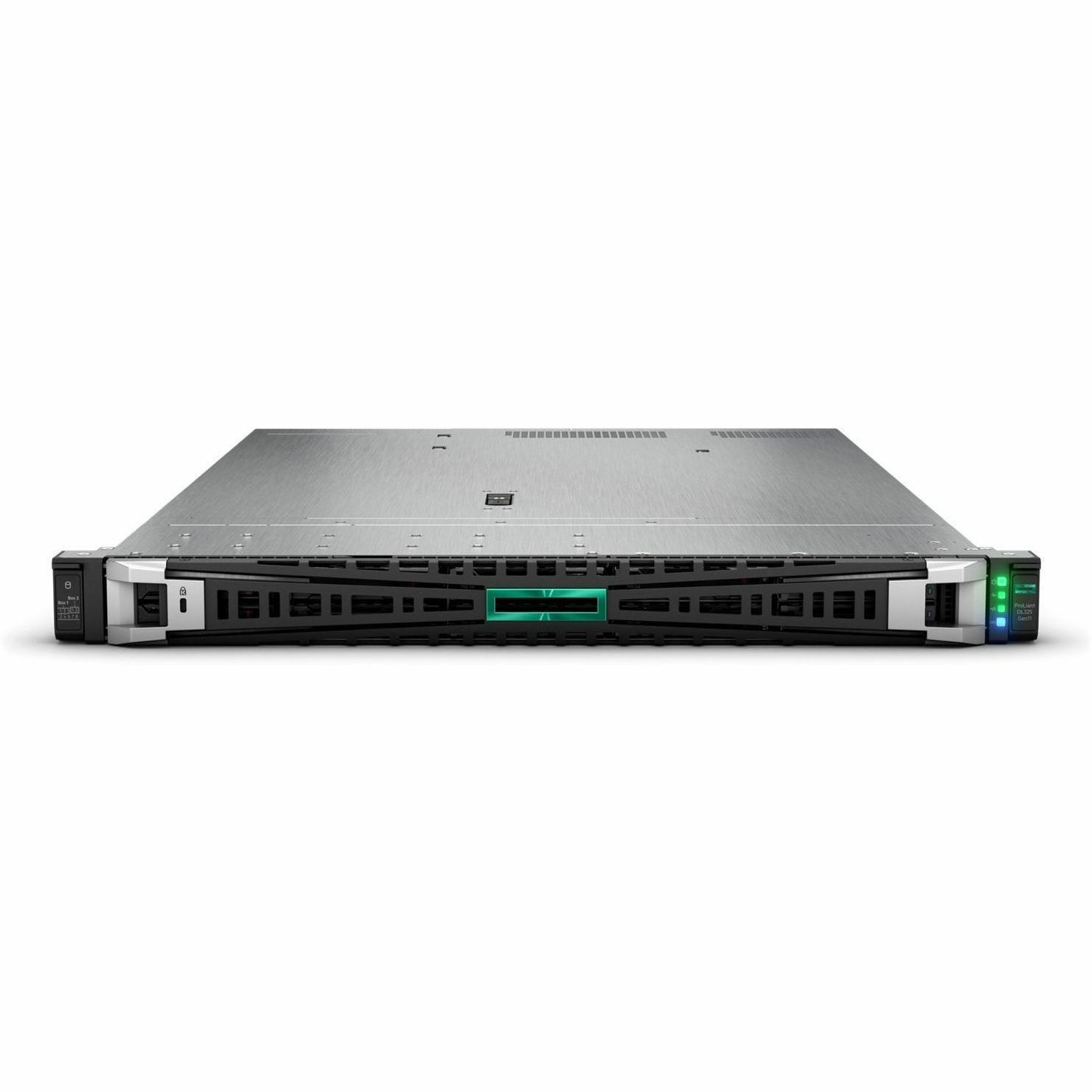

HPE ProLiant DL325 G11 1U Rack Server - 1 EPYC 9354P 3.25 GHz - 32 GB RAM - 12Gb/s SAS Controller
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | P66776B21 |
| Brand Name | HPE |
| Product Line | ProLiant |
| Product Series | DL325 G11 |
| Product Name | ProLiant DL325 G11 Server |
| Marketing Information | HPE ProLiant DL325 Gen11 Are you looking for a scalable, low-cost performance server solution for your virtualized and software-defined compute workloads? The HPE ProLiant DL325 Gen11 server is a low-cost 1U 1P solution that delivers exceptional value balancing compute, memory and network bandwidth at 1P economics. Powered by 4th Generation AMD EPYC™ Processors with up to 96 cores, increased memory bandwidth (up to 3 TB), high-speed PCIe Gen5 I/O and EDSFF storage, and supporting up to 2 GPUs at the front, this server is a superb low-cost, 1U 1P, performance solution for your virtualized workloads. The silicon root of trust anchors the server firmware, creating a fingerprint for the AMD Secure Processor that must be matched exactly before the server will boot. The HPE ProLiant DL325 Gen11 server is an excellent choice for virtualized workloads such as software-defined compute, CDN, VDI, and secure edge apps that require balancing processor, memory, and network bandwidth. |
| Product Type | Server |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | EPYC |
| Processor Generation | 4th Gen |
| Processor Model | 9354P |
| Processor Core | Dotriaconta-core (32 Core) |
| Processor Speed | 3.25 GHz |
| Cache | 256 MB |
| Chipset Manufacturer | AMD |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR5 SDRAM |
| Error Checking | ECC |
| Total Number of Memory Slots | 12 |
| Number of Occupied Memory Slots | 1 |
| Signal Processing | Registered (Buffered) |
| Controller Type | 12Gb/s SAS |
| Controller Model | MR408i-o |
| RAID Supported | Yes |
| Number of Total Expansion Bays | 8 |
| Number of Internal 2.5" Bays | 8 |
| Number of SFF Bays | 8 |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 1 |
| PCI Express x16 (Gen 3.x) Slots | 1 |
| PCI Express Details | 1 PCIe 5.0 x16 Full-height, Full-length slot |
| Riser Card | 1 PCIe x16 Primary Riser |
| Graphics Memory Capacity | 16 MB |
| Ethernet Technology | 10 Gigabit Ethernet |
| Total Number of USB Ports | 5 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| VGA | Yes |
| Number of VGA Ports | 1 |
| Remote Management | Yes |
| Remote Management Controller | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (requires download) |
| Operating System Supported |
|
| Input Voltage |
|
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C13/C14 |
| Maximum Power Supply Wattage | 800 W |
| Hot Swappable Power Supply | Yes |
| Power Source | Power Supply |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.69" (42.93 mm) |
| Width | 17.11" (434.59 mm) |
| Depth | 25.57" (649.48 mm) |
| Weight (Approximate) | 34.26 lb (15540 g) |
| Package Contents |
|
| Security Features |
|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 3.0 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Condition | No |
| UPC | 190017692098 |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3-year parts, 3-year labor, 3-year onsite support with next business day response. |
