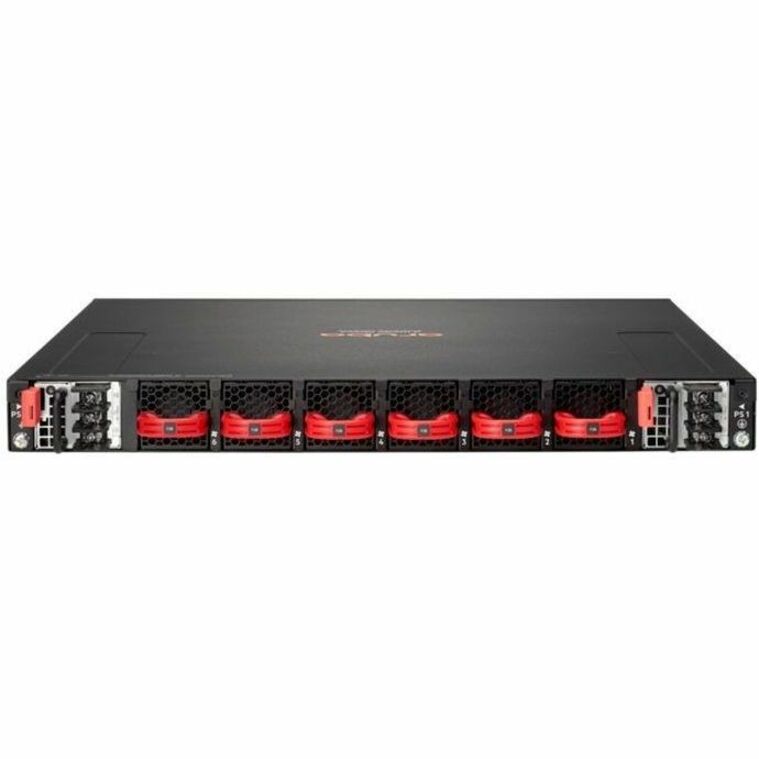

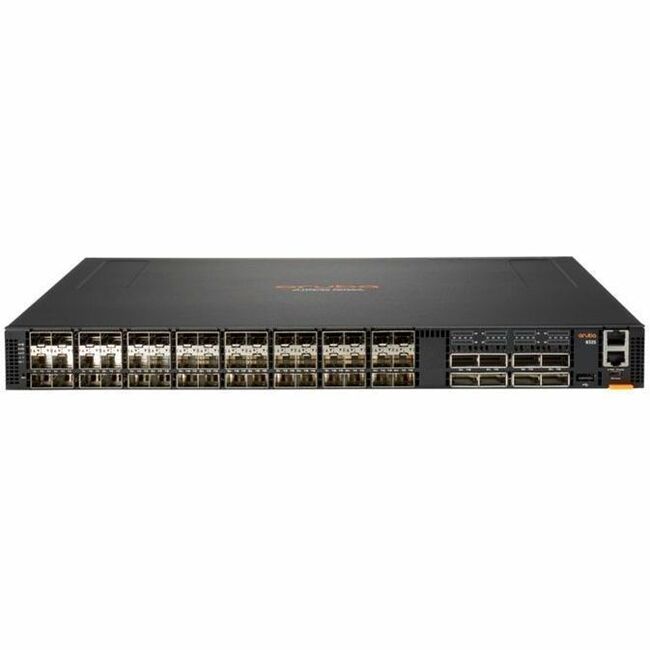

HPE 8325-48Y8C Ethernet Switch

Manageable - 25 Gigabit Ethernet, 100 Gigabit Ethernet - 25GBase-X, 100GBase-X - 3 Layer Supported - Modular - 550 W Power Consumption - Optical Fiber - 1U - Rack-mountable, Cabinet Mount, Surface Mount - Lifetime Limited Warranty

Part No. S1D09A

by Hewlett Packard Enterprise

$49360.99

Product Showcase
Specifications

General Information

Manufacturer	Hewlett Packard Enterprise
Manufacturer Part Number	S1D09A
Brand Name	HPE
Product Series	CX 8325
Product Model	8325-48Y8C
Product Name	8325-48Y8C Ethernet Switch
Marketing Information	HPE Aruba Networking CX 8325 Switch Series The HPE Aruba Networking CX 8325 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud and IoT era. These switches serve the needs of the next generation core and aggregation layer, as well as emerging data center requirements at the Top of Rack (ToR) and End of Row (EoR). They provide over 6.4Tbps of capacity, with line-rate Gigabit Ethernet interfaces including 1Gbps, 10Gbps, 25Gbps, 40Gbps, and 100Gbps. The CX 8325 series includes industry-leading line rate ports 1/10/25GbE (SFP/SFP+/SFP28) and 40/100GbE (QSFP+/QSFP28) with connectivity in a compact 1U form factor. These switches offer a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or 10GbE/40GbE to 100GbE ports.
Product Type	Ethernet Switch

Interfaces/Ports

Modular	Yes
Port/Expansion Slot Details	48 x 25 Gigabit Ethernet Expansion Slot 8 x 100 Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported	Optical Fiber
Ethernet Technology	25 Gigabit Ethernet 100 Gigabit Ethernet
Network Technology	25GBase-X 100GBase-X

I/O Expansions

Total Number of Expansion Slots	56.0
Expansion Slot Type	QSFP28 SFP28

Network & Communication

Layer Supported	3
Networking Standards	IEEE 802.3 IEEE 802.3ba IEEE 802.3ad IEEE 802.1ab IEEE 802.1Q IEEE 802.1D IEEE 802.1w IEEE 802.1s IEEE 802.1x IEEE 802.1ak IEEE 802.1t IEEE 802.1AX IEEE 802.3ae IEEE 802.3by IEEE 802.3z

Management & Protocols

Manageable	Yes

Power Description

Input Voltage	120 V AC 230 V AC
Frequency	50 Hz 60 Hz
Power Source	Power Supply
Redundant Power Supply Supported	Yes
Number of Power Supplies Supported	2
Power Consumption	550 W

Physical Characteristics

Compatible Rack Unit	1U
Form Factor	Rack-mountable Cabinet Mount Surface Mount
Height	1.69" (43 mm)
Width	17.24" (438 mm)
Depth	21.10" (536 mm)
Weight (Approximate)	22.05 lb (10000 g)

Miscellaneous

Package Contents	8325-48Y8C Ethernet Switch 2 x FB Power Supplies (JL632A) With No Additional Open PS Slots 6 x FB Fan Tray Bundles (JL628A) With No Additional Open FT Slots
Application/Usage	Data Center Enterprise Industrial Network
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Condition	No

Warranty

Limited Warranty	Lifetime
