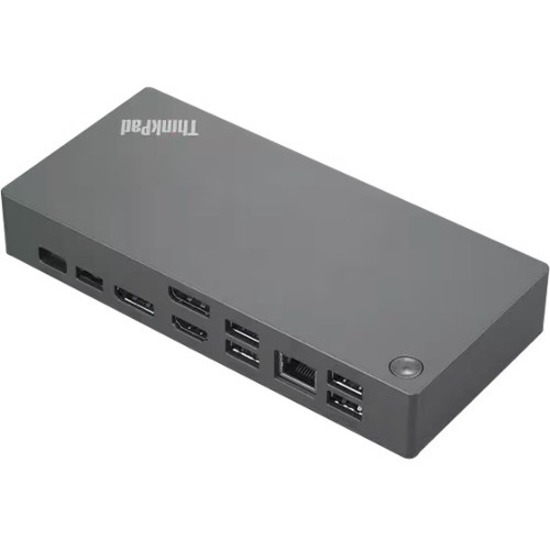

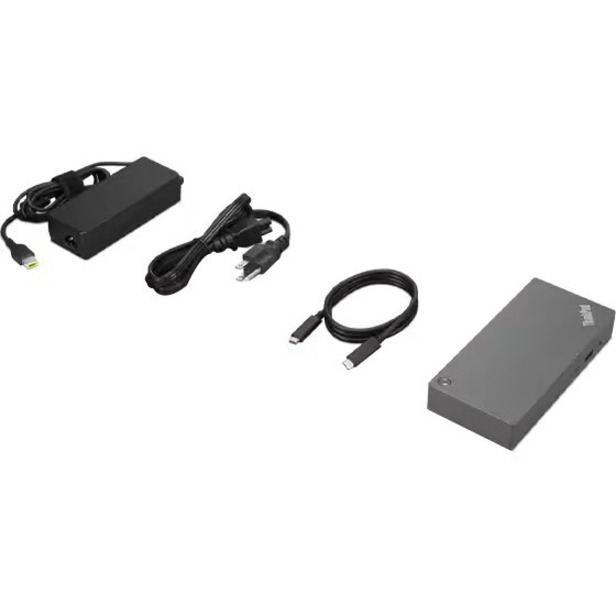

Lenovo ThinkPad Universal USB-C Dock v2
This Product is currently not in offering
On back-order, will ship once in-stock
General Information
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 40B70090US |
| Brand Name | Lenovo |
| Product Line | ThinkPad |
| Product Name | ThinkPad Universal USB-C Dock v2 |
| Marketing Information | The ThinkPad Universal USB-C Dock v2 is a welcome innovation docking that takes users beyond tradition and into the realm of limitless potential. Experience universal compatibility with dynamic power charging (maximum up to 100W) to notebooks, multi display support, automated firmware updates, next-level plug-and-play. Everything you'd want from the future of docking is here. It's perfect for mixed PC environments too, giving users the freedom to connect any USB Type-C industry standard Notebooks. This dock offering has the same features and functionality as the ThinkPad Universal USB-C Dock. |
| Product Type | Docking Station |
Technical Information
| Connectivity Technology | Wired |
| Number of Displays Supported | 3 |
| Supported Resolutions |
|
| Screen Mode Supported | 4K |
| Device Supported | Notebook |
Network & Communication
| Ethernet Technology | Gigabit Ethernet |

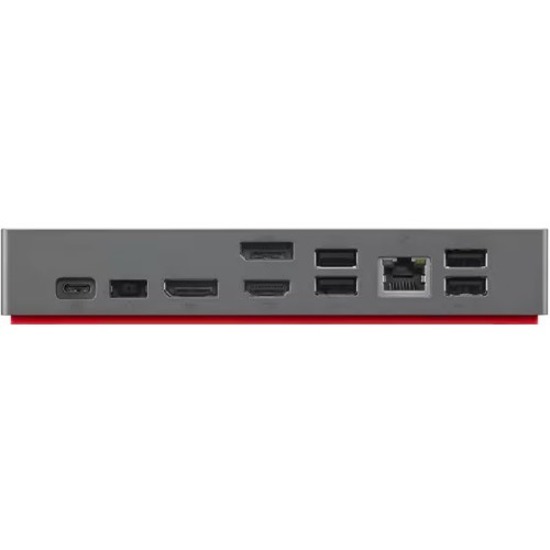

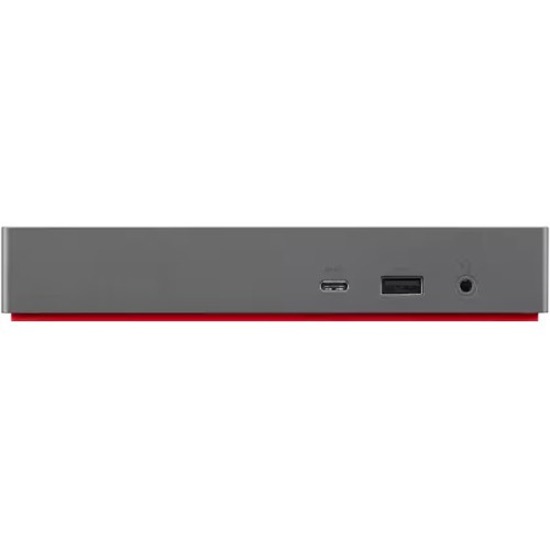

Interfaces/Ports
| Host Interface | USB Type C |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C USB 3.2 Gen2 10Gbps, 5V / 3A |
| Number of RJ-45 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of DisplayPorts | 2 |
| DisplayPort | Yes |
| DisplayPort Version | 1.4 |
| Headphone/Microphone Combo Port | Yes |
| Number of HDMI Ports | 1 |
| HDMI | Yes |
| HDMI Version | 2.1 |
| USB Power Delivery | 100W |
Software
| Operating System Supported | Windows |
Power Description
| Maximum Power Supply Wattage | 135 W |
Physical Characteristics
| Product Color | Storm Gray |
| Height | 1.21" (30.75 mm) |
| Width | 6.73" (171 mm) |
| Depth | 3.15" (80 mm) |
| Weight (Approximate) | 11.99 oz (340 g) |
Miscellaneous
| Kensington Security Slot | Yes |
| Compatibility | Lenovo ThinkPad Notebooks |
Warranty
| Limited Warranty | 3 Year |
