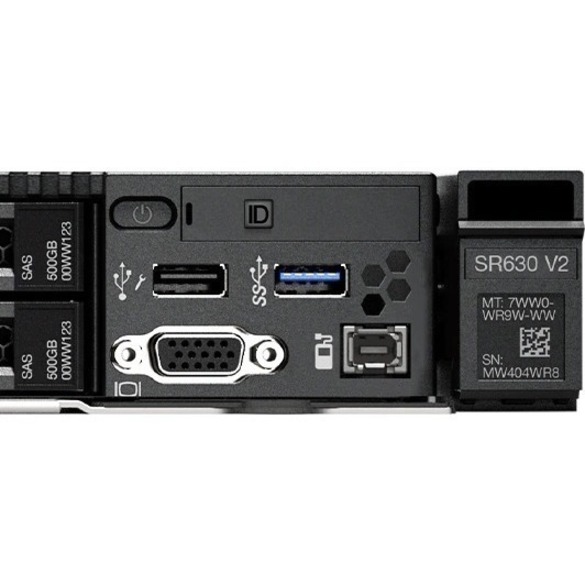

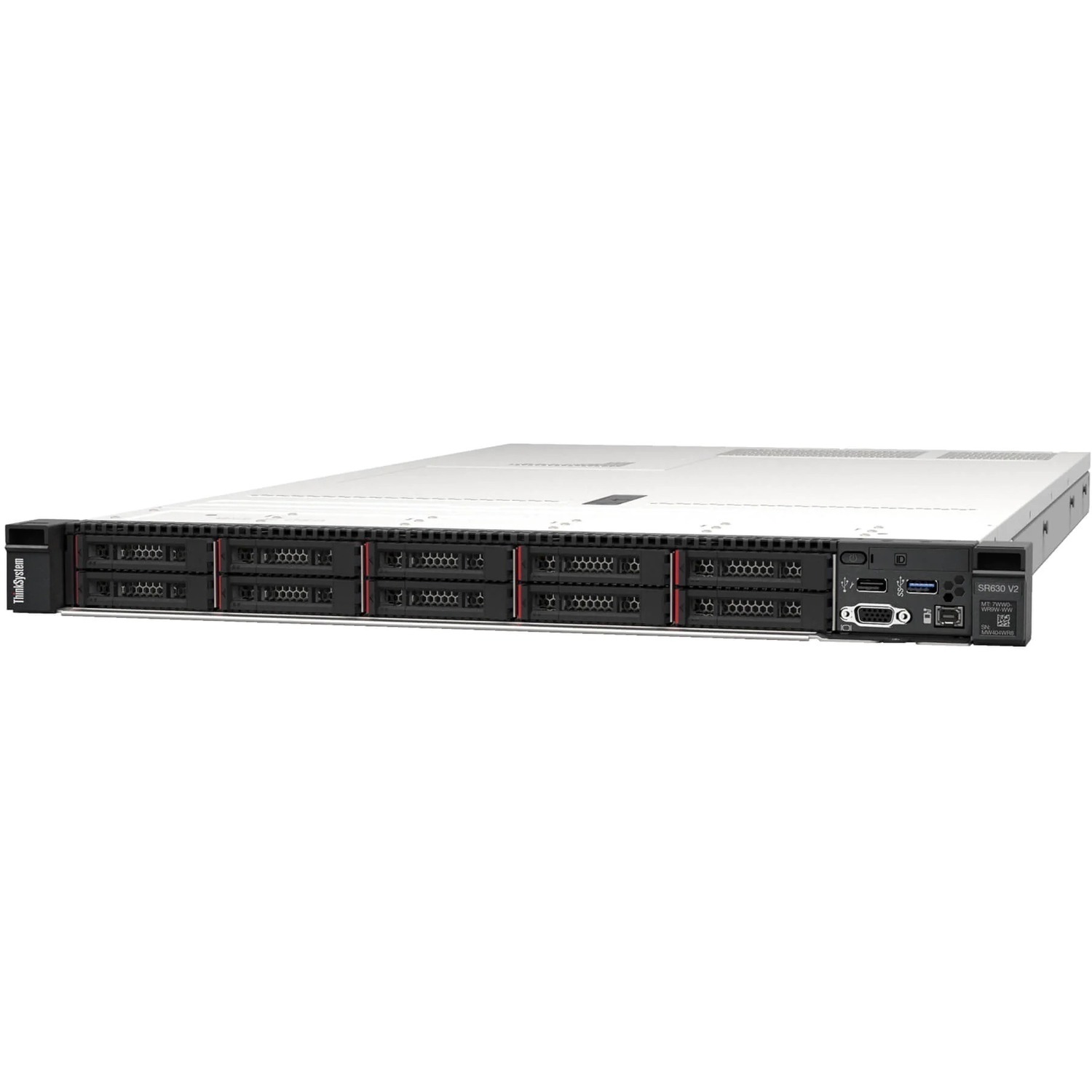

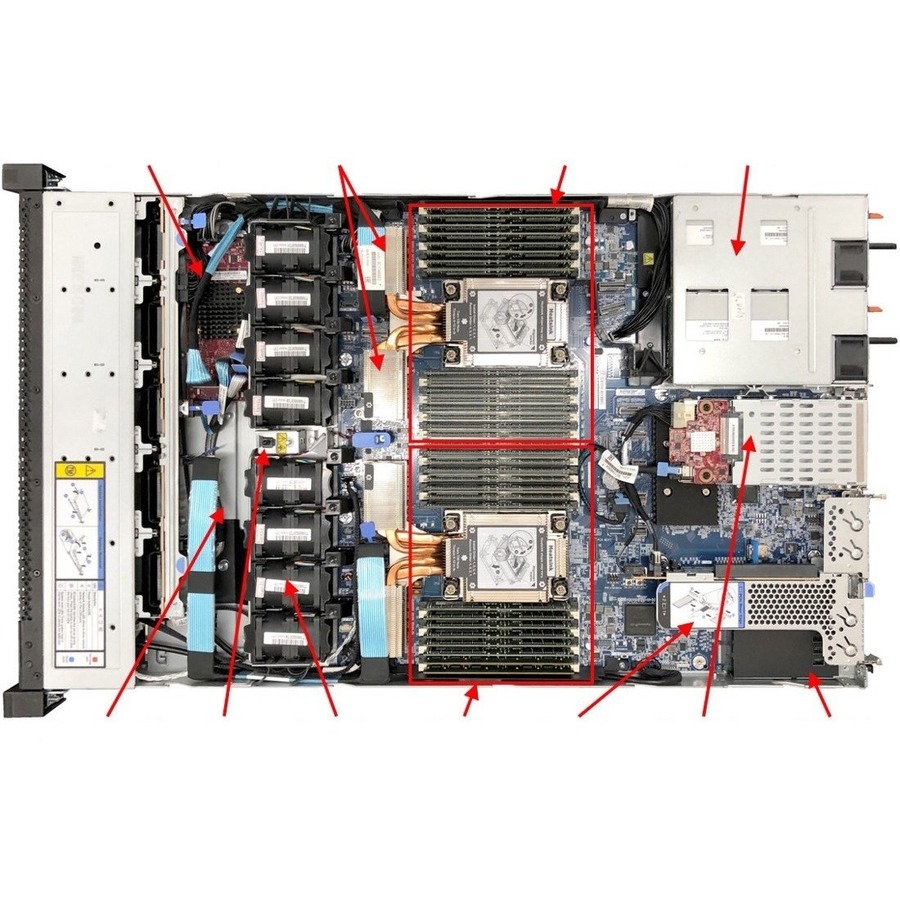

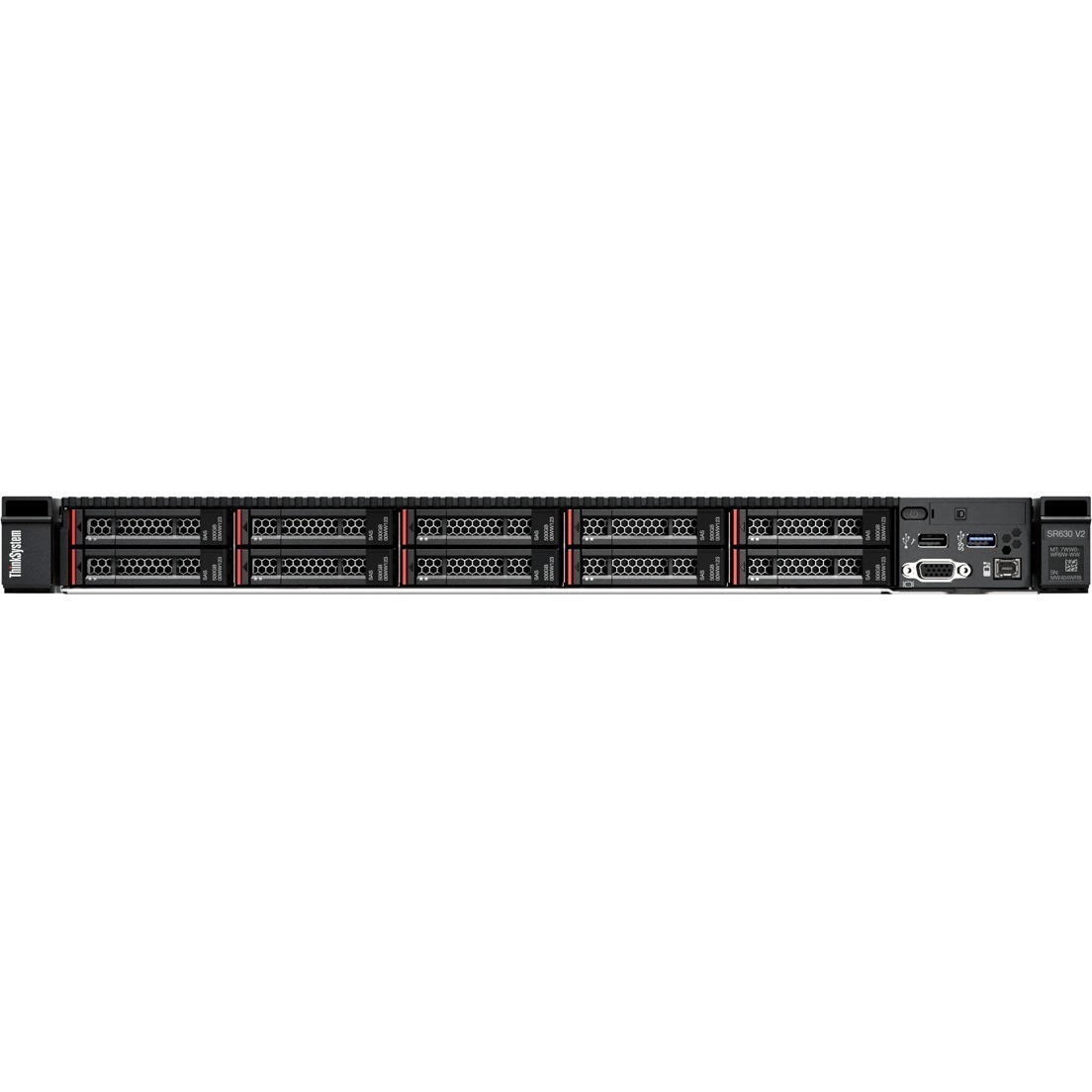

Lenovo ThinkSystem SR630 V2 7Z71A06XNA 1U Rack Server - 1 Xeon Gold 5320 2.20 GHz - 32 GB RAM - Serial ATA/600, 12Gb/s SAS Controller
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7Z71A06XNA |
| Brand Name | Lenovo |
| Product Line | ThinkSystem |
| Product Series | SR630 V2 |
| Product Model | 7Z71A06XNA |
| Product Name | ThinkSystem SR630 V2 7Z71A06XNA Server |
| Marketing Information | The Lenovo ThinkSystem SR630 V2 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC. |
| Product Type | Server |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon Gold |
| Processor Model | 5320 |
| Processor Core | Hexacosa-core (26 Core) |
| Processor Speed | 2.20 GHz |
| Cache | 39 MB |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 8 TB |
| Memory Technology | TruDDR4 |
| Memory Clock Speed | 3.20 GHz |
| Error Checking | ECC |
| Total Number of Memory Slots | 32 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | Yes |
| Signal Processing | Registered (Buffered) |
| Total Hard Drive Capacity | No |
| Optical Drive Type | No |
| Controller Type |
|
| Controller Model | Intel RSTe RAID |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10, JBOD |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 3 |
| PCI Express Details |
|
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
| Ethernet Technology | Gigabit Ethernet |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| VGA | Yes |
| Number of VGA Ports | 1 |
| Remote Management | Yes |
| Remote Management Controller | XClarity Controller (XCC) Enterprise |
| Operating System Supported |
|
| Operating System | No |
| Input Voltage |
|
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C13/C14 |
| Maximum Power Supply Wattage | 750 W |
| Hot Swappable Power Supply | Yes |
| Power Source | Power Supply |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 30.40" (772.16 mm) |
| Weight (Approximate) | 57.98 lb (26300 g) |
| Security Features |
|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification |
|
| Energy Efficiency Certification |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| Limited Warranty | 3 Year |
