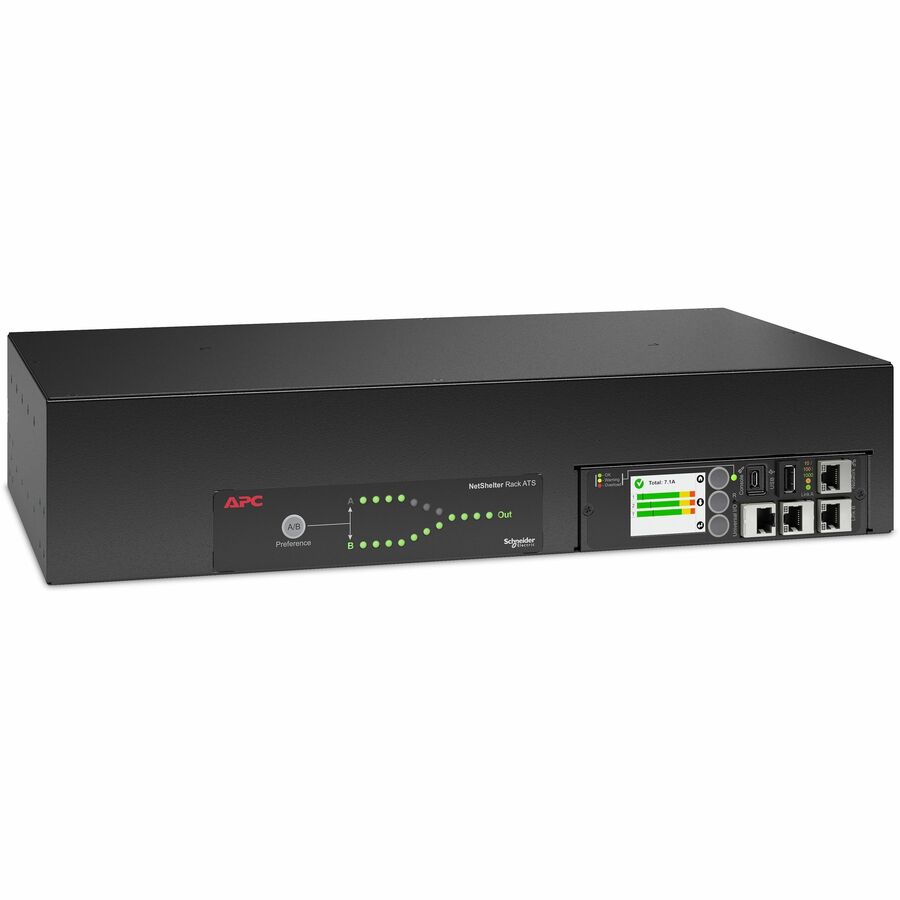

Schneider Electric NetShelter Automatic Transfer Switch
1 x NEMA L6-30R - 208 V AC - 30 A
$2157.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP4431A |
| Brand Name | Schneider Electric |
| Product Line | NetShelter |
| Product Name | NetShelter Automatic Transfer Switch |
| Marketing Information | APC NetShelter Rack Automatic Transfer Switch (ATS) AP4431A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4431A is single phase 2U Rack ATS with 30A rated current, 208V rated voltage and 4992VA load capacity. For North America region, the Regulatory Derated Input Current is 24A. It comes with 2 NEMA L6-30P inlet and 1 NEMA L6-30R outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT. |
| Product Type | Automatic Transfer Switch |
Technical Information
| Plug/Connector Type | NEMA L6-30P 24A (2P + E) |
| Receptacles | 1 x NEMA L6-30R |
| Cord Length | 96" (2438.40 mm) |
Power Description
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Current | 30 A |
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Mounting Location | Front |
| Mounting Preference |
|
| Rack Height | 2U |
| Height | 3.46" (88 mm) |
| Width | 17.01" (432 mm) |
| Depth | 9.29" (236 mm) |
| Weight (Approximate) | 14.33 lb (6499.98 g) |
Miscellaneous
| For Country/Region | United States |
| Package Contents |
|
| Certifications & Standards | TÜV-C|TÜV-NURTL|VCCI Class A |
| Product Take Back Program | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP4431A_ROHS_DECLARATION&p_FileName=AP4431AKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=559241362&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=559241362&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712015_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712015_EN |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| REACH free of SVHC | No |
| Lead Free | Yes |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 731304432470 |
Warranty
| Limited Warranty | 2 Year |
| Additional Warranty Information | 2 years repair or replace |
