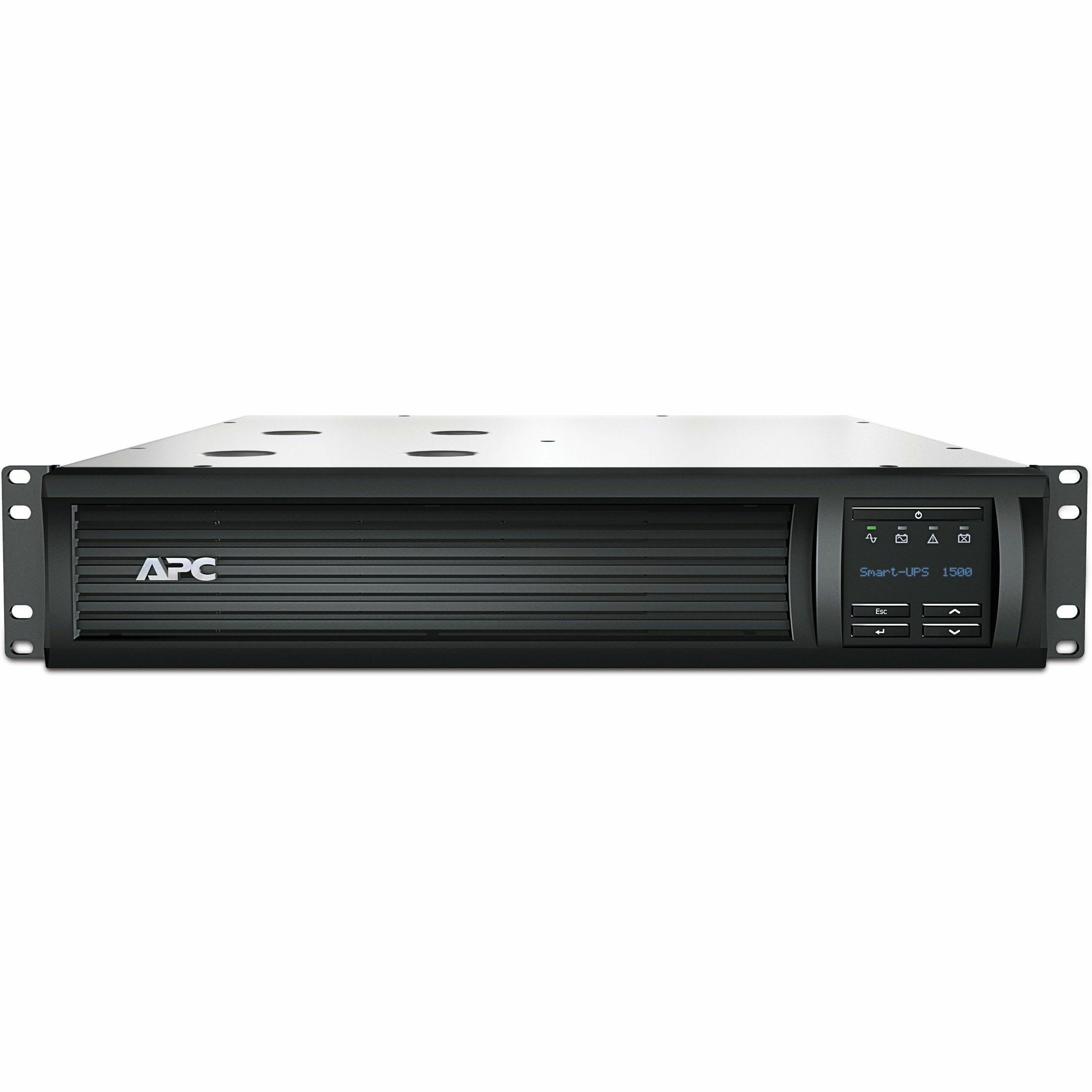

APC by Schneider Electric Smart-UPS 1.5kVA 120V RM SHIPBOARD
Rack-mountable - AVR - 3 Hour Recharge - 7 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - Serial Port - 6 x NEMA 5-15R Receptacle(s) - 6 x Battery/Surge Outlet
$1822.99
In Stock Availability
- All Locations: (5+)
- Toronto, ON (5+)
General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMT1500RMX93 |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 1.5kVA 120V RM SHIPBOARD |
| Marketing Information | The APC Smart-UPS is a rackmount shipboard UPS with a power rating of 1440VA and an output power capacity of 1000 watts. It operates at a nominal voltage of 120V and includes 6 NEMA 5-15R outlets. |
| Product Type | Line-interactive UPS |
Technical Information
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Transfer Time | 10 ms |
Power Description
| Load Capacity (VA) | 1.44 kVA |
| Load Capacity (Watt) | 1 kW |
| Input Voltage | 120 V |
| Input Voltage Range | 82 V AC - 144 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 693 J |
Management
| Alarm | Changing Utility Power |
Controls/Indicators
| Status Indicators | LED Display:
|
Interfaces/Ports
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
Battery Information
| Battery Chemistry | Lead Acid |
| Battery Energy | 1555.2 kJ |
| Backup/Run Time (Full Load) | 7 Minute |
| Backup/Run Time (Half Load) | 26 Minute |
| Battery Life | 5 Year |
| Typical Battery Recharge Time | 3 Hour |
Environmental Conditions
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 131°F (55°C) |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Thermal Dissipation | 255 BTU/h |
Physical Characteristics
| Height | 3.39" (86 mm) |
| Width | 17.01" (432 mm) |
| Depth | 18.78" (477 mm) |
| Form Factor | Rack-mountable |
| Mounting Preference | No Preference |
| Mounting Location | Front |
| Weight (Approximate) | 58.42 lb (26498.87 g) |
Miscellaneous
| For Country/Region | United States |
| Certifications & Standards | CSA C22.2 No 107.1 |
| Product Take Back Program | No |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT1500RMX93_ROHS_DECLARATION&p_FileName=SMT1500RMX93KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=559241382&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=559241382&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0731304433651 |
Warranty
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
