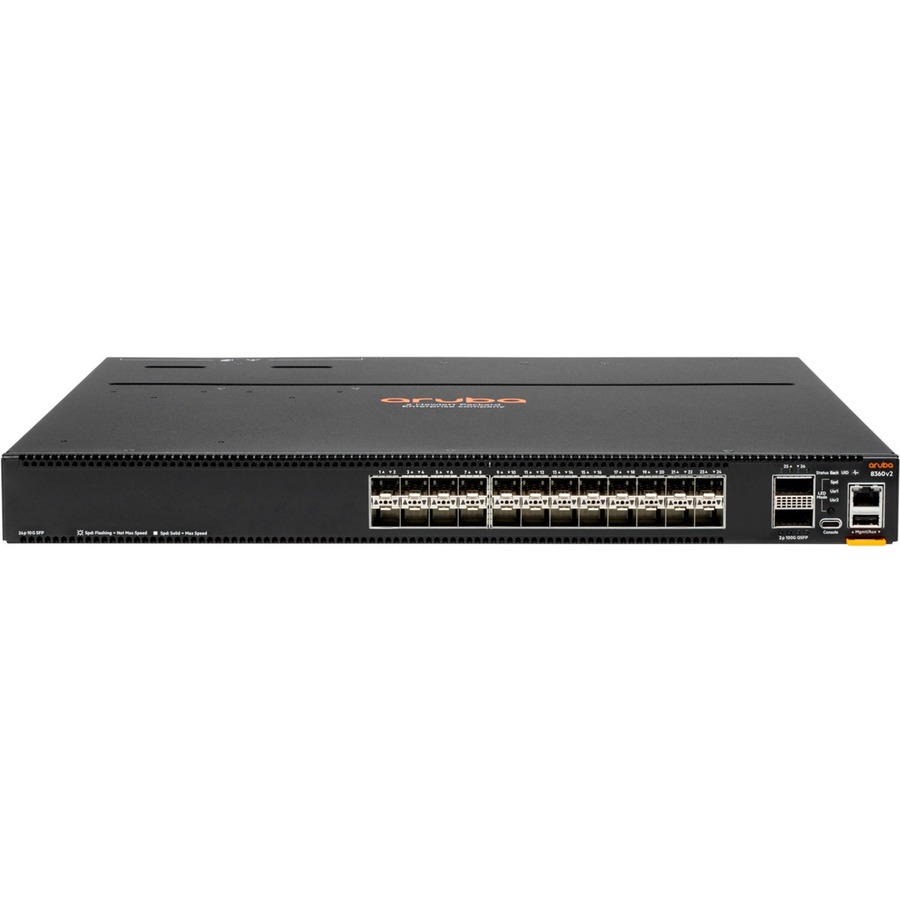

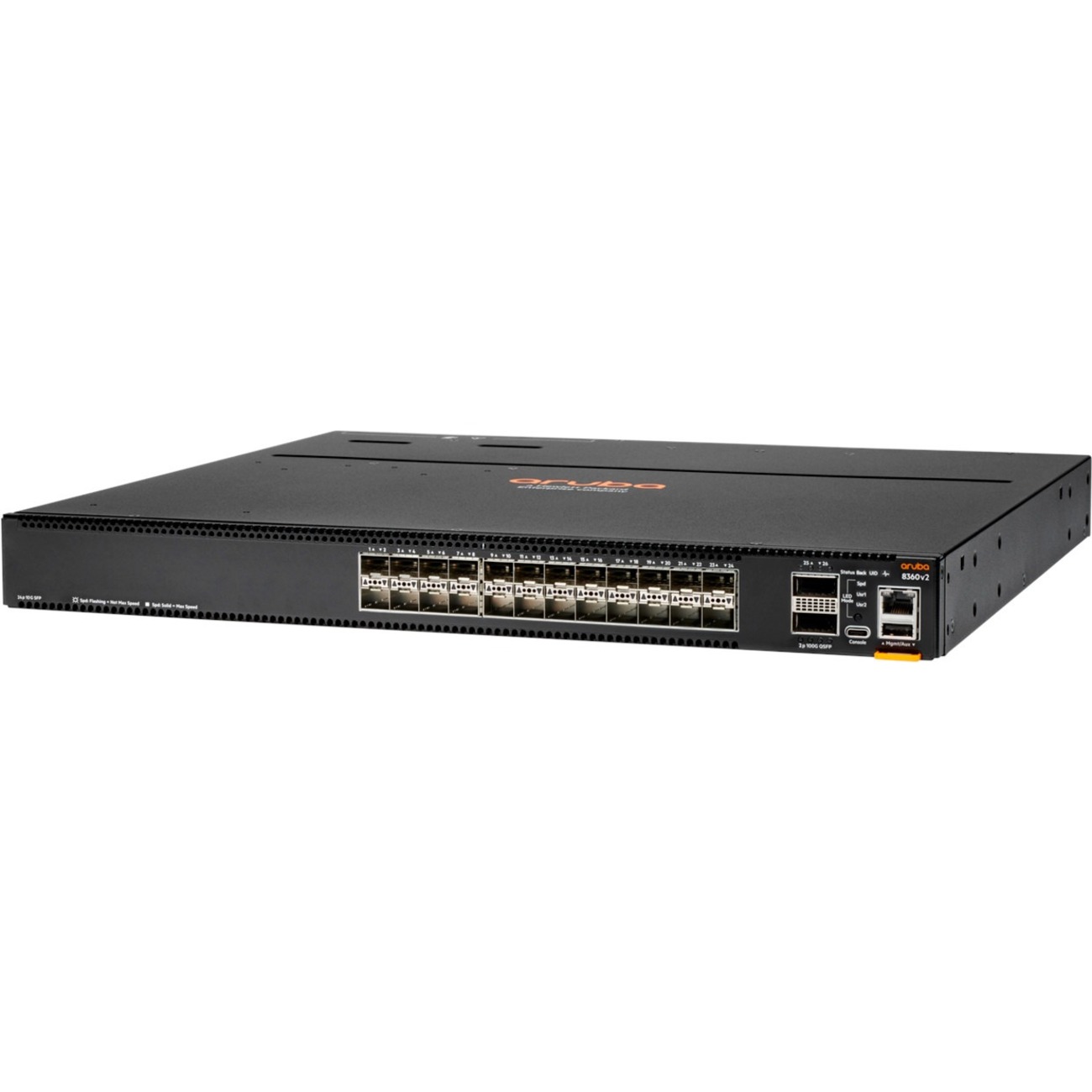

HPE 8360-24XF2C v2 Ethernet Switch
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | R9G16A |
| Brand Name | HPE |
| Product Series | CX 8360v2 |
| Product Model | 8360-24XF2C v2 |
| Product Name | 8360-24XF2C v2 Ethernet Switch |
| Marketing Information | Aruba CX 8360 v2 Switch Series The Aruba CX 8360v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 4.8Tbps of capacity, with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5, 5 Gbps), 10Gbps, 25Gbps, 40Gbps, 50Gbps, and 100Gbps. The 8360v2 series includes industry-leading line rate ports with 1/10/25/50GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 50/100GbE ports. In addition, the switch supports low- density MACsec ports enabling secure connectivity at 10GbE and 25GbE over unsecured domains.
The Aruba CX 8360 switch series is based on ArubaOS-CX, a modern, database driven operating system that automates and simplifies many critical and complex tasks. The enhanced capabilities of ArubaOS CX provide a unique set of differentiators for campus and data center switching. ArubaOS-CX is built on a modular Linux architecture with OVSDB, providing the following unique capabilities: Safe and powerful access to all state at all times allows unique visibility and analytics capabilities |
| Product Type | Ethernet Switch |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details |
|
| Media Type Supported | Optical Fiber |
| Ethernet Technology |
|
| Network Technology |
|
| Total Number of Expansion Slots | 26 |
| Expansion Slot Type |
|
| Number of SFP+ Slots | 24 |
| Layer Supported | 3 |
| Networking Standards |
|
| Manageable | Yes |
| Input Voltage |
|
| Frequency |
|
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Number of Power Supplies Supported | 2 |
| Power Consumption | 375 W |
| Compatible Rack Unit | 1U |
| Form Factor |
|
| Height | 1.73" (43.94 mm) |
| Width | 17.40" (441.96 mm) |
| Depth | 16" (406.40 mm) |
| Weight (Approximate) | 17.80 lb (8073.94 g) |
| Application/Usage |
|
| Condition | No |
