Dell Thunderbolt Dock - WD22TB4

Part No. DELL-WD22TB4

by Dell Technologies

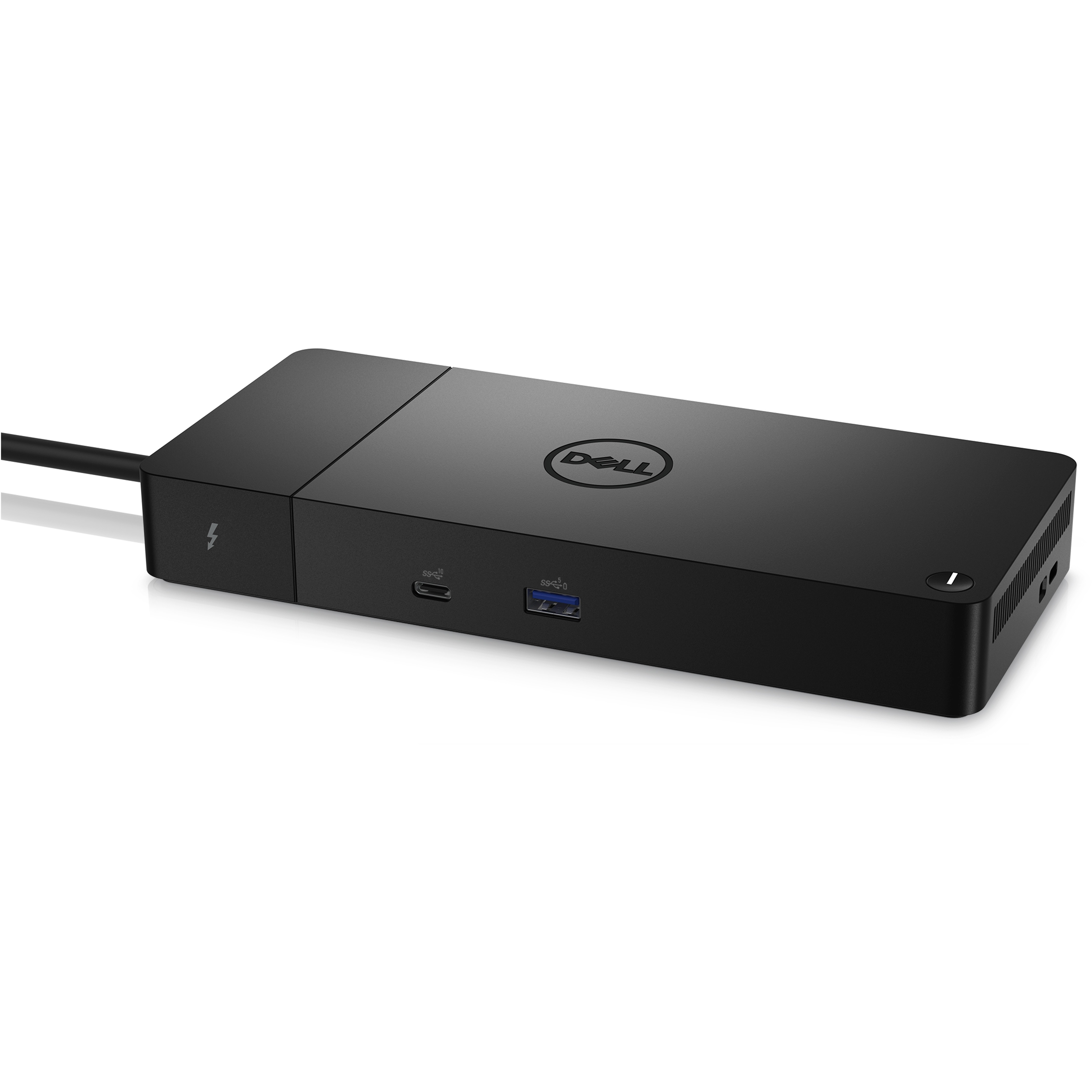

Dell Thunderbolt Dock - WD22TB4

for Notebook - Charging Capability - 180 W - Thunderbolt 4 - 2 Displays Supported - 5K, 4K - 5120 x 2880, 3840 x 2160 - 3 x USB Type-A Ports - USB Type-A - 3 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 1 x HDMI Ports - HDMI - 2 x DisplayPorts - DisplayPort - Black - Thunderbolt - Wired - Gigabit Ethernet - Windows 10, Windows 11, Ubuntu 20.04

Part No. DELL-WD22TB4

by Dell Technologies

$440.99
General Information
ManufacturerDell Technologies
Manufacturer Part NumberDELL-WD22TB4
Brand NameDell
Product LineThunderbolt
Product ModelWD22TB4
Product NameThunderbolt Dock - WD22TB4
Marketing Information

ExpressCharge technology

You'll experience power delivery of up to 130W on Dell devices with ExpressCharge technologyi that enables:

  • 80% charge in one hour
  • 35% charge in just 20 minutes

Future-made design

  • Swappable module lets you upgrade with ease to meet the needs of your IT environment.
  • Upgrade to get the latest in connectivity with not one but two Thunderbolt™ 4 ports for even more flexibility.

Multiply productivity

Connect displays and peripherals to your system with a single cable for ultimate productivity.
Thunderbolt™ 4 dock with the highest number of ports connects multiple 4K displays and Thunderbolt peripherals allowing you to not compromise with your work setup. Get the maximum from your peripherals with data transfer of 40 GB/s.

Intelligent and simple management |
Work without disruption: Firmware updates can be completed in five to seven minutes without needing to reboot the system.

Easier for IT: Dell Client Command Suite and Microsoft System Center Configuration Manager offers a smoother firmware update experience. You can also streamline deployment and management with a single firmware.

Easier upgrades: Modularity allows for simple field replacement of the power cable or connectivity module.

Better support: Inventory management got easier since each has its own service tag, allowing IT to push firmware updates only to certain dock.

Secure manageability:
Keep your information safe with MAC Address pass-thru and remote port-disablement. Plus, with features like PXE Boot, Wake-on-LAN, and more, it's easier than ever to stay productive while managing your dock.

Product TypeDocking Station
Technical Information
Connectivity TechnologyWired
Charging CapabilityYes
Device SupportedNotebook
Number of Displays Supported2
Screen Mode Supported
  • 5K
  • 4K
Supported Resolutions
  • 5120 x 2880
  • 3840 x 2160
Maximum Data Transfer Rate5 GB/s
Network & Communication
Ethernet TechnologyGigabit Ethernet
Interfaces/Ports
Host InterfaceThunderbolt 4
Number of USB 3.2 Gen 1 Type-A Ports3
Number of USB Type-A Ports3
Number of USB Type-C Ports3
USB Type-AYes
USB Type-CYes
USB Type-C DetailUSB-C Multifunction DisplayPort
Network (RJ-45)Yes
Number of RJ-45 Ports1
Number of VGA Outputs0
Number of DisplayPorts2
DisplayPortYes
DisplayPort Version1.4
Number of HDMI Ports1
HDMIYes
HDMI Version2.0
ThunderboltYes
Thunderbolt Ports Quantity2
Software
Operating System Supported
  • Windows 10
  • Windows 11
  • Ubuntu 20.04
Power Description
Maximum Power Supply Wattage180 W
Power Source TypePower Adapter
Power Supply InputDC jack (7.4mm)
Physical Characteristics
Color FamilyBlack
Product ColorBlack
Height1.10" (27.94 mm)
Width8.10" (205.74 mm)
Depth3.50" (88.90 mm)
Weight (Approximate)15.87 oz (449.91 g)
Miscellaneous
Kensington Security SlotYes
Brand CompatibilityDell
ConditionNo
UPC0884116420064
Warranty
Limited Warranty3 Year
Additional Warranty Information3Y Basic Hardware Service with Advanced Exchange-Disti SnS
