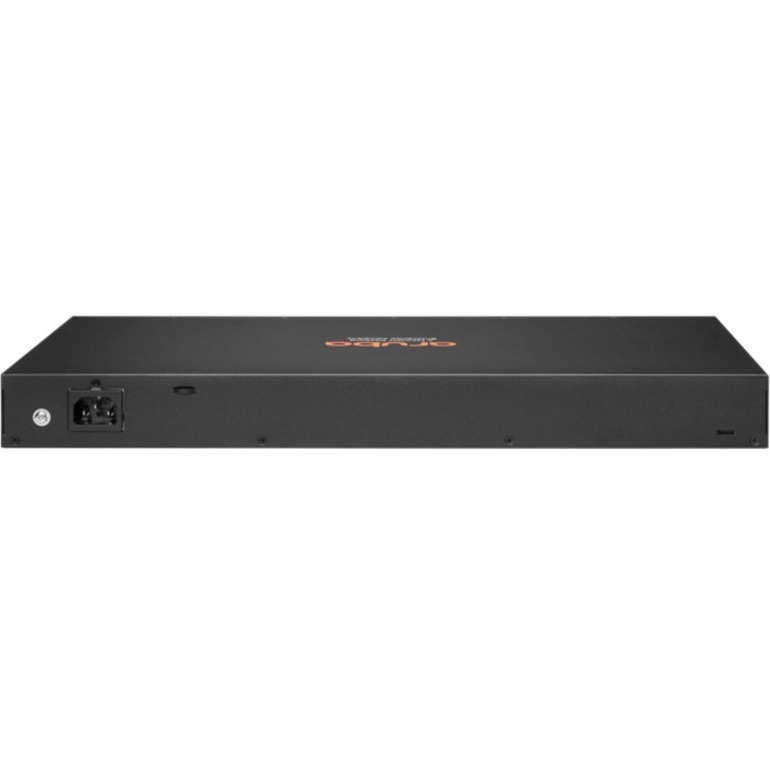

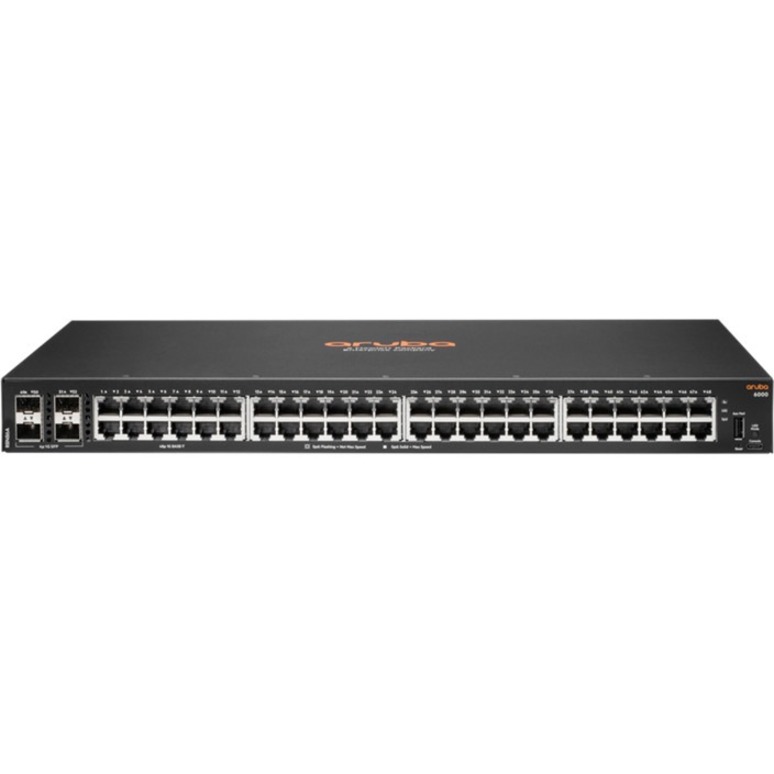

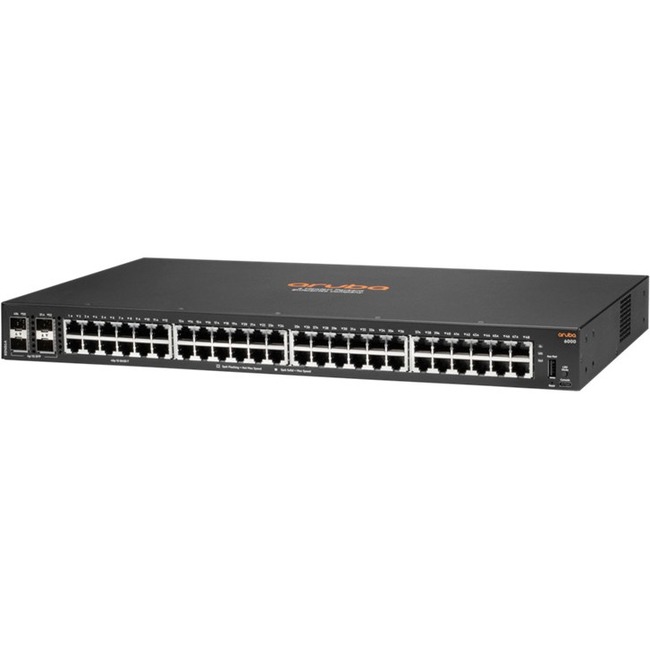

HPE 6000 48G 4SFP Switch

48 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 3 Layer Supported - Modular - 4 SFP Slots - 44.20 W Power Consumption - Optical Fiber, Twisted Pair - 1U - Rack-mountable, Cabinet Mount, Surface Mount, Wall Mountable

Part No. R8N86A

by Hewlett Packard Enterprise

$2453.99

General Information

Manufacturer	Hewlett Packard Enterprise
Manufacturer Part Number	R8N86A
Brand Name	HPE
Product Series	CX 6000
Product Model	6000 48G 4SFP
Product Name	6000 48G 4SFP Switch
Marketing Information	The Aruba CX 6000 Switch Series is modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Optimized for reliable, simple and secure access, the CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications. The CX 6000 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This fully managed series has convenient built-in uplinks with up to 370W of PoE+ to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small work spaces. The CX 6000 series is easy to deploy and use with flexible management choices that include Web GUI, CLI, cloudbased and on-premise Aruba Central management, so you can choose the best fit for your business and network environment. Delivering Layer 2 capabilities with enhanced access security, traffic prioritization, and IPv6 support, the CX 6000 also simplifies ownership and brings peace of mind with no switch software licensing and a Limited Lifetime Warranty. PRODUCT DIFFERENTIATORS \| AOS-CX - a modern software system The Aruba CX 6000 Switch Series is based on AOSCX, a modern, database-driven operating system that is built on a modular Linux architecture. With the CX 6000 series, the benefits of the AOS-CX architecture is extended to small enterprise deployments providing the following unique capabilities: Easy access to all network configuration state information REST APIs for fine-grained programmability of network tasks A micro-services architecture that enables full integration with other workflow systems and services All software processes communicate with the database rather than each other, ensuring near real-time state and resiliency Aruba ASICs - programmable innovation Based on over 30 years of continuous investment, Aruba's ASICs create the basis for innovative and agile software feature advancements, unparalleled performance and deep visibility. These programmable ASICs are purpose-built to allow for a tighter integration of switch hardware and software within campus and data center architectures to optimize performance and capacity. The Aruba CX 6000 is based on the Aruba ASIC architecture. Access layer performance The Aruba CX 6000 Switch Series uses internally developed Aruba ASICs that provide very low latency, increased packet buffering, and adaptive power consumption. Each switch includes the following: Up to 104 Gbps in non-blocking bandwidth and up to 77.3 Mpps for forwarding
Product Type	Ethernet Switch

Interfaces/Ports

Total Number of Network Ports	48
Uplink Port	Yes
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	48 x Gigabit Ethernet Network 4 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T 1000Base-X

I/O Expansions

Total Number of Expansion Slots	4
Expansion Slot Type	SFP (mini-GBIC)
Number of SFP Slots	4

Network & Communication

Layer Supported	3
Networking Standards	IEEE 802.3 IEEE 802.3ad IEEE 802.1s IEEE 802.1D IEEE 802.1w IEEE 802.1p IEEE 802.1ab IEEE 802.1Q IEEE 802.1x IEEE 802.3ab IEEE 802.3az

Management & Protocols

Manageable	Yes

Power Description

PoE (RJ-45) Port	No
Frequency	50 Hz 60 Hz
Power Source	Power Supply
Power Consumption	44.20 W

Physical Characteristics

Compatible Rack Unit	1U
Form Factor	Rack-mountable Cabinet Mount Surface Mount Wall Mountable
Height	1.73" (43.94 mm)
Width	17.40" (441.96 mm)
Depth	9.74" (247.40 mm)
Weight (Approximate)	7.54 lb (3420 g)

Miscellaneous

Application/Usage	Business
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
Condition	No
