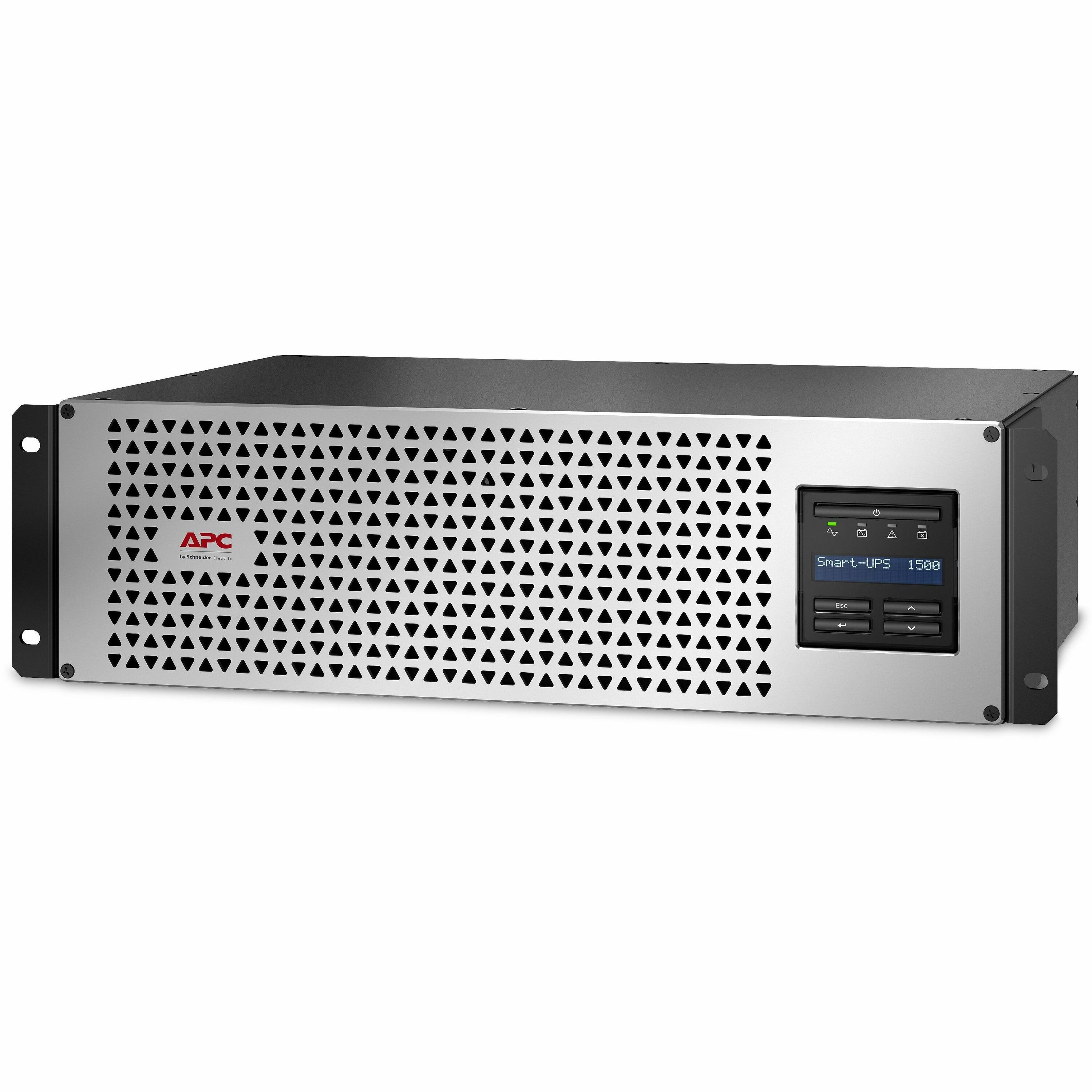

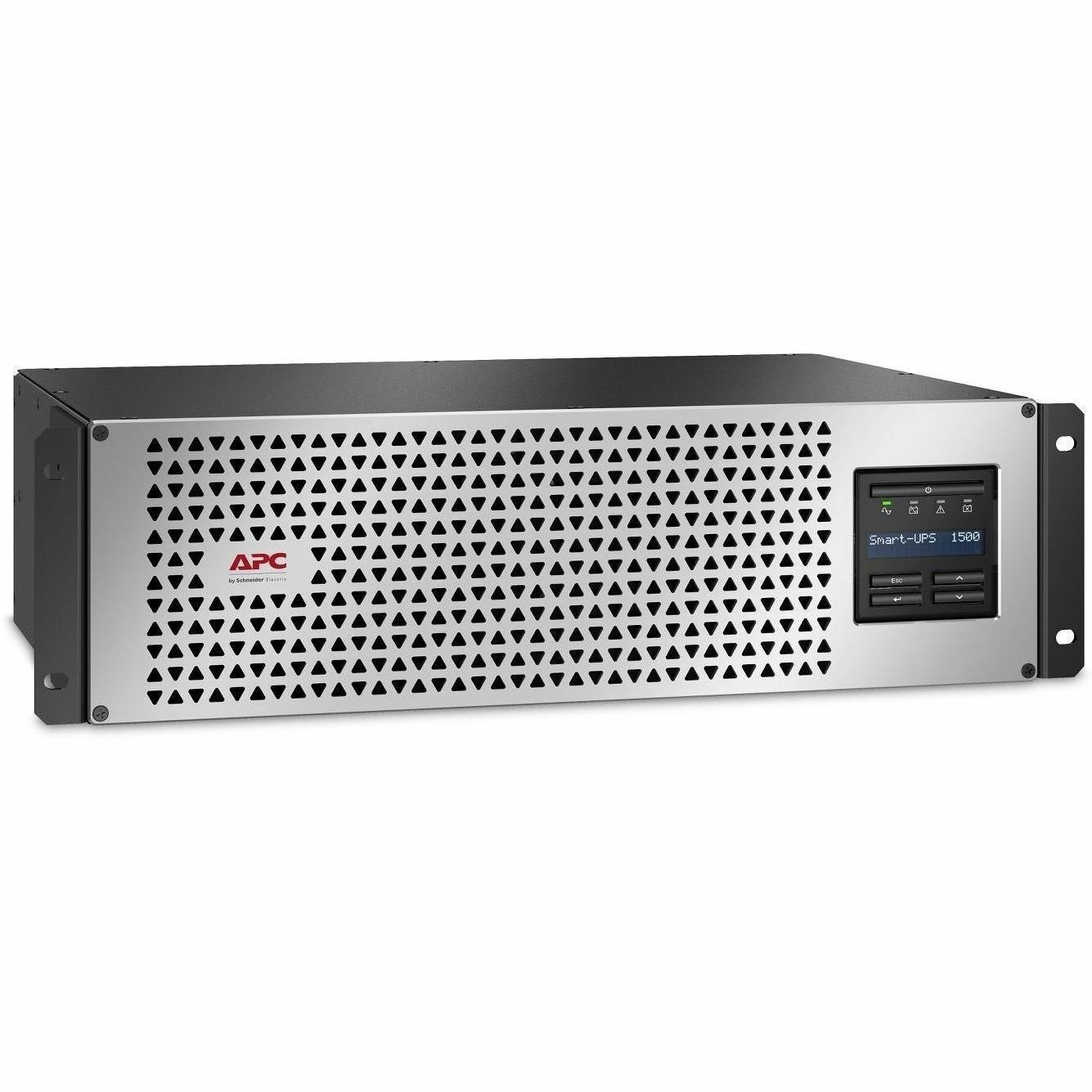

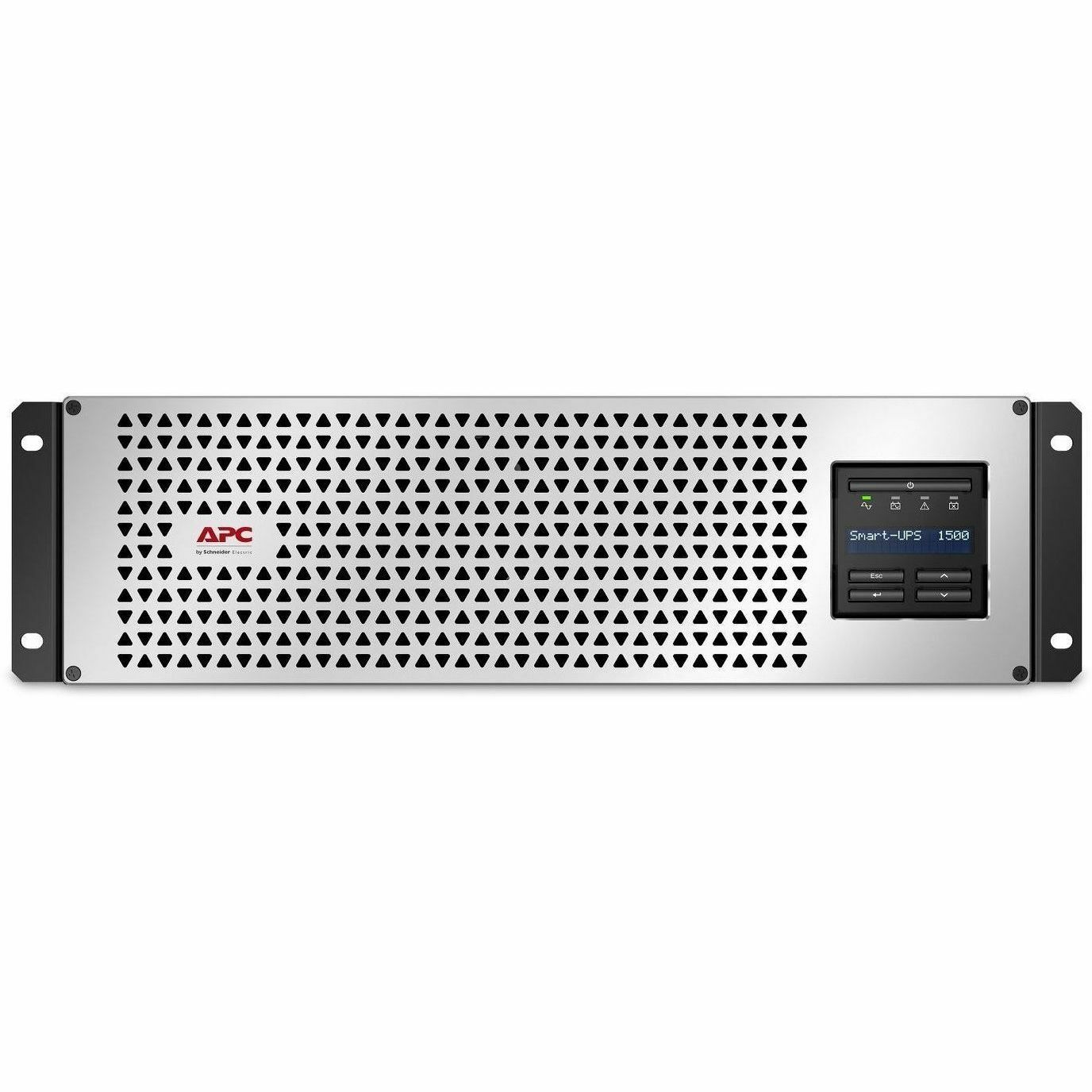

APC by Schneider Electric Smart-UPS 1500VA Rack-mountable UPS
3U Rack-mountable - 3 Hour Recharge - 3.03 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - Serial Port - 6 x NEMA 5-15R Receptacle(s) - 6 x Battery/Surge Outlet - SmartConnect
$3292.99
In Stock Availability
- All Locations: (171+)
- Calgary, AB (16+)
- Halifax, NS (7+)
- Mississauga, ON (136+)
- Richmond, BC (12+)
General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMTL1500RM3UCNC |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 1500VA Rack-mountable UPS |
| Marketing Information | This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive 3U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery. |
| Product Type | Line-interactive UPS |
Technical Information
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |

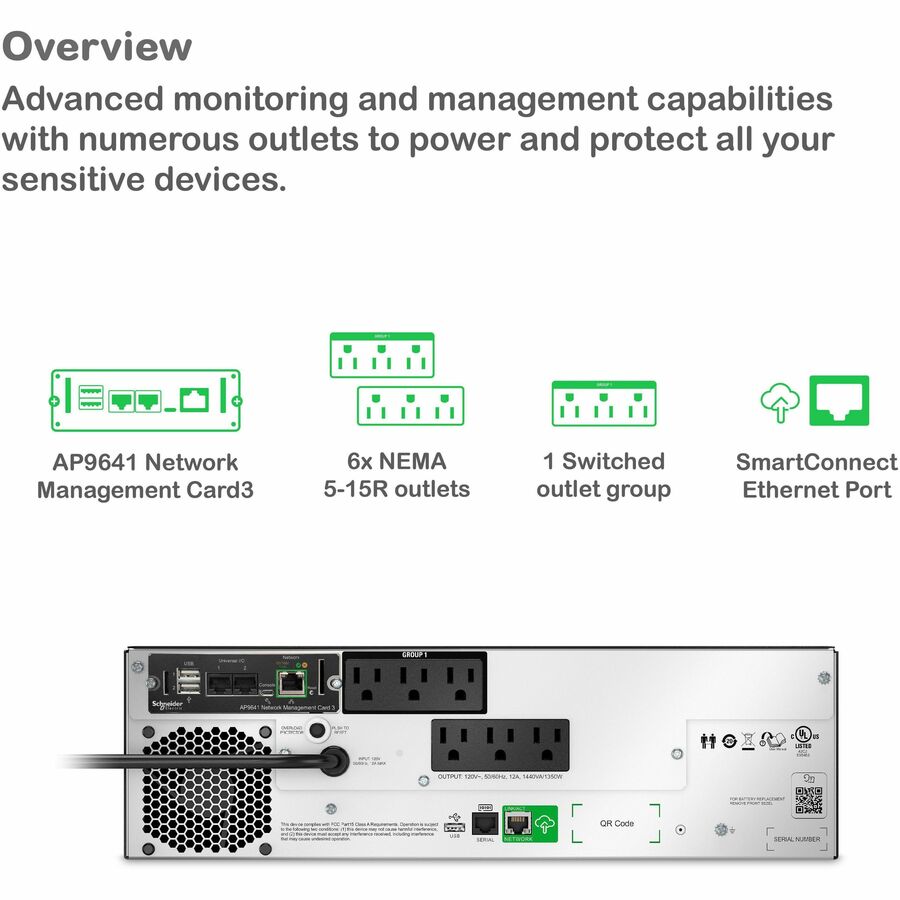

| Receptacle Detail | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Cord Length | 8 ft (2.44 m) |
| Transfer Time | 6 ms |
Power Description
| Load Capacity (VA) | 1.44 kVA |
| Load Capacity (Watt) | 1.35 kW |
| Input Voltage | 120 V |
| Input Voltage Range |
|
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 680 J |
Management
| Network Management | SmartConnect |
| Alarm |
|
Controls/Indicators

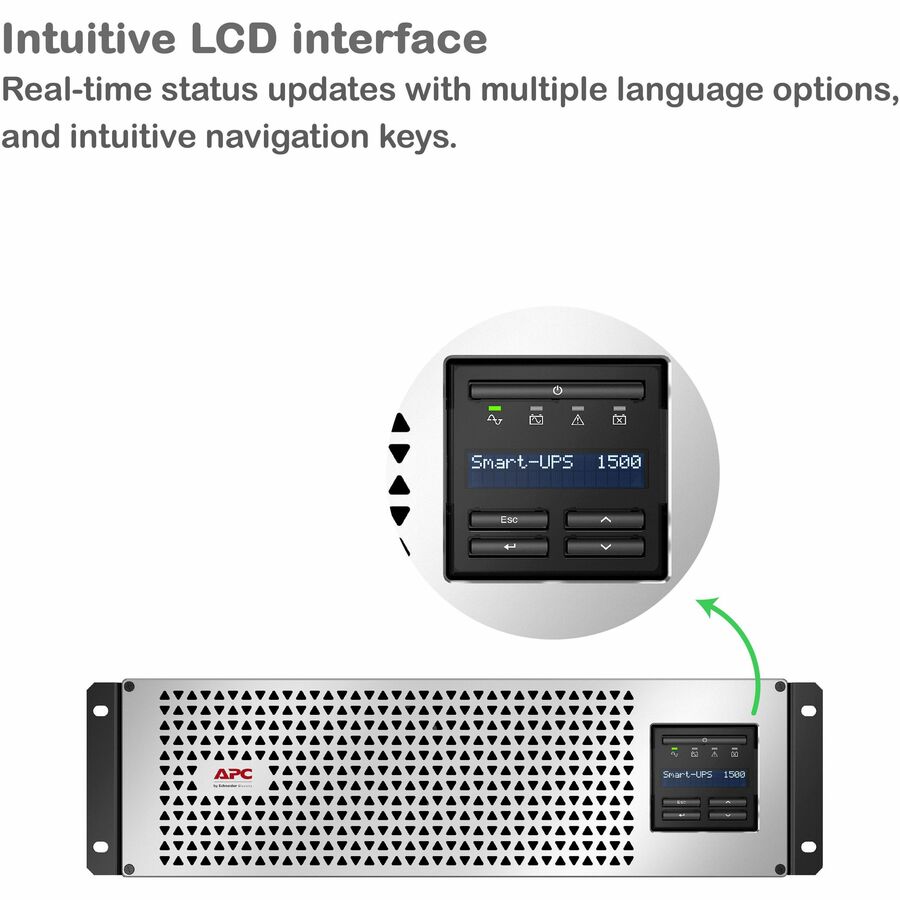

| Status Indicators | Multifunction LCD Status and Control Console |
Interfaces/Ports
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB (HID Compliant) Port | Yes |
Battery Information
| DC System Voltage | 36 V DC |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Energy | 864 kJ |
| Backup/Run Time (Full Load) | 3.03 Minute |
| Backup/Run Time (Half Load) | 8.87 Minute |
| Typical Battery Recharge Time | 3 Hour |
Environmental Conditions
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -40°F (-40°C) - 95°F (35°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 25000 ft (7620000 mm) |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Thermal Dissipation | 135 BTU/h |
Physical Characteristics
| Color Family | Dual Color |
| Product Color |
|
| Height | 5.16" (131 mm) |
| Width | 17.24" (438 mm) |
| Depth | 11.89" (302 mm) |
| Rack Height | 3U |
| Form Factor | Rack-mountable |
| Mounting Preference | No Preference |
| Weight (Approximate) | 42.99 lb (19499.94 g) |
Miscellaneous
| For Country/Region | United States |
| Package Contents |
|
| Certifications & Standards | NOM |
| Product Take Back Program | No |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMTL1500RM3UCNC_ROHS_DECLARATION&p_FileName=SMTL1500RM3UCNCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=557301538&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557301538&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1812001_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1812001_EN |
| REACH free of SVHC | Yes |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Condition | No |
| UPC | 0731304435471 |
Warranty
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5 year repair or replace |
| Directly Connected Equipment Guarantee | $150000 Lifetime |
