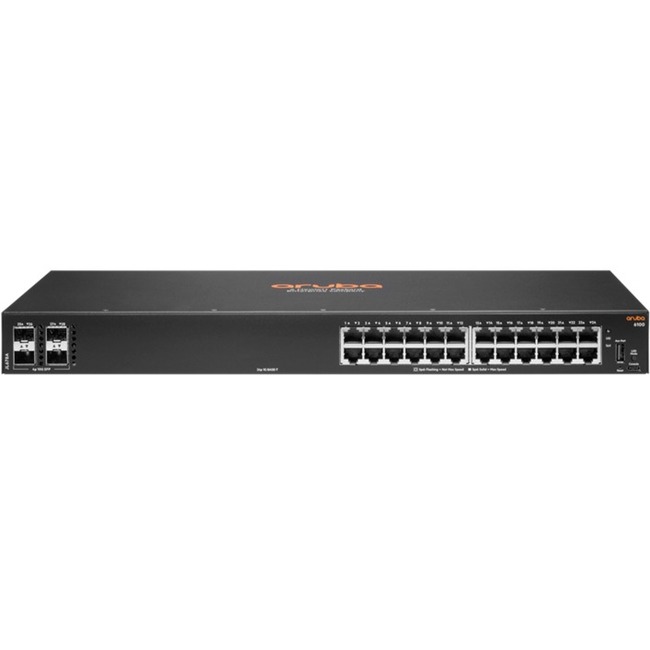

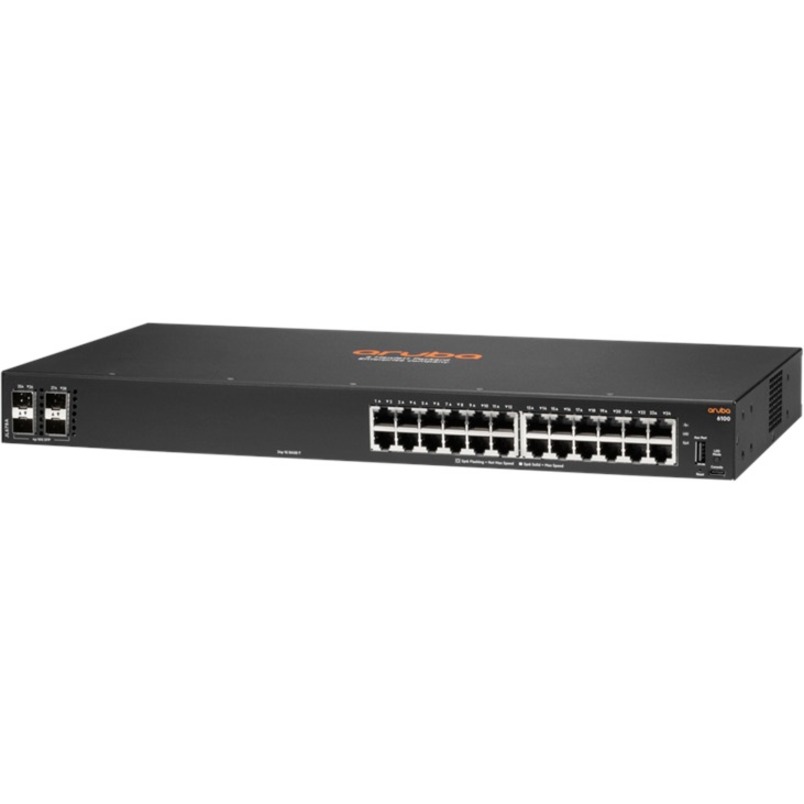

HPE 6100 24G 4SFP+ Switch

Part No. JL678A

by Hewlett Packard Enterprise

HPE 6100 24G 4SFP+ Switch

24 Ports - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 33 W Power Consumption - Twisted Pair, Optical Fiber - 1U - Rack-mountable, Wall Mountable - Lifetime Limited Warranty

Part No. JL678A

by Hewlett Packard Enterprise

$2233.99
General Information
ManufacturerHewlett Packard Enterprise
Manufacturer Part NumberJL678A
Brand NameHPE
Product Series6100
Product Model6100 24G 4SFP+
Product Name6100 24G 4SFP+ Switch
Marketing Information

Aruba 6100 Switch Series

The Aruba CX 6100 Switch Series is modern family of entrylevel access switches ideal for enterprise branch offices andSMB networks. Optimized for reliable, simple and secure access, the CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile and cloud applications.

The CX 6100 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 370W of PoE to support IoT devices such as security cameras and wireless APs, and includes acompact and fanless model ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the CX 6100 also simplifies ownership with no software licensing requirements..

Product TypeEthernet Switch
Interfaces/Ports
Total Number of Network Ports24
Uplink PortYes
ModularYes
Port/Expansion Slot Details
  • 24 x Gigabit Ethernet Network
  • 4 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported
  • Twisted Pair
  • Optical Fiber
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-X
I/O Expansions
Total Number of Expansion Slots4.0
Expansion Slot TypeSFP+
Number of SFP+ Slots4
Network & Communication
Layer Supported3
Power Description
Frequency
  • 50 Hz
  • 60 Hz
Power SourcePower Supply
Number of Power Supplies Supported1
Number of Power Supplies Installed1
Power Consumption33 W
Physical Characteristics
Compatible Rack Unit1U
Form Factor
  • Rack-mountable
  • Wall Mountable
Height1.73" (43.90 mm)
Width17.40" (442 mm)
Depth7.92" (201.20 mm)
Weight (Approximate)5.78 lb (2620 g)
Miscellaneous
Package Contents
  • 6100 24G 4SFP+ Switch
  • Mounting Brackets
Environmentally FriendlyYes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
ConditionNo
UPC0190017348698
Warranty
Limited WarrantyLifetime
