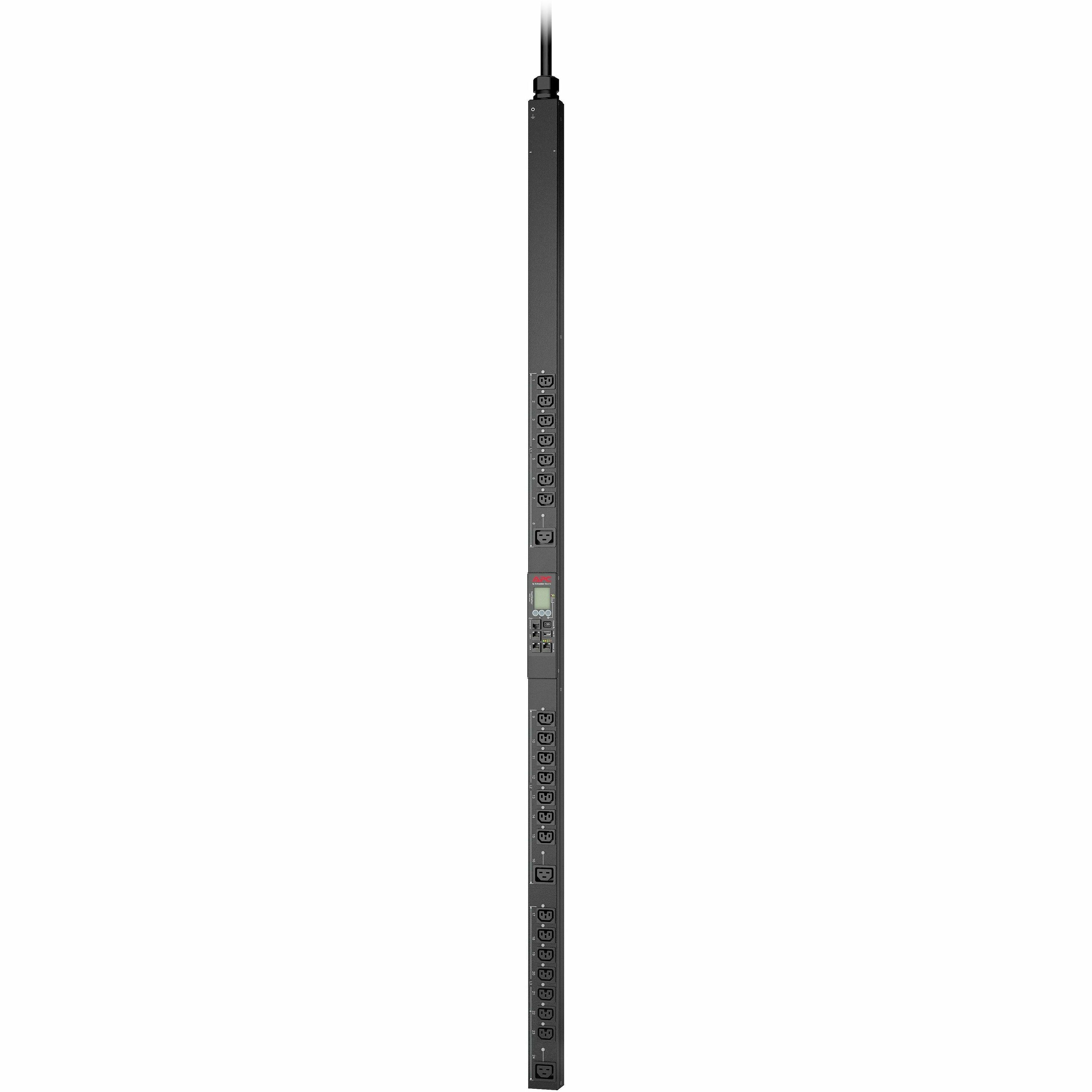

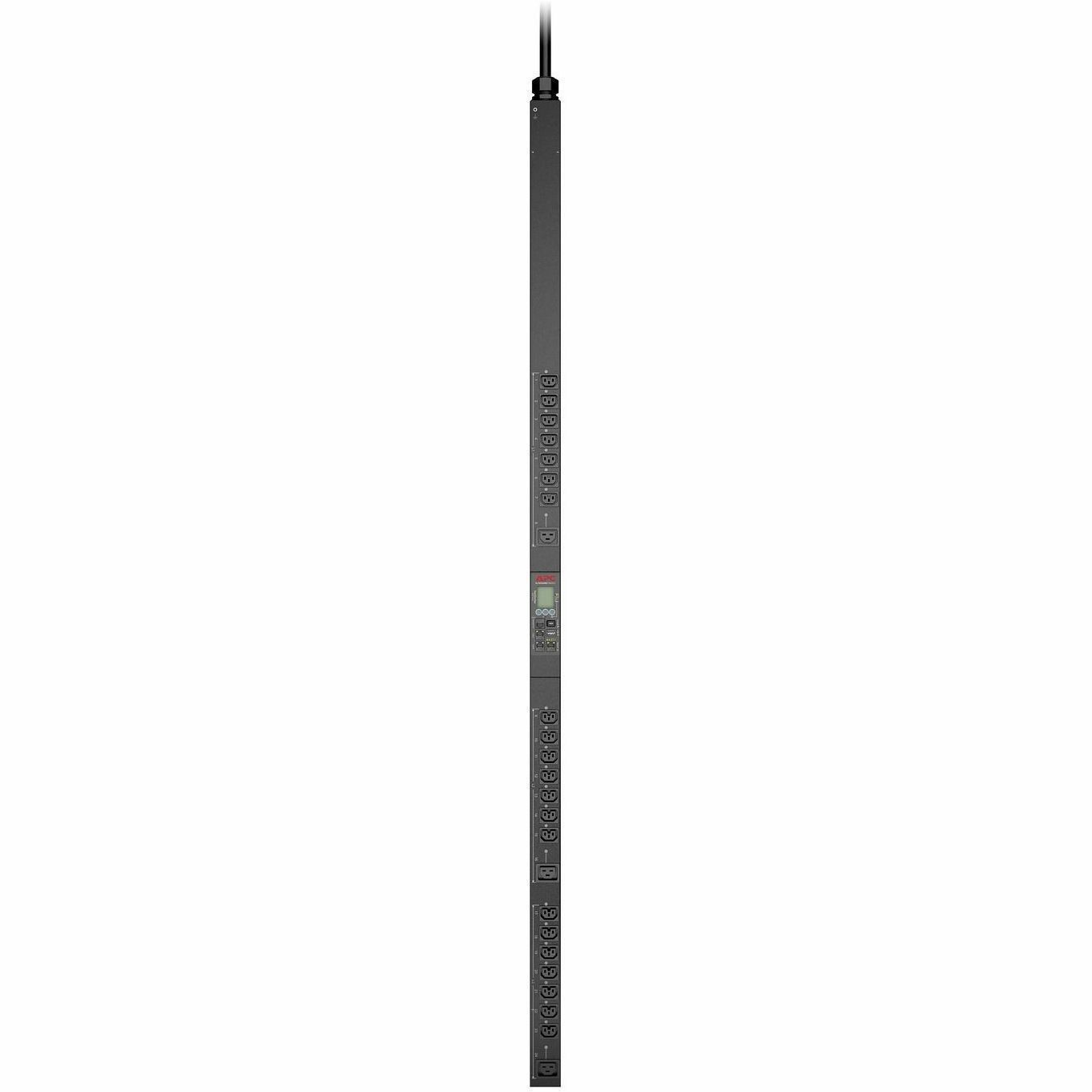

APC by Schneider Electric Rack PDU 9000 Switched, ZeroU, 11.5kW, 208V, (21) C13/C15 & (3) C19/C21
Switched - IEC 60309 20A 3P+N+PE - 21 x IEC 60320 C13/C15, 3 x IEC 60320 C19/C21 - 415 V - Circuit Protection - Network (RJ-45) - 6 ft (1.83 m) Cord Length - 0U - Vertical - Rack-mountable - Tower
$2846.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | APDU9981NA3 |
| Brand Name | APC by Schneider Electric |
| Product Series | 9000 |
| Product Name | Rack PDU 9000 Switched, ZeroU, 11.5kW, 208V, (21) C13/C15 & (3) C19/C21 |
| Marketing Information | It is a switched rack PDU with a maximum current capacity of 20A and an input voltage of 415V. It features 21 C13 and C15 outlets and 3 C19 and C21 outlets, connected via an IEC 60309 20A 3P + N + PE plug. The PDU is designed for ZeroU mounting. User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager |
| Product Type | PDU |
Technical Information
| PDU Type | Switched |
| Phase | Single Phase |
| Plug/Connector Type | IEC 60309 20A 3P+N+PE |
| Receptacle Type |
|
| Receptacle Detail |
|
| Protection Type | Circuit Protection |
Power Description
| Input Voltage | 415 V |
| Output Voltage |
|
| Power Rating (VA) | 11.50 kVA |
| Power Rating (Watt) | 11.50 kW |
| Input Current | 16 A |
Management
| Management |
|
| Remote Outlet Switching | Yes |
Interfaces/Ports
| Network (RJ-45) | Yes |
Physical Characteristics
| Mounting Orientation | Vertical |
| Mounting Preference | No Preference |
| Mount Type | Rack-mountable |
| Placement | Side |
| Form Factor | Tower |
| Rack Height | 0U |
| Cord Length | 6 ft (1.83 m) |
| Height | 70.51" (1791 mm) |
| Width | 2.17" (55 mm) |
| Depth | 1.81" (46 mm) |
| Weight (Approximate) | 15.43 lb (6998.93 g) |
Miscellaneous
| For Country/Region | United States |
| Package Contents | |
| Certifications & Standards | cUL Listed|FCC part 15 class A|PSE |
| Product Take Back Program | No |
| REACH free of SVHC | No |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APDU9981NA3_ROHS_DECLARATION&p_FileName=APDU9981NA3KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=557330955&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557330955&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin | India |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0731304404255 |
Warranty
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years repair or replace |
