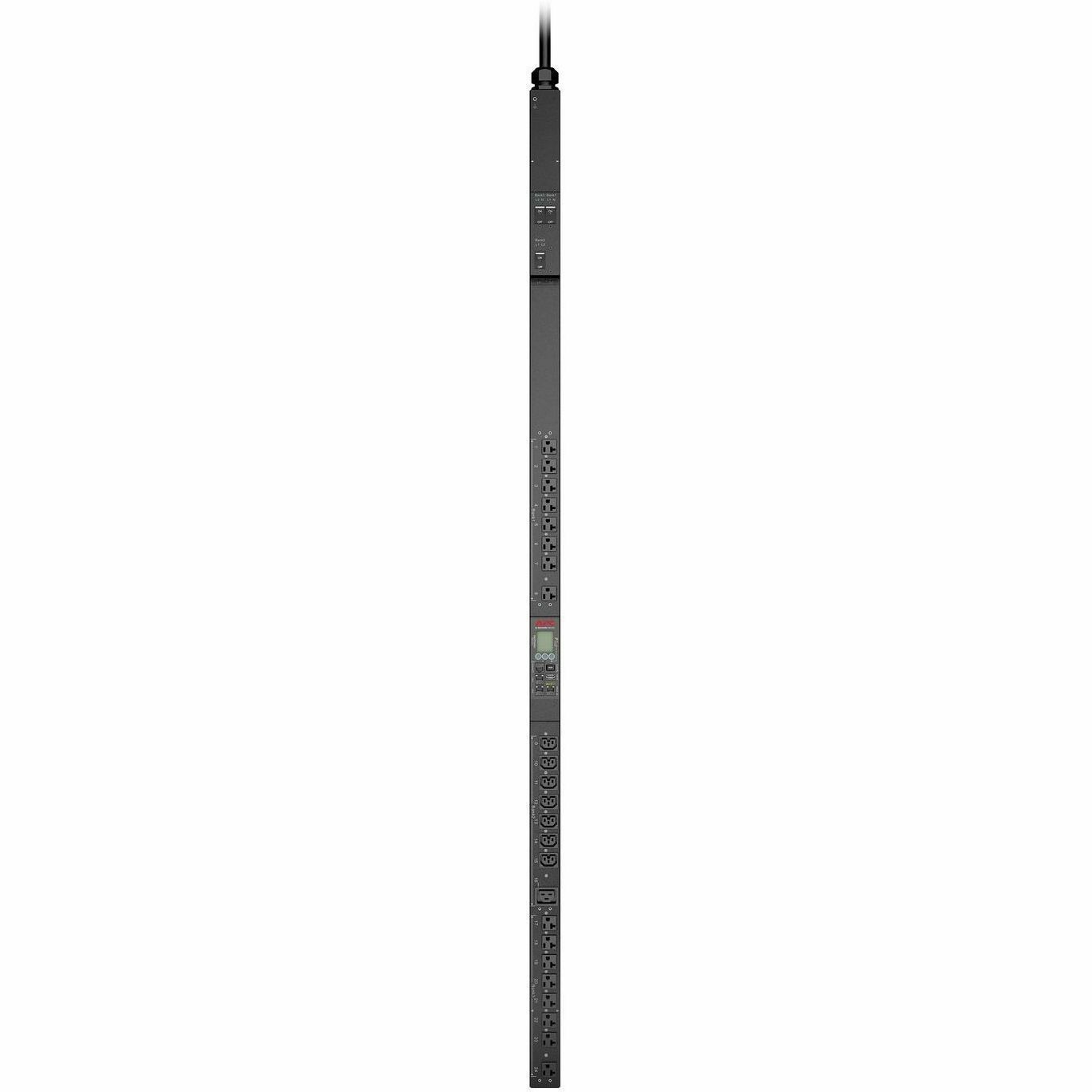

APC by Schneider Electric NetShelter 9000 24-Outlet PDU

Part No. APDU9970

by Schneider Electric SA

APC by Schneider Electric NetShelter 9000 24-Outlet PDU

Switched - NEMA L14-30P - 1 x IEC 60320 C19/C21, 7 x IEC 60320 C13/C15, 16 x NEMA 5-20R - 120 V, 208 V - Network (RJ-45) - 10 ft (3.05 m) Cord Length - 0U - Vertical - Rack-mountable - Tower

Part No. APDU9970

by Schneider Electric SA

$2201.99
General Information
ManufacturerSchneider Electric SA
Manufacturer Part NumberAPDU9970
Brand NameAPC by Schneider Electric
Product Series9000
Product NameNetShelter 9000 24-Outlet PDU
Marketing Information

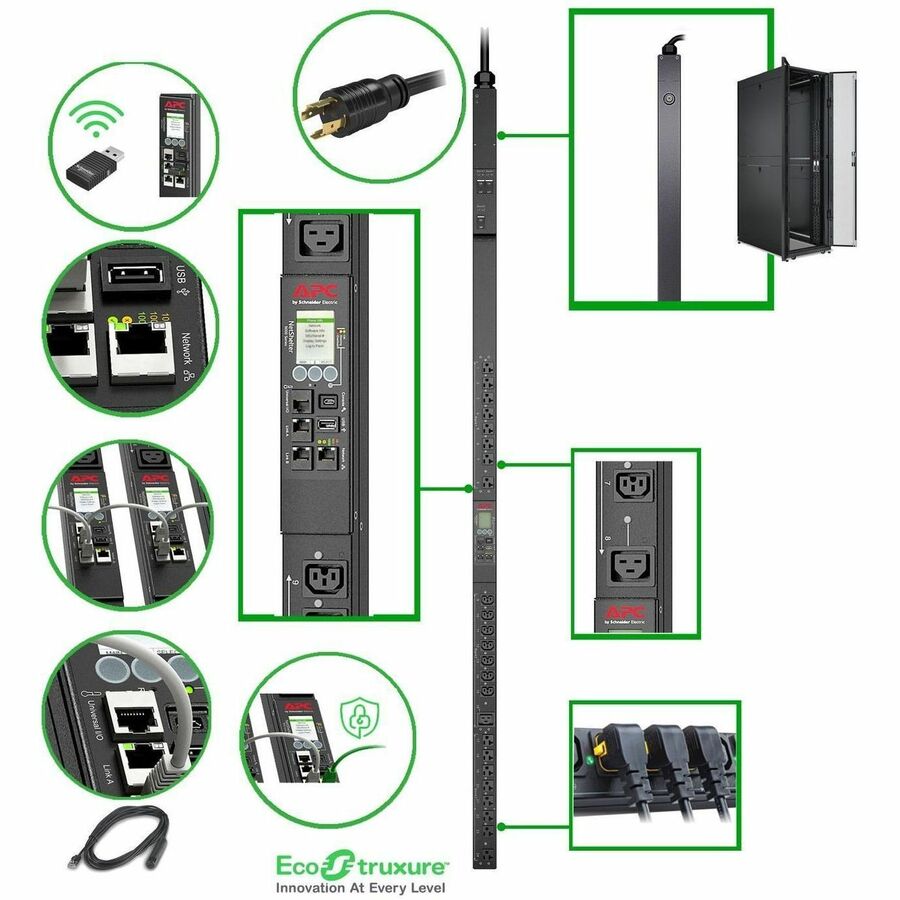

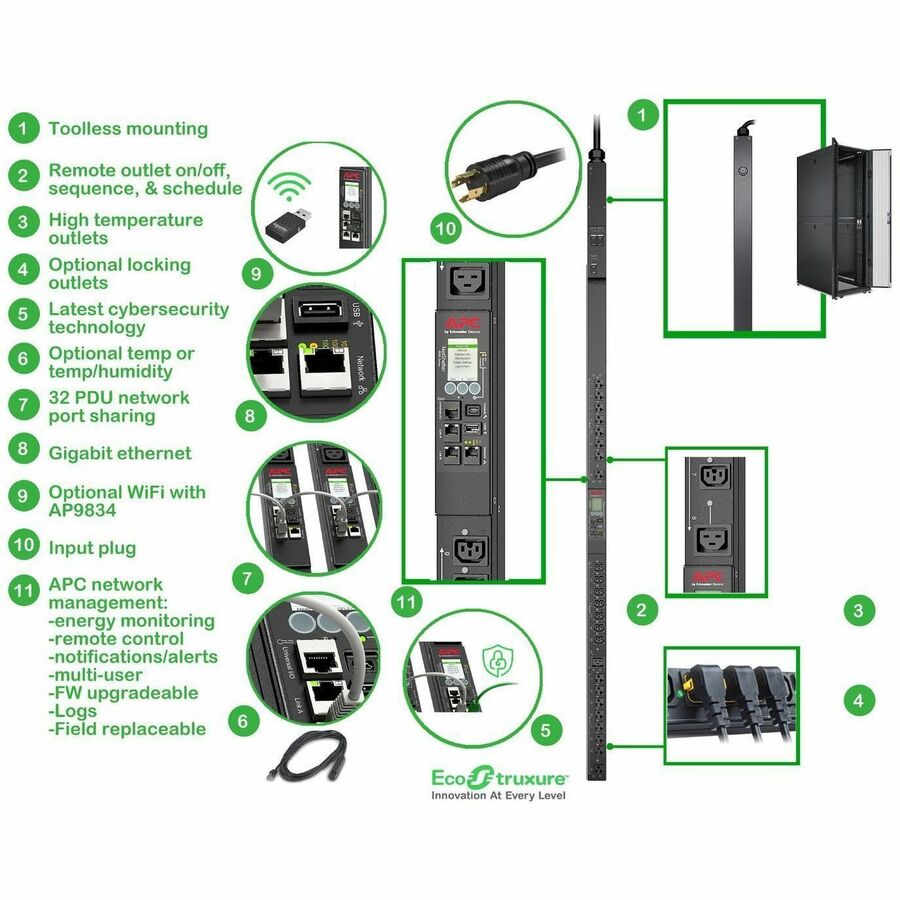

It is a switched rack PDU with a maximum current capacity of 30A and an input voltage of 120 and 208V. It includes 16 NEMA 5-20R outlets, 7 C13 and C15 outlets, and 1 C19 and C21 outlet, connected via an NEMA L14-30 plug. The PDU is designed for ZeroU mounting. User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by Struxureware for Data Centers using Data Center Expert and Data Center Operations with Capacity and Change modules

Product TypePDU
Technical Information
PDU TypeSwitched
Plug/Connector TypeNEMA L14-30P
Receptacle Type
  • IEC 60320 C19/C21
  • IEC 60320 C13/C15
  • NEMA 5-20R
Receptacle Detail
  • 1 x IEC 60320 C19/C21
  • 7 x IEC 60320 C13/C15
  • 16 x NEMA 5-20R
Power Description
Input Voltage
  • 120 V
  • 208 V
Output Voltage
  • 120 V AC
  • 208 V AC
Power Rating (VA)4.99 kVA
Power Rating (Watt)5 kW
Input Current30 A
Management
Management
  • SNMP
  • Redfish
Interfaces/Ports
Network (RJ-45)Yes
Physical Characteristics
Mounting OrientationVertical
Mounting PreferenceNo Preference
Mount TypeRack-mountable
PlacementSide
Form FactorTower
Rack Height0U
Cord Length10 ft (3.05 m)
Height72.01" (1829 mm)
Width2.20" (56 mm)
Depth1.81" (46 mm)
Weight (Approximate)20.79 lb (9430.19 g)
Miscellaneous
For Country/RegionUnited States
Package Contents
  • NetShelter 9000 24-Outlet PDU
  • Installation guide
  • Rack mounting brackets
  • Safety guide
  • Serial configuration cable
  • Certifications & StandardscUL Listed|FCC part 15 class A
    Product Take Back ProgramNo
    REACH free of SVHCNo
    Mercury FreeYes
    RoHS Exemption Informationhttps://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APDU9970_ROHS_DECLARATION&p_FileName=APDU9970KIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=557330943&lang=en-us
    EU RoHS Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557330943&lang=en-us
    Environmental Profile Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN
    End of Life Manual Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN
    WEEE StatementThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Country of OriginIndia
    Environmentally FriendlyYes
    Environmental ComplianceRestriction of Hazardous Substances (RoHS)
    ConditionNo
    UPC0731304356356
    Warranty
    Limited Warranty3 Year
    Additional Warranty Information3 years repair or replace
