Ship in Days, Not Weeks

Tripp Lite's EdgeReady™ micro data centers ship three business days after order receipt, assembled and tested. 40 base configurations are available for immediate order, or Tripp Lite's solutions team can customize every aspect of any base configuration to match your specific application. Customized solutions ship in as little as five business days.

Protect Edge Computing

Convenient and cost-effective EdgeReady™ micro data centers protect edge computing servers, storage and network hardware in locations where dedicated IT space is unavailable. Sites like branch offices, banks, retail locations, cell towers and factories often have little or no access to on-site IT staff, but they still require exceptional uptime for edge computing. Micro data centers require minimal space and support, yet provide availability comparable to a traditional data center.

Integrate Key Components

Base configurations combine a rack enclosure, UPS system, network management card, environmental/security sensor, power distribution unit (PDU), downloadable network management software, passive cooling and optional active cooling.

Save Time and Reduce Costs

Preconfigured IT infrastructure accelerates and standardizes installations for quick, easy, repeatable deployments and maintenance. Experienced solution experts design, validate, assemble and test solutions in a controlled environment to simplify orders, prevent configuration errors and reduce field costs. Reinforced shock pallets and torqued fittings stabilize shipment and support re-shipment from an intermediary configuration site.

Target Specific Applications

Tripp Lite offers 40 base configurations, and you can customize any model for your application. Options include active cooling, extended runtime, KVM switches, console servers, added security, airflow management, cable managers, power cords, network cables and patch panels. You can also upgrade the base PDU, rack or UPS.

Power Critical Systems

A SmartPro® UPS system provides automatic voltage regulation (AVR), surge/noise protection, expandable battery backup and sine wave output to prevent damage, downtime and data loss. Included battery capacity outlasts most power problems, and optional battery packs increase runtime. A metered PDU plugs into the UPS system to provide numerous outlets and digital current metering. An optional switched PDU adds remote current monitoring, threshold notifications and outlet control.

Manage from Any Location

A network management card provides monitoring, control and alerts via SNMP, Web, SSH or telnet. An environmental sensor monitors temperature, humidity and digital inputs. Free PowerAlert® Network Management System manages up to 250 units, or you can use your SNMP-compatible software of choice. Additional options include network-accessible KVM switches and console servers with fail-safe remote access.

Secure Equipment and Data

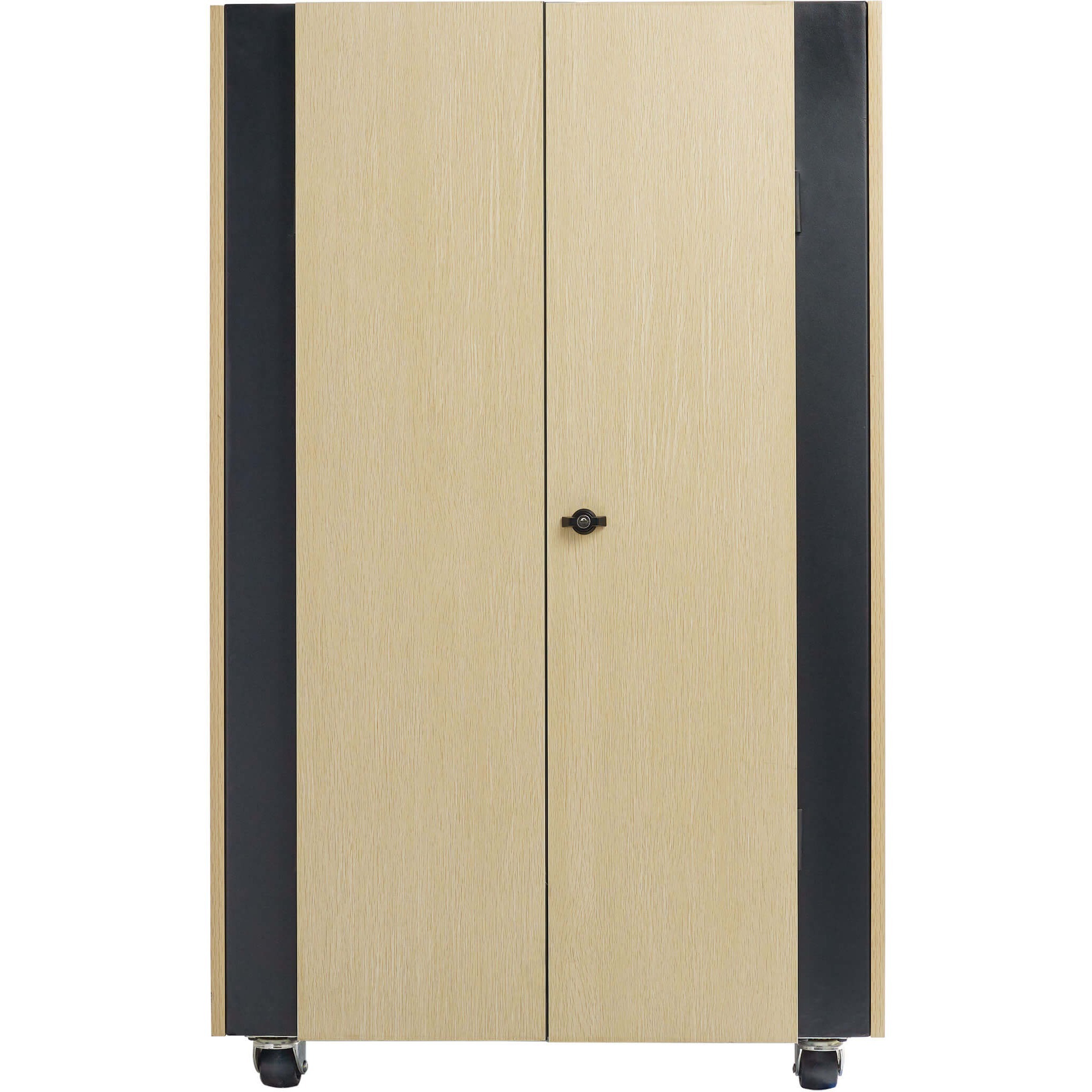

A PCI-compliant steel cabinet with EIA-standard mounting rails secures rack-mounted IT equipment. Doors and side panels lock to prevent unauthorized access, and an optional door-monitoring kit enables remote intrusion detection.

Keep Equipment Cool

Optional close-coupled air conditioning units cool efficiently and operate at remote sites without user intervention. A built-in evaporator prevents condensation accumulation, units restart automatically after power failures and all models support network management.

OVERVIEW
UPC Code 037332247117
Rack Type Floor-Standing
UPS Type Line-Interactive
PDU TypeMetered

POWER
Output Power Capacity (kVA) 1.5
Output Power Capacity (Amps) 11.25
Output Power Capacity (kW) 1.35
Site Power Required 120V, 15A, 60 Hz
Site Outlet Required NEMA 5-15R

COOLING
Cooling Type Passive
Cooling Type Details Rack enclosure includes built-in cooling fans

OUTPUT
Output AC Waveform (AC Mode) Sine wave
Output AC Waveform (Battery Mode) Sine wave
Usable Outlets (UPS and PDU) (20) 5-15R

INPUT
Nominal Input Voltage(s) Supported 120V AC
Input Phase Single-Phase
Input Plug Type NEMA 5-15P

BATTERY
Full Load Runtime (min.) 4.9 min. (Expandable with 1.2 kW Limit)
Half Load Runtime (min.) 14 min. (Expandable with 1.2 kW Limit)
Expandable Runtime Yes

PHYSICAL
Maximum Device Depth (in.) 37
Rack Height 18U
Usable Rack Space 15U
Total Weight Capacity (lbs.) 750
Usable Weight Capacity (lbs.) 450
Unit Dimensions (hwd / in.) 38.6 x 30 x 46.7
Shipping Form Factor Assembled/Tested Unit
Unit Weight (lbs.) 300

ENVIRONMENTAL

Environmental Sensor E2MTHDI

COMMUNICATIONS
Network Management Cards WEBCARDLX
Network Management Card Description UPS includes pre-installed WEBCARDLX

SPECIAL FEATURES
High Availability UPS Features Automatic Voltage Regulation (AVR); Battery Backup; Hot swappable batteries
Acoustic Noise Suppression No

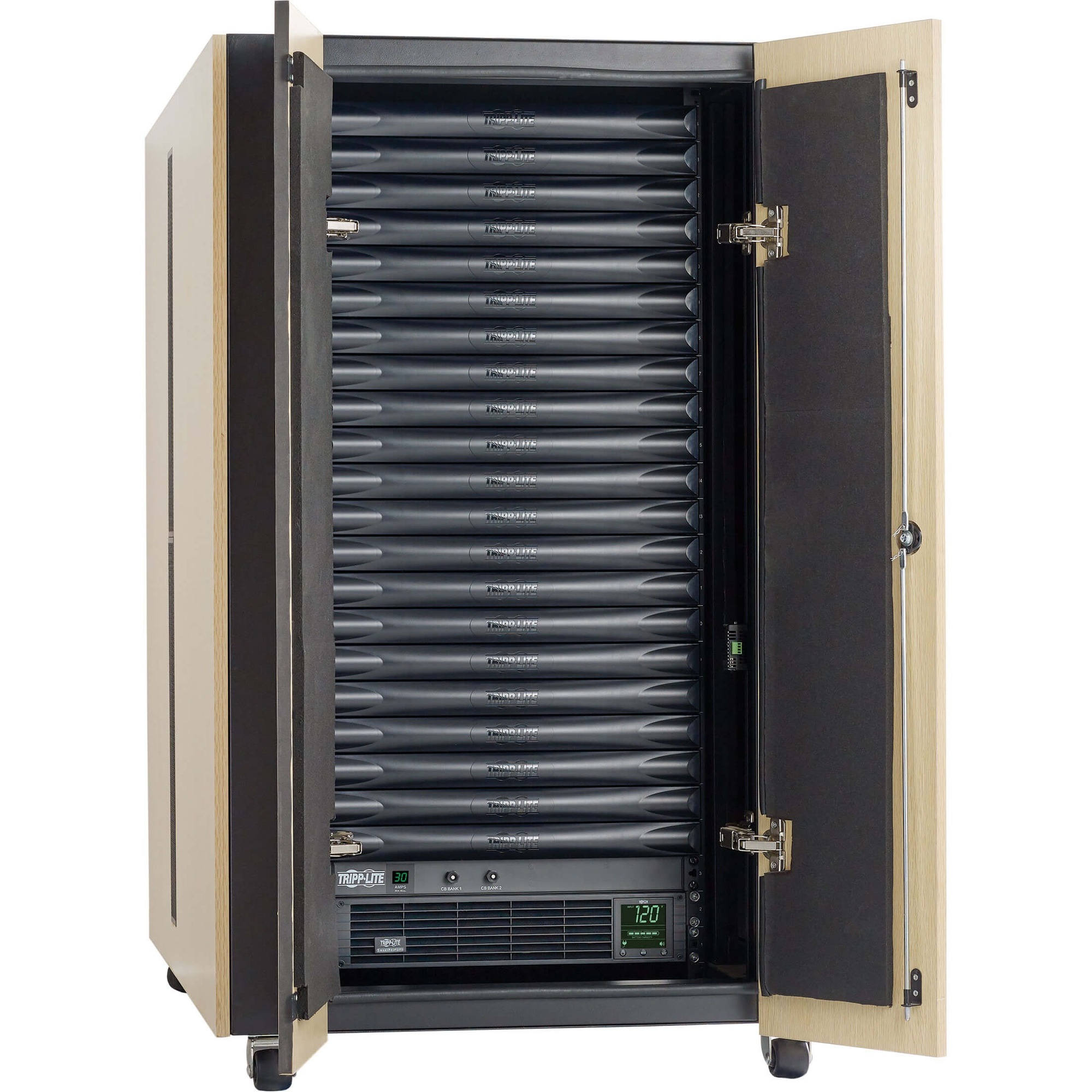

• SRQ18U Quiet Rack Enclosure
• SMART1500RMXLN UPS System with Pre-Installed WEBCARDLX Network Management Card
• E2MTHDI Environmental Sensor
• PDUMH15-6 Metered PDU
• Owner's Manuals
