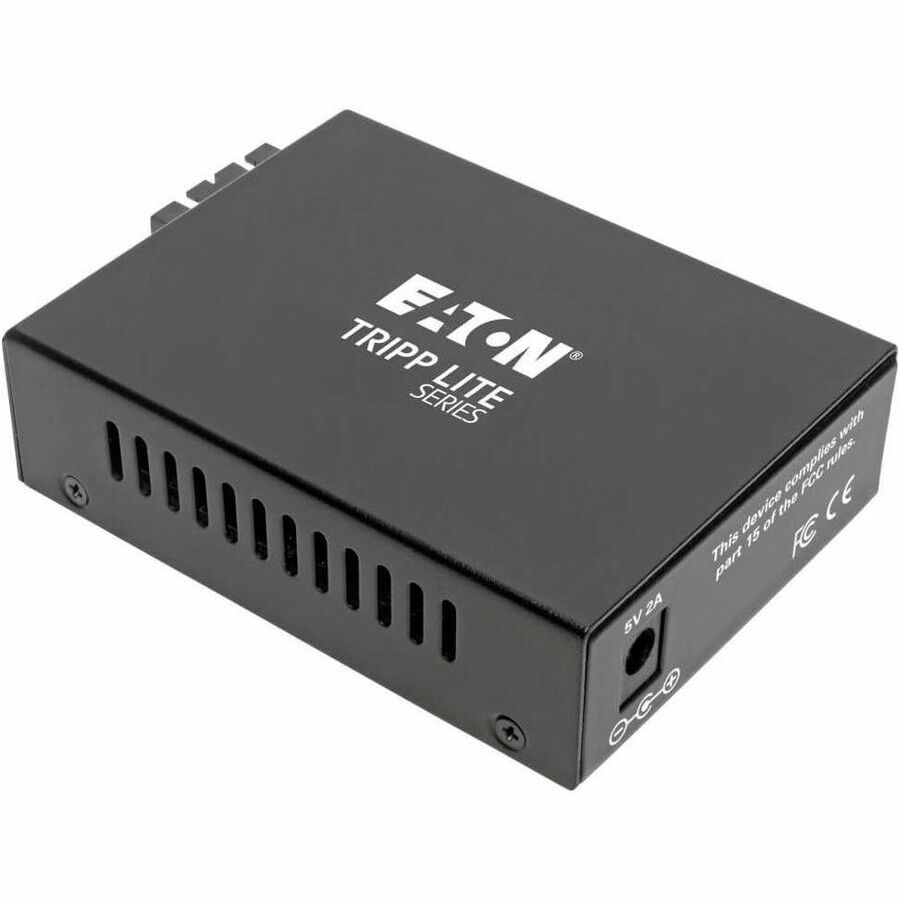

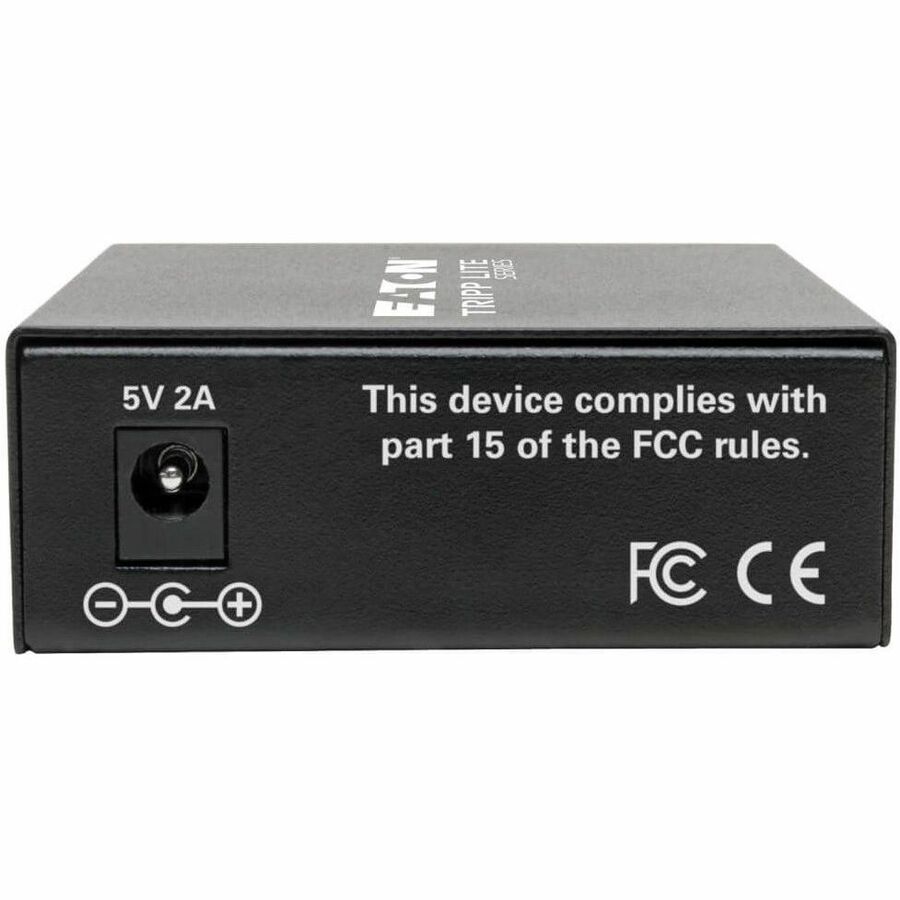

Tripp Lite by Eaton N785-INT-SC-SM Transceiver/Media Converter

1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - 0.05 mil (0 mm) Fiber - Gigabit Ethernet - 1000Base-T, 1000Base-X - 20 km (12.43 Mile) - Power Supply

Part No. N785-INT-SC-SM

by Eaton Corporation

$188.99

Manufacturer Brochure

Specifications
Options & Accessories (3)

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	N785-INT-SC-SM
Brand Name	Tripp Lite by Eaton
Product Model	N785-INT-SC-SM
Product Name	N785-INT-SC-SM Transceiver/Media Converter

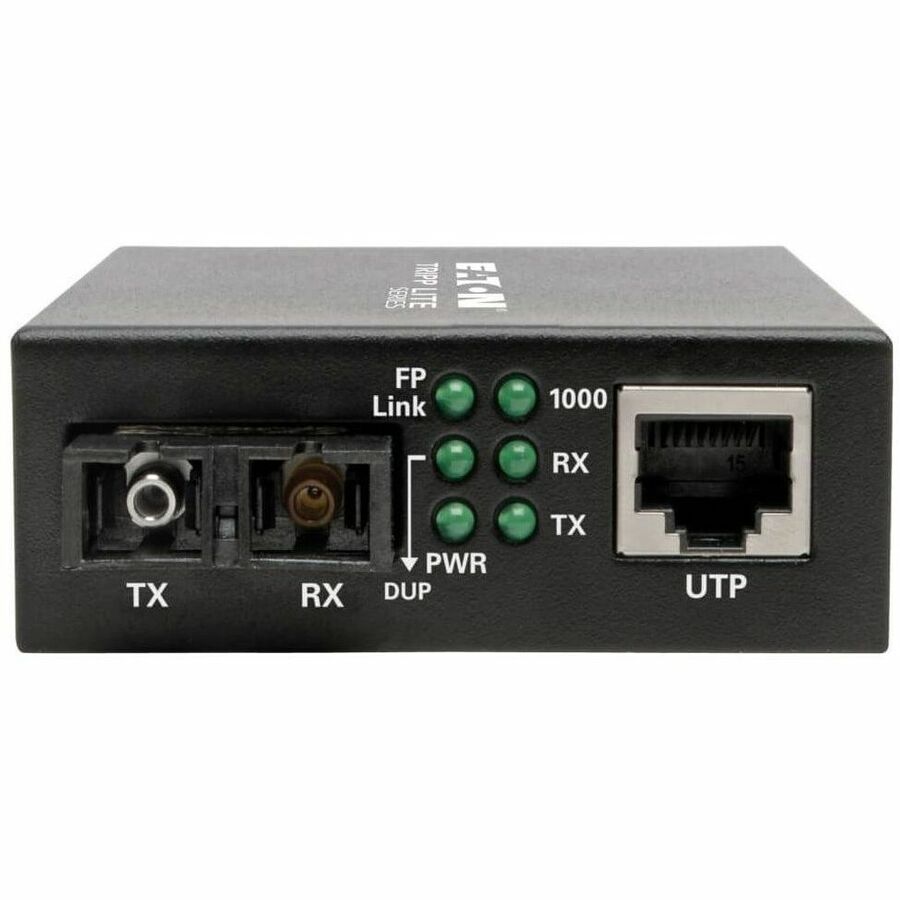

Marketing Information	Media converter lets you extend your copper Gigabit Ethernet network connection up to 20 km (12.4 mi.) over fiber optic cable. Extend Your Gigabit Ethernet Signal up to 12.4 Miles via SC Singlemode Fiber CableThis economical unit converts a copper Ethernet signal to singlemode fiber (and vice versa) to extend a Gigabit Ethernet connection up to 12.4 miles (20 kilometers). Because Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-INT-SC-SM with singlemode fiber cable to reach greater distances. This could include providing network connectivity to employees in a secluded area of a facility, college or branch office or connecting multiple office workstations to a switch located in a separate building Supports Auto-Sensing of Network Speed and Other Advanced FunctionsMonitoring and controlling your network nodes is easy with the N785-INT-SC-SM's advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIZ configuration. Six LEDs indicate the converter's Ethernet network and fiber link status at a glance Supports Singlemode Fiber Cable with SC ConnectorsTwo N785-INT-SC-SM converters are needed to extend an Ethernet network connection. Singlemode fiber optic cabling with SC ends (such as Tripp Lite's N356-Series, sold separately) connect the two converters. Copper Cat5e/6 cabling (see Tripp Lite's N201-Series, sold separately) connects one converter to your network device, such as a server, and the other converter to a network switch Completely Plug-and-Play with No Additional Software Required for ConnectionThe compact metal converter is easy to install and set up with no software or drivers required. The included power supply connects to a convenient AC outlet with no computer or other signal source needed. International plug adapters for North America (NEMA 5-15P), the United Kingdom (BS 1363), Europe (CEE 7/16 Schuko) and Australia (AS/NZS 3112) are included
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1
Number of SC Ports	1
SC Port Type	Duplex

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Fiber Mode Supported	Single-mode
Fiber Optic Cable Wavelength	0.05 mil (0 mm)
Maximum Distance Supported	20 km (12.43 Mile)

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-T 1000Base-X

Power Description

Power Source	Power Supply

Physical Characteristics

Height	1" (25.40 mm)
Width	3.70" (93.98 mm)
Depth	2.76" (70.10 mm)
Weight (Approximate)	7.05 oz (200 g)

Miscellaneous

Package Contents	N785-INT-SC-SM Transceiver/Media Converter International Power Supply (Input: 100-240V) 4 x International Plug Adapters (North America, U.K., Europe, Australia) Owner's Manual
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Country of Origin	China
Condition	No
UPC	0037332236364
