CyberPower UPS Systems BP48VP2U02 Extended Battery Modules

Part No. BP48VP2U02

by CyberPower Systems, Inc

CyberPower UPS Systems BP48VP2U02 Extended Battery Modules

48 VDC / 70 A - 12 V / 9 Ah Sealed Lead-Acid Battery, 3YR Warranty

Part No. BP48VP2U02

by CyberPower Systems, Inc

$861.99
General Information
ManufacturerCyberPower Systems, Inc
Manufacturer Part NumberBP48VP2U02
Brand NameCyberPower
Product SeriesExtended Battery Modules
Product ModelBP48VP2U02
Product NameExternal Battery Pack
Marketing Information

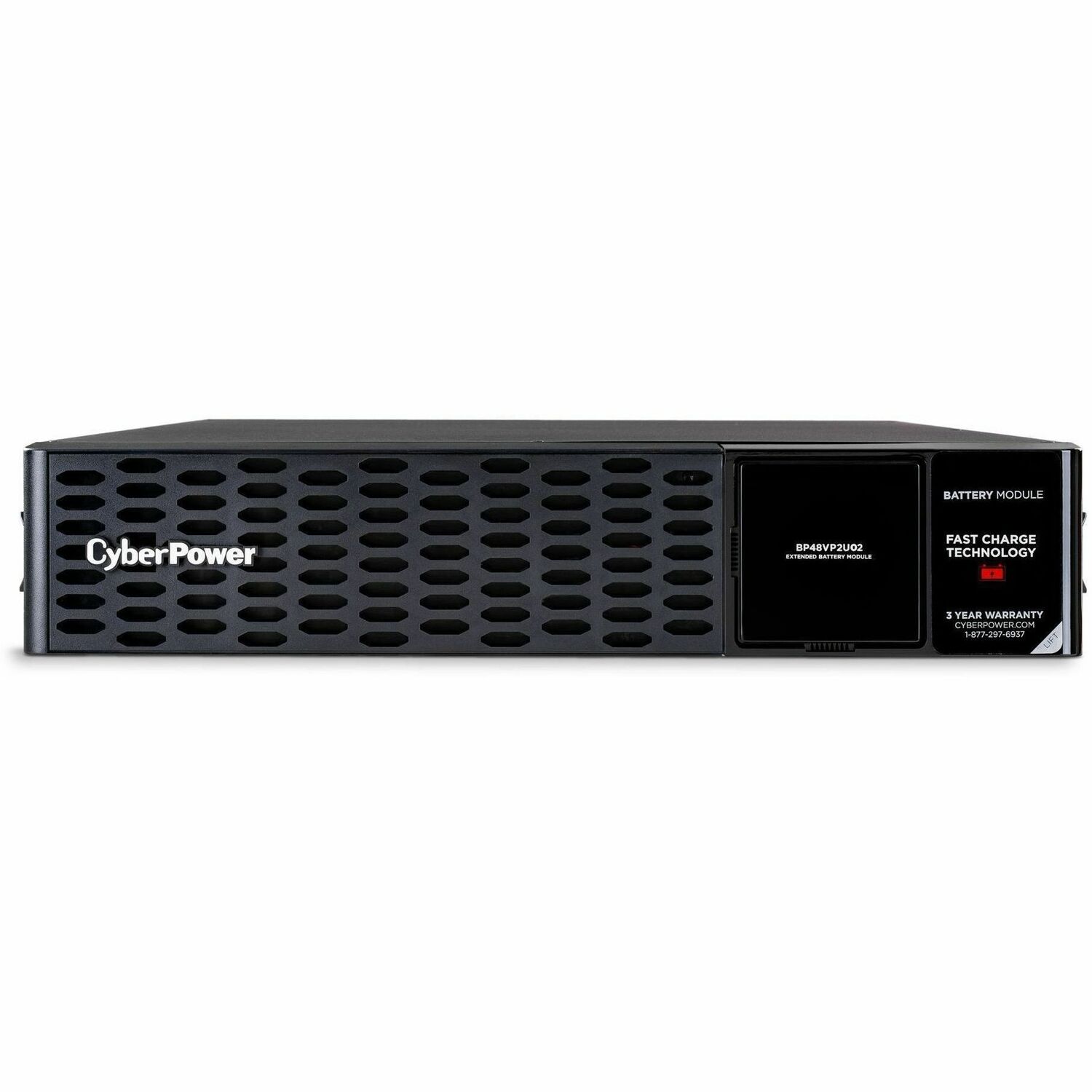

The CyberPower BP48VP2U02 is a rack/tower convertible Extended Battery Module (EBM) that extends battery runtimes during power outages and is designed for the following UPS systems: PR1000LCDRTXL2UA, PR1500LCDRTXL2U, PR1500RTXL2U, PR2000RTXL2U, PR2200LCDRTXL2U, PR2200RTXL2U, PR3000LCDRTXL2U, PR3000RTXL2U, OR1500LCDRTXL2U, and OR2200LCDRTXL2U.

This EBM takes 2U of rack space and can be installed in either a rack or tower configuration to match the UPS form factor. Battery equalization technology improves battery life, and toolless battery panel access makes battery replacement fast and simple.

With a three-year lifetime limited warranty, you can trust CyberPower's commitment to the quality of the BP48VP2U02.

Product ConditionNew
Product TypeExternal Battery Pack
Technical Information
Battery CharacteristicsUser Replaceable
Battery ChemistryLead Acid
Hot SwappableYes
Maximum Battery Recharge Time6 Hour
Battery Capacity9000 mAh
Output Voltage48 V DC
Physical Characteristics
Color FamilyBlack
Product ColorBlack
Form FactorRack/Tower
Rack Height2U
Height3.40" (86.36 mm)
Width17.10" (434.34 mm)
Depth19.70" (500.38 mm)
Weight (Approximate)66.20 lb (30027.81 g)
Miscellaneous
Additional Information
  • Battery Quantity: 8
  • Replacement Battery Cartridge Quantity: 2
  • Circuit Breaker: 70 A
  • Input Frequency Range: 50 Hz - 60 Hz
  • Input Plug Type: IEC-320 C14
  • Input Voltage Range: 100 VAC - 240 VAC
  • Nominal Input Voltage: 120 VAC
  • Operating Elevation: 0 - 10000 ft (0 - 3048 m)
  • Operating Relative Humidity: 0 - 95 % (non-condensing)
  • Operating Temperature: 32 - 104 °F (0 - 40 °C)
  • Storage Elevation: 0 - 50000 ft (0 - 15239 m)
  • Storage Relative Humidity: 0 - 95% (non-condensing)
  • Storage Temperature: 5 - 113 °F (-15 - 45 °C)
Compatibility

CyberPower UPS Models:

  • PR1000LCDRTXL2UA
  • PR1500LCDRTXL2U
  • PR1500RTXL2U
  • PR2000RTXL2U
  • PR2200LCDRTXL2U
  • PR2200RTXL2U
  • PR3000LCDRTXL2U
  • PR3000RTXL2U
  • OR1500LCDRTXL2U
  • OR2200LCDRTXL2U
Certifications & Standards
  • CE
  • RCM
  • UL1778
  • cUL
  • FCC Class B
  • VCCI
Country of OriginChina
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
ConditionNo
UPC0649532620692
Warranty
Limited Warranty3 Year
