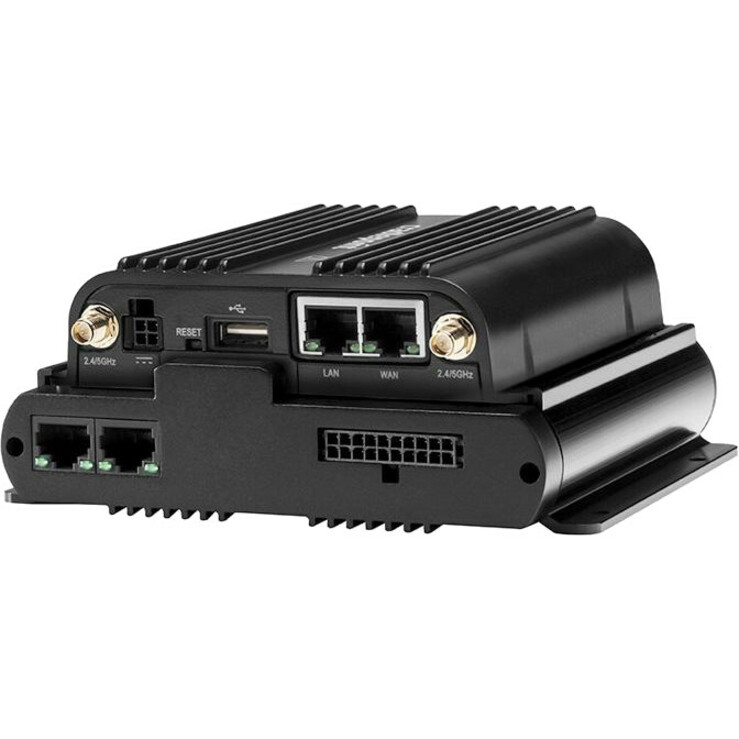

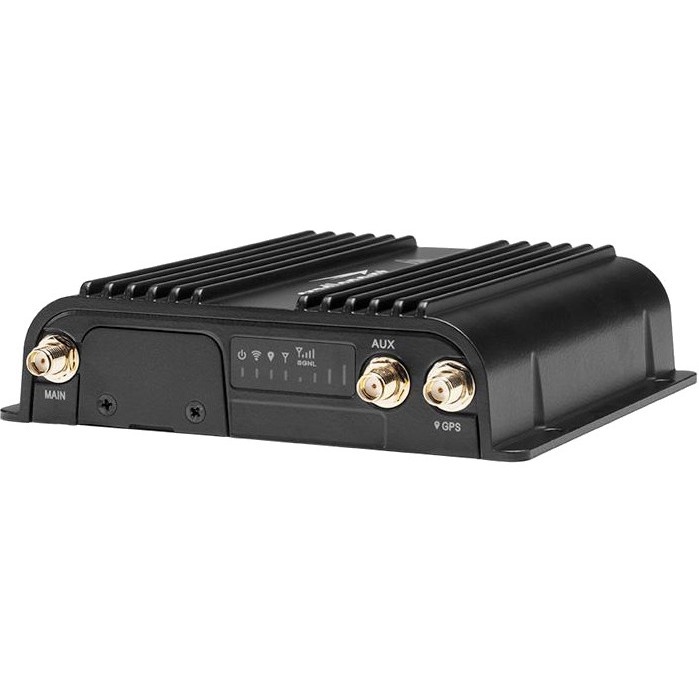

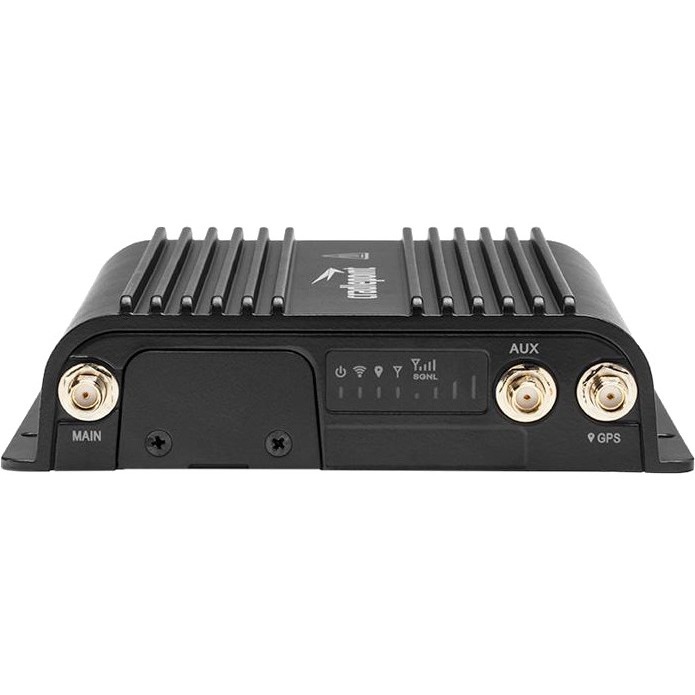

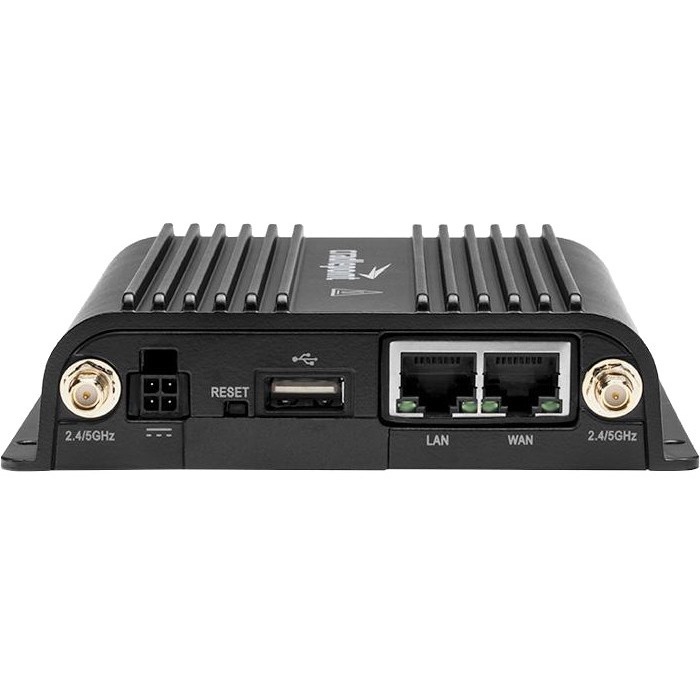

CradlePoint COR Wi-Fi 5 IEEE 802.11ac 2 SIM Ethernet, Cellular Modem/Wireless Router

4G - LTE, HSPA+, DC-HSPA+ - 2.40 GHz ISM Band - 5 GHz UNII Band(2 x External) - 75 MB/s Wireless Speed - 1 x Network Port - 1 x Broadband Port - USB - Gigabit Ethernet - VPN Supported - Desktop

Part No. MA1-0900600M-PWA

by CradlePoint, Inc

$1346.99

Manufacturer Brochure

Specifications
Options & Accessories (6)

General Information

Manufacturer	ERICSSON
Manufacturer Part Number	MA1-0900600M-PWA
Brand Name	CradlePoint
Product Line	COR
Product Series	IBR900
Product Name	COR IBR900 Modem/Wireless Router
Marketing Information	NetCloud Solution Packages with the ruggedized IBR900 LTE router are designed to enable secure enterprise-grade networking for mobile networks in police and first responder vehicles, utility and service vans, and anywhere reliable mobile connectivity is required. NetCloud Solution Packages include NetCloud software, a router, and 24x7 support with Limited Lifetime Warranty on hardware. Upgrade to NetCloud Advanced for additional features such as application traffic analytics, application-aware firewall, and URL content filtering.
Product Type	Modem/Wireless Router

Technical Information

Wi-Fi Generation	Wi-Fi 5

Wireless Specifications

Broadband Transmission Technology	Ethernet Cellular
Wireless LAN Standard	IEEE 802.11ac
ISM Band	Yes
UNII Band	Yes
ISM Maximum Frequency	2.40 GHz
UNII Maximum Frequency	5 GHz
Cellular Generation	4G
Cellular Data Connectivity Technology	LTE HSPA+ DC-HSPA+
Number of External Antennas	2
Total Wireless Transmission Speed	75 MB/s

Interfaces/Ports

Number of Network (RJ-45) Ports	1
USB	Yes
PoE (RJ-45) Port	No
Number of Broadband (RJ-45) Ports	1

Network & Communication

Ethernet Technology	Gigabit Ethernet
VPN Supported	Yes
Multi-SIM Supported	Yes
Number of SIM Card Supported	2

Physical Characteristics

Form Factor	Desktop
Height	1.20" (30.48 mm)
Width	4.60" (116.84 mm)
Depth	4.50" (114.30 mm)
Weight (Approximate)	396.9 g

Miscellaneous

Package Contents	COR IBR900 Modem/Wireless Router Integrated Mounting Plate Quick Start Guide with Warranty Information 2-Meter Locking Power and GPIO Cable (Direct Wire). 2 x Extra SIM Door Screws 2 x External 3G/4G Mobile Broadband Modem Antennas (SMA), Finger Tighten Only 12 V / 2 A Power Supply w/ Locking Connector; DC GPIO/Power Cable Available
Environmentally Friendly	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS) 2 Restriction of Hazardous Substances (RoHS)
Country of Origin	Taiwan
Condition	No
