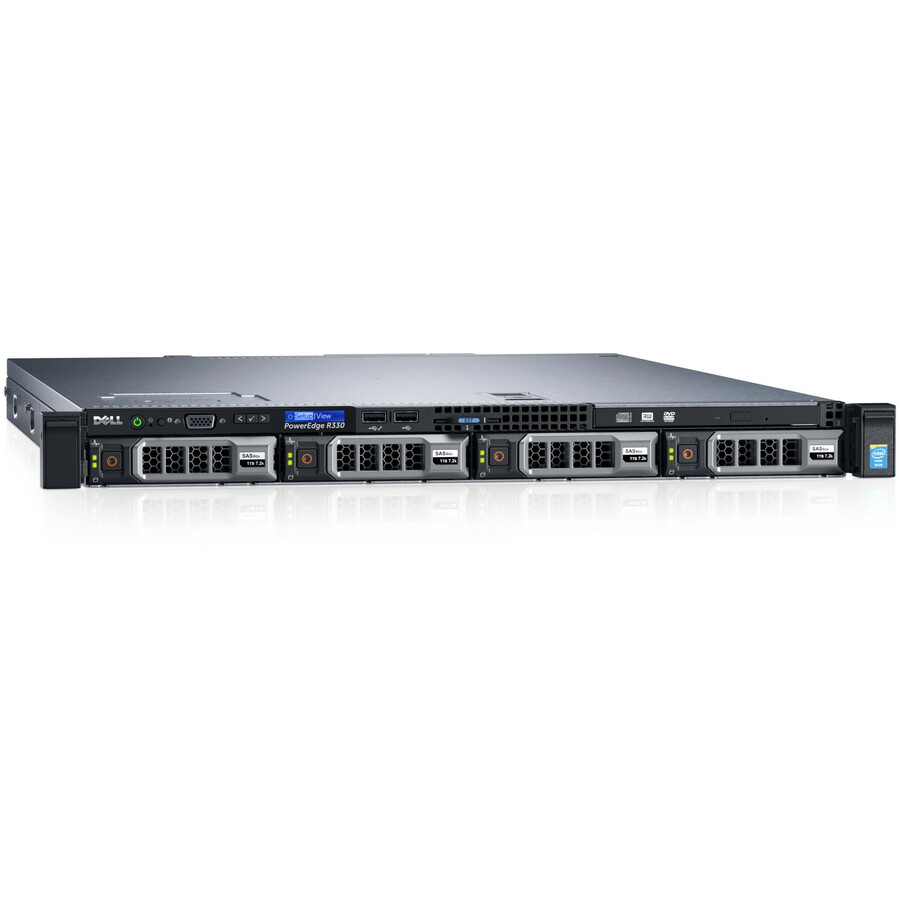

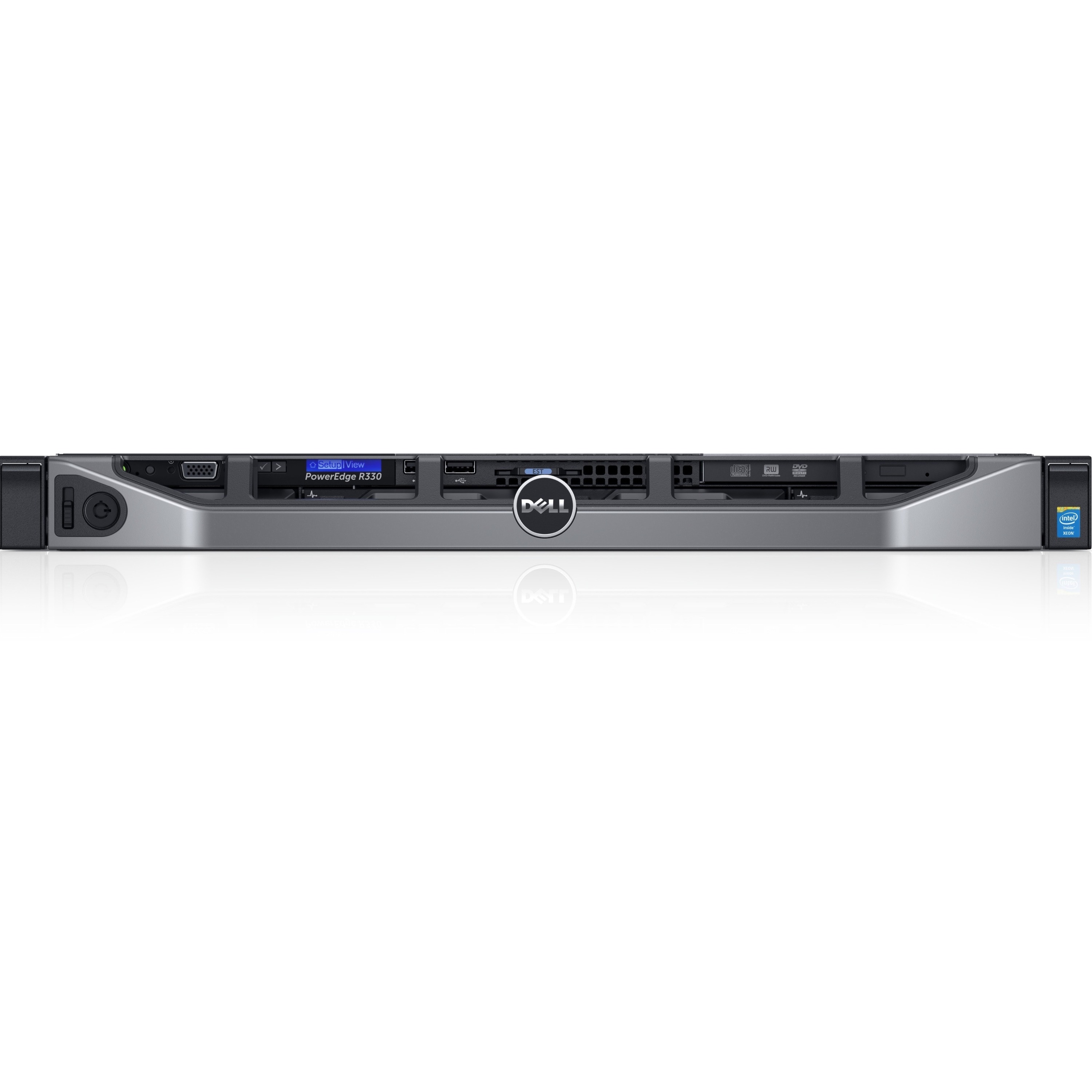

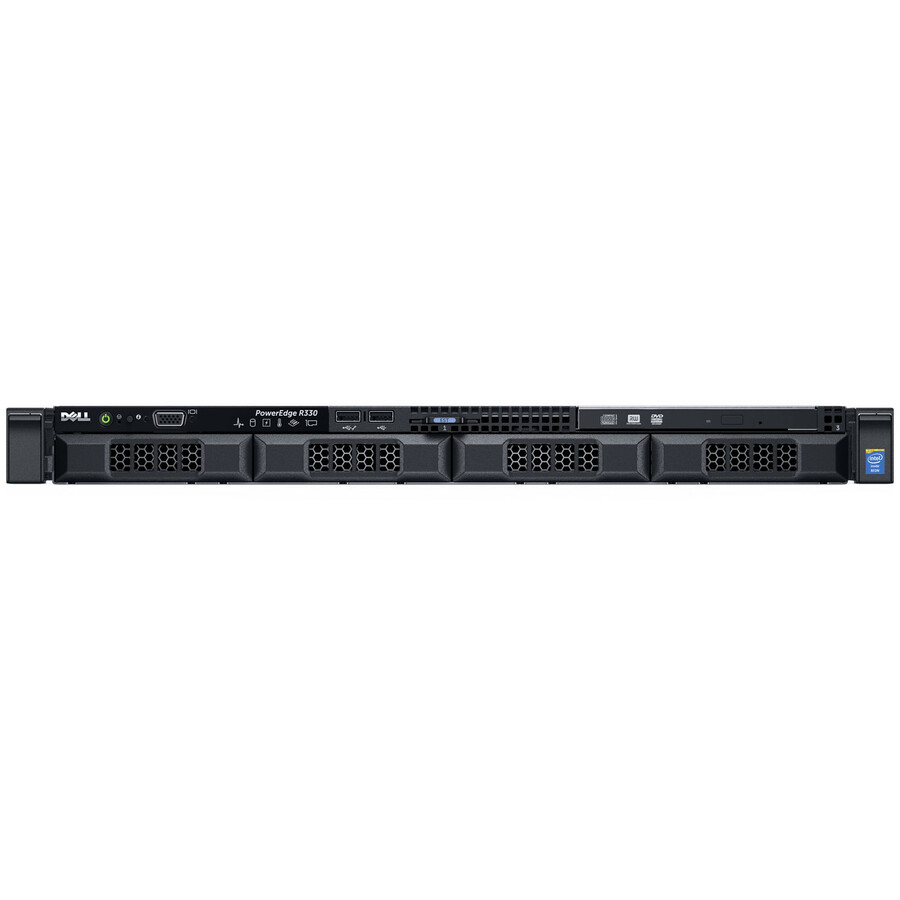

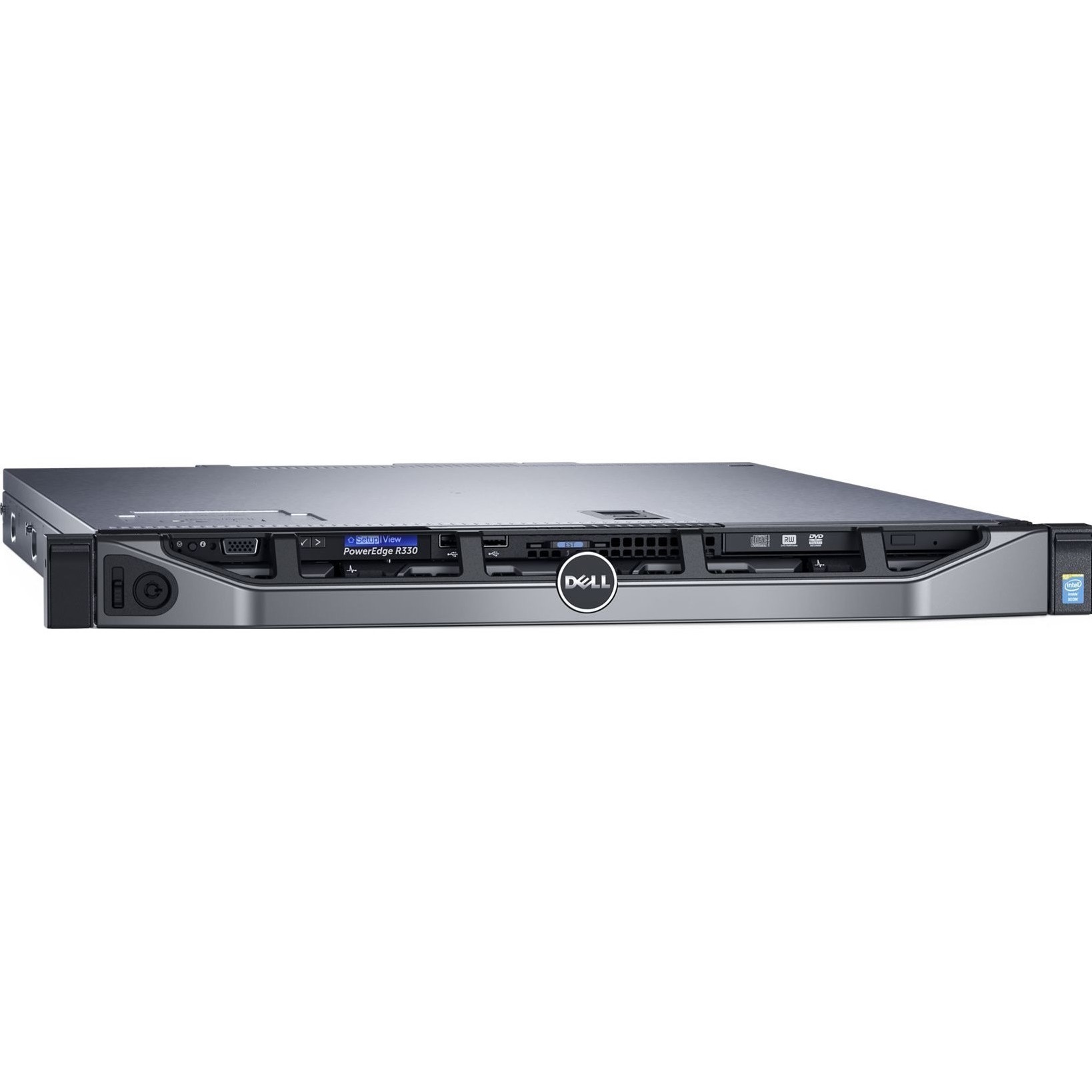

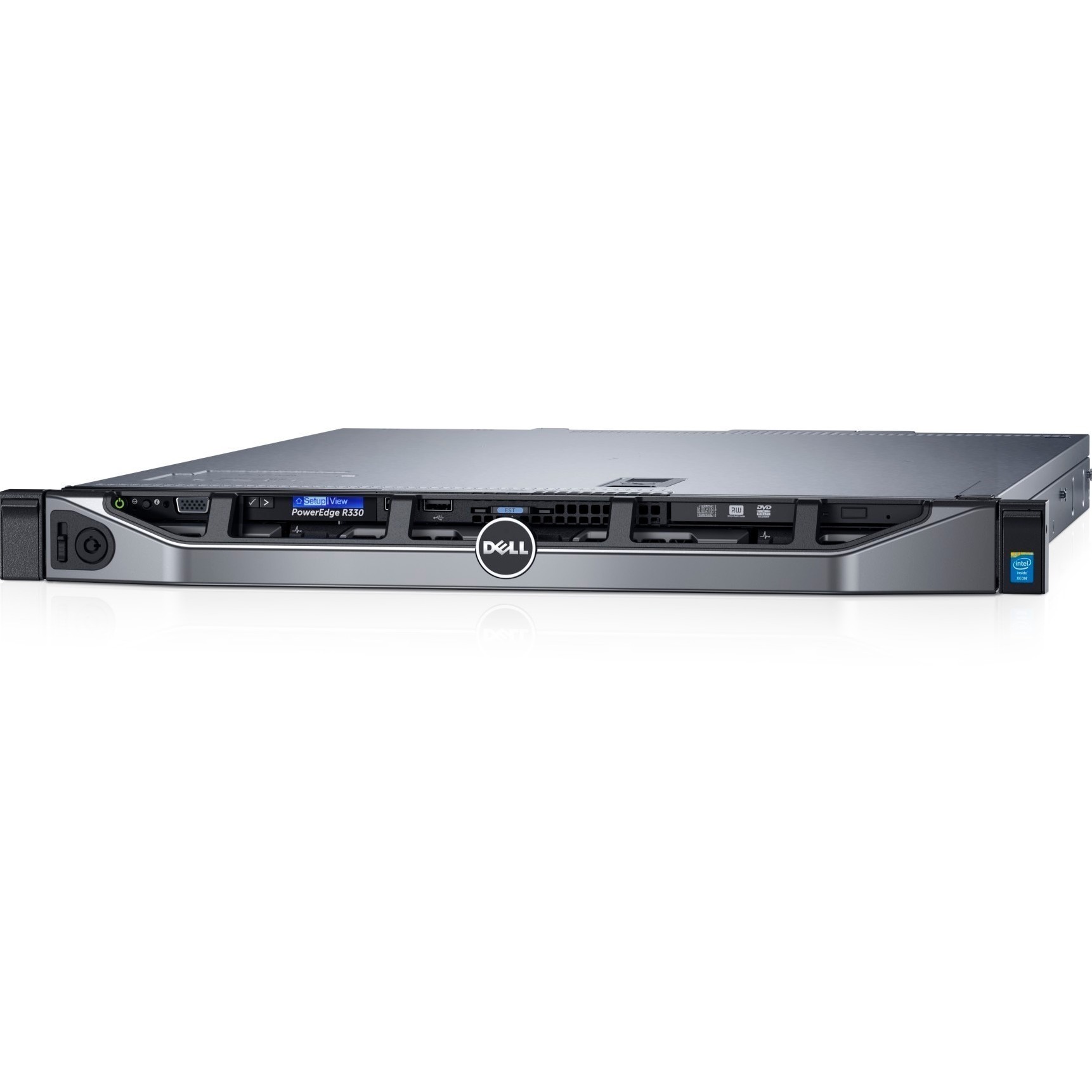

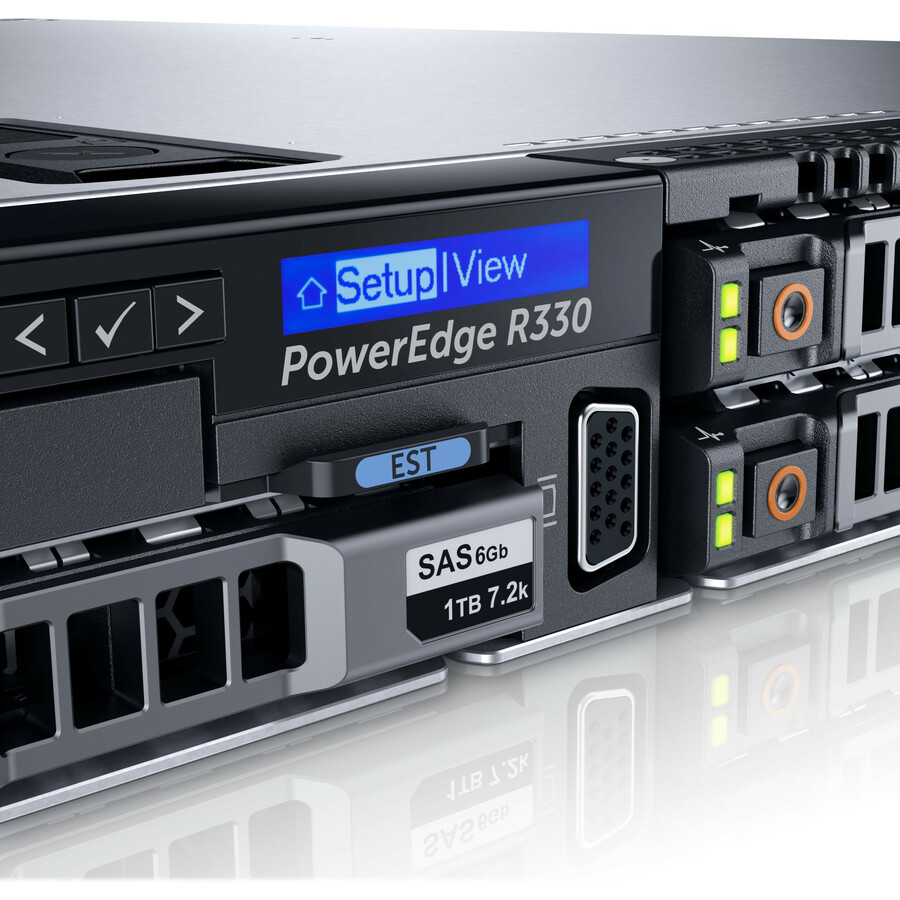

Dell EMC PowerEdge R330 1U Rack Server - 1 Xeon E3-1240 v6 3.70 GHz - 8 GB RAM - 1 TB HDD - (1 x 1TB) HDD Configuration - 12Gb/s SAS, Serial ATA/600 Controller

Part No. 5P57D

by Dell Technologies

This Product is currently not in offering

Dell EMC PowerEdge R330 1U Rack Server - 1 Xeon E3-1240 v6 3.70 GHz - 8 GB RAM - 1 TB HDD - (1 x 1TB) HDD Configuration - 12Gb/s SAS, Serial ATA/600 Controller

Part No. 5P57D

by Dell Technologies

This Product is currently not in offering

General Information
ManufacturerDell Technologies
Manufacturer Part Number5P57D
Brand NameDell EMC
Product LinePowerEdge
Product ModelR330
Product NamePowerEdge R330
Marketing Information

POWEREDGE R330

Powerful and versatile 1-socket rack server for small and medium businesses (SMB) and remote office/branch office (ROBO).

The Dell EMC PowerEdge R330 is an excellent first server or replacement server for SMB and also highly attractive as an affordable ROBO server for large institutions. Compared to the previous-generation PowerEdge R320, the R330 supports DDR4 memory vs. DDR3, PERC9 vs. PERC8, the integrated Dell Remote Access Controller 8 (iDRAC8) vs. iDRAC7, and an Intel® Xeon® E3 processor vs. an Intel Xeon E5 in the previous-generation server.

Discover greater versatility

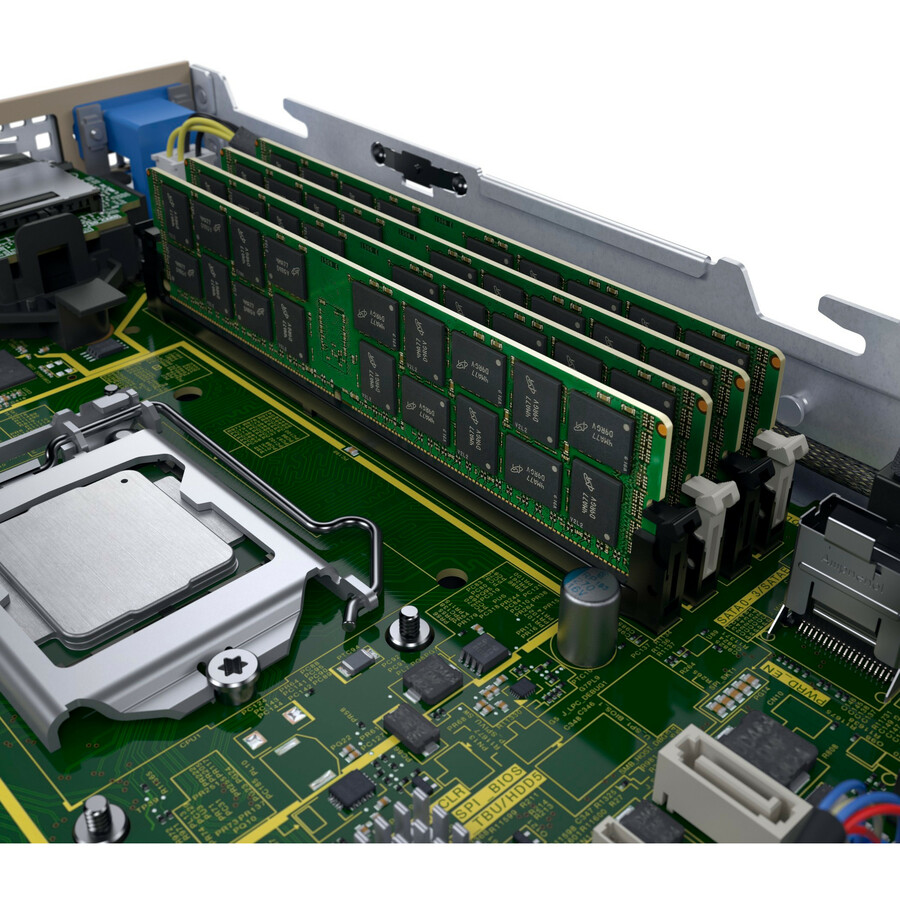

Harness data growth with up to four internal 3.5-inch cabled or hotplug hard drives, or up to eight 2.5-inch hot-plug hard drives. Grow memory capacity through time with four DIMM slots supporting up to 64GB of DDR4 memory to drive application performance and rapid response times. Adapt flexibly to changing workload conditions with a virtualization-ready server supporting Microsoft® Windows Server® with Hyper-V®, VMware® vSphere® ESXi® and Red Hat® Enterprise Virtualization.

Deliver powerful performance

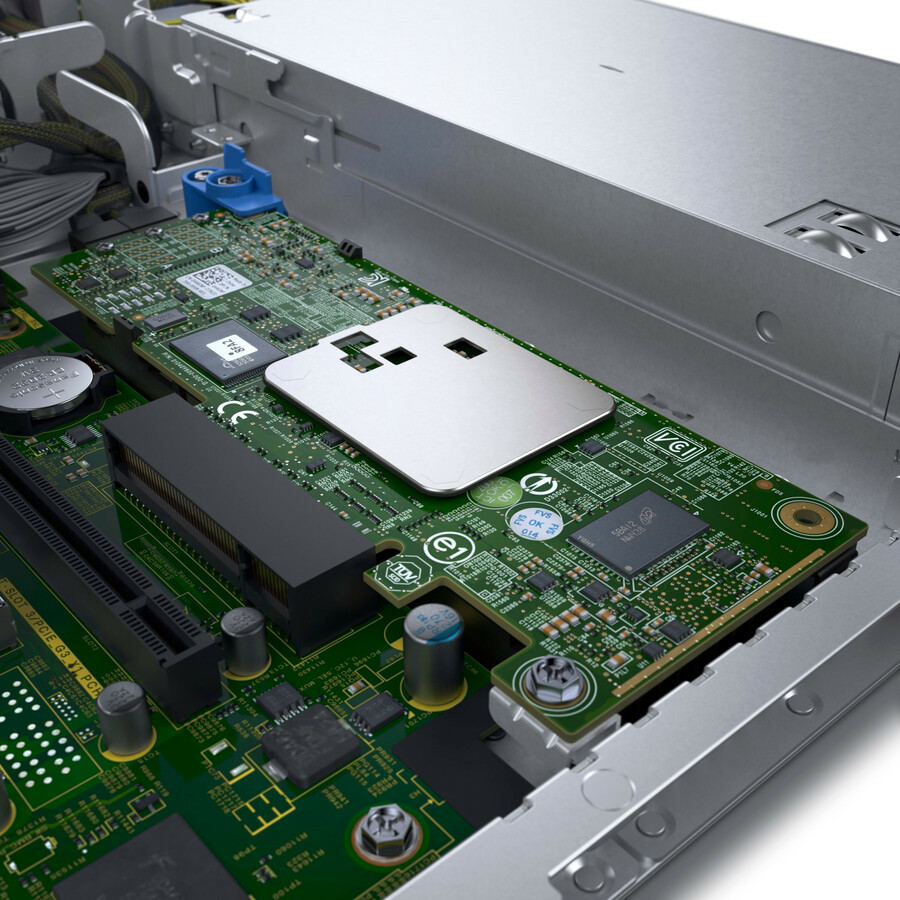

Accelerate system boot time with up to two optional 1.8-inch SSDs. Drive 50% faster clock speed with enhanced DDR4 memory compared to DDR3, which is 12.5% faster than the initial 2133 MT/s implementation of DDR4. Boost I/O data throughput with two PCIe 3.0 slots for 2x data throughput compared to PCIe 2.0. Deliver 2x IOPS performance with R330/PERC9 compared to the previousgeneration R320/PERC8.

Maximize operational efficiency

Deploy smoothly and rapidly with Dell OpenManage systems management solutions. Easily monitor system health and behavior with simple, intuitive OpenManage Essentials console. Gain additional levels of convenience and high availability protection with hot-plug hard drives and power supplies.

Innovative management with intelligent automation

The Dell OpenManage systems management portfolio includes innovative solutions that simplify and automate management tasks, making IT operations more efficient and more cost-effective throughout the server lifecycle. Leveraging the incomparable agentfree capabilities of the embedded iDRAC with Lifecycle Controller, server deployment, configuration and updates are rapid and worryfree. Remote monitoring and control of the R330 is provided by OpenManage Essentials and can also enable anytime, anywhere mobile access through OpenManage Mobile.

Product TypeServer
Processor
Number of Processors Supported1
Number of Processors Installed1
Processor TypeXeon
Processor ModelE3-1240 v6
Processor CoreQuad-core (4 Core)
Processor Speed3.70 GHz
Memory
Standard Memory8 GB
Maximum Memory Supported64 GB
Memory TechnologyDDR4 SDRAM
Total Number of Memory Slots4
Number of Occupied Memory Slots1
Storage
Total Hard Drive Capacity1 TB
Hard Drive InterfaceSerial ATA/600
Hard Drive Configuration1 x 1TB
Optical Drive TypeDVD-Reader
Controllers
Controller Type
  • 12Gb/s SAS
  • Serial ATA/600
I/O Expansions
Number of 3.5" Bays4
Hot Swappable BaysYes
Network & Communication
Ethernet TechnologyGigabit Ethernet
Operating System
Operating SystemNo
Power Description
Number of Power Supplies Supported2
Number of Power Supplies Installed1
Maximum Power Supply Wattage350 W
Miscellaneous
Package Contents
  • PowerEdge R330
  • ReadyRails Sliding Rails Without Cable Management Arm
  • Power Cord
Country of OriginMexico
Physical Characteristics
Form FactorRack
Rack Height1U
Height1.69" (42.80 mm)
Width18.99" (482.40 mm)
Depth26.67" (677.30 mm)
Weight (Approximate)30.42 lb (13800 g)
Warranty
Limited Warranty1 Year
