Tripp Lite by Eaton B024-DUA8-SL DVI/USB 8-Port KVM Switch

Part No. B024-DUA8-SL

by Eaton Corporation

Tripp Lite by Eaton B024-DUA8-SL DVI/USB 8-Port KVM Switch

8 Computer(s) - 1 Local User(s) - 2048 x 1536 - 11 x USB - 9 x DVI - 1 x VGA - 1U - Rack-mountable

Part No. B024-DUA8-SL

by Eaton Corporation

$884.99
General Information
ManufacturerEaton Corporation
Manufacturer Part NumberB024-DUA8-SL
Brand NameTripp Lite by Eaton
Product ModelB024-DUA8-SL
Product NameB024-DUA8-SL DVI/USB 8-Port KVM Switch
Marketing InformationThe B024-DUA8-SL DVI/USB KVM Switch allows you to control eight computers with audio using a single DVI monitor, USB keyboard and USB mouse. Plus, by cascading up to three levels of KVM switches, you can control up to 512 computers at the same time.

Recommended for IT managers needing centralized access to a variety of digital and analog servers, this DVI/USB KVM switch also supports a VGA display when connected to a DVI to VGA adapter (such as Tripp Lite's P556-Series).

The DVI-I single-link connector supports digital video resolutions up to 1920 x 1200, including 1080p, and analog video resolutions up to 2048 x 1536. The multi-view installation feature lets you stack up to four KVM switches for connecting computers with up to four DVI outputs and displaying video on up to four console monitors, giving you flexibility in video output. A 3.5 mm microphone jack provides audio input to connected computers. A 3.5 mm audio jack provides 2.1-channel sound to connected speakers.

The OSD presents a text-based interface in eight different languages and allows backup of KVM configuration and user profile information. Dual-tier password protection enhances security for an administrator and up to four users. A DB9 cable is included for firmware upgrades that keep the KVM switch up to date with the latest technology. Easy front-panel access to USB 2.0 hub ports allows quick connection of two USB devices, such as flash drives and printers.

More from the Manufacturer

Product TypeKVM Switchbox
Technical Information
Number of Computers Supported8
Number of Local Users Supported1
Video
Maximum Video Resolution2048 x 1536
Interfaces/Ports
USBYes
DVIYes
VGAYes
Number of USB Ports11
Number of DVI Ports9
Number of VGA Ports1
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Input Voltage Range120V AC to 230V AC
Physical Characteristics
Form FactorRack-mountable
Rack Height1U
Height1.73" (43.94 mm)
Width17.20" (436.88 mm)
Depth6.30" (160.02 mm)
Weight (Approximate)6.20 lb (2812.27 g)
Miscellaneous

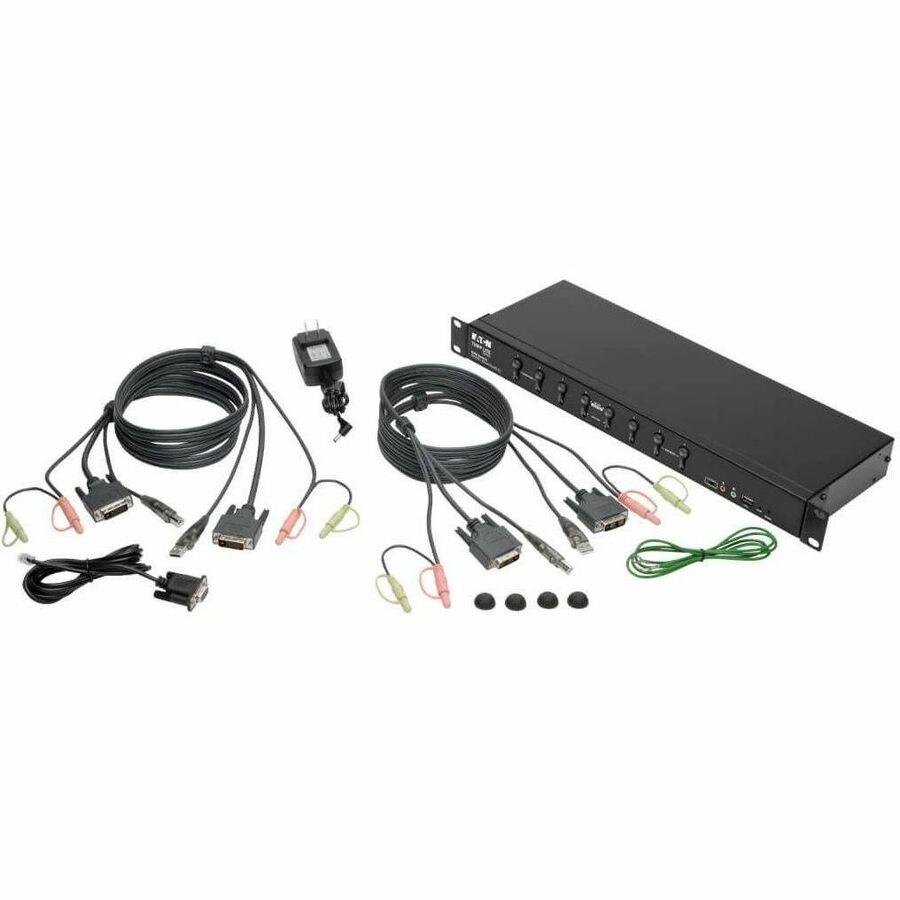

Package Contents
  • B024-DUA8-SL DVI/USB 8-Port KVM Switch
  • 2 x DVI/USB KVM Cable Kits, 6 ft.
  • External Power Supply w/NEMA 1-15P Plug and 5 ft. Cord (Input:100-240V, 50/60 Hz, 0.5A; Output: 5.3V 2.4A)
  • RJ11 to DB9 Firmware Upgrade Cable, 6 ft.
  • Grounding Wire
  • Rack-Mounting Hardware
  • Rubber Feet
  • Owner's Manual
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Country of OriginTaiwan
TAA CompliantYes
ConditionNo
UPC0037332205117
Warranty
Limited Warranty3 Year
