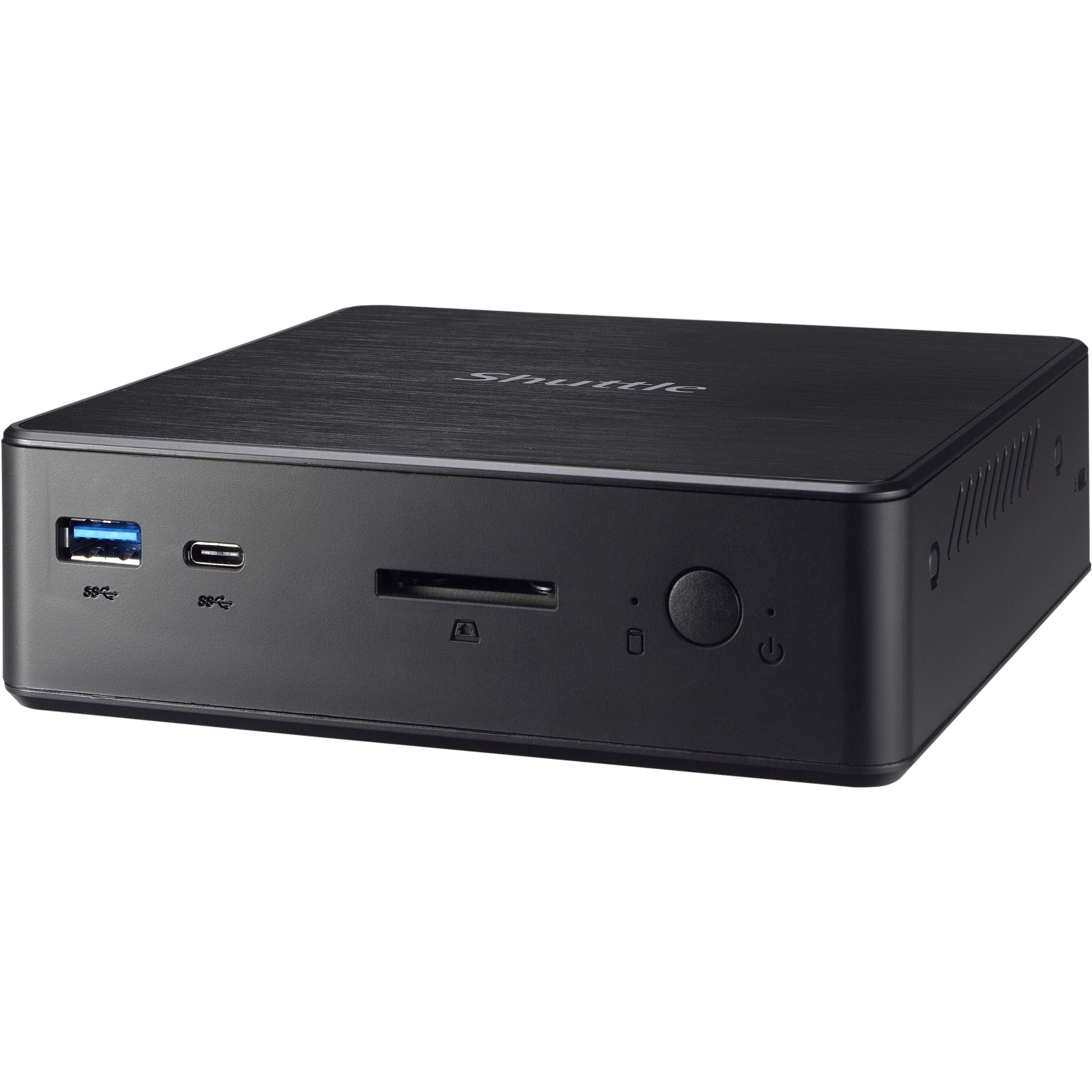

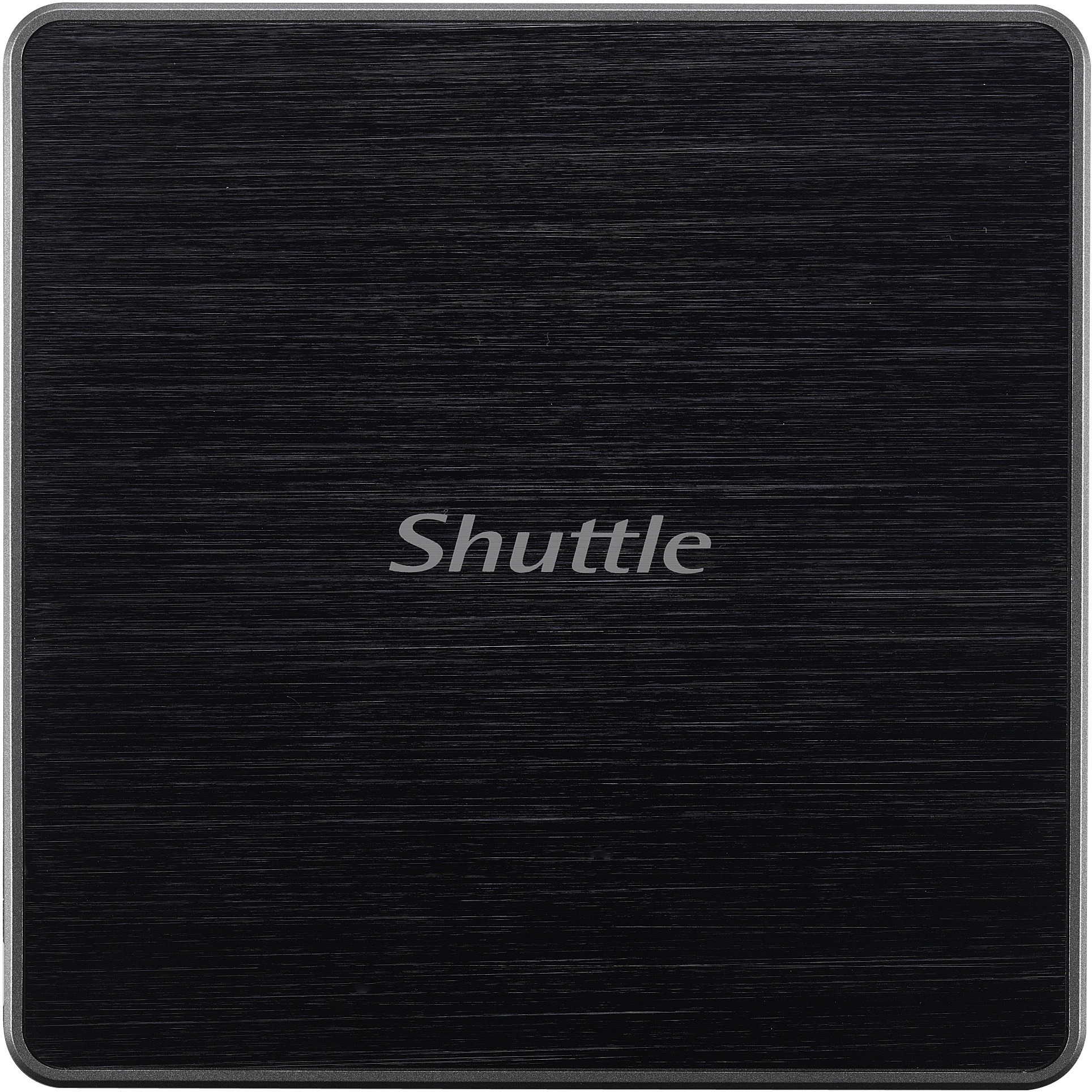

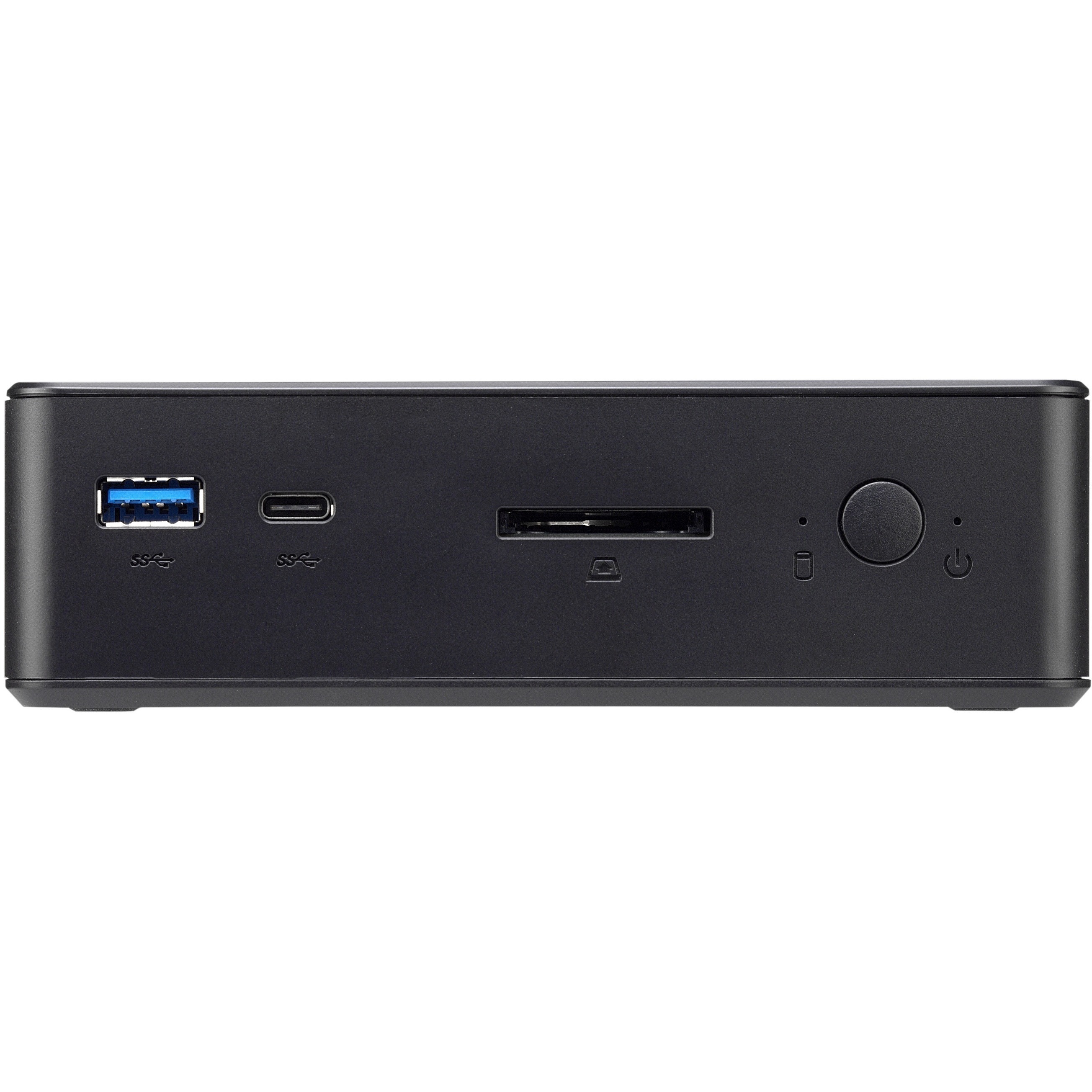

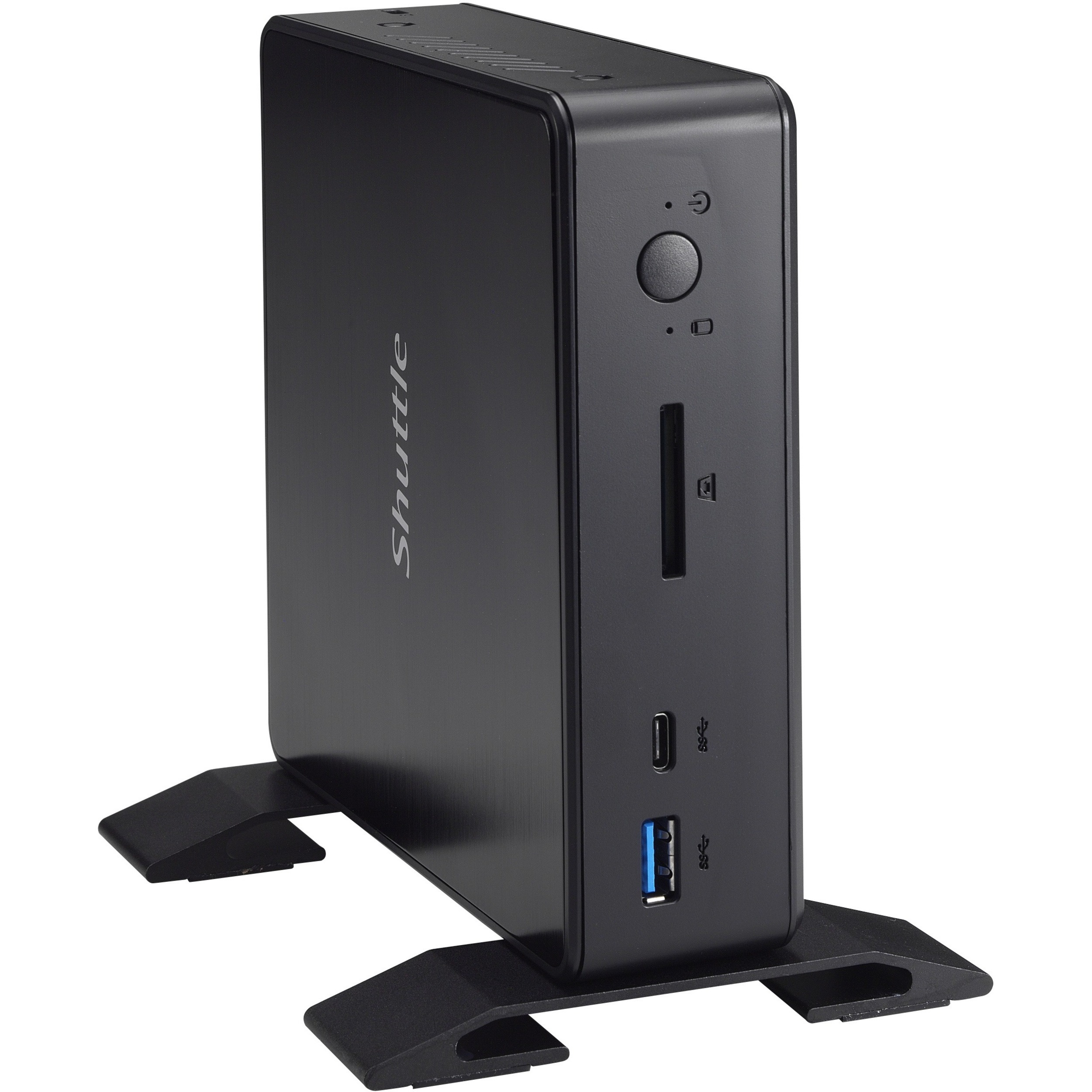

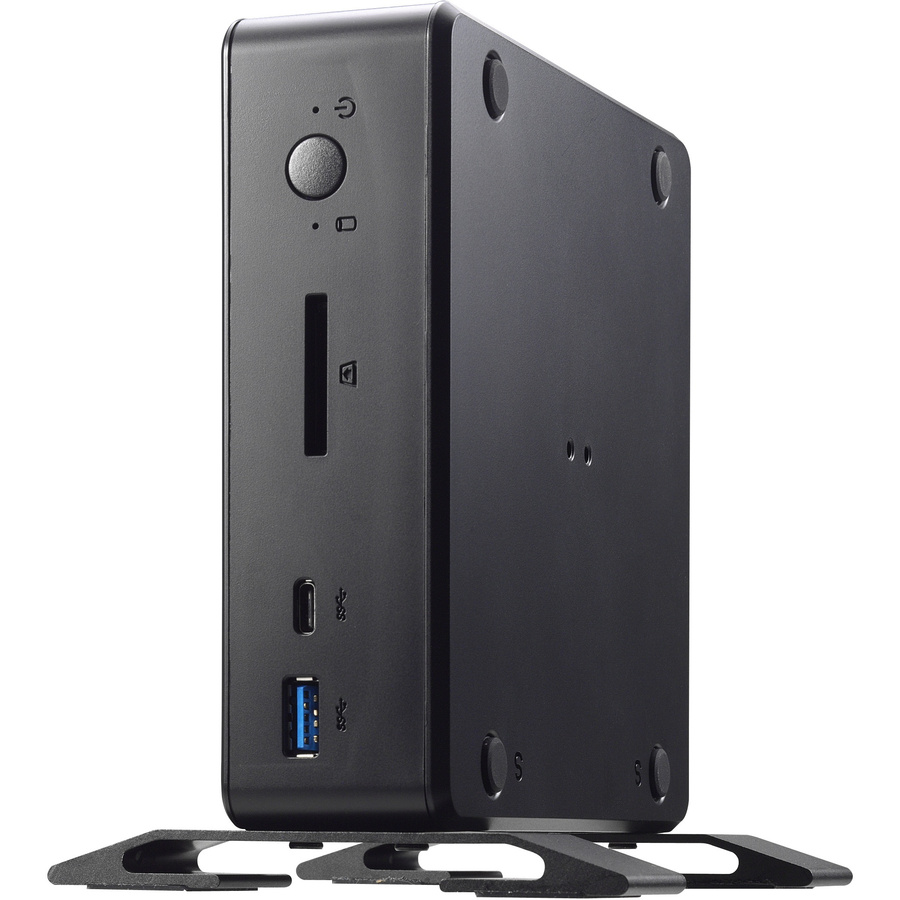

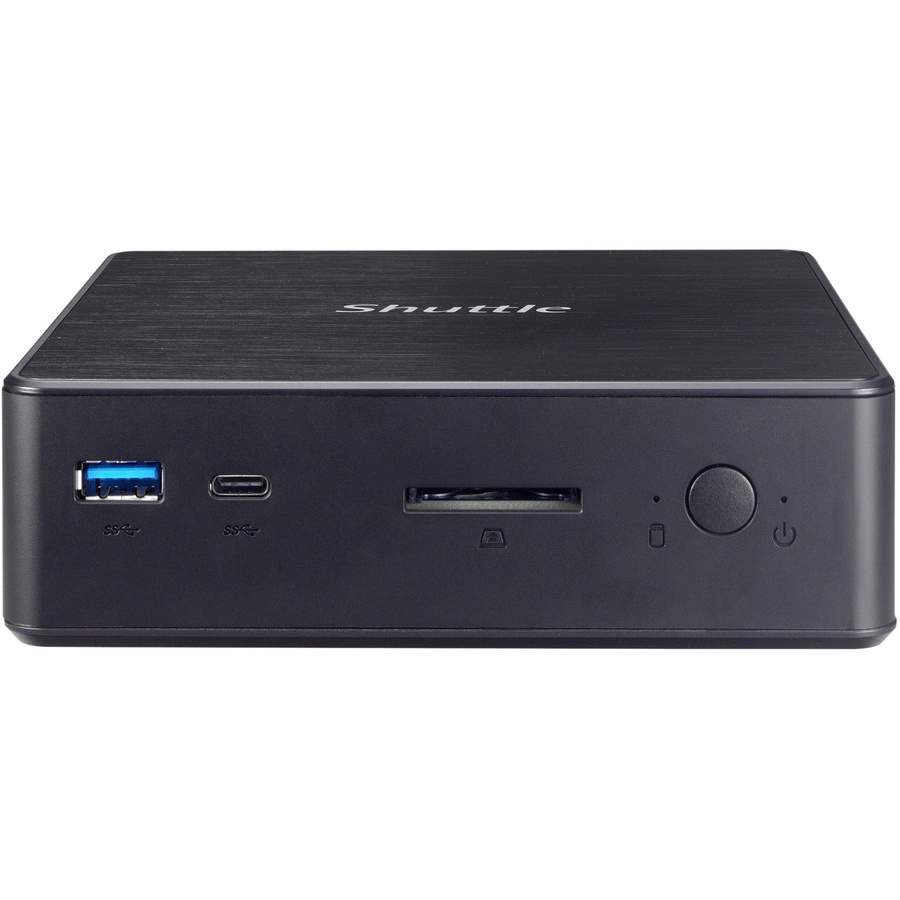

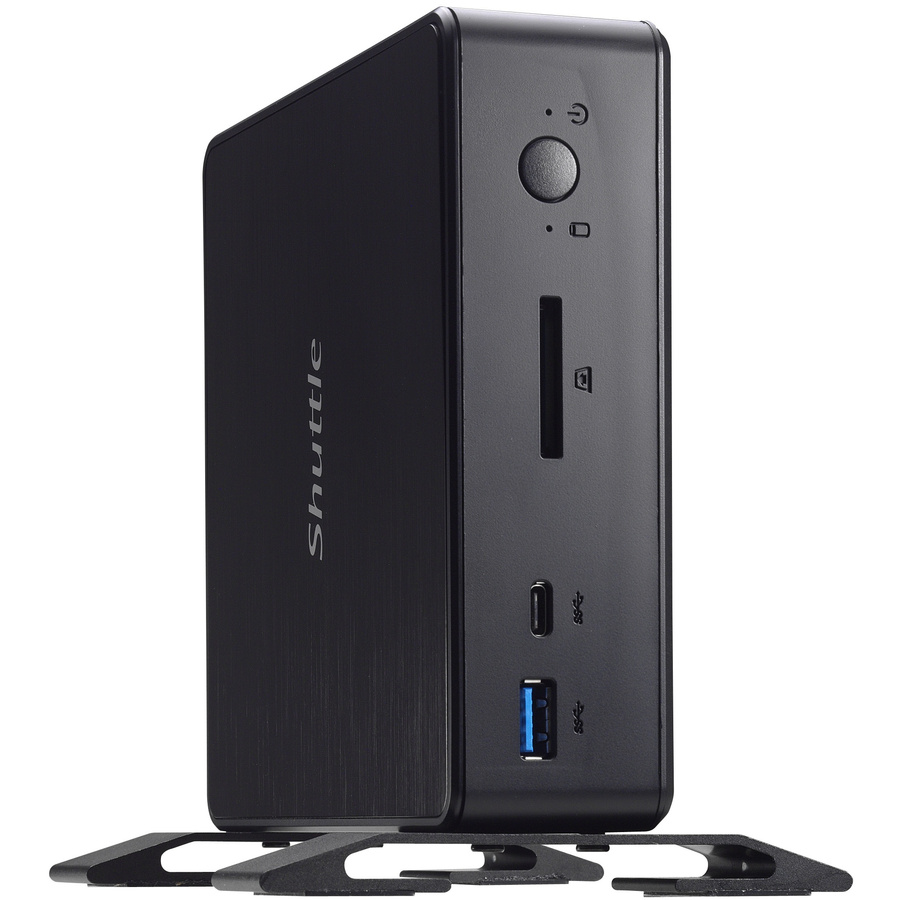

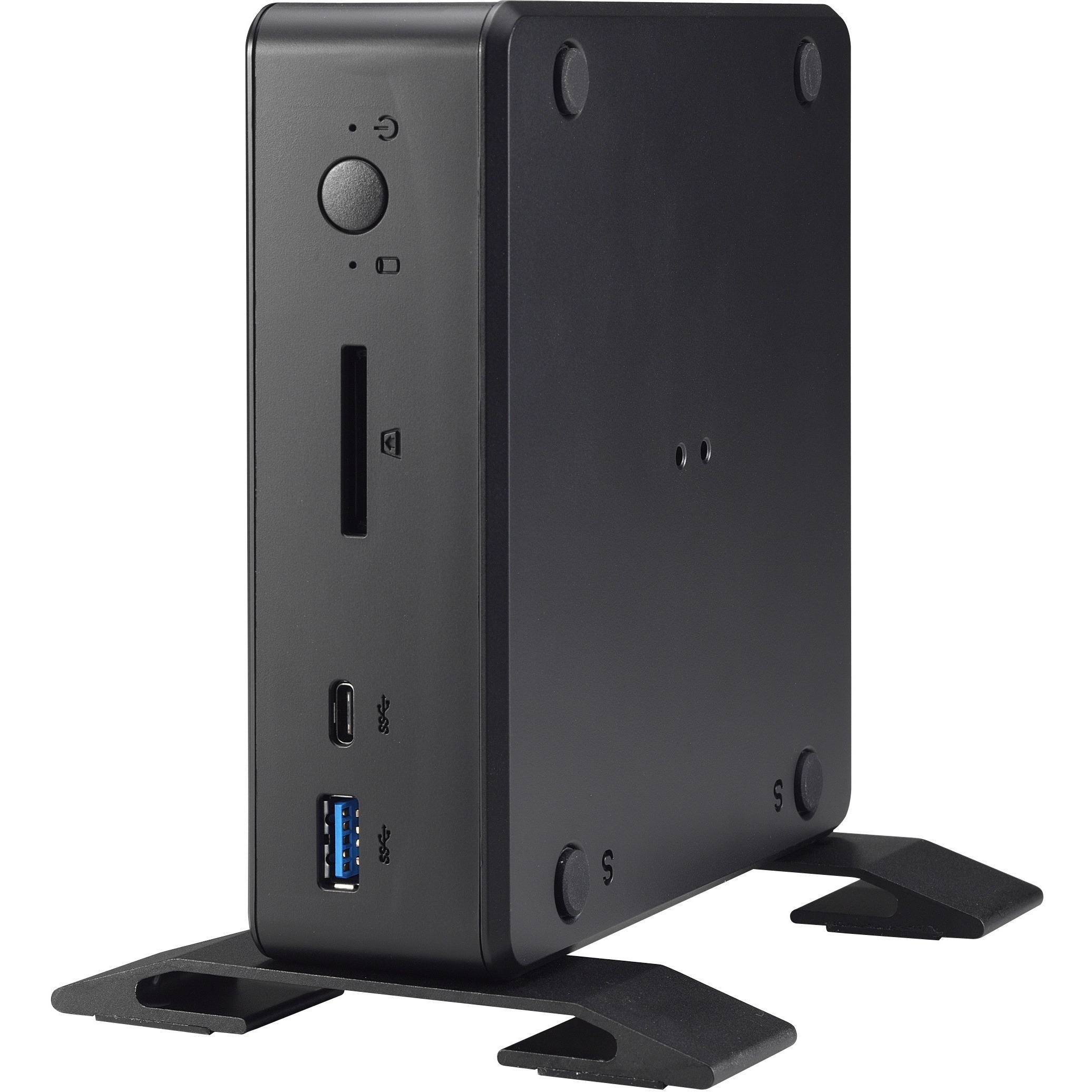

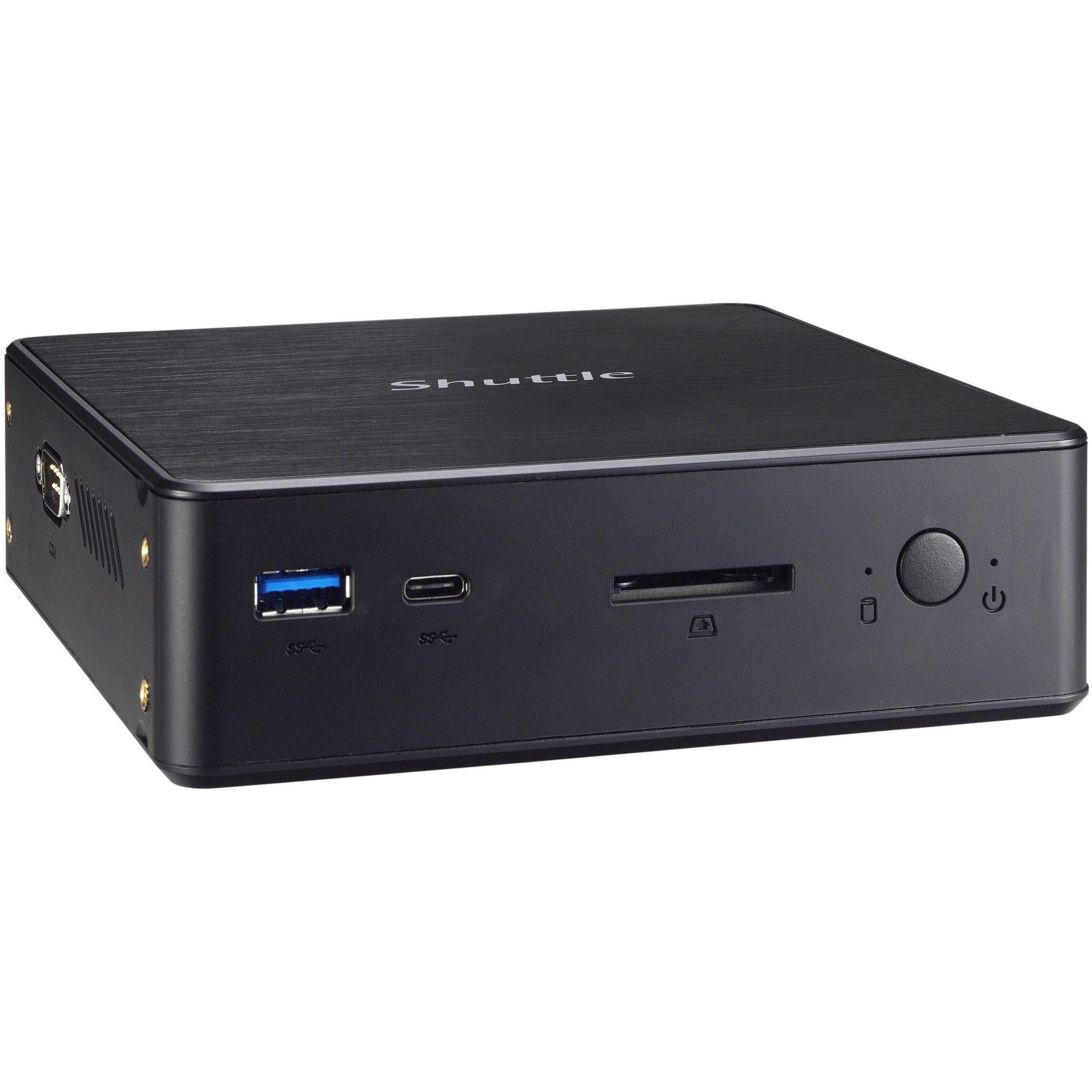

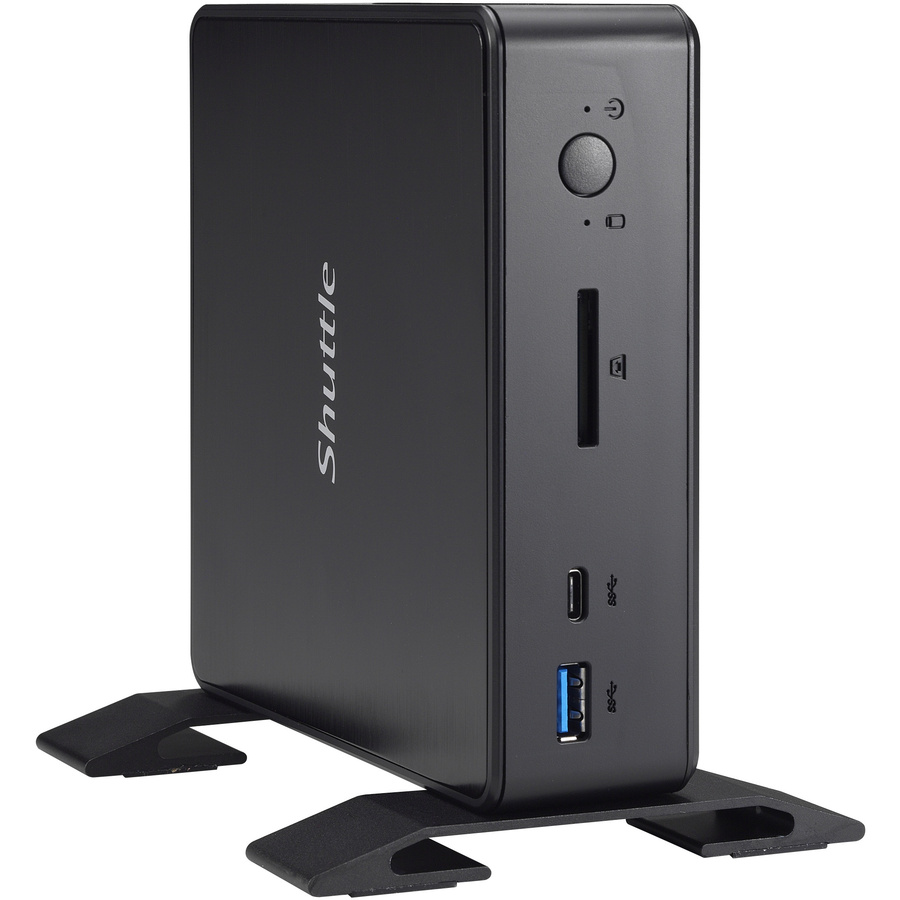

Shuttle XPC nano NC03U Barebone System - Mini PC - Celeron 3865U 1.80 GHz
This Product is currently not in offering
On back-order, will ship once in-stock
General Information
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | NC03U |
| Brand Name | Shuttle |
| Product Line | XPC nano |
| Product Model | NC03U |
| Product Name | XPC nano NC03U Barebone System |

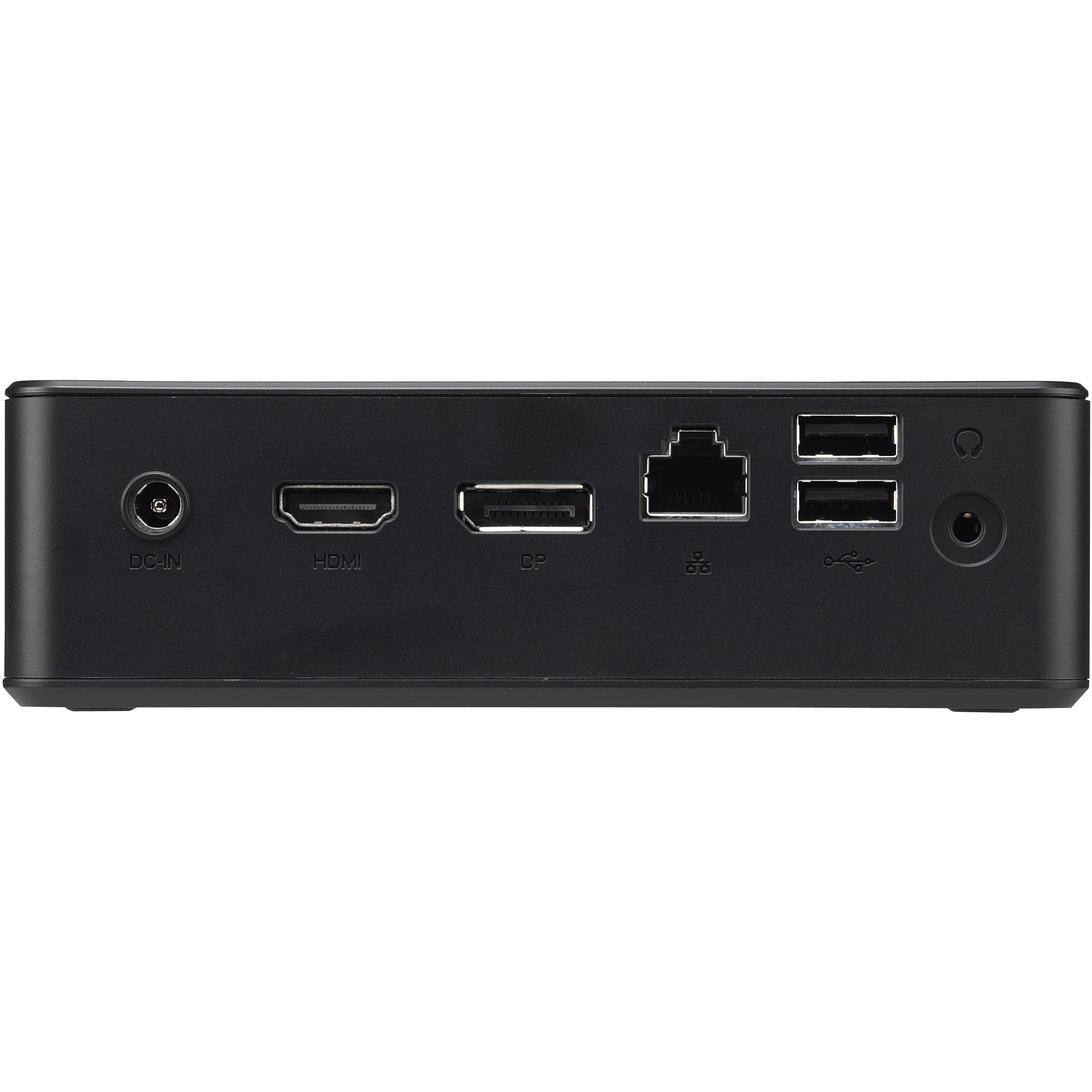

| Marketing Information | Shuttle's XPC nano Series gets a performance boost The NC03U series is powered by Intel's power-saving ULV (ultra-lowvoltage) processors of the Kaby Lake generation. Compared with the NC02U series, it brings higher clock frequencies, improved graphics performance and support of faster DDR4 memory up to 2x 16 GB. Furthermore, one 2.5" drive up to 15 mm in height as well as one M.2-2280 NVMe SSD card can be installed. The DisplayPort connector delivers video resolutions of up to 4K at 60 frames per second while a second display can be connected via HDMI. USB peripherals use either the type A or type C ports. Professional users will appreciate Intel Gigabit-LAN and one serial port which indicates what purposes the NC03U series is mainly intended for: Digital Signage, POS, control, office or even multimedia. |
| Product Type | Barebone System |
Processor
| Processor Type | Celeron |
| Processor Model | 3865U |
| Processor Speed | 1.80 GHz |
Memory
| Memory Technology | DDR4 SDRAM |
Display & Graphics
| Graphics Controller Model | HD Graphics 610 |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
Network & Communication
| Wireless LAN | Yes |
Interfaces/Ports
| HDMI | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | USB 3.0 Type C |
| DisplayPort | Yes |
Physical Characteristics
| Product Color | Black |
| Form Factor | Mini PC |
| Height | 1.65" (42 mm) |
| Width | 5.59" (142 mm) |
| Depth | 5.59" (142 mm) |
| Weight (Approximate) | 14.11 oz (400 g) |
Miscellaneous
| Energy Star | Yes |
| Country of Origin | China |
Warranty
| Limited Warranty | 3 Year |
