AXIS Q8685-E 2.1 Megapixel Outdoor HD Network Camera - Color, Monochrome - Bullet

Part No. 0862-001

by Axis Communications

This Product is currently not in offering

AXIS Q8685-E 2.1 Megapixel Outdoor HD Network Camera - Color, Monochrome - Bullet

Part No. 0862-001

by Axis Communications

This Product is currently not in offering

General Information
ManufacturerAxis Communications
Manufacturer Part Number0862-001
Brand NameAXIS
Product SeriesQ86
Product ModelQ8685-E
Product NameQ8685-E PTZ Network Camera
Marketing Information
  • 360° pan and 135° tilt from ground to sky
  • Forensic details and focus recall
  • Long-distance network connection
  • Weather protection and remote maintenance
  • Easy installation

Sometimes you need a slow, steady pan. Other times it's important to be on the spot in a flash. With the responsive AXIS Q8685-E PTZ Network Camera, you set the pace for unobstructed and far-reaching surveillance of expansive outdoor areas.

Swift and smooth

AXIS Q8685-E lets operators choose between high-speed and ultra-slow pan and tilt movement - from 0.05 to 120 degrees per second. So they get smooth and jerk-free paranormic viewing when they need it and can respond quickly to events. It is capable of operating in extreme temperatures, and it can withstand hurricane-strength winds when it's in motion of up to 47-meter per second (106 mph), and winds over 60-meter per second (135 mph) when it's in motion and without sunshield.

Ground-to-sky view

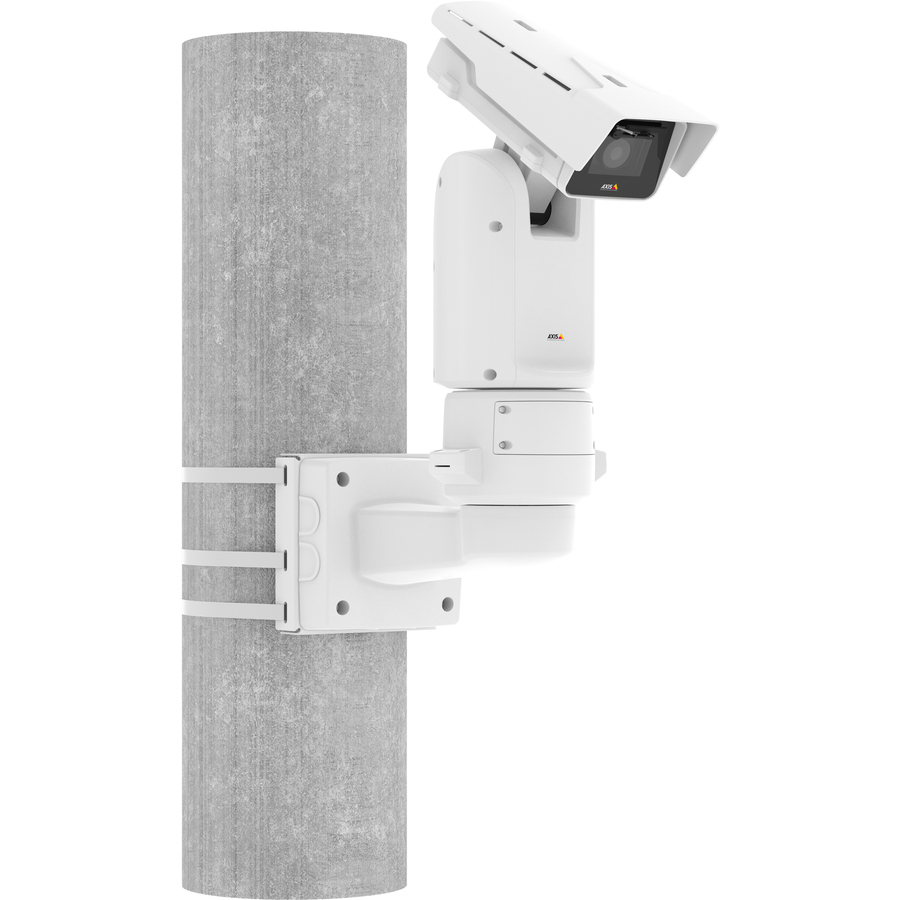

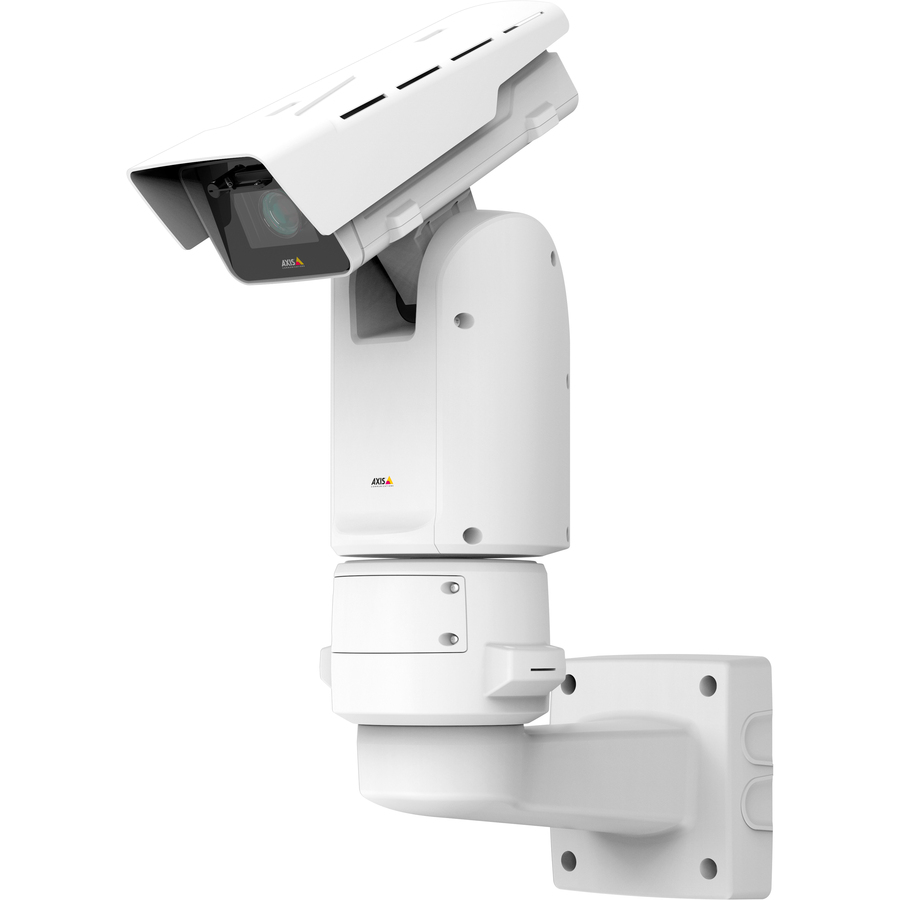

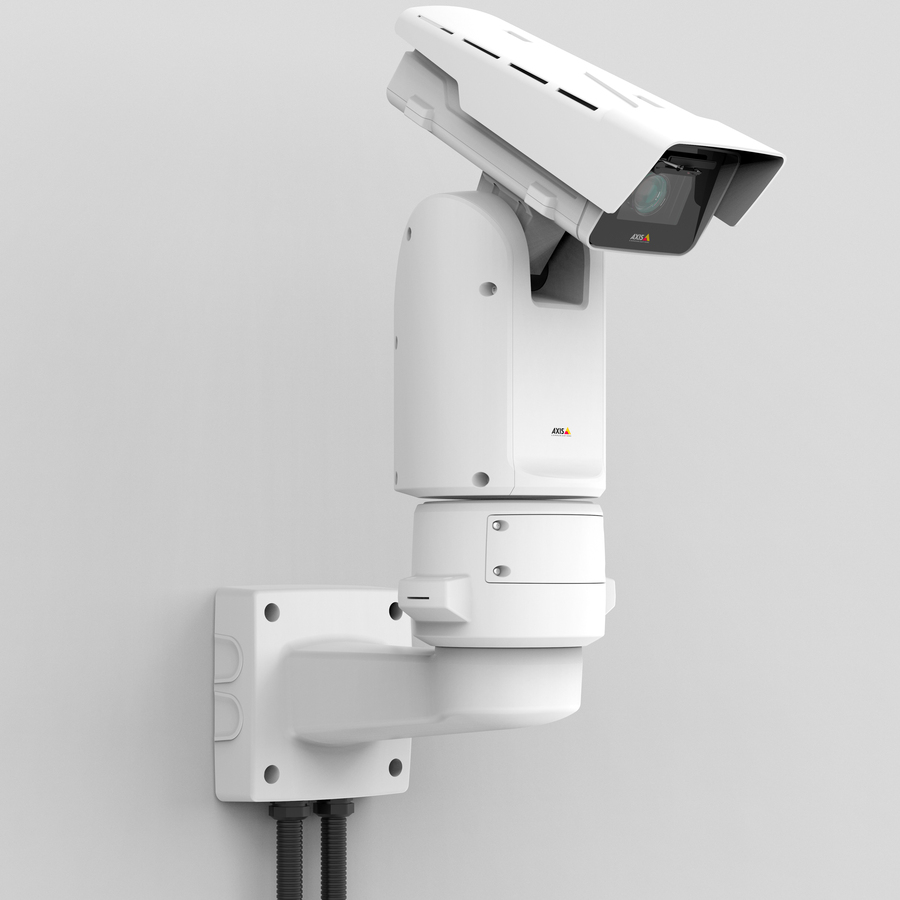

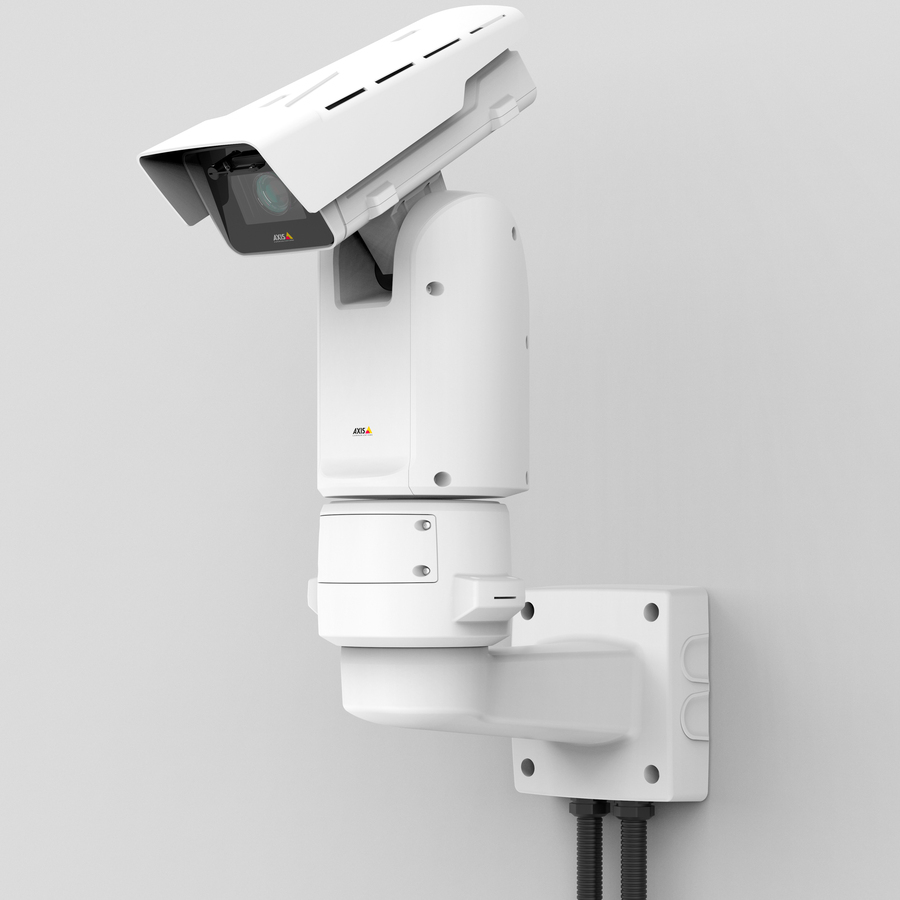

The camera can be column-mounted, on poles or walls for a 360° panoramic view and a ground-to-sky view from -90° to +45°. If the need is to tilt upwards, up to +90°, this can be achieved by mounting the camera housing in an inverted configuration on the positioning unit. The inverted configuration gives a tilt range of -45° to +90°.

Far and wide

With 30x optical zoom and superb pan and tilt capabilities, AXIS Q8685-E delivers long-distance identification and the widest possible field of view in every direction. It has Wide Dynamic Range - Forensic Capture for clarity and detail in scenes with both dark and light areas. And it has Focus recall for instant focus in areas you define. In addition, AXIS Q8685-E will also automatically zoom in on objects detected in pre-defined areas thanks to Advanced Gatekeeper. And AXIS Radar Autotracking for PTZ provides automatic tracking of detected objects. In addition, white LED and illuminator bracket are also available. They can be used to further enhance performance - or as deterrence when used in combination with analytics software that turns them on in response to intruders entering a restricted area.

Operate with total confidence

AXIS Q8685-E's slim design and many available accessories let you install it anywhere you want. The camera is specially designed to be reliable, robust and weatherproof in diverse conditions. It features SFP slots for cost-effective network connection over long distances. When both the Ethernet and fiber-optic cables are connected, the cameras can be set up in failover mode to create a redundant network link or in daisy-chain mode for connecting multiple devices in sequence.

Product TypeNetwork Camera
Technical Information
HD RecordingYes
Recording FormatsHD
Display & Graphics
Image Sensor TypeCMOS
Color Supported
  • Color
  • Monochrome
Effective Camera Resolution2.1 Megapixel
Video
Video Formats
  • H.264
  • MPEG-4 AVC
  • MJPEG
  • JPEG
Maximum Video Resolution1920 x 1080
Maximum Frame Rate60 fps
Lens
Lens TypeZoom
Minimum Focal Length4.3 mm
Maximum Focal Length129 mm
Optical Zoom30x
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Interfaces/Ports
Network (RJ-45)Yes
Physical Characteristics
Product ColorWhite
Mount Type
  • Wall Mount
  • Corner Mount
  • Pole Mount
Form FactorBullet
Height22.83" (580 mm)
Width9.02" (229 mm)
Length16.18" (411 mm)
Weight (Approximate)14 kg
Miscellaneous
Indoor/OutdoorOutdoor
Package Contents
  • Q8685-E PTZ Network Camera
  • Installation Guide
  • Windows Decoder 1-User License
  • Power Connector
  • I/O Connector
  • Torx® Bits T20 And T30
TAA CompliantYes
Warranty
Limited Warranty3 Year
