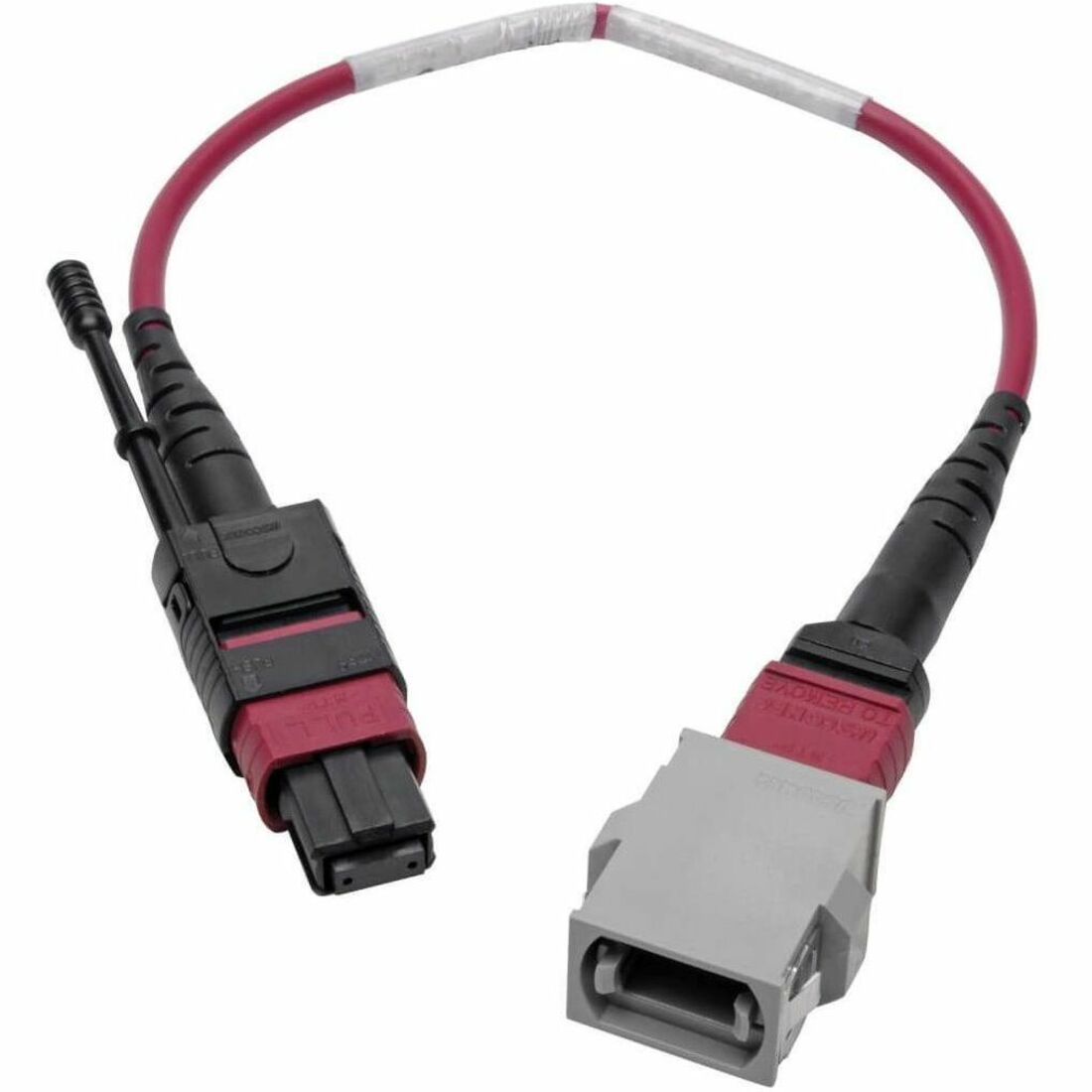

Tripp Lite by Eaton N846-08N-A2B Fiber Optic Duplex Patch Network Cable
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N846-08N-A2B |
| Brand Name | Tripp Lite by Eaton |
| Product Model | N846-08N-A2B |
| Product Name | N846-08N-A2B Fiber Optic Duplex Patch Network Cable |
| Marketing Information | he N846-08N-A2B MTP/MPO Parallel Optics Base-8 Migration Fiber Adapter (M/F) is an eight-inch patch cable that supports 40 Gb Ethernet speeds and is designed for high-density connections between network equipment in telecommunication rooms and data centers. It saves you time and money by converting legacy 12-fiber Method A cables to Method B Polarity for compatibility with Parallel Optics fiber mapping in Base-8 40GBASE-SR4 and 100GBASE-SR4 applications. It's colored magenta for instant identification as an OM4 cable. The N846-08N-A2B is ideal for use with high-density feed-through cassettes, such as Tripp Lite's N482 and N484 Series. The cable has documented insertion loss and back reflection testing on every connector and attenuation loss that meets or exceeds current standards. The push/pull tab connector makes the cable easy to install and remove with one hand. Backward compatible with existing 50/125 fiber, the N846-08N-A2B has 50/125 duplex (zipcord) fiber made from glass, as well as a plenum-rated OFNP jacket for connecting network components in drop ceilings, walls and ducts. Features OM4-Rated for 40 Gb Ethernet Applications
MTP/MPO Connectors with Push/Pull Tab
Error-Free Signal Transfer
|
| Product Type | Network Cable |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Cable Length | 8" (203.20 mm) |
| Connector Type on First End | MTP/MPO Network - Male |
| Connector on First End Details | 1 x MTP/MPO Network - Male |
| Connector Type on Second End | MTP/MPO Network - Female |
| Connector on Second End Details | 1 x MTP/MPO Network - Female |
| Device Supported | Network Device |
| Data Transfer Rate | 100 Gbit/s |
| Color Family | Pink |
| Product Color | Magenta |
| Shipping Height | 0.50" (12.70 mm) |
| Shipping Width | 7" (177.80 mm) |
| Shipping Weight (Approximate) | 1.60 oz (45.36 g) |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Condition | No |
| UPC | 0037332203472 |
| Limited Warranty | Lifetime |
