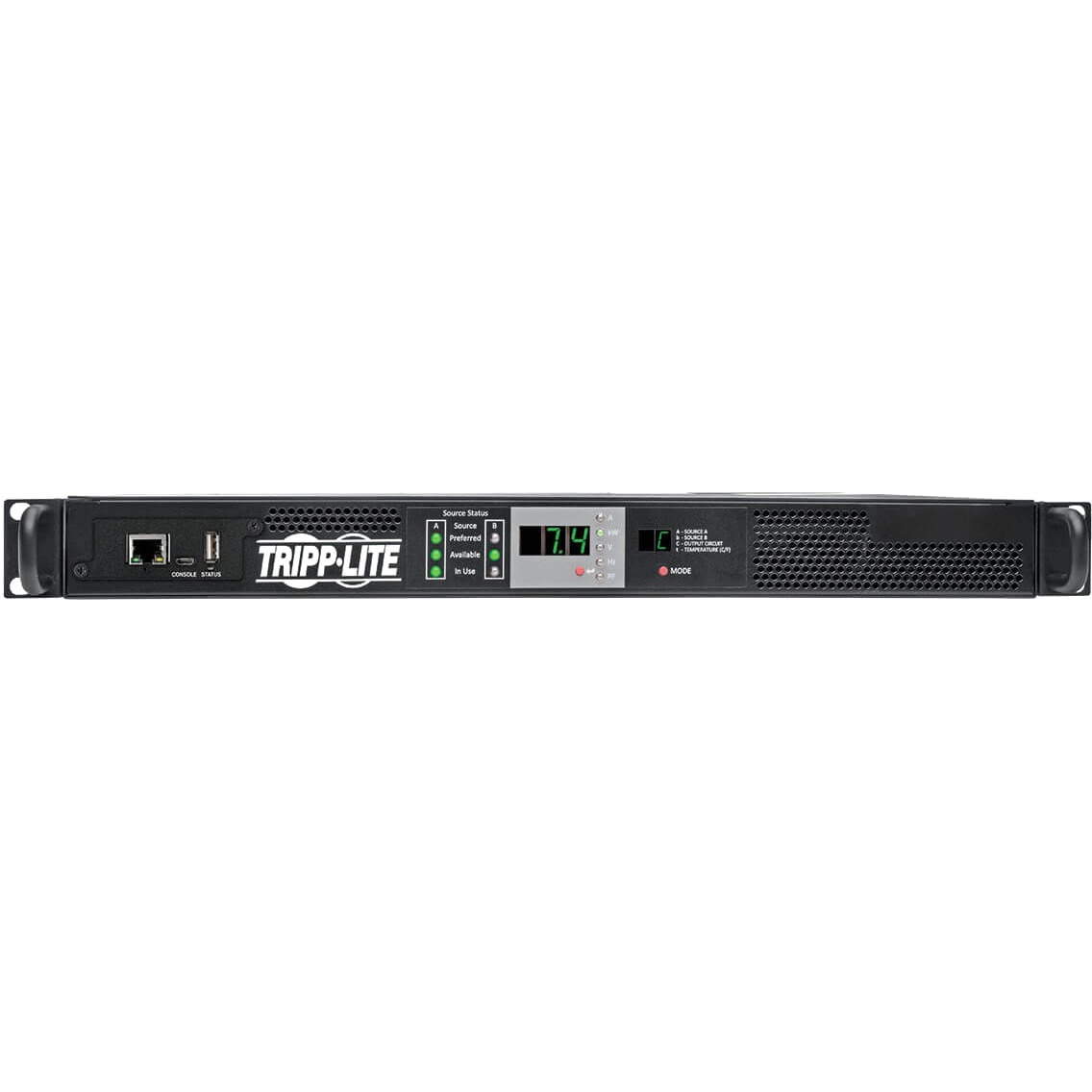

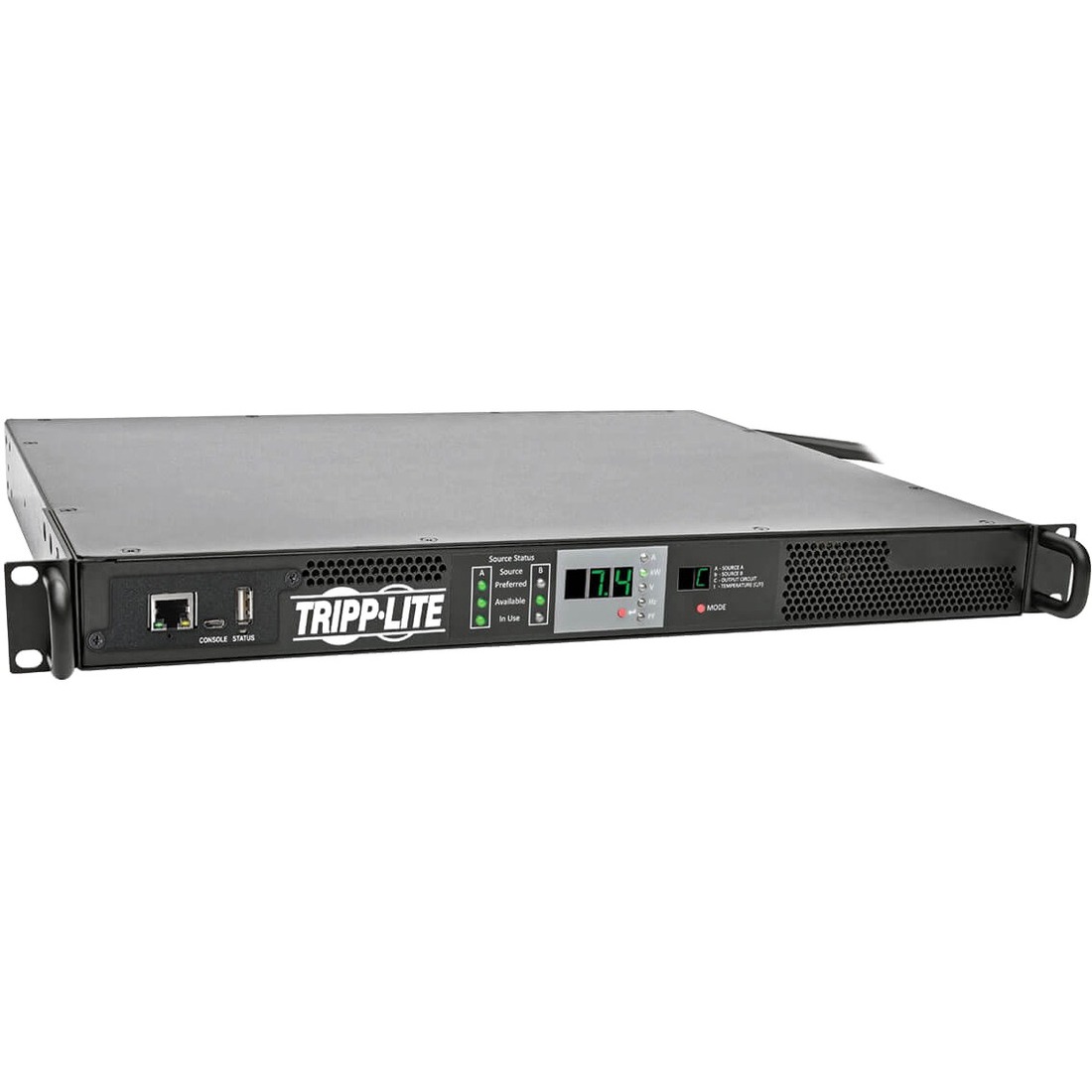

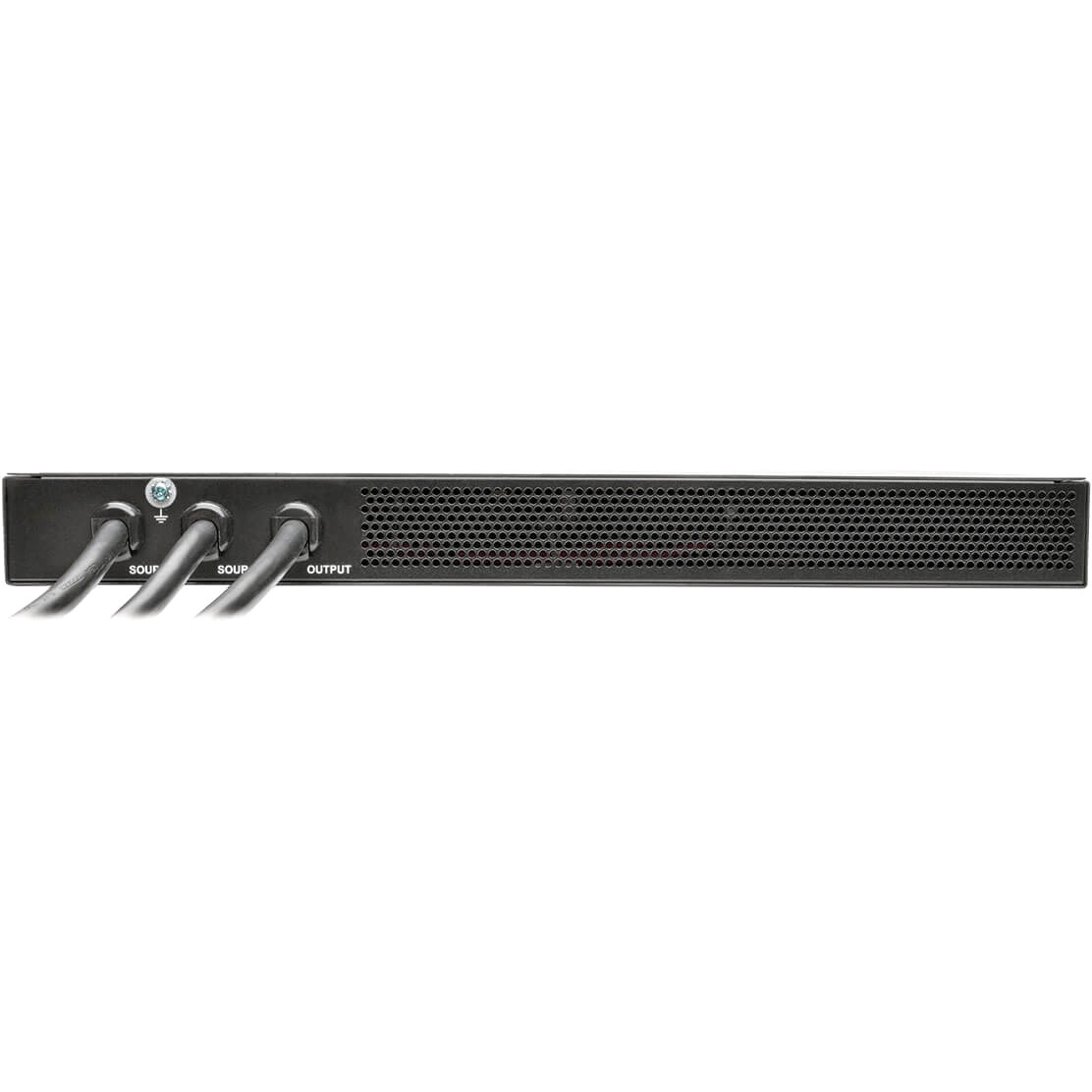

Tripp Lite by Eaton PDUMNH32HVAT 7.4kW Single-Phase 230V ATS/Monitored PDU
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMNH32HVAT |
| Brand Name | Tripp Lite by Eaton |
| Product Model | PDUMNH32HVAT |
| Product Name | PDUMNH32HVAT 7.4kW Single-Phase 230V ATS/Monitored PDU |
| Marketing Information | The PDUMNH32HVAT 7.4kW Single-Phase 230V ATS/Monitored PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and has one IEC 309 32A Blue outlet for connecting a single device or an additional 230V multi-outlet PDU with IEC 309 32A Blue plug, such as Tripp Lite's PDUMV32HV. Dual 3 meter (10ft) input cords, each with IEC 309 32A Blue input plug, connect to any two separate primary and secondary input power sources, including out-of-phase input sources. The PDU constantly evaluates the power quality of both inputs. To ensure connected equipment remains powered, dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds if the primary source fails or becomes unstable. Built-in LX Platform network management interface allows remote access to the PDU for power monitoring, configuration, control and to receive user-configurable notifications. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. Provides real-time load/current data with billing-grade accuracy (+/- 1 percent). It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. |
| Product Type | PDU |
| PDU Type | Monitored |
| Plug/Connector Type | IEC 60309 32A Blue (2P+E) |
| Receptacle Type | IEC 60309 32A BLUE (2P+E) |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Voltage |
|
| Power Rating (Watt) | 7.70 kW |
| Input Current | 32 A |
| Management |
|
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.73" (44 mm) |
| Width | 16.93" (430 mm) |
| Depth | 14.02" (356 mm) |
| Weight (Approximate) | 18.28 lb (8290 g) |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 037332187871 |
| Limited Warranty | 2 Year |
