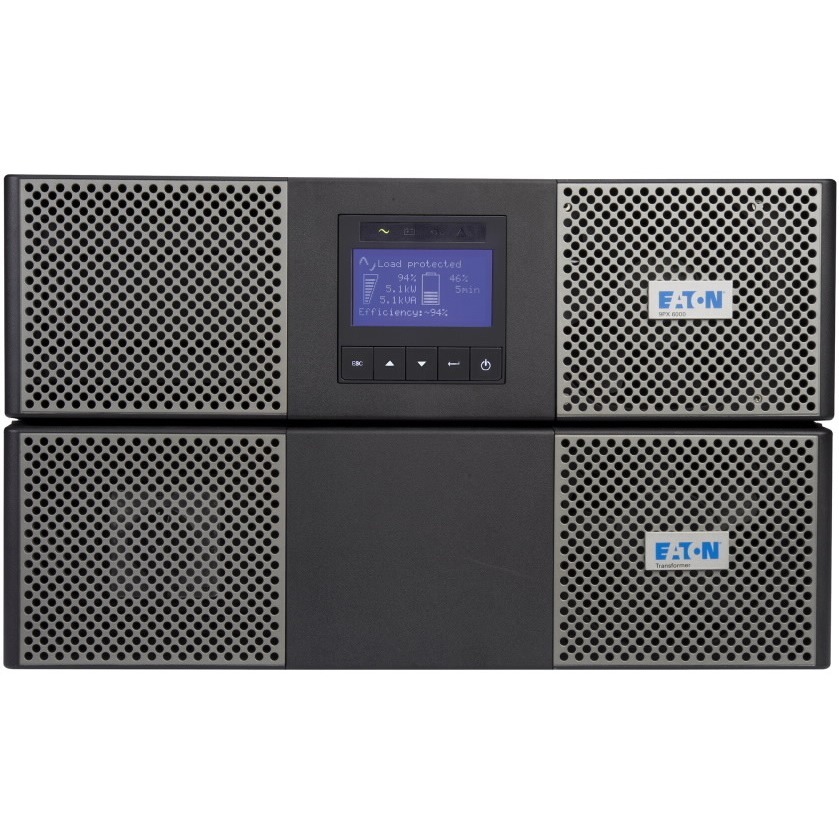

Eaton 9PX UPS, 6U, 3000 VA, 3000 W, Hardwired input, Outputs: Hardwired, 120/240V

Part No. 9PX3K3UNP2

by Eaton Corporation

Eaton 9PX UPS, 6U, 3000 VA, 3000 W, Hardwired input, Outputs: Hardwired, 120/240V

6U Rack/Tower - 7 Minute Stand-by - 230 V AC Input - 120 V AC, 240 V AC, 200 V AC, 208 V AC, 220 V AC, 230 V AC Output

Part No. 9PX3K3UNP2

by Eaton Corporation

$5812.99
General Information
ManufacturerEaton Corporation
Manufacturer Part Number9PX3K3UNP2
Brand NameEaton
Product Series9PX
Product Name9PX UPS
Marketing Information

3kVA/3kW/208V Battery Backup for IT Installations and Edge Networks

This 9PX rack-mount online double-conversion UPS system features hardwired input and output connections. It provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. The 9PX3K3UNP2 is superlative power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers.

Expandable Internal Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four extended battery modules (9PXEBM180RT, sold separately) for hours of extended runtime.

Included Distribution Module Helps Accommodate a Range of Connected Equipment

The 9PXPPDM2 PowerPass Distribution Module allows a step-down voltage from 208V to 120V to permit connection of a variety of IT components. It also features a maintenance bypass, which lets you service or replace the 9PX3K3UNP2 without powering down any connected equipment.

Included Gigabit Network Interface Offers 24/7 Remote Access

The NETWORK-M2 Gigabit network card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.

Product TypeDouble Conversion Online UPS
Technical Information
Plug/Connector TypeHardwired
Receptacle TypeHardwired
Power Description
Load Capacity (VA)3 kVA
Load Capacity (Watt)3 kW
Input Voltage230 V AC
Output Voltage
  • 120 V AC
  • 240 V AC
  • 200 V AC
  • 208 V AC
  • 220 V AC
  • 230 V AC
Waveform TypeSine Wave
Interfaces/Ports
Network (RJ-45)Yes
Battery Information
Backup/Run Time (Full Load)7 Minute
Hot SwappableYes
Physical Characteristics
Height10.20" (259.08 mm)
Width17.30" (439.42 mm)
Depth27" (685.80 mm)
Rack Height6U
Form FactorRack/Tower
Weight (Approximate)203 lb (92079.25 g)
Miscellaneous
Country of OriginChina
ConditionNo
Warranty
Limited Warranty3 Year
mounting kits (1)

Part No. RK2PC

Eaton Mounting Rail Kit for UPS

MOUNTING RAIL KIT WORK

ups batteries (2)

Part No. 744-A1974

Eaton UPS Battery Pack - 5000 mAh

0

Part No. 9PXEBM180RT

Eaton 5/6 kVA EBM

ADD UP TO 4 EBMS
