11kVA/10kW/208V Battery Backup for IT Installations and Edge Networks

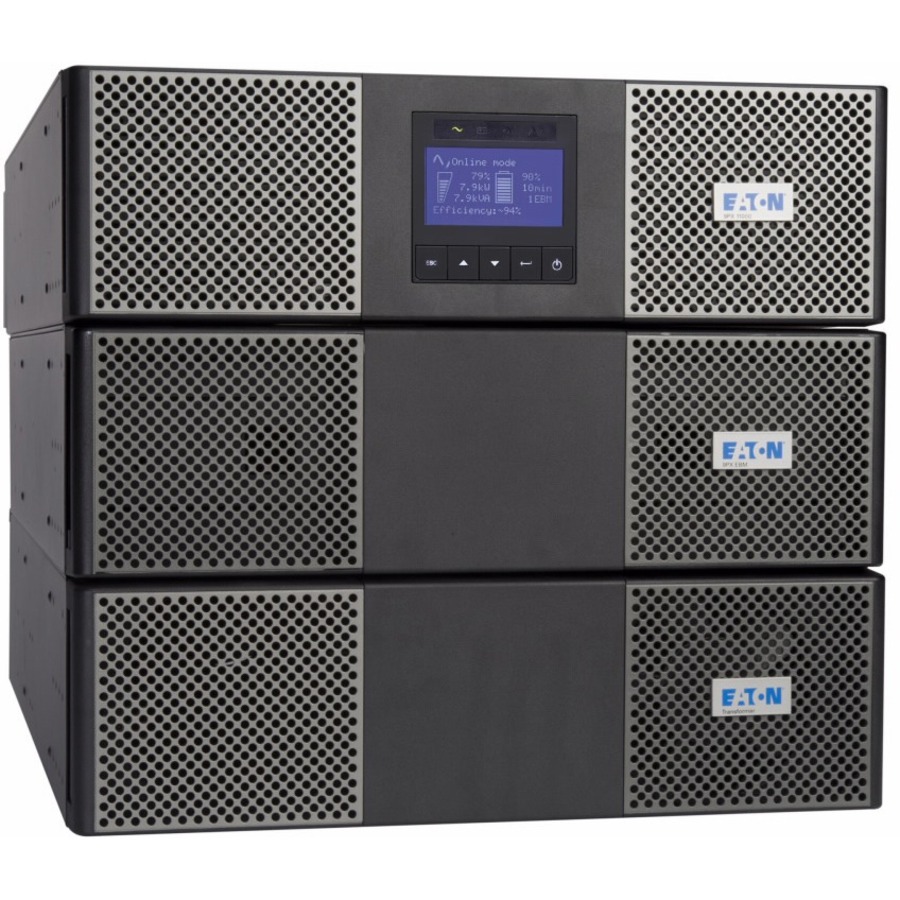

This 9PX rack-mount online double-conversion UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. An included transformer permits a step-down voltage from 208V to 120V to allow connection of a wider range of components. The 9PX11KTF11M is superlative power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers.

Expandable Battery Backup Keeps You Operational Through Power Outages

Valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can connect up to five extended battery modules (9PXEBM240RT, sold separately) for hours of extended runtime or up to 12 EBMs with the optional 3U rack-mount 240VDC supercharger (SC240RT, sold separately). The included 9PX maintenance bypass (MBP11K208) lets you service or replace the entire UPS without powering down connected equipment.

Included Gigabit Network Interface Offers 24/7 Remote Access

The NETWORK-M2 Gigabit network card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.

NEMA Outlets Protect Your Connected Components

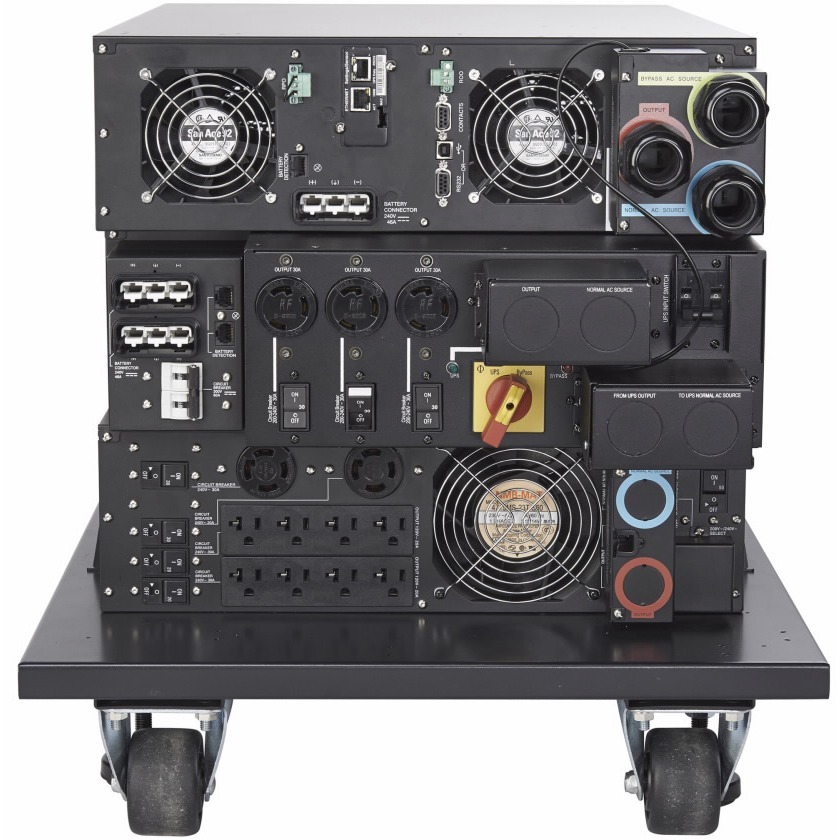

Two L14-30R, three L6-30R and eight 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. The 9PX11KTF11M also supports hardwired output.

• NEMA 5-20R
• NEMA L6-30R
• NEMA L14-30R
• Hardwired

• 8 x NEMA 5-20R
• 2 x NEMA L6-30R
• 2 x NEMA L14-30R

• IT
• Edge Computing
• Medical
• Healthcare
• Industrial Automation

• 200 V AC
• 208 V AC
• 220 V AC
• 230 V AC
• 240 V AC
• 250 V AC

• Web/SNMP
• SNMP/Webcard

• Lead Acid
• Lithium Ion (Li-Ion)

• Black
• Silver

• 9PX UPS
• 9PXEBM240RT 3U Extended Battery Module
• 9PXTFMR11 11K 120V Stepdown Transformer
• MBP11K208 Maintenance Bypass
• Gigabit Network Card (Network-M2)
• 4-post Rail Kit
• User Manual
• Quick Start Guide
• Tower Pedestals
• Intelligent Power Software Suite CD
• RS-232 Serial Cable
• USB Cable
• Cable Gland for Hardwire Connection
• Phillips Head Screw Driver
