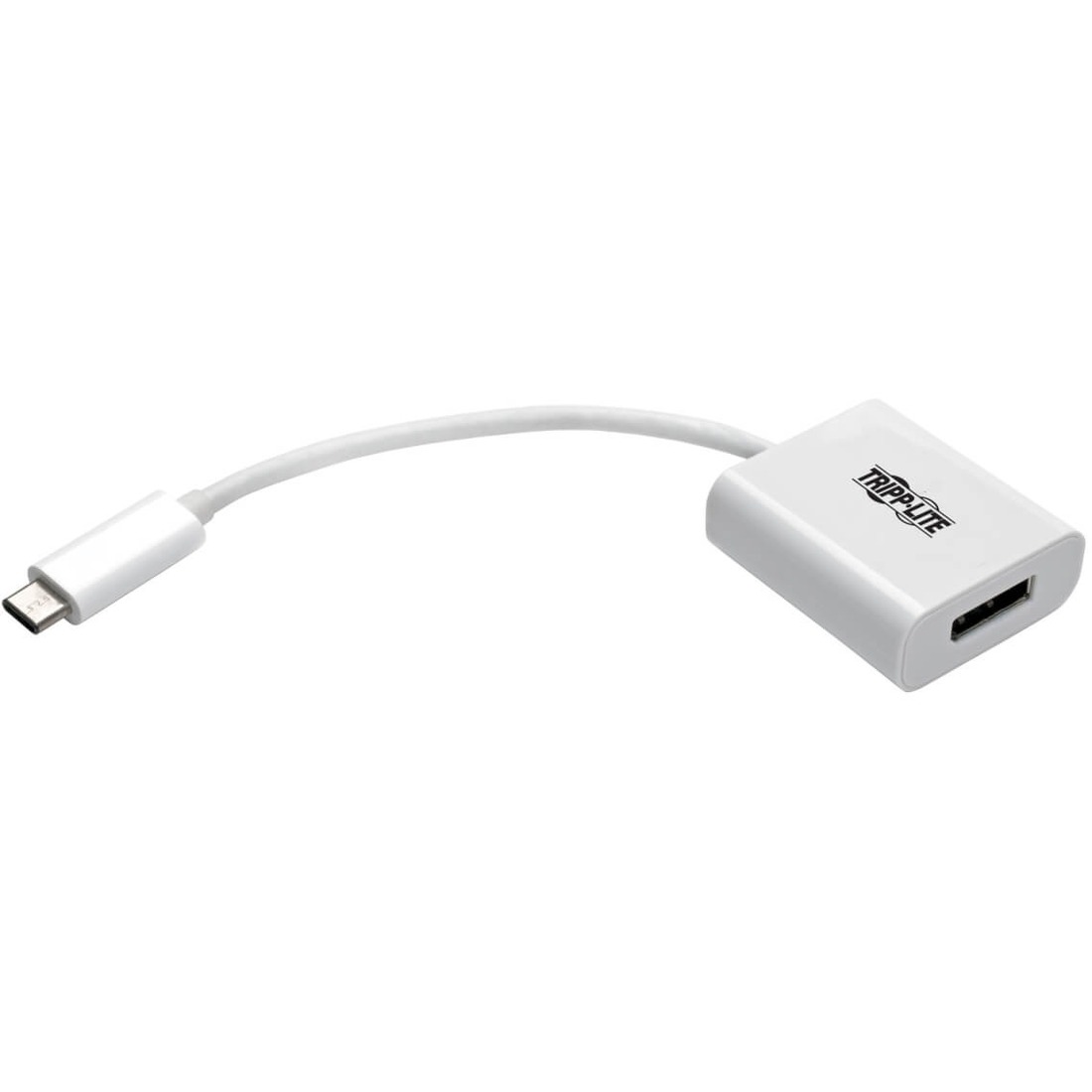

Tripp Lite by Eaton U444-06N-DP-AM USB 3.1 Gen 1 USB-C to DisplayPort 4K Adapter (M/F)

Part No. U444-06N-DP-AM

by Eaton Corporation

$21.99

On back-order, will ship once in-stock

  • All Locations: (0+)

Tripp Lite by Eaton U444-06N-DP-AM USB 3.1 Gen 1 USB-C to DisplayPort 4K Adapter (M/F)

USB 3.1 Type C - 1 x DisplayPort, DisplayPort

Part No. U444-06N-DP-AM

by Eaton Corporation

$21.99

On back-order, will ship once in-stock

  • All Locations: (0+)

General Information
ManufacturerEaton Corporation
Manufacturer Part NumberU44406NDPAM
Brand NameTripp Lite by Eaton
Product ModelU444-06N-DP-AM
Product NameU444-06N-DP-AM USB 3.1 Gen 1 USB-C to DisplayPort 4K Adapter (M/F)
Marketing InformationThe U444-06N-DP-AM USB 3.1 Gen 1 USB-C to DisplayPort 4K Adapter (M/F) helps you transmit digital audio and 4K video from your tablet, laptop, Chromebook, MacBook, smartphone or PC to a DisplayPort-enabled television, monitor or projector. It's an ideal tool for giving video presentations in conference rooms and classrooms, editing multiple documents on a larger screen, or streaming video for digital signage in crystal-clear 4K.

With a source device that also supports USB DisplayPort Alternate Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary.

The plug-and-play U444-06N-DP-AM requires no software, drivers or external power. Connect the reversible USB-C plug to your source device's USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time. Then, connect the DisplayPort to your display using a DisplayPort cable (sold separately).

The U444-06N-DP-AM supports UHD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, 36-bit Deep Color (12 bits per channel) and per-lane transfer rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR).

Connects a DisplayPort Display to Your USB-C or Thunderbolt 3 Device

  • Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode
  • Ideal for giving video presentations, editing multiple documents or streaming video for digital signage


Common Applications

  • Extends video from your primary display to another
  • Duplicates the same video on 2 displays
  • Converts a secondary display to your primary display


Crystal-Clear 4K Video and Digital Audio

  • Supports UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz
  • Supports 36-bit Deep Color (12 bits per channel)
  • Supports per-lane transfer rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR)


Built-In Cable with Reversible USB-C Connector

  • Fumble-free reversible USB-C plug connects in either direction for quick connection every time


Ready for Instant Use

  • Plug-and-play operation with no software, drivers or external power required
  • Half the footprint of a credit card for easy carrying in a pocket, purse or laptop bag
  • Backward compatible with non-4K displays

System Requirements

  • Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode
  • Display device with DisplayPort input
Product TypeGraphic Adapter
Technical Information
Adapter TypeDisplayPort/USB
Connector Type on First EndUSB 3.1 Type C
Connector on First End DetailsUSB 3.1 Type C
Connector Type on Second EndDisplayPort Digital Audio/Video
Connector on Second End Details
  • 1 x DisplayPort
  • DisplayPort
Miscellaneous
Package Contents
  • U444-06N-DP-AM Graphic Adapter
  • Quick Start Guide
Additional Information
  • Form Factor: External
    • Country of OriginChina
    Environmentally FriendlyYes
    Environmental ComplianceRestriction of Hazardous Substances (RoHS)
    ConditionNo
    UPC0037332189356
    Warranty
    Limited Warranty3 Year
