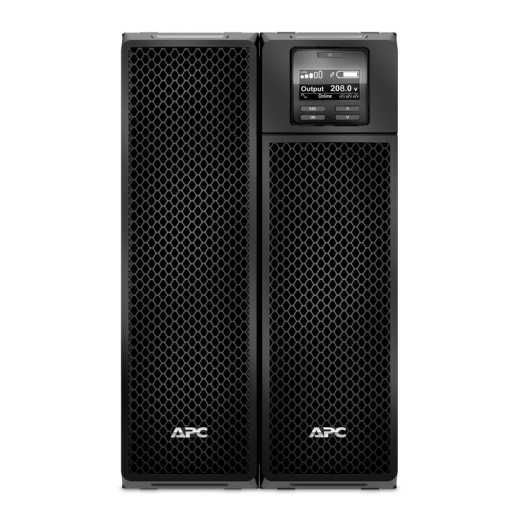

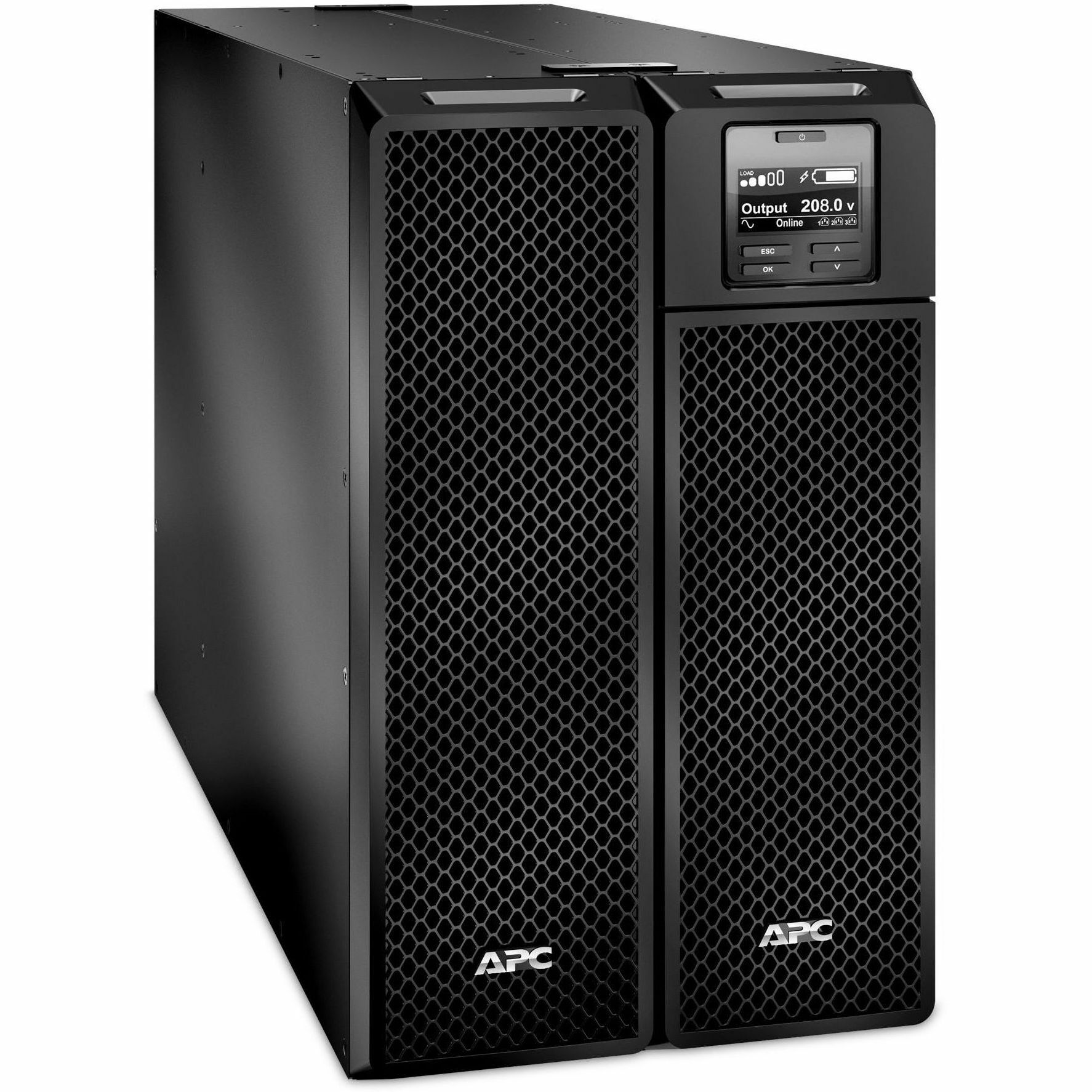

APC by Schneider Electric Smart-UPS SRT 5000VA with 208/240V to 120V Step-Down Transformer

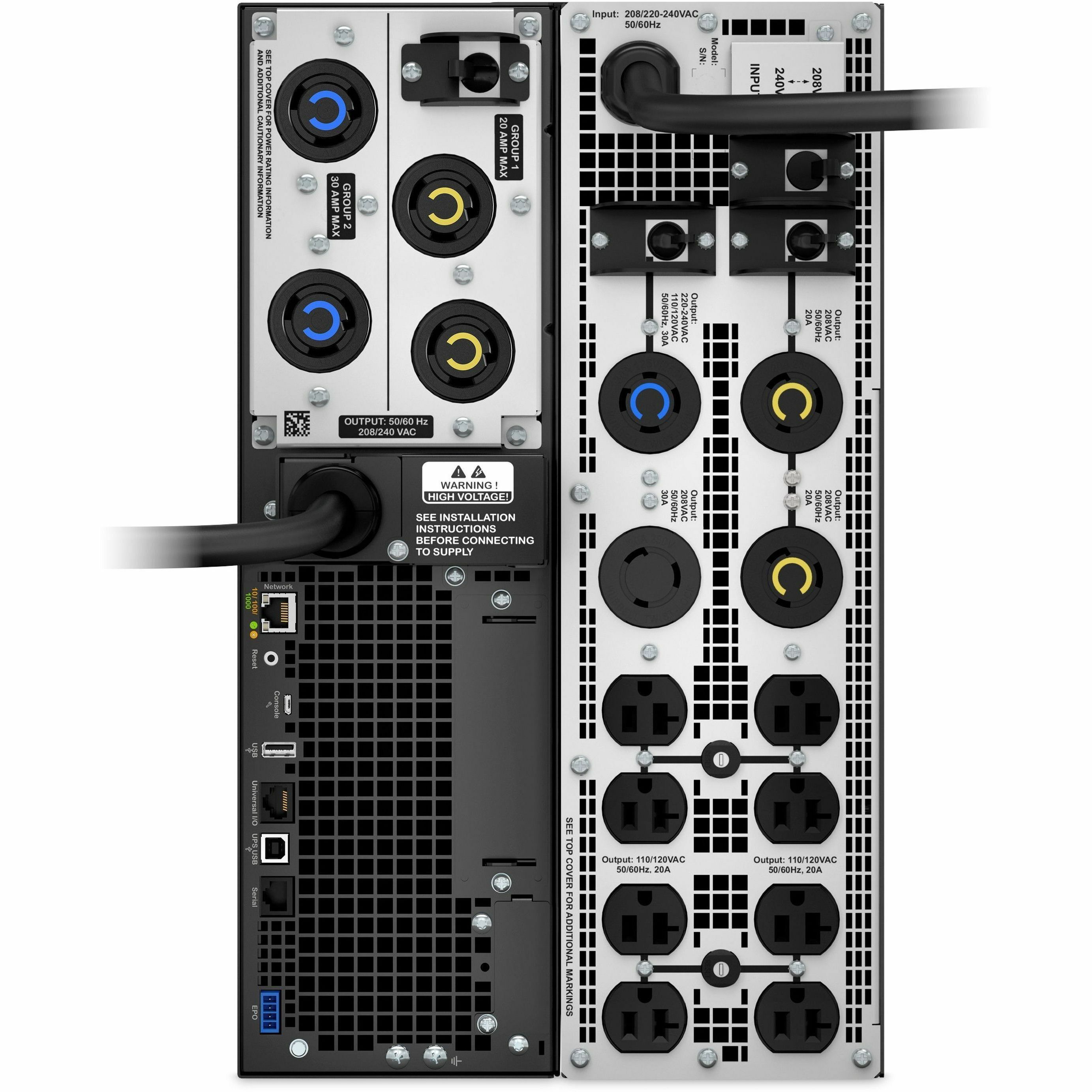

Rack-mountable - 1.50 Hour Recharge - 4 Minute Stand-by - 208 V Input - 120 V AC, 208 V AC Output - Sine Wave - 1 x NEMA L14-30R, 2 x NEMA L6-30R, 4 x NEMA L6-20R, 8 x NEMA 5-20R Receptacle(s) - 15 x Battery/Surge Outlet
$8313.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT5KXLT-5KTF |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS On-Line |
| Product Name | Smart-UPS SRT 5000VA with 208/240V to 120V Step-Down Transformer |
| Marketing Information | This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 5000VA/4800W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The 4U rack/tower convertible SRT has an Embedded Network Management Card for network-based UPS monitoring and management. The UPS has an additional SmartSlot for connectivity and PowerChute Network Shutdown support for graceful unattended shutdown. It comes with NEMA L6-30P input, 8x NEMA 5-20R, 1x NEMA L14-30R, 4x NEMA L6-20R and 2x NEMA L6-30R outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It Its dimensions are 719mm (depth) x 432mm (height) x 259mm (width) and weighs 112.49kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CSA C22.2 No 107.3-05, ENERGY STAR V2.0 (USA), FCC part 15 class A, and UL 1778. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction. |
| Product Type | Double Conversion Online UPS |
Technical Information
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | NEMA L6-30P |
| Receptacle Detail |
|
| Number of Battery & Surge Outlets | 15 |
| Cord Length | 10 ft (3.05 m) |
Power Description
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 4.25 kW |
| Input Voltage | 208 V |
| Output Voltage |
|
| Waveform Type | Sine Wave |
| Surge Energy Rating | 480 J |
Battery Information
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4 Minute |
| Typical Battery Recharge Time | 1.50 Hour |
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Height | 17.01" (432 mm) |
| Width | 10.20" (259 mm) |
| Depth | 28.31" (719 mm) |
| Form Factor | Rack-mountable |
| Mounting Preference | No Preference |
| Mounting Location | Vertical |
| Weight (Approximate) | 248 lb (112490.91 g) |
Miscellaneous
| For Country/Region | United States |
| Package Contents | |
| Certifications & Standards | ENERGY STAR V2.0 (USA) |
| Energy Star | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT5KXLT-5KTF_ROHS_DECLARATION&p_FileName=SRT5KXLT-5KTFKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433135488&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433135488&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
Warranty
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
