APC by Schneider Electric Smart-UPS SRT 6000VA RM 208V

Part No. SRT6KRMXLT

by Schneider Electric SA

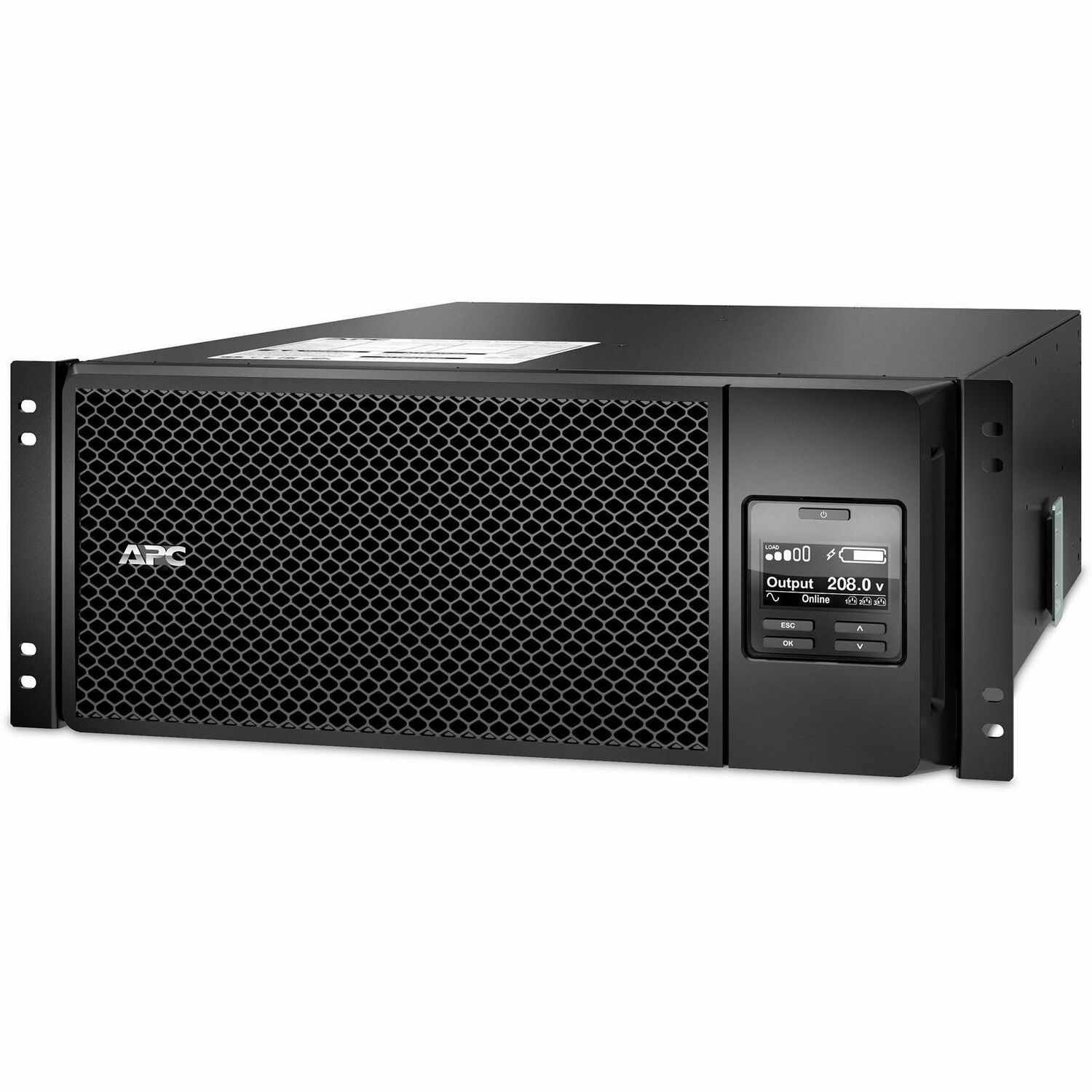

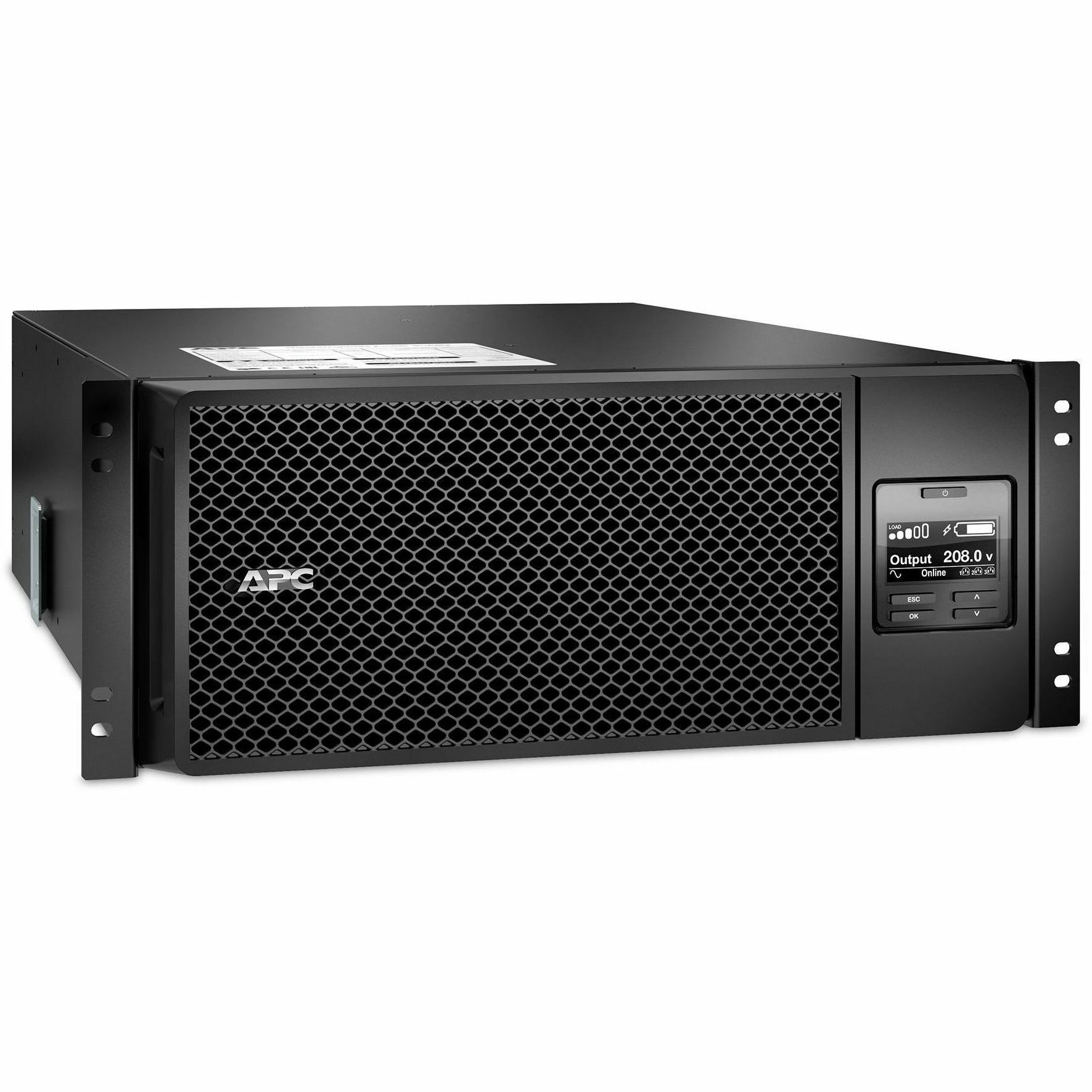

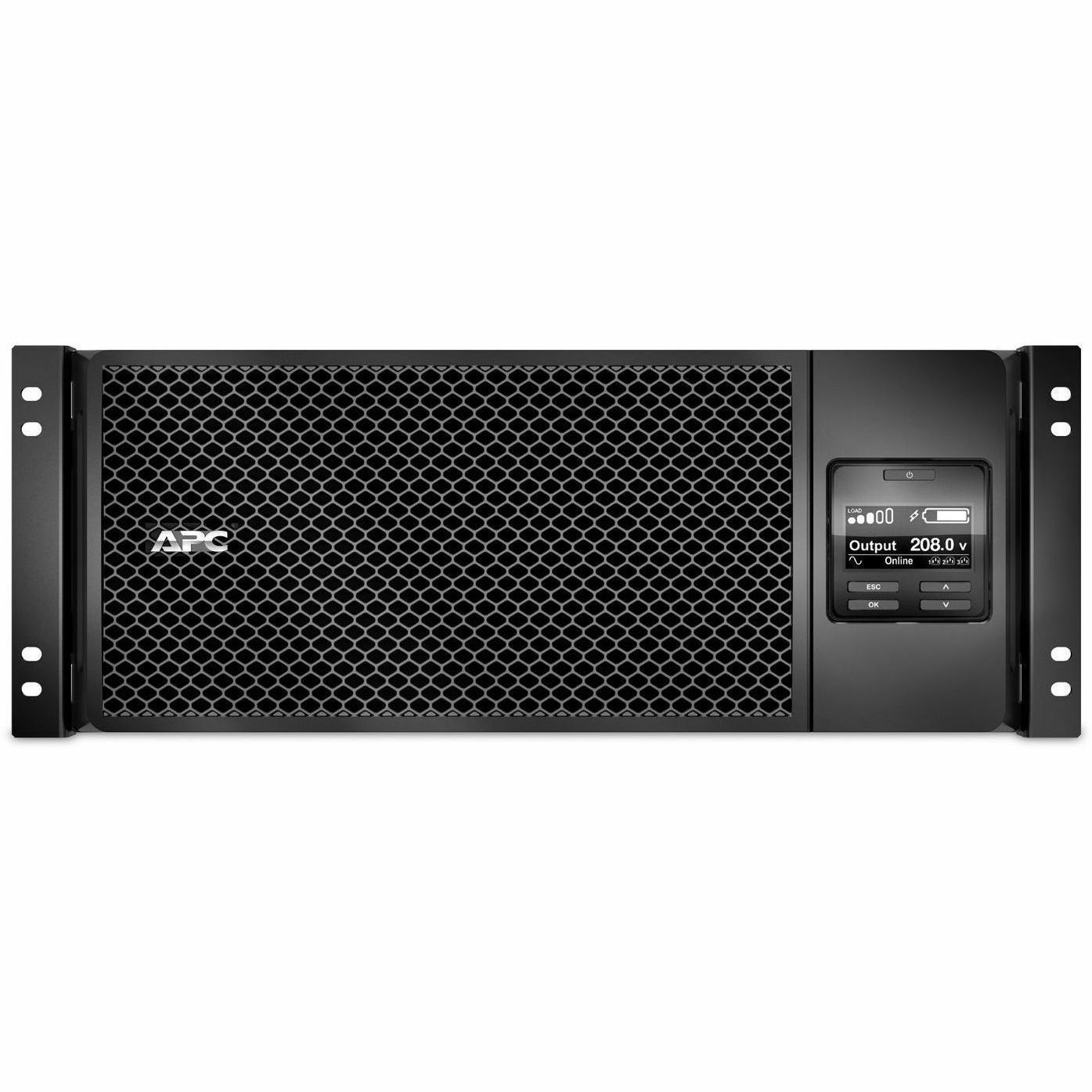

APC by Schneider Electric Smart-UPS SRT 6000VA RM 208V

4U Rack-mountable - 1.50 Hour Recharge - 2 Minute Stand-by - 208 V Input - 208 V AC Output - Sine Wave - 1 x Hard Wire 3-wire (2PH + G), 2 x NEMA L6-20R, 3 x NEMA L6-30R Receptacle(s) - 5 x Battery/Surge Outlet

Part No. SRT6KRMXLT

by Schneider Electric SA

$9296.99
General Information
ManufacturerSchneider Electric SA
Manufacturer Part NumberSRT6KRMXLT
Brand NameAPC by Schneider Electric
Product LineSmart-UPS On-Line
Product NameSmart-UPS SRT 6000VA RM 208V
Marketing InformationThis APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with Hard Wire 3-wire (2P+E) input, 2x NEMA L6-20R and 3x NEMA L6-30R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.

More from the Manufacturer

Packaged Quantity1 Each
Product TypeDouble Conversion Online UPS
Technical Information

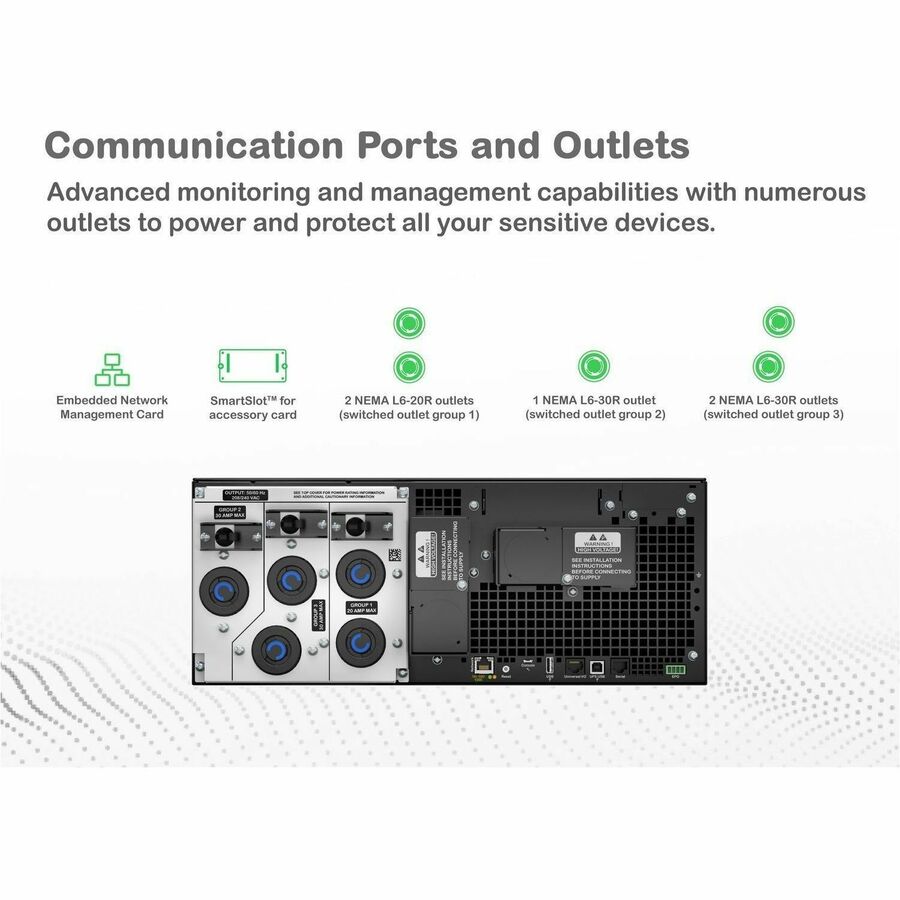

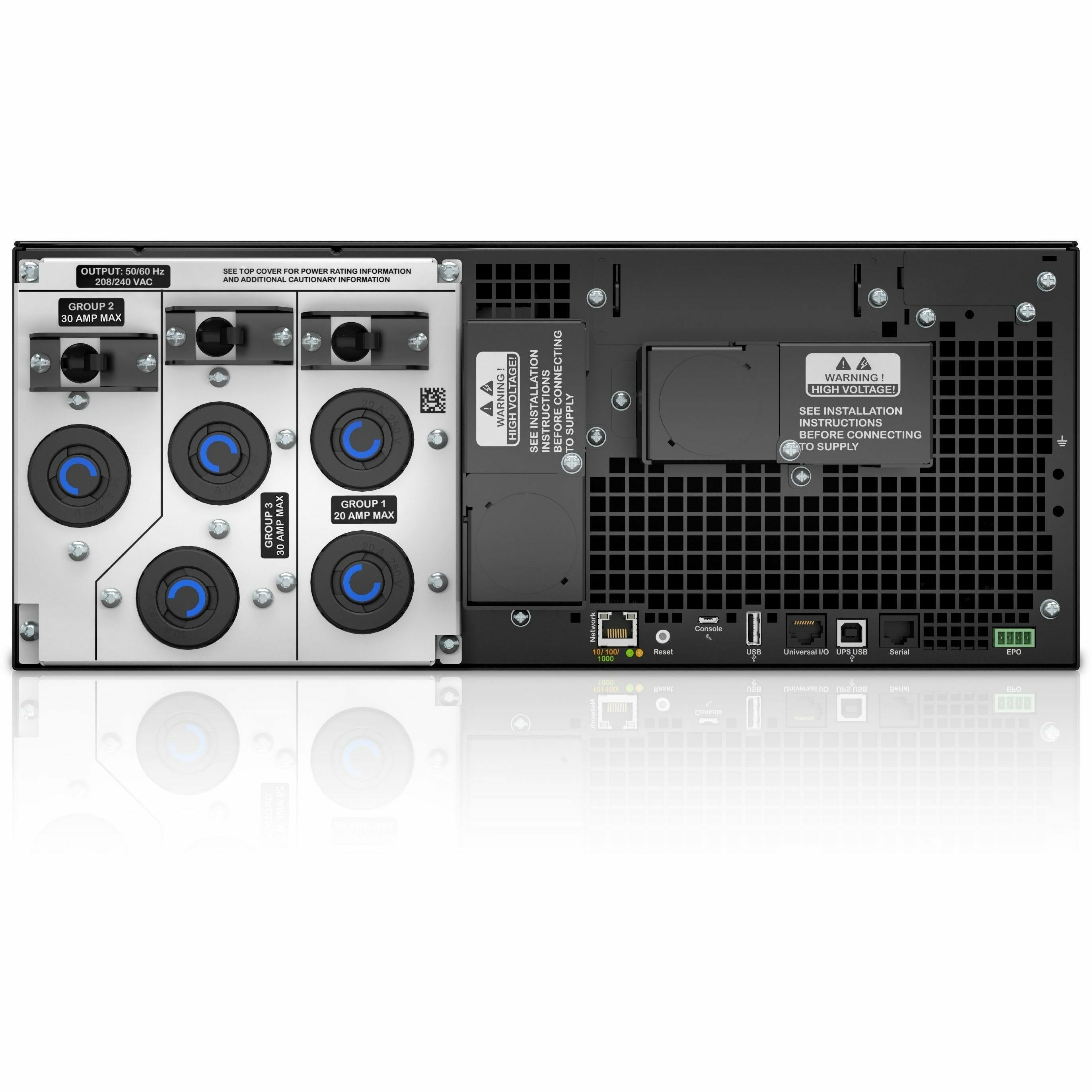

Receptacle Type
  • NEMA L6-20R
  • NEMA L6-30R
Receptacle Detail
  • 1 x Hard Wire 3-wire (2PH + G)
  • 2 x NEMA L6-20R
  • 3 x NEMA L6-30R
Number of Battery & Surge Outlets5
Power Description
Load Capacity (VA)6 kVA
Load Capacity (Watt)6 kW
Input Voltage208 V
Output Voltage208 V AC
Waveform TypeSine Wave
Surge Energy Rating480 J
Battery Information
Battery ChemistryLead Acid
Backup/Run Time (Full Load)2 Minute
Typical Battery Recharge Time1.50 Hour
Physical Characteristics
Color FamilyBlack
Product ColorBlack
Height6.85" (174 mm)
Width17.01" (432 mm)
Depth28.31" (719 mm)
Rack Height4U
Form FactorRack-mountable
Mounting PreferenceLower
Mounting LocationFront
Weight (Approximate)134.99 lb (61230.43 g)
Miscellaneous
For Country/RegionUnited States
Package Contents
  • Smart-UPS SRT 6000VA RM 208V
  • CD with software
  • Documentation CD
  • Installation guide
  • Rack mounting brackets
  • Rack mounting hardware
  • Rack mounting support rails
  • Temperature probe
  • USB cable
  • Warranty card
  • Web/SNMP management card
  • Certifications & StandardsENERGY STAR V2.0 (USA)|FCC part 15 class A|NOM|UL 1778
    Energy StarYes
    Optimized Energy EfficiencyYes
    Product Take Back ProgramYes
    RoHS Exemption Informationhttps://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT6KRMXLT_ROHS_DECLARATION&p_FileName=SRT6KRMXLTKIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433135492&lang=en-us
    EU RoHS Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433135492&lang=en-us
    Environmental Profile Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN
    End of Life Manual Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN
    California Proposition 65 WarningWARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Energy Star URLhttps://www.energystar.gov/products/uninterruptible_power_supplies
    REACH free of SVHCNo
    Environmentally FriendlyYes
    Environmental ComplianceRestriction of Hazardous Substances (RoHS)
    ConditionNo
    UPC0731304308522
    Warranty
    Limited Warranty3 Year
    Additional Warranty Information3 years repair or replace (excluding battery) and 2 years for battery
