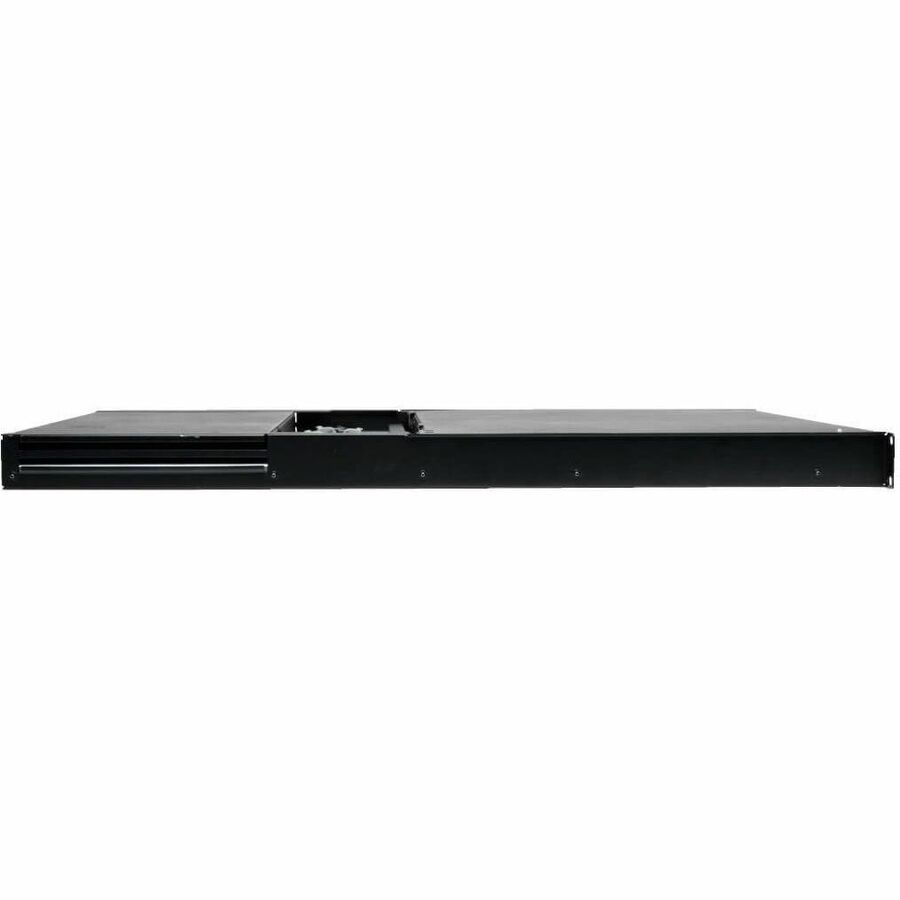

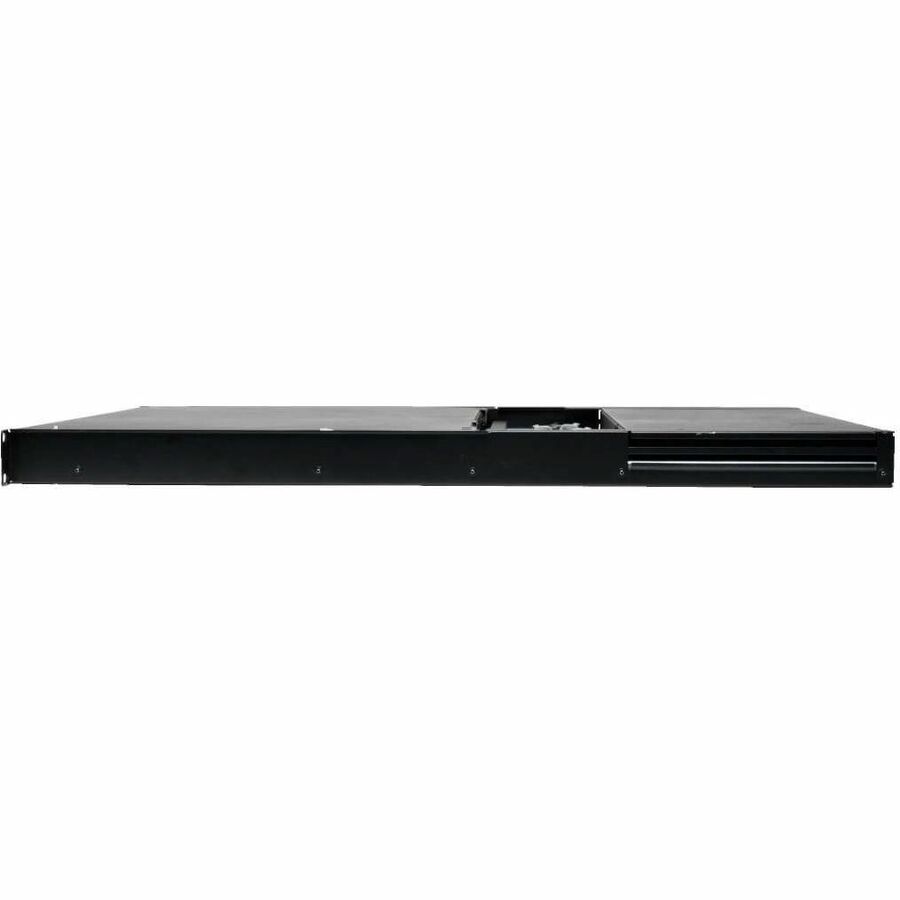

Tripp Lite by Eaton 8-Port, 1+1 User NetCommander Cat5 IP Console KVM Switch

Part No. B070-008-19-IP

by Eaton Corporation

Tripp Lite by Eaton 8-Port, 1+1 User NetCommander Cat5 IP Console KVM Switch

8 Computer(s) - 19" LCD - 1366 x 768 - 12 x Network (RJ-45) - 1 x USB - Keyboard120 V AC, 230 V AC Input Voltage - 1U High

Part No. B070-008-19-IP

by Eaton Corporation

$2255.99
General Information
ManufacturerEaton Corporation
Manufacturer Part NumberB070-008-19-IP
Brand NameTripp Lite by Eaton
Product LineNetCommander
Product ModelB070-008-19-IP
Product Name8-Port, 1+1 User NetCommander Cat5 IP Console KVM Switch
Marketing InformationTripp Lite's B070-008-19-IP KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the optimal solution for controlling up to 8 computers/servers locally, from across the room, down the street or halfway around the globe on a LAN, WAN or Internet.The B070-008-19-IP uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units so you can control computers/servers located up to 100 ft. away from the switch. This switch features two 10/100 Mbps LAN ports, so if one fails, the other takes over, keeping remote access uninterrupted. Users can switch easily between the 8 ports using an on-screen display (OSD). Multi-level password protection prohibits unauthorized users from accessing the connected computers, and a local user and a remote user can be logged on simultaneously. The built-in 19" LCD screen supports video resolutions up to 1366 x 768.Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; you can assign individual ports to an IP PDU port to power on/off the server connected to that port. The B070-008-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with both Windows and Linux operating systems, and provides remote access using a Windows computer. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Free NetCommander-AXS Management Software is available for access and control of all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDU's, and manage KVM settings. This software can be found on the model support page of the B070-008-19-IP, or via searching NetCommander-AXS on www.tripplite.com
Product TypeLCD Rack Console
Technical Information
KVM SwitchYes
KVM TechnologyDigital
Number of Computers Supported8
Device TypeLCD Rack Console
Display & Graphics
Screen Size19"
Display Screen TypeLCD
Screen Resolution1366 x 768
Input Devices
KeyboardYes
Interfaces/Ports
Network (RJ-45)Yes
USBYes
Number of Network (RJ-45) Ports12
Number of USB Ports1
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Physical Characteristics
Color FamilyBlack
Product ColorBlack
Rack Height1U
Height1.71" (43.43 mm)
Width17.36" (440.94 mm)
Depth28.43" (722.12 mm)
Weight (Approximate)28.66 lb (12999.96 g)
Miscellaneous
Package Contents
  • 8-Port, 1+1 User NetCommander Cat5 IP Console KVM Switch

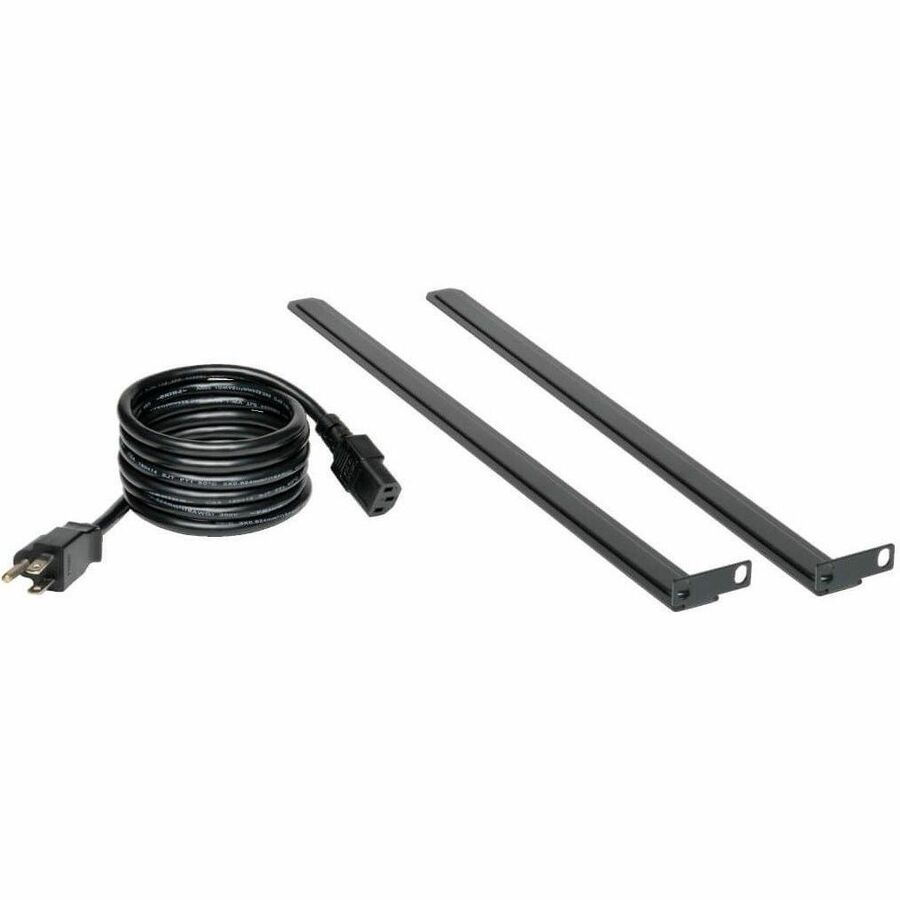

  • Power Cord
  • Rackmount Hardware
  • Owners Manual CD
  • Quick Start Guide
Certifications & Standards
  • UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
  • TAA Compliant for GSA Schedule Purchases
Environmentally FriendlyYes
Country of OriginTaiwan
TAA CompliantYes
ConditionNo
Warranty
Limited Warranty1 Year
