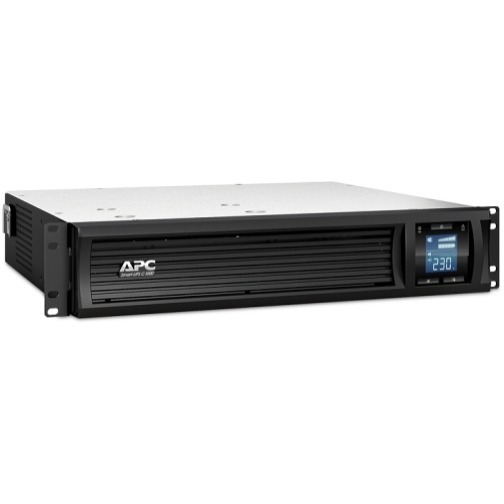

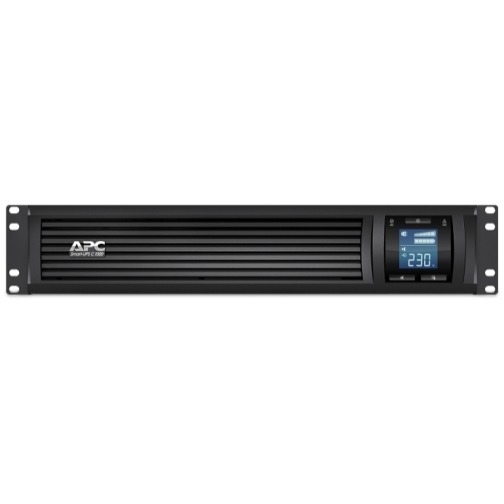

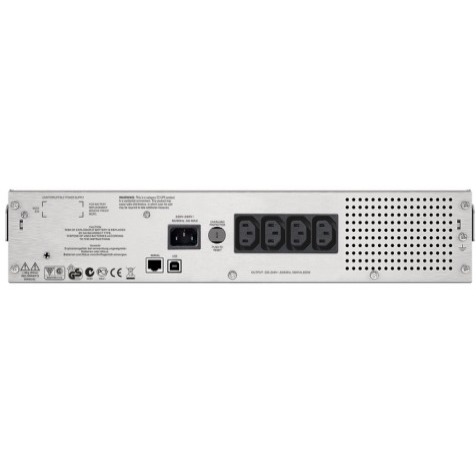

APC by Schneider Electric Smart-UPS C 1000VA 2U Rack Mountable LCD 230V

Part No. SMC1000I-2U

by Schneider Electric SA

APC by Schneider Electric Smart-UPS C 1000VA 2U Rack Mountable LCD 230V

2U Rack-mountable - 3 Hour Recharge - 6 Minute Stand-by - 230 V AC Output - Sine Wave - Serial Port - USB - 6 x Battery/Surge Outlet

Part No. SMC1000I-2U

by Schneider Electric SA

$935.99
General Information
ManufacturerSchneider Electric SA
Manufacturer Part NumberSMC1000I-2U
Brand NameAPC by Schneider Electric
Product LineSmart-UPS
Product SeriesSMC
Product NameSmart-UPS C 1000VA 2U Rack Mountable LCD 230V
Marketing Information

Over 20 million units sold - the UPS you can trust
Smart-UPS™ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.

Packaged Quantity1 Each
Product TypeLine-interactive UPS
Technical Information
Number of Battery & Surge Outlets6
Protection Type
  • Surge
  • Spike
  • Lightning
Power Description
Load Capacity (VA)1 kVA
Load Capacity (Watt)600 W
Output Voltage230 V AC
Waveform TypeSine Wave
Circuit BreakerYes
Management
Alarm
  • On Battery
  • Low Battery
  • Configurable Delay
  • Battery Failure
Controls/Indicators
Status Indicators
  • LCD Status Moniter
  • LED Indicator
Interfaces/Ports
Serial PortYes
USBYes
Battery Information
Number of Batteries1
Battery CharacteristicsSpill-proof, Maintenance-free
Battery ChemistryLead Acid
Backup/Run Time (Full Load)6 Minute
Backup/Run Time (Half Load)11 Minute
Typical Battery Recharge Time3 Hour
Hot SwappableYes
Environmental Conditions
Maximum Operating Temperature113°F (45°C)
Sound Emission (A-Weighted)42 dB(A)
Thermal Dissipation46 BTU/h
Physical Characteristics
Color FamilyBlack
Product ColorBlack
Height3.50" (89 mm)
Width17.01" (432 mm)
Depth15.98" (406 mm)
Rack Height2U
Form FactorRack-mountable
Weight (Approximate)45.24 lb (20520 g)
Miscellaneous
Package Contents
  • Smart-UPS C 1000VA 2U Rack Mountable LCD 230V
  • CD with software
  • Documentation CD
  • Installation guide
  • Rack mounting brackets
  • USB cable
  • Environmentally FriendlyYes
    ConditionNo
    UPC0731304303695
    Warranty
    Limited Warranty2 Year
