Tripp Lite by Eaton KVM Switch - 8-Port NetDirector 1U Rackmount IP KVM Switch

Part No. B022-U08-IP

by Eaton Corporation

Tripp Lite by Eaton KVM Switch - 8-Port NetDirector 1U Rackmount IP KVM Switch

8 Computer(s) - 1 Local User(s) - 64 Remote User(s) - 2048 x 1536 - 1 x Network (RJ-45) - 1 x USB - 1U - Rack-mountable

Part No. B022-U08-IP

by Eaton Corporation

$1275.99
General Information
ManufacturerEaton Corporation
Manufacturer Part NumberB022-U08-IP
Brand NameTripp Lite by Eaton
Product LineNetDirector
Product NameKVM Switch - 8-Port NetDirector 1U Rackmount IP KVM Switch
Marketing InformationThe B022-U08-IP NetDirector IP KVM Switch allows secure access to multiple computers from a single KVM (keyboard, monitor and mouse) console. A single KVM can directly control up to 8 computers. Built-in IP access allows the B022-U08-IP to be accessed from any computer on the LAN, WAN or Internet, whether that computer is located down the hall or halfway around the world. Simply log on via web browser using the Windows- and Java-based browser clients; or, access the KVM without a browser using the included Windows- and Java-based non-browser applications. Remote authentication is also supported via RADIUS and LDAP/S.A full-screen graphical OSD with multi-level authentication (Super Administrator, Administrator and User) allows you to quickly and efficiently manage your installation, and can be displayed in English, Spanish, French, German, and Japanese. Critical events on the installation can be tracked via the Log in the web interface, or the included Windows-based Log Server can be installed for more robust tracking. Once a remote session is initiated, you will be able to control the connected computers as if they were physically connected to your keyboard, monitor, and mouse. You can manually switch between computers using keyboard hotkeys, the remote session toolbar, or the KVM's OSD interface; or, you can automatically scan through each port using Auto Scan or Panel Array modes. Constructed of heavy-duty steel housing. The B022-U08-IP includes two 6-ft Tripp Lite USB/PS2 combo KVM cable kits. All other cable kits can be ordered separately.
Product TypeKM Switchbox
Technical Information
KVM TechnologyDigital
Number of Computers Supported8
Number of Local Users Supported1
Number of Remote Users Supported64
Minimum Scan Interval1 Second
Video
Graphic ModeQXGA
Maximum Video Resolution2048 x 1536
Interfaces/Ports
Network (RJ-45)Yes
USBYes
Number of Network (RJ-45) Ports1
Number of USB Ports1
Physical Characteristics
Color FamilyBlack
Product ColorBlack
Form FactorRack-mountable
Rack Height1U
Height1.73" (43.94 mm)
Width17" (431.80 mm)
Depth6" (152.40 mm)
Weight (Approximate)6.10 lb (2766.91 g)
Miscellaneous

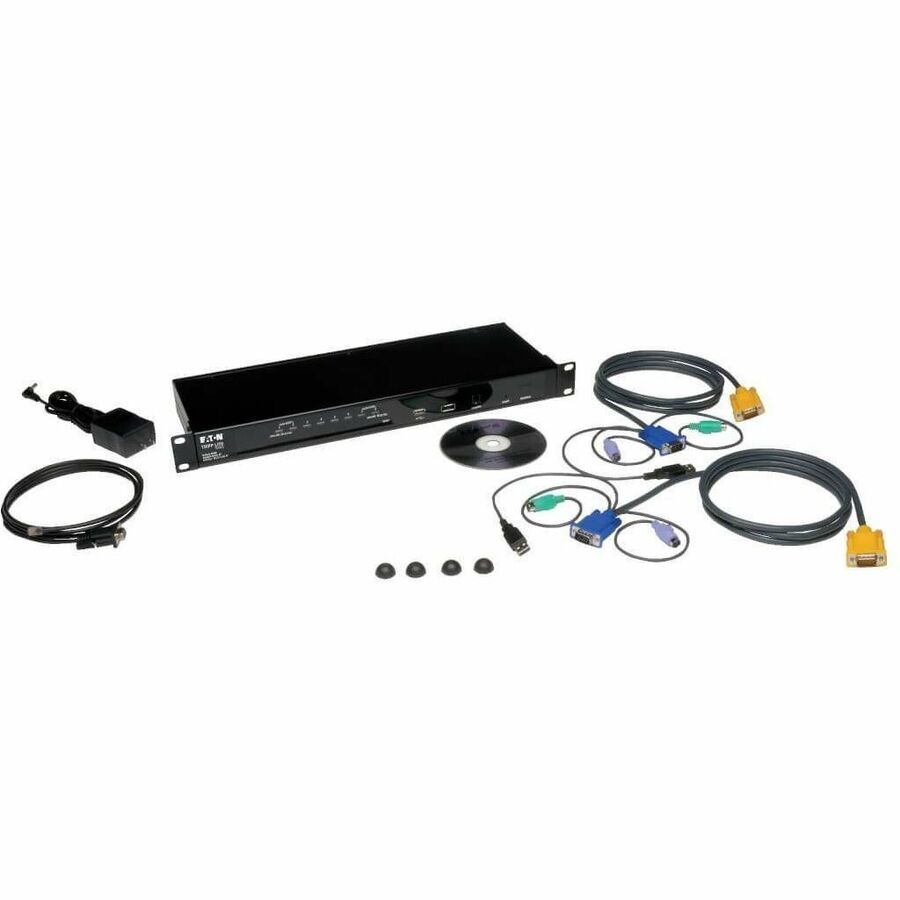

Package Contents
  • KVM Switch - 8-Port NetDirector 1U Rackmount IP KVM Switch
  • 2 x 6 ft. USB/PS2 Combo KVM Cable Kits
  • USB/PS2 Combo Console Cable Kit
  • RJ11 to DB9 Firmware Upgrade Cable
  • Rackmount Hardware
  • External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5.3V, 2.4A)
  • Rubber Feet
  • CD with Owner's Manual and Device Files
  • Quick Start Guide
Platform SupportedPC
Certifications & Standards
  • CE
  • FCC
  • UL
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Country of OriginTaiwan
TAA CompliantYes
ConditionNo
UPC0037332177049
Warranty
Limited Warranty3 Year
