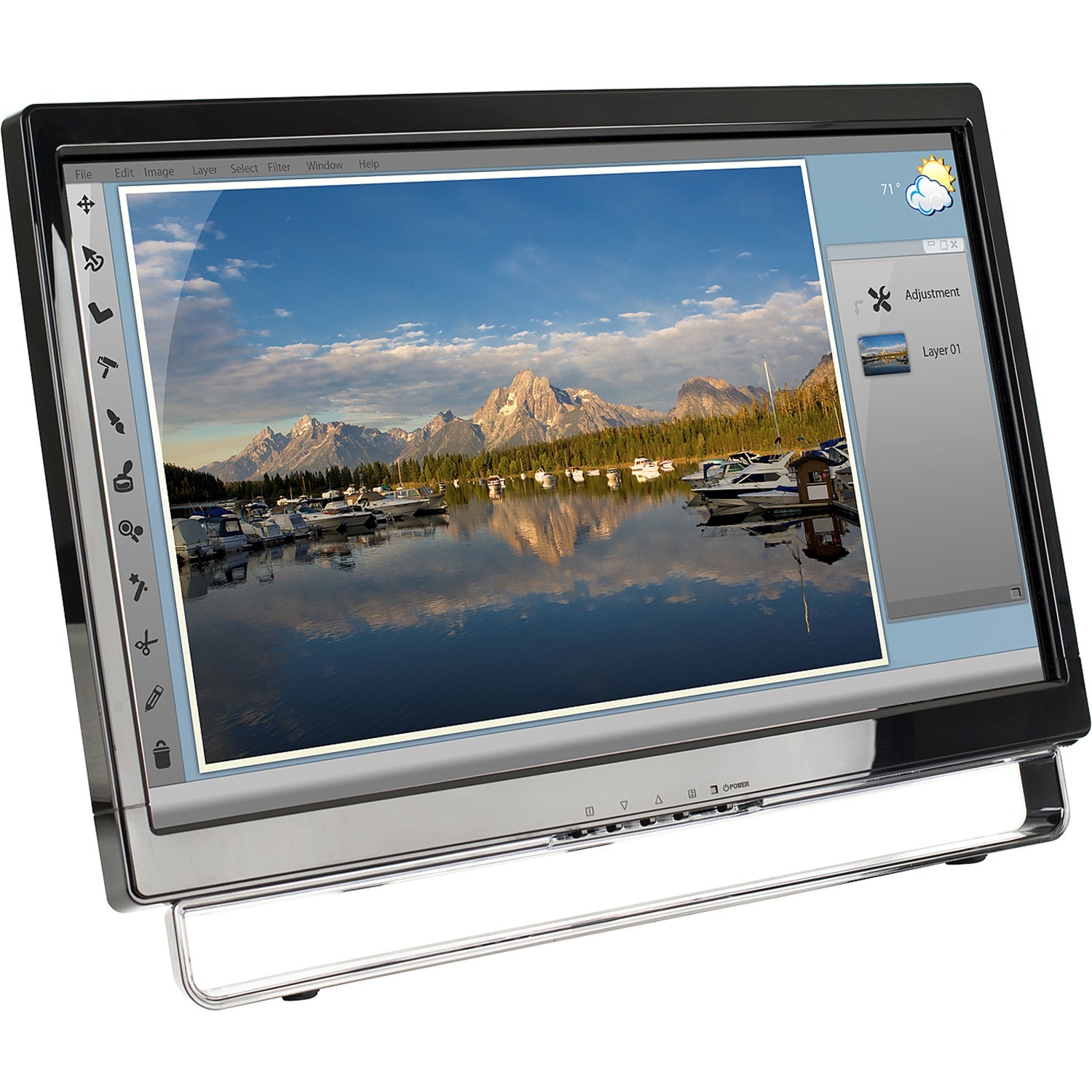

Planar PXL2230MW 22" Class LCD Touchscreen Monitor - 16:9 - 5 ms
22" Viewable - Optical - Multi-touch Screen - 1920 x 1080 - Full HD - Thin Film Transistor (TFT) - Adjustable Display Angle - 16.7 Million Colors - 1,000:1 - 250 cd/m² - Edge LED Backlight - Speakers - DVI - HDMI - USB - VGA - 3 Year
$478.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Leyard |
| Manufacturer Part Number | 997-7039-00 |
| Brand Name | Planar |
| Product Model | PXL2230MW |
| Product Name | PXL2230MW Touchscreen LCD Monitor |
| Marketing Information | The PXL2230MW 22" widescreen multi touch LCD monitor is optimized for consumer multimedia applications. Designed for only Microsoft Windows® 7, the monThe PXL2230MW 22" multi touch full HD widescreen edge-lit LED LCD is optimized for consumer multimedia applications. Designed for Microsoft Windows® 7, the monitor features an optical multi touch screen (USB interface). The PXL2230MW offers VGA, DVI-D and HDMI video inputs for flexible monitor setup and integrated speakers. The thin black bezel makes the PXL2230MW ideal for multiple monitor applications. |
| Product Type | LCD Touchscreen Monitor |
Technical Information
| Screen Size Class | 22" |
| Viewable Screen Size | 22" |
| Screen Mode | Full HD |
| Panel Technology | Thin Film Transistor (TFT) |
| Response Time | 5 ms |
| Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 160° |
| Adjustable Display Angle | Yes |
| Backlight Technology | Edge LED |
| HDCP Supported | Yes |
| Features | OSD/Power Lock |
Video
| Maximum Resolution | 1920 x 1080 |
| Standard Refresh Rate | 60 Hz |
| Color Supported | 16.7 Million Colors |
| Contrast Ratio | 1,000:1 |
| Native Contrast Ratio | 1,000:1 |
| Brightness | 250 cd/m² |
Audio
| Speakers | Yes |
Touchscreen Information
| Touchscreen | Yes |
| Touchscreen Type | Optical |
| Multi-touch Screen | Yes |
Interfaces/Ports
| DVI | Yes |
| HDMI | Yes |
| USB | Yes |
| VGA | Yes |
Power Description
| Input Voltage |
|
Physical Characteristics
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Height | 12.90" (327.66 mm) |
| Width | 20.30" (515.62 mm) |
| Depth | 2.80" (71.12 mm) |
| Height with Stand | 14.70" (373.38 mm) |
| Width with Stand | 20.30" (515.62 mm) |
| Depth with Stand | 4.90" (124.46 mm) |
| Weight (Approximate) | 9.90 lb (4490.56 g) |
Miscellaneous
| Package Contents |
|
| Certifications & Standards |
|
| Platform Supported | PC |
| Energy Star | No |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Condition | No |
| UPC | 810689070399 |
Warranty
| Limited Warranty | 3 Year |
