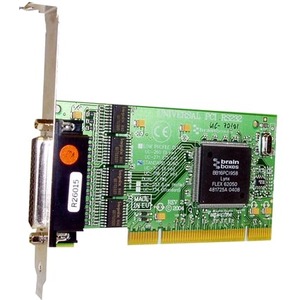

Brainboxes 4 Port RS232 PCI Serial Card DB9
PCI - 4 x DB-9 RS-232 - Serial - TAA Compliant
$519.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | UC-701 |
| Brand Name | Brainboxes |
| Product Name | 4 Port RS232 PCI Serial Card DB9 |
| Marketing Information | Universal PCI providing four RS232 serial ports with 4x9Pin connector cable. Data transfer rates up to 115,200 baud rates and the 64 byte deep transmit and 64 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC.Includes drivers for all Windows 32 bit and 64 bit Operating Systems, including Windows 8. |
| Product Type | Multiport Serial Adapter |
Technical Information
| Host Interface | PCI |
| Maximum Data Transfer Rate | 921.60 kbit/s |
| Platform Supported | PC |
Interfaces/Ports
| Ports Expandability | 4 x DB-9 RS-232 - Serial |
Physical Characteristics
| Form Factor | Plug-in Card |
| Height | 4.72" (120 mm) |
| Width | 0.71" (18 mm) |
| Thickness | 5.20" (132 mm) |
| Weight (Approximate) | 70 g |
Miscellaneous
| Package Contents |
|
| Country of Origin | United Kingdom |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Condition | No |
Warranty
| Limited Warranty | Lifetime |
