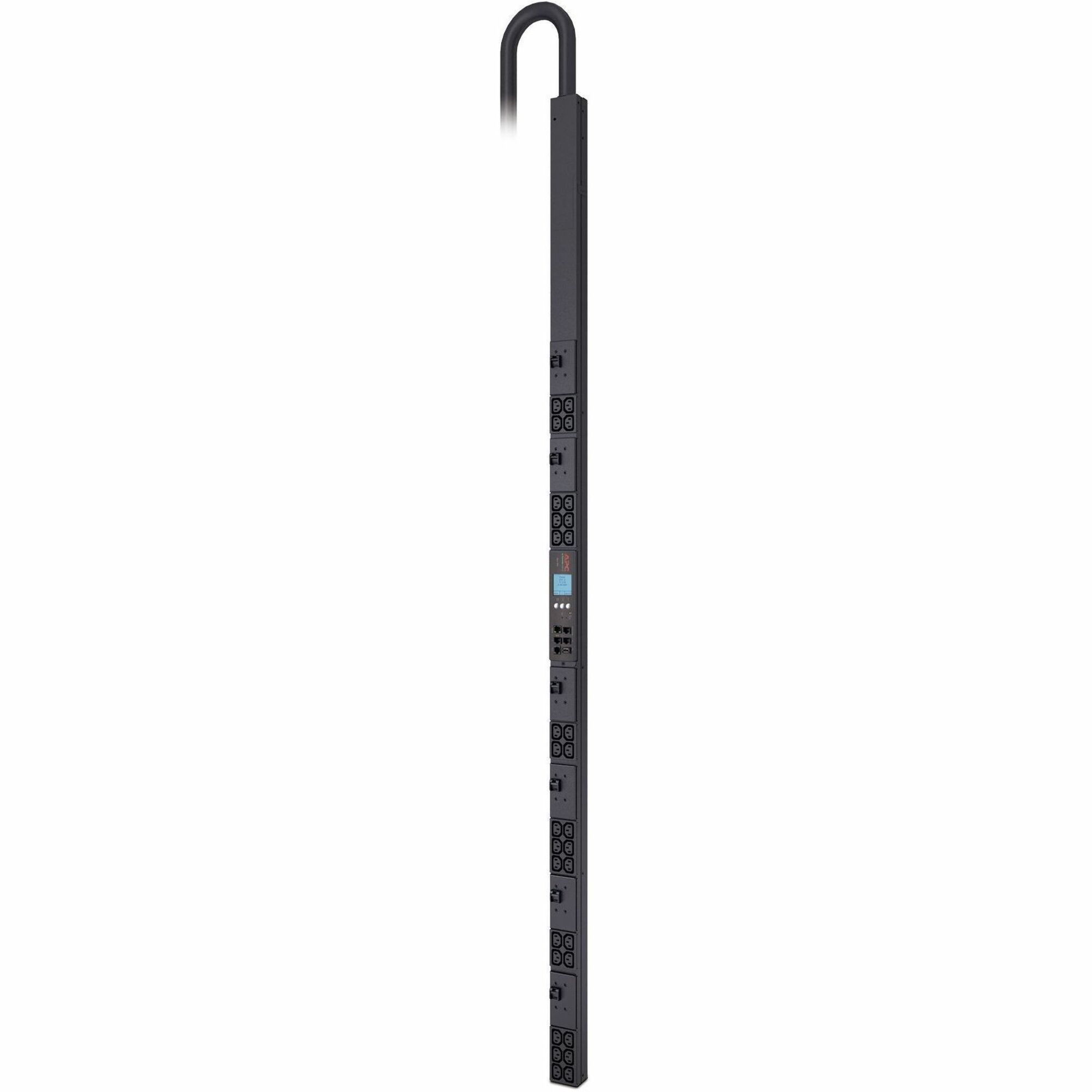

APC by Schneider Electric Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (30) C13
Metered - IEC 60309 60A 3P+PE - 30 x IEC 60320 C13 - 208 V - 17.20 kW - Overload Protection - 6 ft (1.83 m) Cord Length - 0U - Vertical - Rack-mountable - Tower
$3576.99
In Stock Availability
- All Locations: (1+)
- Mississauga, ON (1+)
General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP8867 |
| Brand Name | APC by Schneider Electric |
| Product Line | Metered Rack |
| Product Name | Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (30) C13 |
| Marketing Information | The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8867 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The 0U PDU includes a IEC 60309 60A 3P + PE input plug with 1 83m (6ft) cord and (30) IEC 60320 C13 output receptacles The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxureTM IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty |
| Packaged Quantity | 1 Each |
| Product Type | PDU |
Technical Information
| PDU Type | Metered |
| Plug/Connector Type | IEC 60309 60A 3P+PE |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 30 x IEC 60320 C13 |
| Protection Type | Overload Protection |
Power Description
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 17.20 kVA |
Management
| Management | Protocols:
|
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mounting Preference | No Preference |
| Mount Type | Rack-mountable |
| Placement | Side |
| Form Factor | Tower |
| Rack Height | 0U |
| Number of Cord/Cable | 1 |
| Cord Length | 6 ft (1.83 m) |
| Height | 72.01" (1829 mm) |
| Width | 2.20" (56 mm) |
| Depth | 2.01" (51 mm) |
| Weight (Approximate) | 22.49 lb (10201.29 g) |
Miscellaneous
| For Country/Region | United States |
| Package Contents | |
| Additional Information | Input Connections: IEC 309 60A 3P+PE |
| Certifications & Standards | cUL Listed|UL Listed|VCCI Class A |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| REACH free of SVHC | Yes |
| Mercury Free | Yes |
| Lead Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8867_ROHS_DECLARATION&p_FileName=AP8867KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=323194462&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=323194462&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0731304289913 |
Warranty
| Limited Warranty | 2 Year |
| Additional Warranty Information | 2 years repair or replace |
