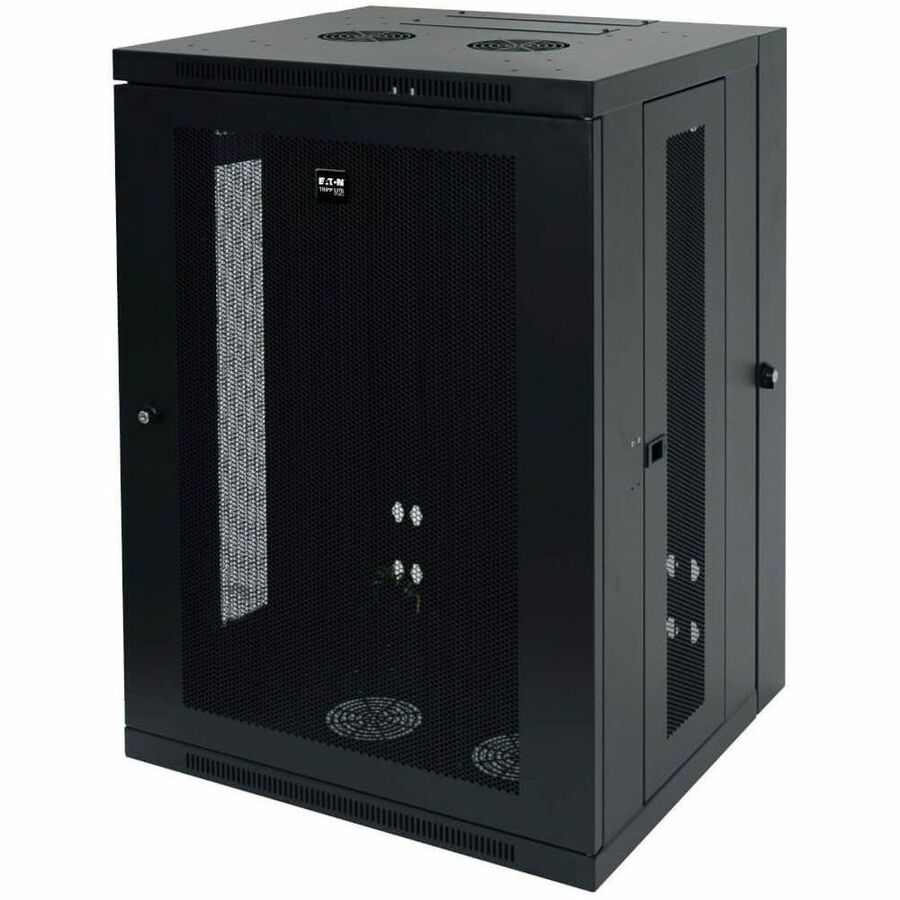

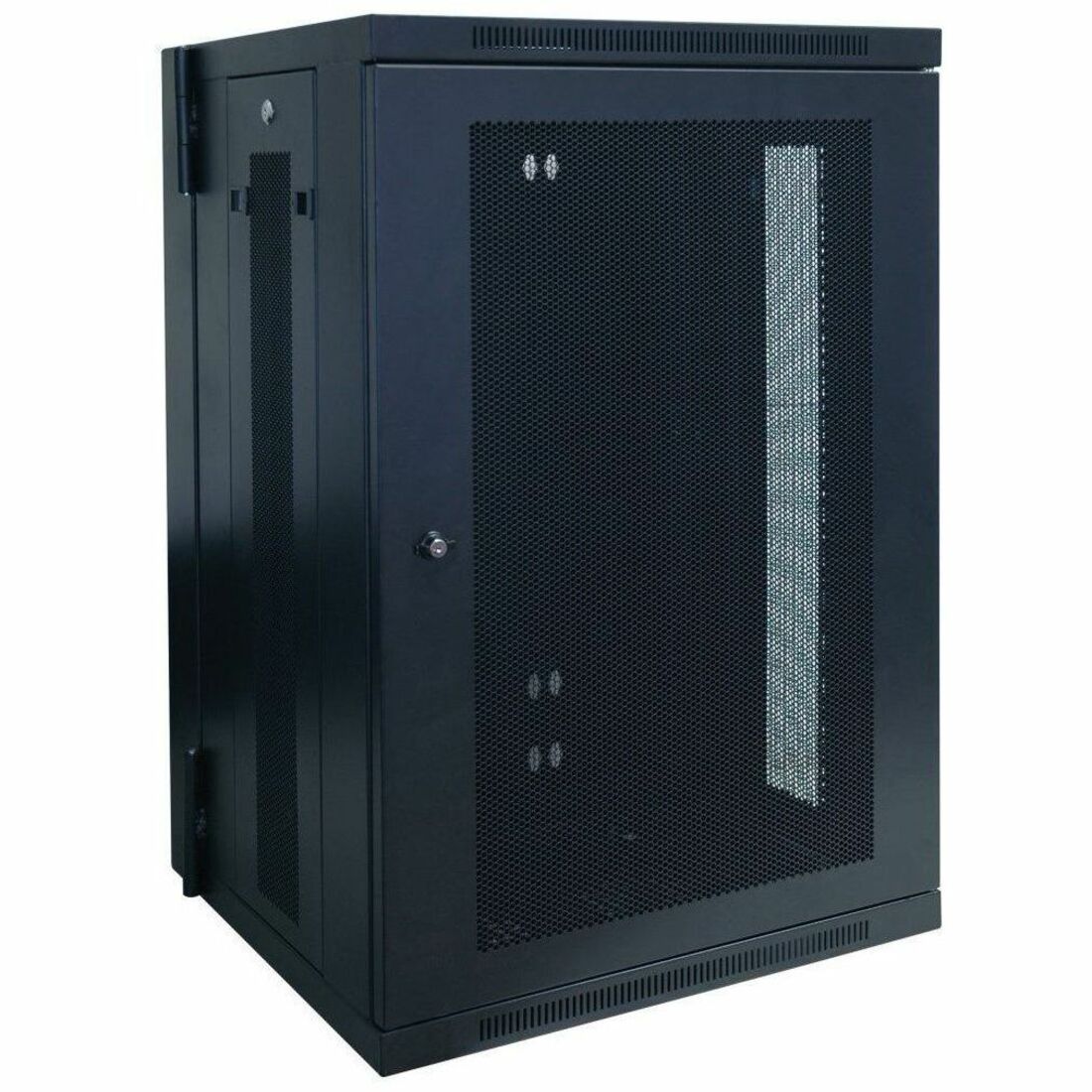

Tripp Lite SRW18US Wall mount Rack Enclosure Server Cabinet
In Stock Availability
- All Locations: (4+)
- Mississauga, ON (4+)
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SRW18US |
| Brand Name | Tripp Lite by Eaton |
| Product Line | SmartRack |
| Product Model | SRW18US |
| Product Name | SRW18US Wall mount Rack Enclosure Server Cabinet |

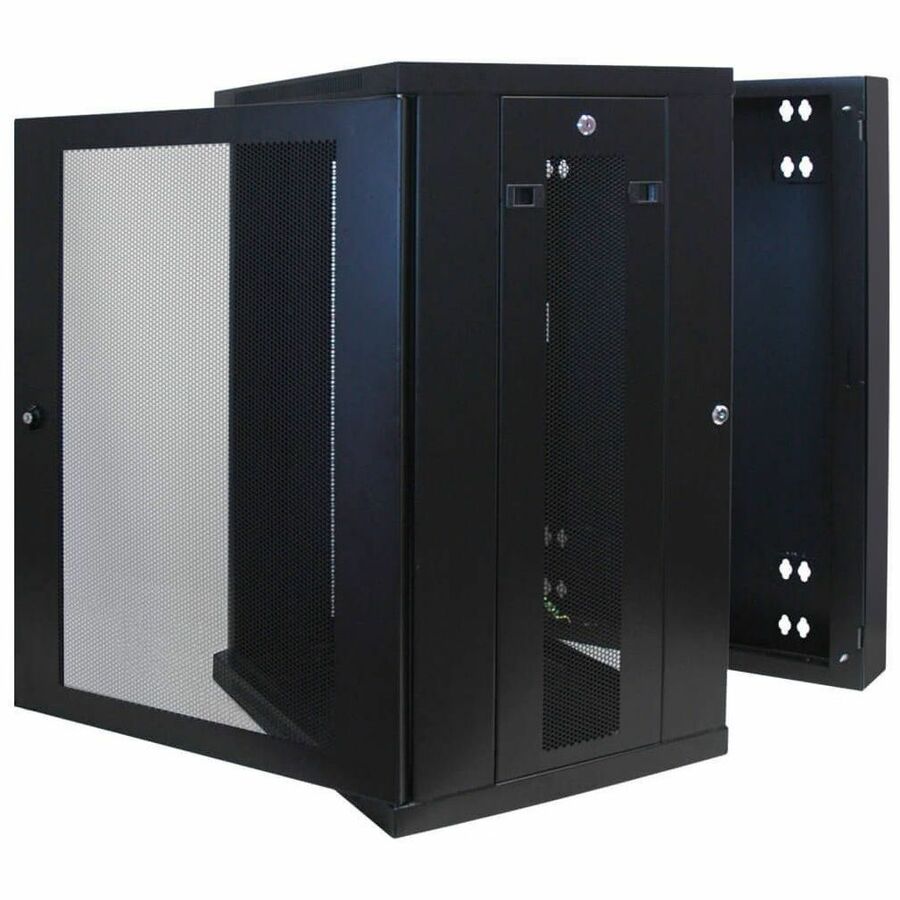

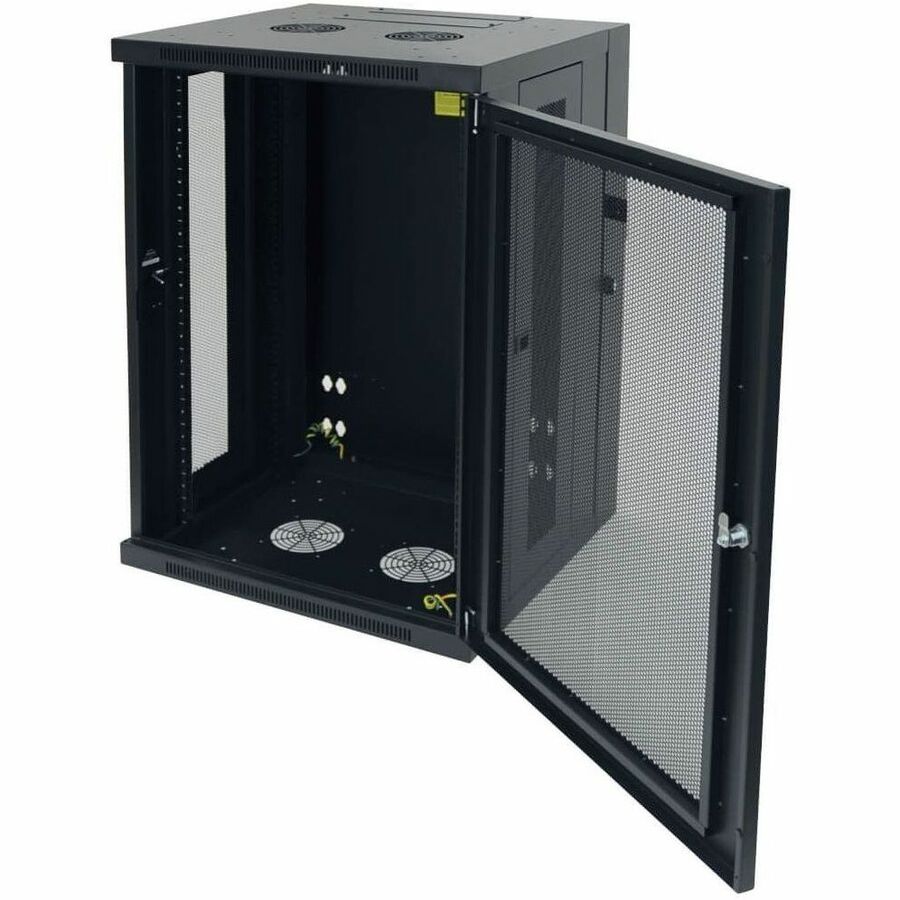

| Marketing Information | The SRW18US SmartRack 18U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds.The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW18US comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels. |
| Product Type | Rack Cabinet |
| Rack Type | Enclosed Cabinet |
| Form Factor | Wall Mountable |
| Color Family | Black |
| Product Color | Black |
| Maximum Weight Capacity | 250 lb (113398.09 g) |
| Static/Stationary Weight Capacity | 250 lb (113398.09 g) |
| Height | 35.60" (904.24 mm) |
| Width | 23.60" (599.44 mm) |
| Depth | 21.60" (548.64 mm) |
| Weight (Approximate) | 98 lb (44452.05 g) |
| Rack Height | 18U |
| Rack Width | 19" (482.60 mm) |
| Additional Information |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0037332154835 |
| Limited Warranty | 5 Year |
