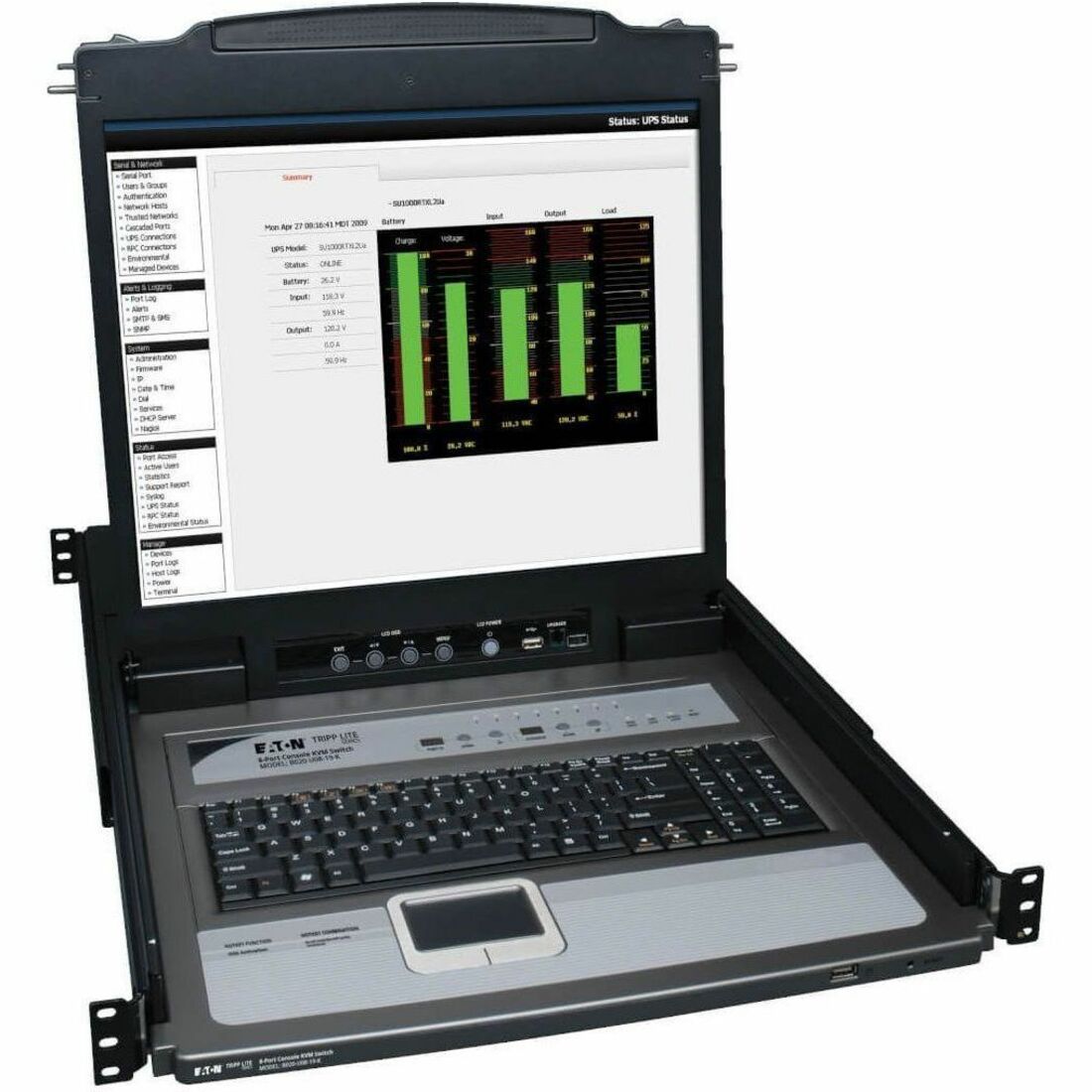

Tripp Lite NetDirector Console RM LCD KVM Switch with 8 Cables - Steel Housing

Part No. B020-U08-19-K

by Eaton Corporation

Tripp Lite NetDirector Console RM LCD KVM Switch with 8 Cables - Steel Housing

8 Computer(s) - 19" - 8 x HD-18 Keyboard/Mouse/Video - 1U Height

Part No. B020-U08-19-K

by Eaton Corporation

$2150.99
General Information
ManufacturerEaton Corporation
Manufacturer Part NumberB020U0819K
Brand NameTripp Lite by Eaton
Product LineNetDirector
Product ModelB020-U08-19-K
Product NameNetDirector B020-U08-19-K Rackmount LCD with KVM
Marketing Information

Tripp Lite's B020-U08-19-K KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the optimal solution for controlling up to 8 computers/servers.The B020-U08-19-K has a built-in 19" LCD screen that supports video resolutions up to 1280 x 1024. You can switch easily between the 8 ports using on-console push buttons, an on-screen display(OSD) or keyboard hot key commands. Multi-level password security can be set up for an administrator and up to 4 local users to ensure only those with authorization can access the connected computers.The eight included P778-series combo cable kits support both PS/2 and USB connections, so no adapters are required. A console cable kit can be plugged into the rear of the unit to allow for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. A USB port on the front of the keyboard lets you connect an external m ouse, plus an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U08-19-K stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.

Product TypeLCD Rack Console
Technical Information
KVM SwitchYes
Number of Computers Supported8
Daisy ChainYes
Device TypeLCD Rack Console
Display & Graphics
Screen Size19"
Display Screen TypeLCD
Screen ModeSXGA
Screen Resolution1280 x 1024
Input Devices
Pointing Device TypeTouchPad
Interfaces/Ports
USBYes
Number of USB Ports2
Physical Characteristics
Height1.75" (44.45 mm)
Width17" (431.80 mm)
Depth27" (685.80 mm)
Weight (Approximate)30.60 lb (13879.93 g)
Miscellaneous
Package Contents
  • NetDirector Console RM LCD KVM Switch
  • 8 x P778-006 6 ft. USB/PS2 Combo KVM Cable Kits
  • RJ11 to DB9 Firmware Upgrade Cable
  • C13 to 5-15P Power Cord
  • CD with Owner's Manual
  • Quick Start Guide
  • Grounding Wire
  • Rackmount Hardware
Certifications & StandardsUL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
Environmentally FriendlyYes
Country of OriginTaiwan
TAA CompliantYes
ConditionNo
UPC0037332150776
Warranty
Limited Warranty1 Year
connector cables (7)
mounting kits (1)
