Tripp Lite 16-Port 1U Rackmount USB/PS2 KVM Switch - Steel Housing

Part No. B042-016

by Eaton Corporation

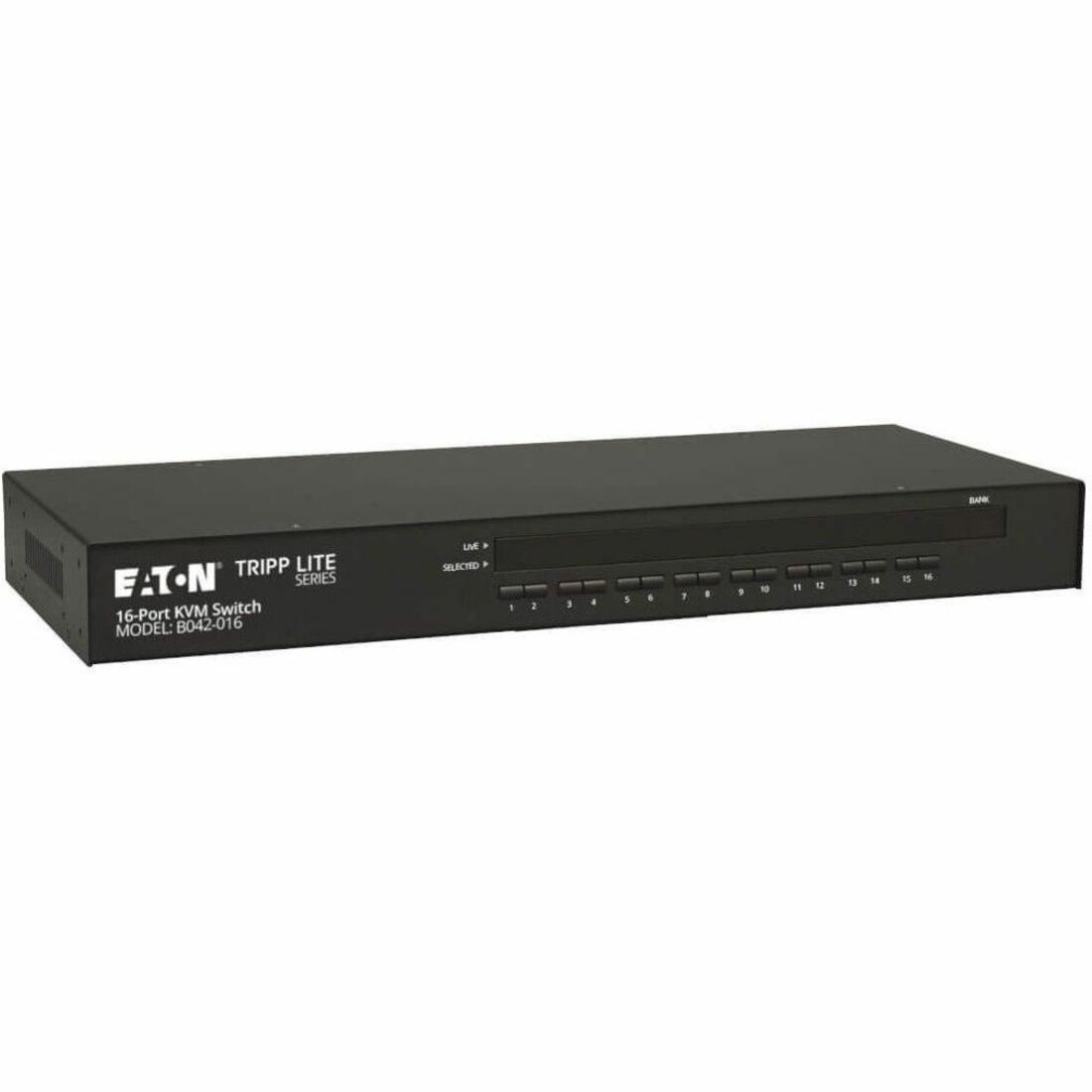

Tripp Lite 16-Port 1U Rackmount USB/PS2 KVM Switch - Steel Housing

16 x 1 - 16 x HD-15 - 1U - Rack-mountable

Part No. B042-016

by Eaton Corporation

$1053.99
General Information
ManufacturerEaton Corporation
Manufacturer Part NumberB042-016
Brand NameTripp Lite by Eaton
Product NameKVM Switch
Marketing Information

Tripp Lite's NetController 16-Port, 1U rackmount KVM Switch is an affordable, highly-flexible enterprise class KVM Switch, which allows the user to connect either USB or PS/2 keyboards and mice. In addition, P780-Series USB/PS2 combo KVM cable kits allow you to connect either USB or PS/2 computers, without the need to purchase separate cables or adapters. Control up to 16 directly connected computers, or expand the number of connected computers to up to 256 by daisychaining up to 15 additional B042-Series KVM switches. Switch between connected computers via the On-Screen Display (OSD), pushbuttons, or keyboard hotkey commands. Other features include: password protection, auto-scanning, auto-logout, firmware upgrade and video support up to 2048 x 1536 (QXGA). Mounts easily in a standard 19" rack/cabinet and includes all necessary mounting hardware. Compatible with all major operating systems. Constructed of heavy-duty steel housing. 3 year limited warranty.

Product TypeKVM Switchbox
Technical Information
Number of Computers Supported16
Daisy Chain SupportedYes
Video
Graphic Mode
  • VGA
  • SVGA
  • QXGA
Maximum Video Resolution2048 x 1536
Interfaces/Ports
PS/2 PortYes
Number of PS/2 Ports1
Power Description
Input Voltage9 V DC
Physical Characteristics
Form FactorRack-mountable
Rack Height1U
Height1.80" (45.72 mm)
Width16.10" (408.94 mm)
Depth6.50" (165.10 mm)
Miscellaneous

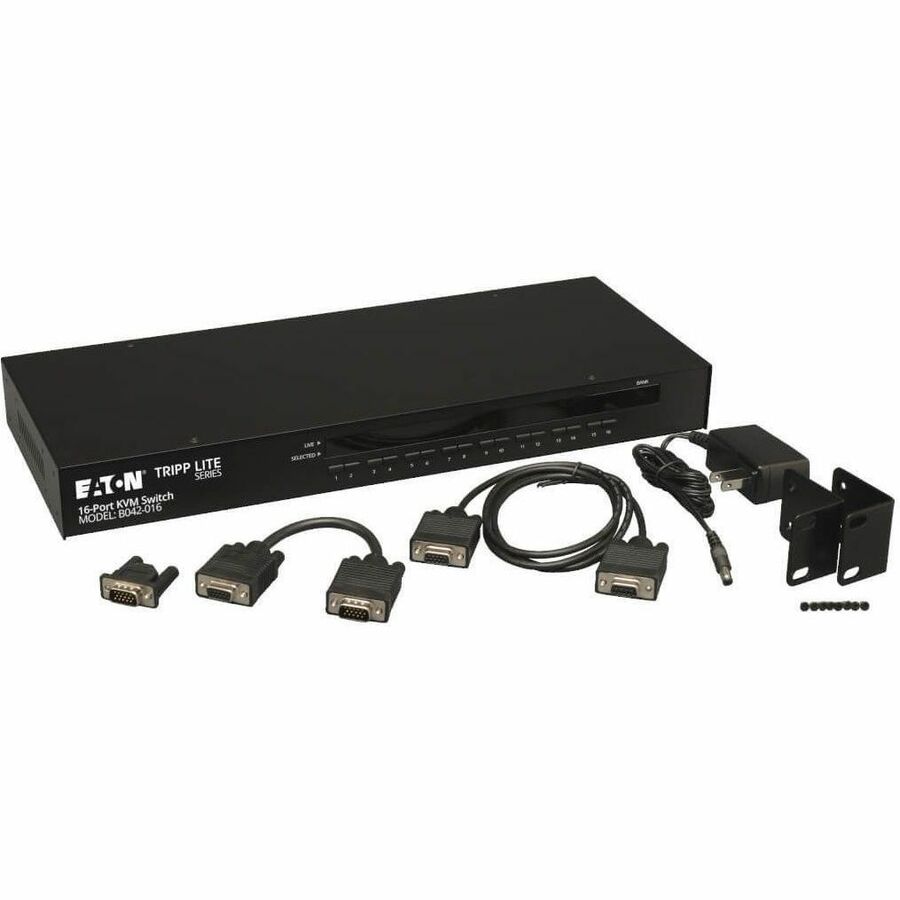

Package Contents
  • KVM Switch
  • External Power Supply
  • Rackmount Hardware
  • 8 In Daisy Chain Cable
  • Daisy Chain Terminator
  • 4 ft HD15 to DB9 Firmware Upgrade Cable
  • CD with Owner's Manual and Quick Start Guide
  • Quick Start Guide
Environmentally FriendlyYes
Country of OriginChina
ConditionNo
UPC0037332141408
Warranty
Limited Warranty3 Year
